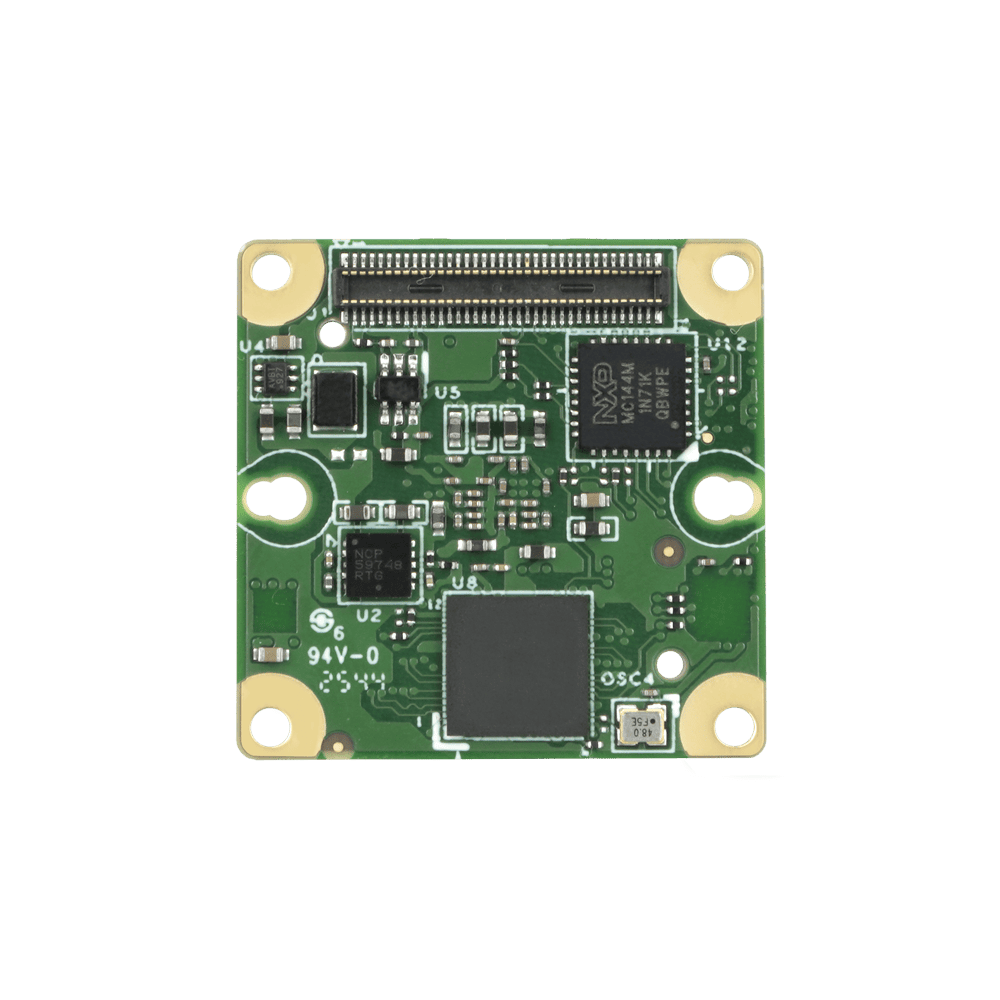

TEVS-AR0246

Specifications

Camera Information

CMOS Sensor	onsemi AR0246
Active Pixels	1920 (H) x 1080 (V) = 2MP
Pixel Size	2.0 μm x 2.0 μm
Illuminated type	Front Side Illuminated (FSI)
Maximum S/N Ratio	39 dB
Input Clock Range	48 MHz
Optical Format	1/4” (Diagonal 4.41 mm)
Shutter Type	Rolling Shutter
Chromaticity	Color
Maximum Frame Rate (YUV422-UYVY)	1920 x 1080 @ 30 fps 1280 x 720 @ 30 fps 640 x 480 @ 30 fps
Output Format	YUV422-UYVY YUV420 RGB888 RGB565 RGB555 JPEG MJPEG(JPG) RAW8 RAW10 RAW12
HDR Support	Yes

Interface

Module Data Transmission	MIPI CSI-2, up to 4 lanes
Communication Interface	I2C
Connector	70 Pin Standardized Connector

Power Specifications

Supply Voltage	Analog: 2.8V I/O: 1.8V Digital: 1.15V & 3.3V
Power Consumption	≤ 628 mW
SW Standby Power	≤ 59 mW Standby
HW Standby Power	≤ 38 mW Standby

Software Support

Platform Support	NVIDIA Jetson AGX Orin NVIDIA Jetson Orin Nano / NX NVIDIA Jetson Xavier NX NVIDIA Jetson Nano NXP i.MX93 / i.MX95 NXP i.MX8M Nano / Mini / Plus TI Sitara™ AM62 / AM62A / AM67 TI Sitara™ AM68 / AM69 TI Jacinto™ TDA4VM / TDA4VH BeagleY®-AI / BeaglePlay® Raspberry Pi 4 / Raspberry Pi 5 ST STM32MP25 Renesas RZ/V2H Intel Alder Lake-N Intel Meteor Lake
Operation Systems	Linux Yocto Android
SDK	VizionViewer™ / VizionSDK

Environmental and Mechanical

Dimensions	24.5(W) x 24.5(H) x 3.8(D) mm
Weight	≤ 3 grams
Operation Temperature	-30°C to +70℃

Certification and Compliance

Certification	Compliant with CE / FCC / RoHS / REACH directives

Commercial Information

Brand	TechNexion
Country of Origin	Taiwan
HTSN	8525.89.5050
ECCN	EAR99
REACH / RoHS	Yes

Platform Support

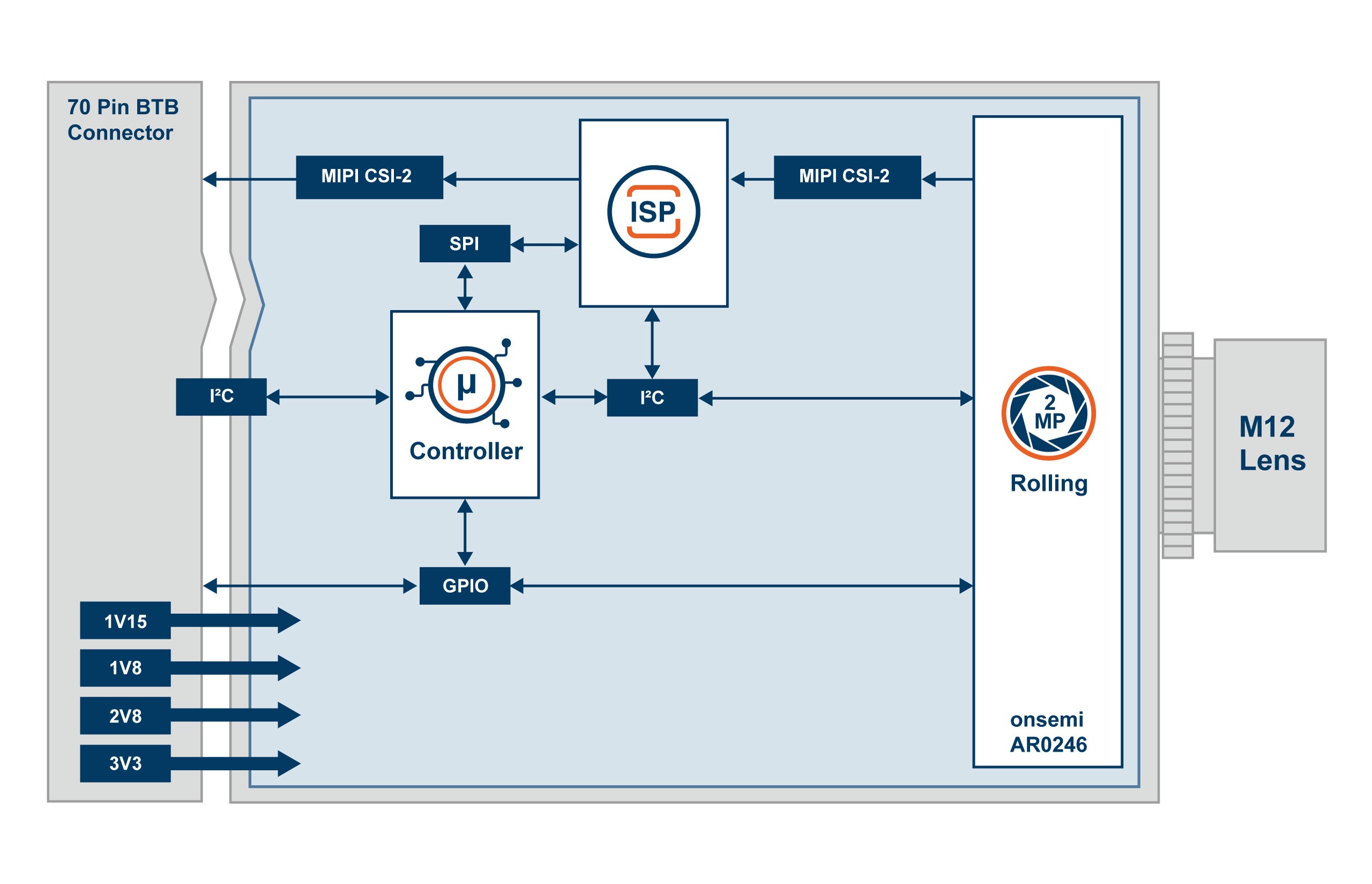

Block Diagram

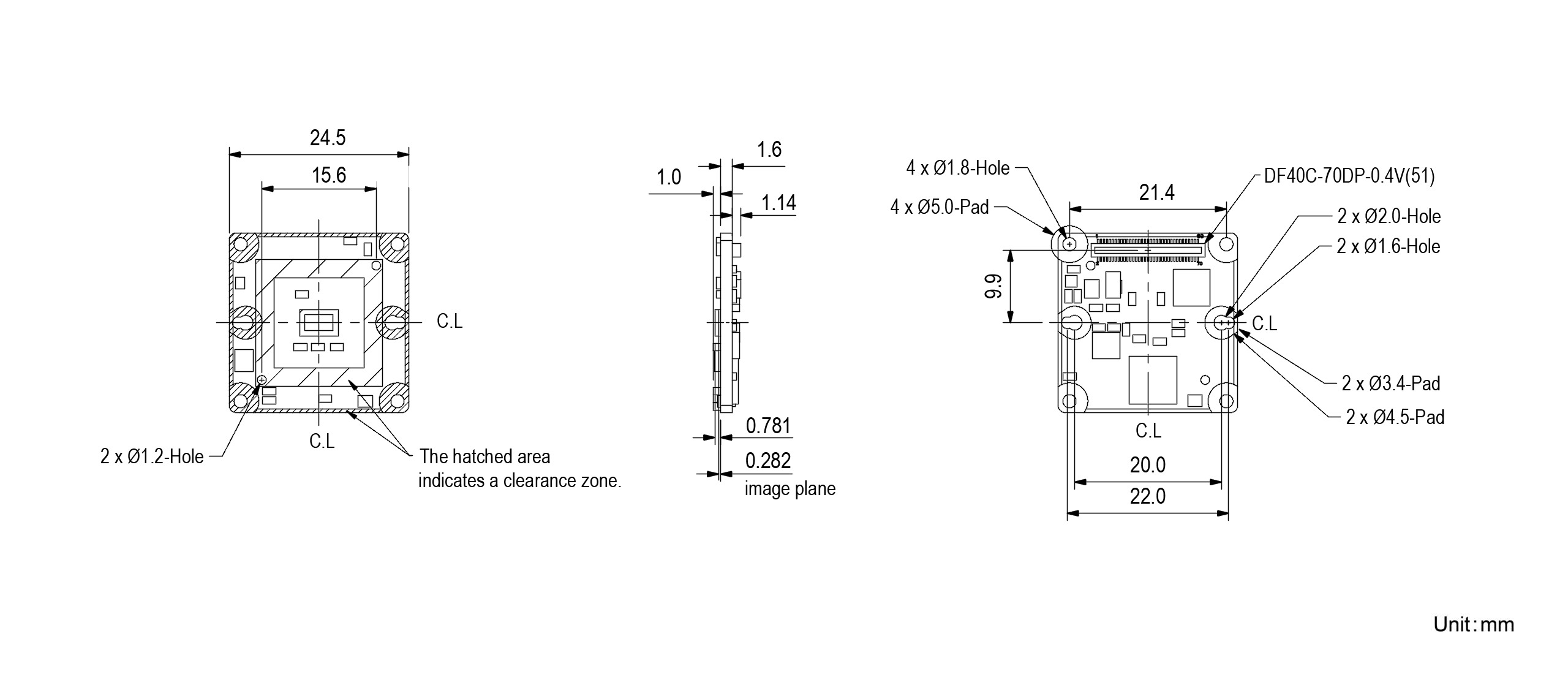

Dimensions

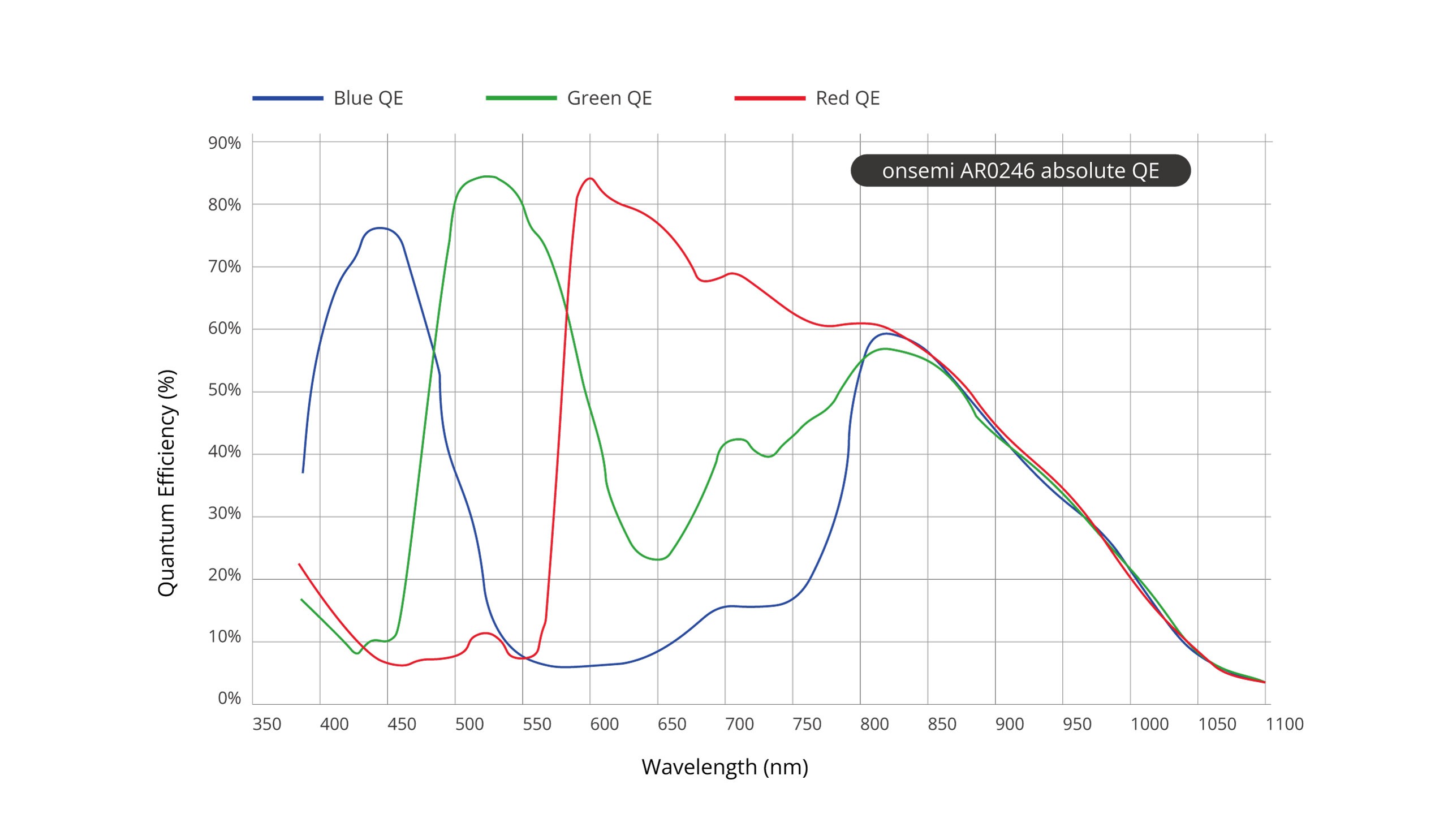

Spectral Characteristics

Part Numbers

Order Information Example:

TEVS-AR0246-C-Sxx-xx-xxx

Option	Code	Description
Chromaticity	C	Color
Lens	-	-

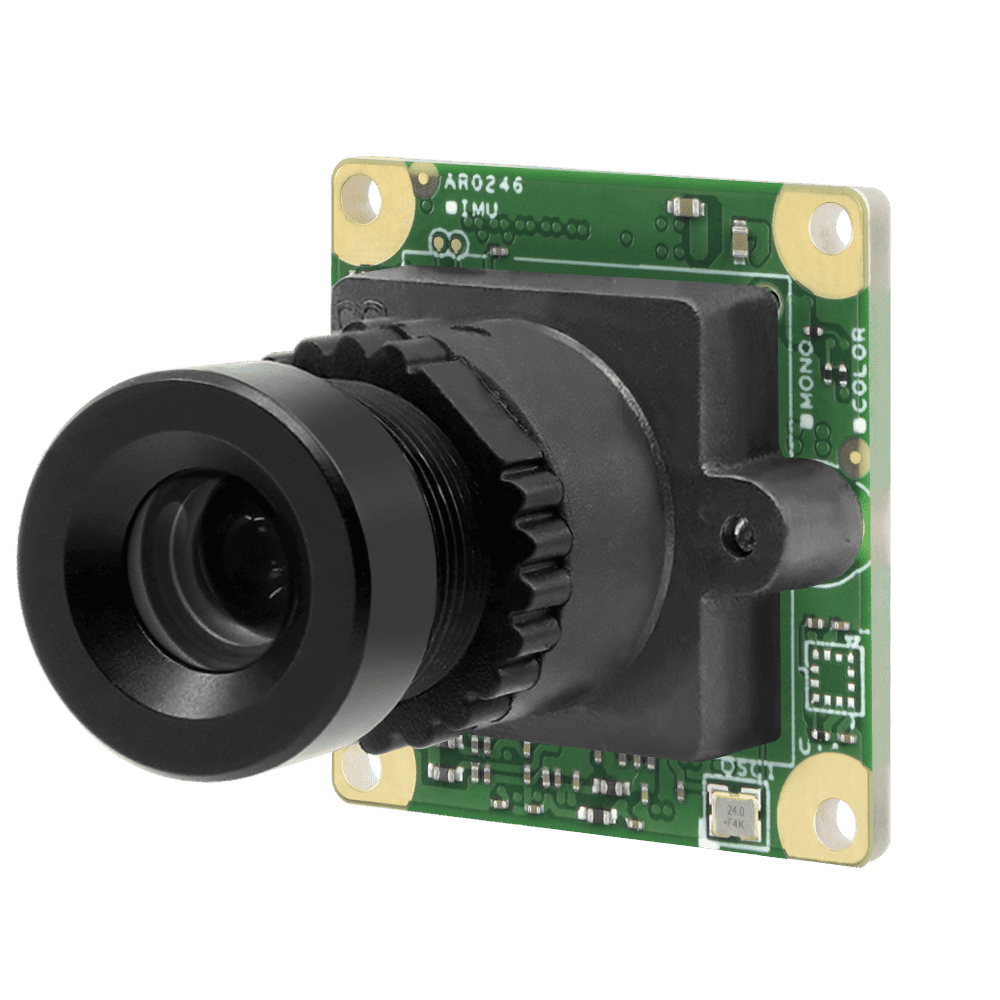

	S33	S-Mount Module D-FOV 33°

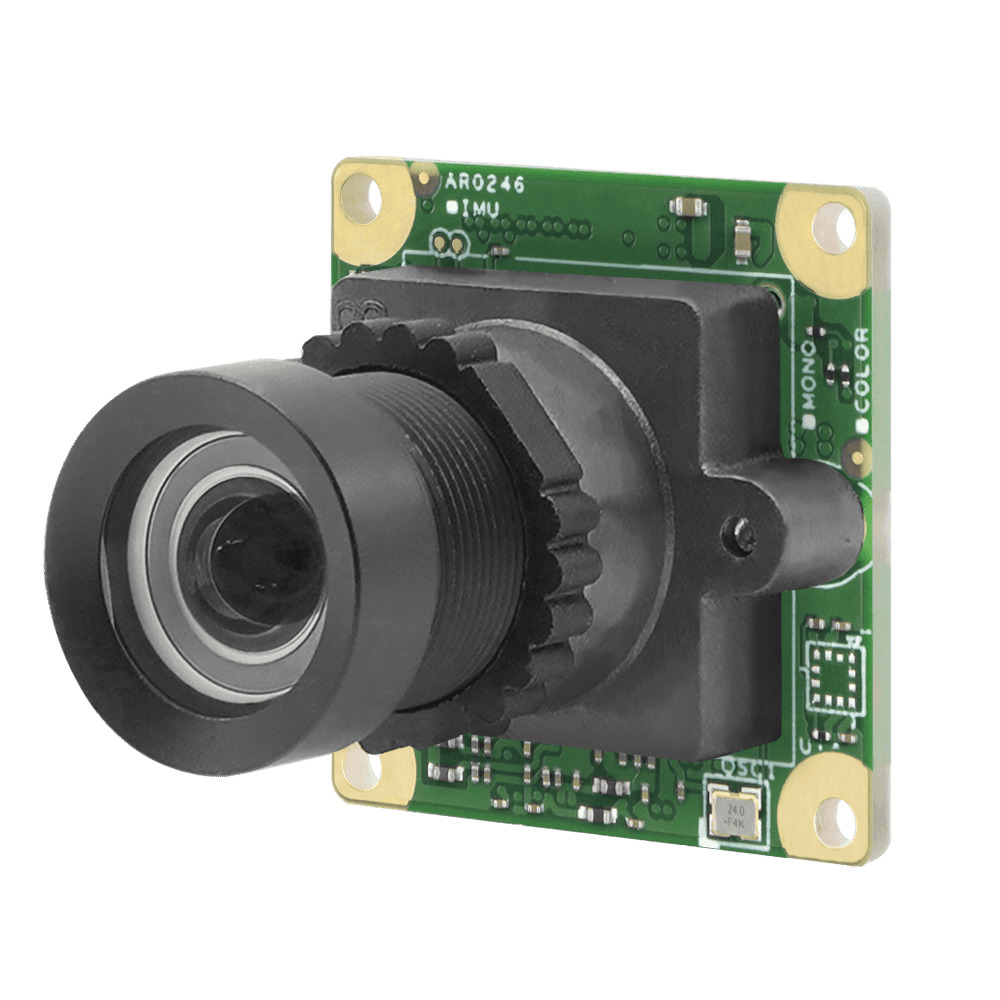

	S83	S-Mount Module D-FOV 83°
	S143	S-Mount Module D-FOV 143°
Filter	-	-
Filter	IR	IR Cut Filter 650nm
Evaluation Kit	-	70 pin Standardized Camera Connector
	EVK	70 pin Standardized Camera Connector with FPC cable
	RPI15	15 pin Standardized ZIF Connector with FFC cable
	RPI22	22 pin Standardized ZIF Connector with FFC cable
	NXP	Mini-SAS connection cable for NXP Evaluation Board
