TechNexion embedded products make it possible to more easily and cost-effectively develop embedded devices and solutions, no matter your market. Our range of ARM system-on-modules, panel PCs and fanless embedded computers come with an incredible range of options to customize for processing power, memory expansion, and connectivity. While, at the same time, we also offer industry leading longevity; GPL Linux, Yocto and Android as standard – as well as open hardware schematics.

PCIE-VL-3120

  • Vizionlink™ Frame Grabber Card
  • PCI-Express Gen3 x1
  • Low-profile fanless design
  • Supports 2 Vizionlink™ camera's up-to 15 meters away

PCIE-VL-3440

  • Vizionlink™ Frame Grabber Card
  • PCI-Express 3.0 x4
  • Low-profile fanless design
  • Supports 4 Vizionlink™ camera's up-to 15 meters away

PCIE-VL-3480

  • Vizionlink™ Frame Grabber Card
  • PCI-Express Gen3 x4
  • Low-profile fanless design
  • Supports 8 Vizionlink™ camera's up-to 15 meters away

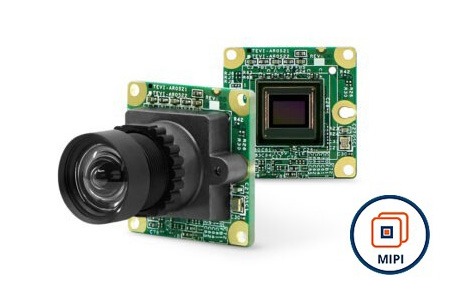

TEVI-AR1335-S85 34RIGHT

TEVI-AR1335

  • 13MP Rolling shutter Camera Sensor
  • Integrated Image Signal Processor (ISP)
  • Driver and Software for TechNexion based NXP i.MX8 family
  • Driver and BSP for Nvidia Jetson / Xavier NX
TEVI-AR0234-S82 34RIGHT

TEVI-AR0234

  • Onsemi AR0234 MIPI-CSI2 Camera Module
  • 2MP Full-HD Global shutter Camera Sensor
  • Integrated Image Signal Processor (ISP)
  • Driver and Software for TechNexion based NXP i.MX8 family
  • Driver and BSP for Nvidia Jetson / Xavier NX
TEVI-AR0821-S72-IR 34RIGHT

TEVI-AR0821

  • Onsemi AR0821 MIPI-CSI2 Camera Module
  • 8MP 4K Camera Sensor for general embedded applications
  • Integrated Image Signal Processor (ISP)
  • Driver and Software for TechNexion based NXP i.MX8 family
  • Driver and BSP for Nvidia Jetson / Xavier NX

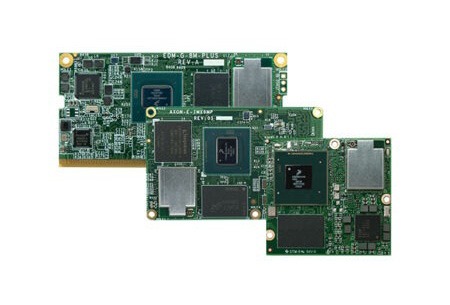

EDM-G-IMX8M-PLUS-9377 TOP

EDM-G-IMX8M-PLUS

  • NXP i.MX8M Plus Arm Cortex-A53 multicore Processor
  • Up to 8GB LPDDR4 memory
  • Certified 802.11ac wireless connectivity and Bluetooth
  • EDM Type G System-on-Module Compatibility.
PICO-IMX7-9377 TOP

PICO-IMX7

  • NXP i.MX7 Arm Cortex-A7 + M4 Processor
  • Up to 2GB DDR3L memory
  • Certified 802.11ac wireless connectivity and Bluetooth
  • PICO System-on-Module Compatibility.
PICO-IMX6Q-9377 TOP

PICO-IMX6

  • NXP i.MX6 Arm Cortex-A9 multicore Processor
  • Up to 2GB DDR3L memory
  • Certified 802.11ac wireless connectivity and Bluetooth
  • PICO System-on-Module Compatibility.
PICO-IMX6UL-9377 TOP

PICO-IMX6ULL

  • NXP i.MX6 UL/ULL Arm Cortex-A7 Processor
  • Up to 1GB DDR3L memory
  • Certified 802.11ac wireless connectivity and Bluetooth
  • PICO System-on-Module Compatibility.

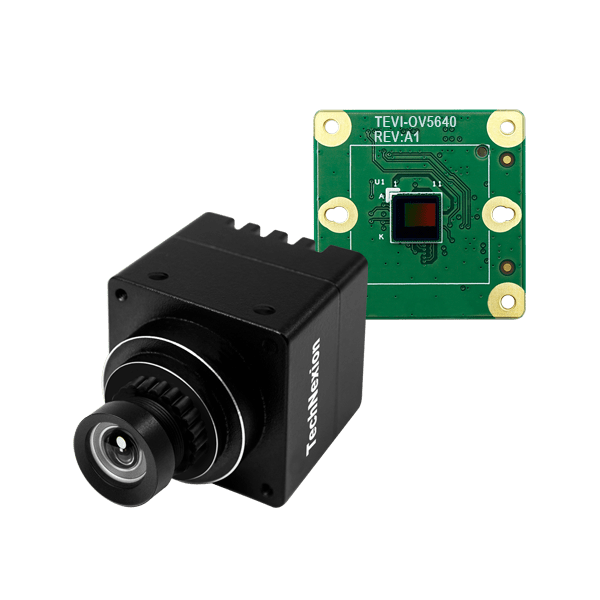

TEVI-OV5640-S84-34RIGHT

TEVI-OV5640

  • Omnvision OV5640 MIPI-CSI2 Camera Module
  • 5MP Camera Sensor for general embedded applications
  • Integrated Image Signal Processor (ISP)
  • Driver and Software for TechNexion based NXP i.MX8 family
  • Driver and BSP for Nvidia Jetson / Xavier NX
TEVI-AR0234-S82-RPI

TEVI-AR0234-S82-IR-RPI

ON SEMI AR0234 2MP FULL-HD GLOBAL SHUTTER WITH ISP CAMERA MODULE + 82 DEGREE M12 LENS WITH IR-CUT FILTER + RPI 15 PIN CONVERTER AND FLEX PCB

TEVI-AR0521-S86-RPI

TEVI-AR0521-S86-IR-RPI

ON SEMI AR0521 5MP ROLLING SHUTTER WITH ISP CAMERA MODULE + 86 DEGREE M12 LENS WITH IR-CUT FILTER + RPI 15 PIN CONVERTER AND FLEX PCB

TEVI-AR0522-S86-IR-RPI

TEVI-AR0522-S86-IR-RPI

ON SEMI AR0522 5MP ROLLING SHUTTER WITH ISP CAMERA MODULE + 86 DEGREE M12 LENS WITH IR-CUT FILTER + RPI 15 PIN CONVERTER AND FLEX PCB

TEVI-AR0821-S72-IR-RPI

TEVI-AR0821-S72-IR-RPI

ON SEMI AR0821 8MP 4K ROLLING SHUTTER WITH ISP CAMERA MODULE + 72 DEGREE ANGLE M12 LENS WITH IR-CUT FILTER + RPI 15 PIN CONVERTER AND FLEX PCB

TEVI-OV5640-S84-RPI

TEVI-OV5640-S84-IR-RPI

OMNIVISION OV5640 5MP ROLLING SHUTTER WITH ISP CAMERA MODULE + 84 DEGREE M12 LENS WITH IR-CUT FILTER + RPI 15 PIN CONVERTER AND FLEX PCB

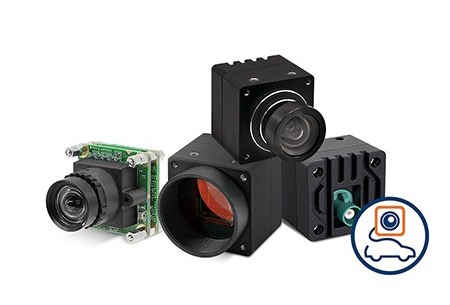

VIZIONLINK-OV5640-S84-IR Kit

VIZIONLINK-OV5640

IP68 waterproof Vizionlink™ camera
  • Omnivision OV5640 Sensor
  • 5MP rolling shutter
  • S-Mount (M12) Exchangeable Lens
  • Single Wire FAKRA Connector

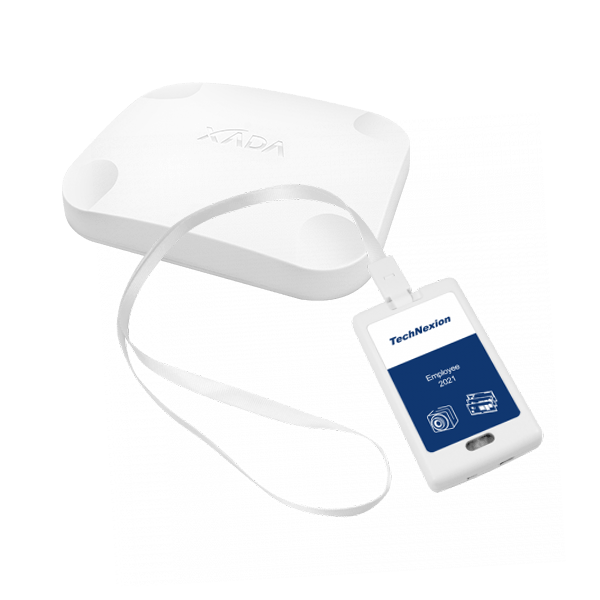

BADGE-6500 34RIGHT TOP

Badge-6500

Social Distancing and Positioning wearable UWB Badge for employee safety and tracking.
EDM-G-IMX8M-MINI-9377 TOP

EDM-G-IMX8M-MINI

  • NXP i.MX8M Mini Arm Cortex-A53 multicore Processor
  • Up to 8GB LPDDR4 memory
  • Certified 802.11ac wireless connectivity and Bluetooth
  • EDM Type G System-on-Module Compatibility.
FLEX-IMX8M-MINI-9377 TOP

FLEX-IMX8M-MINI

  • NXP i.MX8M Mini Arm Cortex-A53 multicore Processor
  • Up to 8GB LPDDR4 memory
  • Certified 802.11ac wireless connectivity and Bluetooth
  • FLEX System-on-Module Compatibility.
PICO-IMX8M-MINI-9377 TOP

PICO-IMX8M-MINI

  • NXP i.MX8M Mini Arm Cortex-A53 multicore Processor
  • Up to 8GB LPDDR4 memory
  • Certified 802.11ac wireless connectivity and Bluetooth
  • PICO System-on-Module Compatibility.

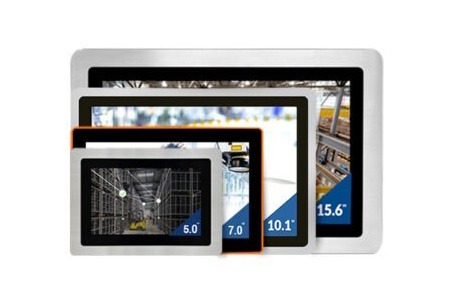

TEP-0500-IMX7 FRONT

TEP-0500-IMX7

  • The TEP-0500-IMX7 is a low-power consumption HMI based on an NXP i.MX7 Dual core Cortex-A7™ + M4™ processor.
  • The TEP-0500-IMX7 features a 5-inch widescreen ratio multitouch PCAP touch screen with LED backlight and brushed aluminum front bezel.
  • Edge-computing ready with internal mini-PCIe expansion + SIM card slot for LTE/5G cloud connectivity.
  • 2 RS-232, 2 CAN, 8 GPIO, 2 Gigabit Ethernet and USB interfaces.
  • Orderable with single voltage 12VDC, wide voltage 9 – 36VDC or 802.3.at PoE (power over ethernet) options.
TEVI-AR0144-S82-34RIGHT

TEVI-AR0144

  • Onsemi AR0144 MIPI-CSI2 Camera Module
  • 1MP Global shutter Camera Sensor
  • Integrated Image Signal Processor (ISP)
  • Driver and Software for TechNexion based NXP i.MX8 family
  • Driver and BSP for Nvidia Jetson / Xavier NX
TEVI-AR0145-s82-ir 34RIGHT

TEVI-AR0145

  • 1MP Global shutter Camera Sensor
  • Integrated Image Signal Processor (ISP)
  • Driver and Software for TechNexion based NXP i.MX8 family
  • Driver and BSP for Nvidia Jetson / Xavier NX

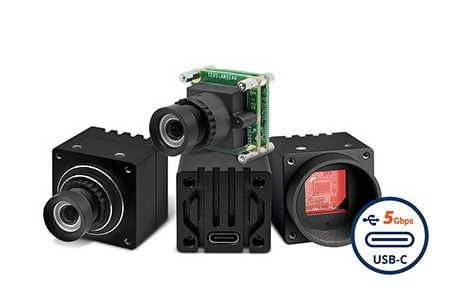

VIZIONCAM-AR0144-S82-IR Kit

VIZIONCAM-AR0144

VIZIONCAM USB3 TYPE-C CAMERA WITH ON SEMI AR0144 1MP FULL-HD GLOBAL SHUTTER + 82 DEGREE M12 LENS WITH IR-CUT FILTER

VIZIONCAM-AR0234-S82-IR Kit

VIZIONCAM-AR0234

VIZIONCAM USB3 TYPE-C CAMERA WITH ON SEMI AR0234 2MP FULL-HD GLOBAL SHUTTER + 82 DEGREE M12 LENS WITH IR-CUT FILTER

VIZIONCAM-AR0521-S86-IR Kit

VIZIONCAM-AR0521

VIZIONCAM USB3 TYPE-C CAMERA WITH ON SEMI AR0521 5MP ROLLING SHUTTER + 86 DEGREE M12 LENS WITH IR-CUT FILTER

VIZIONCAM-AR0522-S86-IR Kit

VIZIONCAM-AR0522

VIZIONCAM USB3 TYPE-C CAMERA WITH ON SEMI AR0522 5MP ROLLING SHUTTER + 86 DEGREE M12 LENS WITH IR-CUT FILTER

VIZIONCAM-OV5640-S84-IR Kit

VIZIONCAM-OV5640

VIZIONCAM USB3 TYPE-C CAMERA WITH OMNIVISION OV5640 5MP ROLLING SHUTTER + 84 DEGREE M12 LENS WITH IR-CUT FILTER

VIZIONLINK-AR0144-S82-IR Kit

VIZIONLINK-AR0144

VIZIONLINK IP68 WATERPROOF CAMERA WITH ON SEMI AR0144 1MP FULL-HD GLOBAL SHUTTER + 82 DEGREE M12 LENS WITH IR-CUT FILTER

VIZIONLINK-AR0234-S82-IR Kit

VIZIONLINK-AR0234

VIZIONLINK IP68 WATERPROOF CAMERA WITH ON SEMI AR0234 2MP FULL-HD GLOBAL SHUTTER + 82 DEGREE M12 LENS WITH IR-CUT FILTER

VIZIONLINK-AR0521-S86-IR Kit

VIZIONLINK-AR0521

VIZIONLINK IP68 WATERPROOF CAMERA WITH ON SEMI AR0521 5MP ROLLING SHUTTER + 86 DEGREE M12 LENS WITH IR-CUT FILTER

VIZIONLINK-AR0522-S86-IR Kit

VIZIONLINK-AR0522

VIZIONLINK IP68 WATERPROOF CAMERA WITH ON SEMI AR0522 5MP ROLLING SHUTTER + 86 DEGREE M12 LENS WITH IR-CUT FILTER

PICO-IMX8M-9377 TOP

PICO-IMX8M

  • NXP i.MX8MQ Arm Cortex-A53 multicore Processor
  • Up to 4GB LPDDR4 memory
  • Certified 802.11ac wireless connectivity and Bluetooth
  • PICO System-on-Module Compatibility.
TEVI-AR0521-M12 34RIGHT

TEVI-AR0521

  • Onsemi AR0521 MIPI-CSI2 Camera Module
  • 5MP Camera Sensor for general embedded applications
  • Integrated Image Signal Processor (ISP)
  • Driver and Software for TechNexion based NXP i.MX8 family
  • Driver and BSP for Nvidia Jetson / Xavier NX
TEVI-AR0144-S82-IR-EVK

TEVI-AR0144-S82-IR-EVK

ON SEMI AR0144 1MP GLOBAL SHUTTER WITH ISP CAMERA MODULE + 82 DEGREE M12 LENS WITH IR-CUT FILTER + FPC CONNECTION CABLE FOR TECHNEXION SOM EVK

TEVI-AR0144-S82-IR-NXP

TEVI-AR0144-S82-IR-NXP

ON SEMI AR0144 1MP GLOBAL SHUTTER WITH ISP CAMERA MODULE + 82 DEGREE M12 LENS WITH IR-CUT FILTER + FPC CONNECTION CABLE FOR NXP I.MX8 EVALUATION BOARD WITH MINI-SAS MIPI-CSI2

TEVI-AR0234-S82-IR-EVK

TEVI-AR0234-S82-IR-EVK

ON SEMI AR0234 2MP FULL-HD GLOBAL SHUTTER WITH ISP CAMERA MODULE + 82 DEGREE M12 LENS WITH IR-CUT FILTER + FPC CONNECTION CABLE FOR TECHNEXION SOM EVK

TEVI-AR0234-S82-IR-NXP

TEVI-AR0234-S82-IR-NXP

ON SEMI AR0234 2MP FULL-HD GLOBAL SHUTTER WITH ISP CAMERA MODULE + 82 DEGREE M12 LENS WITH IR-CUT FILTER + FPC CONNECTION CABLE FOR NXP I.MX8 EVALUATION BOARD WITH MINI-SAS MIPI-CSI2

TEVI-AR0521-S86-IR-EVK

TEVI-AR0521-S86-IR-EVK

ON SEMI AR0521 5MP ROLLING SHUTTER WITH ISP CAMERA MODULE + 86 DEGREE M12 LENS WITH IR-CUT FILTER + FPC CONNECTION CABLE FOR TECHNEXION SOM EVK

TEVI-AR0521-S86-IR-NXP

TEVI-AR0521-S86-IR-NXP

ON SEMI AR0521 5MP ROLLING SHUTTER WITH ISP CAMERA MODULE + 86 DEGREE M12 LENS WITH IR-CUT FILTER + FPC CONNECTION CABLE FOR NXP I.MX8 EVALUATION BOARD WITH MINI-SAS MIPI-CSI2

TEVI-AR0522-S86-IR-EVK

TEVI-AR0522-S86-IR-EVK

ON SEMI AR0522 5MP ROLLING SHUTTER WITH ISP CAMERA MODULE + 86 DEGREE M12 LENS WITH IR-CUT FILTER + FPC CONNECTION CABLE FOR TECHNEXION SOM EVK

TEVI-AR0821-S72-IR-EVK

TEVI-AR0821-S72-IR-EVK

ON SEMI AR0821 8MP 4K ROLLING SHUTTER WITH ISP CAMERA MODULE + 72 DEGREE ANGLE M12 LENS WITH IR-CUT FILTER + FPC CONNECTION CABLE FOR TECHNEXION SOM EVK

TEVI-AR0821-S72-IR-NXP

TEVI-AR0821-S72-IR-NXP

ON SEMI AR0821 8MP 4K ROLLING SHUTTER WITH ISP CAMERA MODULE + 72 DEGREE ANGLE M12 LENS WITH IR-CUT FILTER + FPC CONNECTION CABLE FOR NXP I.MX8 EVALUATION BOARD WITH MINI-SAS MIPI-CSI2

TEVI-OV5640-S84-EVK

TEVI-OV5640-S84-IR-EVK

OMNIVISION OV5640 5MP ROLLING SHUTTER WITH ISP CAMERA MODULE + 84 DEGREE M12 LENS WITH IR-CUT FILTER + FPC CONNECTION CABLE FOR TECHNEXION SOM EVK

TEVI-OV5640-S84-IR-NXP

TEVI-OV5640-S84-IR-NXP

OMNIVISION OV5640 5MP ROLLING SHUTTER WITH ISP CAMERA MODULE + 84 DEGREE M12 LENS WITH IR-CUT FILTER + FPC CONNECTION CABLE FOR NXP I.MX8 EVALUATION BOARD WITH MINI-SAS MIPI-CSI2

WB-EDM-G-IMX8M-PLUS KIT

WB-EDM-G-IMX8M-PLUS

  • EDM-G-IMX8M-PLUS System-on-Module (SOM)
  • Wandboard WB-EDM-G Carrier board
  • USB Type-C cable to power and program your board
  • USB to Serial console debug cable

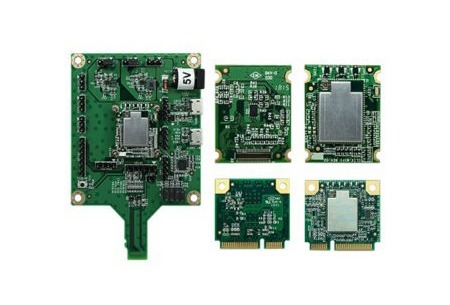

PIXI-9377-S TOP

PIXI-9377-S

  • Qualcomm QCA-9377 802.11ac + Bluetooth Combo Module
  • Pre-certified FCC/CE/IC/RCM/TELEC
  • Linux, Android Integration support for NXP i.MX Platform
  • SDIO + UART Interface
  • M.2 1216 Formfactor
TEP-1010-IMX6 FRONT

TEP-1010-IMX6

TEP-1010-IMX6 can be easily customized with additional interfaces or special power requirements.

PIXI-9377-P TOP

PIXI-9377-P

  • Qualcomm QCA-9377 802.11ac + Bluetooth Combo Module
  • Pre-certified FCC/CE/IC/RCM/TELEC
  • Windows 10 , Linux, Android Support
  • PCI Express + USB Interface
  • M.2 1216 Formfactor
TEP-0700-IMX7 FRONT

TEP-0700-IMX7

  • The TEP-0700-IMX7 is a low-power consumption HMI based on an NXP i.MX7 Dual core Cortex-A7™ + M4™ processor.
  • The TEP-0700-IMX7 features a 7-inch widescreen ratio multitouch PCAP touch screen with LED backlight and brushed aluminum front bezel.
  • Edge-computing ready with internal mini-PCIe expansion + SIM card slot for LTE/5G cloud connectivity.
  • 2 RS-232, 2 CAN, 8 GPIO, 2 Gigabit Ethernet and USB interfaces.
  • Orderable with single voltage 12VDC, wide voltage 9 – 36VDC or 802.3.at PoE (power over ethernet) options.
CLIX-9377 TOP

CLIX-9377

CLIX MODULE WITH QCA9377 WIFI 802.11AC (SDIO) + BLUETOOTH (UART) MODULE
