TEVS-AR0246-C-SB-RPI15

Name: TEVS-AR0246-C-SB-RPI15
Brand: TechNexion
SKU: TEVSAR0246CSBRPI15
Availability: PreOrder

SKU: TEVSAR0246CSBRPI15 Category: RPI15 Brand: TechNexion

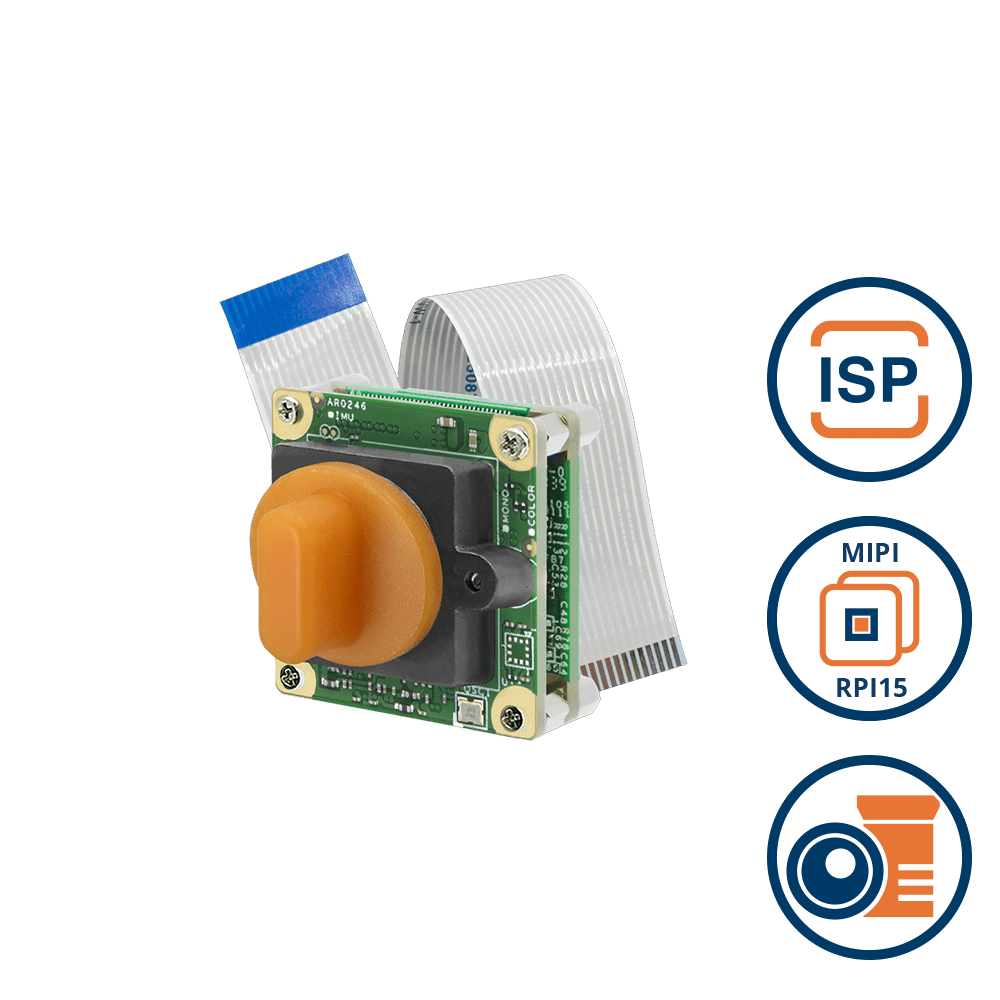

MIPI CSI-2 Sensor onsemi AR0246 2MP Full-HD Color Rolling Shutter with onboard ISP + S Mount M12 Lens Holder + RPI 15 Pin Converter and Flex PCB

Product Brief

$98.00Available on backorder

Factory Stock

Available to order

Specifications

Camera Information

CMOS Sensor	onsemi AR0246
Active Pixels	1920 (H) x 1080 (V) = 2MP
Pixel Size	2.0 μm x 2.0 μm
Illuminated type	Front Side Illuminated (FSI)
Maximum S/N Ratio	39 dB
Input Clock Range	48 MHz
Optical Format	1/4” (Diagonal 4.41 mm)
Shutter Type	Rolling Shutter
Chromaticity	Color
Maximum Frame Rate (YUV422-UYVY)	1920 x 1080 @ 30 fps 1280 x 720 @ 30 fps 640 x 480 @ 30 fps
Output Format	YUV422-UYVY YUV420 RGB888 RGB565 RGB555 JPEG MJPEG(JPG) RAW8 RAW10 RAW12
HDR Support	Yes

Interface

Module Data Transmission	MIPI CSI-2, up to 4 lanes
Communication Interface	I2C
Connector	15 Pin Standardized ZIF Connector

Power Specifications

Software Support

Platform Support	NVIDIA Jetson Xavier NX NVIDIA Jetson Nano TI Sitara™ AM62 TI Jacinto™ TDA4VM Raspberry Pi 4
Operation Systems	Linux Yocto Android
SDK	VizionViewer™ / VizionSDK

Environmental and Mechanical

Certification and Compliance

Certification	Compliant with CE / FCC / RoHS / REACH directives

Commercial Information
