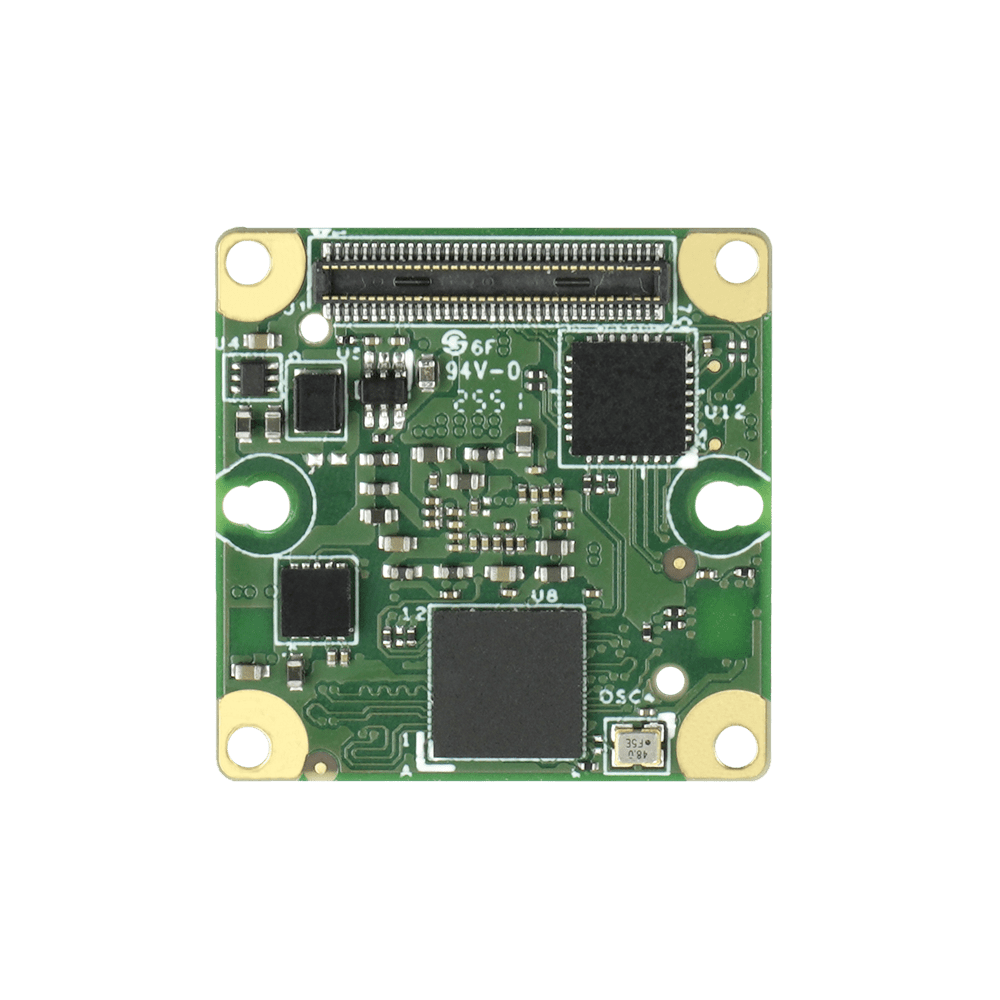

MIPI CSI-2 Camera Module onsemi AR0830 8MP 4K Rolling Shutter with Onboard ISP and IMU - TEVM-AR0830

TEVM-AR0830 Highlights

Evaluation Kits

Available to connect the camera module quickly to our System-on-Modules.

Rolling Shutter

Captures a high frame rate and low ambient noise image with a low-cost solution, suitable for static objects.

IMU

Equipped with an integrated 6-axis IMU that delivers real-time motion and orientation data.

ISP

Color correction, Lens calibration, over-exposure management, and multiple functions are already taken care of with a built-in ISP.

Lens Adjustment

We provide lens calibration and correction adjustment.

MIPI Interface

Compatible with MIPI connector and easy to change among our camera modules to fit the project requirement.

Software Platform

Supports various platforms, programming languages and easy to build on TN-Vizion SDK series.

Time to Market

With our pre-calibrated lens and integrated software, the camera can work directly and accelerate your time-to-market.

Specifications

Camera Information

CMOS Sensor	onsemi AR0830
Active Pixels	3840 (H) x 2160 (V) = 8MP
Pixel Size	1.4 μm x 1.4 μm
Illuminated type	Front Side Illuminated (FSI)
Maximum S/N Ratio	39.9 dB
Input Clock Range	48 MHz
Optical Format	1/2.9” (Diagonal 6.17 mm)
Shutter Type	Rolling Shutter
Chromaticity	Color / Mono
Maximum Frame Rate (YUY2)	3840 x 2160 @ 15 fps 2560 x 1440 @ 30 fps 1920 x 1080 @ 60 fps 1280 x 720 @ 60 fps 640 x 480 @ 60 fps
Output Format	YUV422-UYVY YUV420 RGB888 RGB565 RGB555 JPEG MJPEG(JPG) RAW8 RAW10 RAW12

Interface

Module Data Transmission	MIPI CSI-2, up to 4 lanes
Communication Interface	I2C
Connector	70 Pin Standardized Connector

Power Specifications

Supply Voltage	Digital: 3.3V Analog: 2.8V I/O: 1.8V
Power Consumption	TBD
SW Standby Power	TBD
HW Standby Power	TBD

Software Support

Platform Support	NVIDIA Jetson AGX Orin NVIDIA Jetson Orin Nano / NX NVIDIA Jetson Xavier NX NVIDIA Jetson Nano NXP i.MX93 / i.MX95 NXP i.MX8M Nano / Mini / Plus TI Sitara™ AM62 / AM62A / AM67 TI Sitara™ AM68 / AM69 TI Jacinto™ TDA4VM / TDA4VH BeagleY®-AI / BeaglePlay® Raspberry Pi 4 / Raspberry Pi 5 ST STM32MP25 Renesas RZ/V2H Intel Alder Lake-N Intel Meteor Lake
Operation Systems	Linux Yocto Android
SDK	VizionViewer™ / VizionSDK

Motion Sensors

IMU	ST Microelectronics LSM6DSO16IS
Accelerometer	3-axis accelerometer with selectable full scale: ±2/±4/±8/±16 g
Gyroscope	3-axis gyroscope with selectable full scale: ±125/±250/±500/±1000/±2000 dps
Temperature Sensor	Embedded temperature sensor

Environmental and Mechanical

Dimensions	24.5(W) x 24.5(H) x 3.8(D) mm
Weight	≤ 3 grams
Operation Temperature	-30°C to +70℃

Certification and Compliance

Certification	Compliant with CE / FCC / RoHS / REACH directives

Commercial Information

Brand	TechNexion
Country of Origin	Taiwan
HTSN	8525.89.5050
ECCN	EAR99
REACH / RoHS	Yes

Platform Support

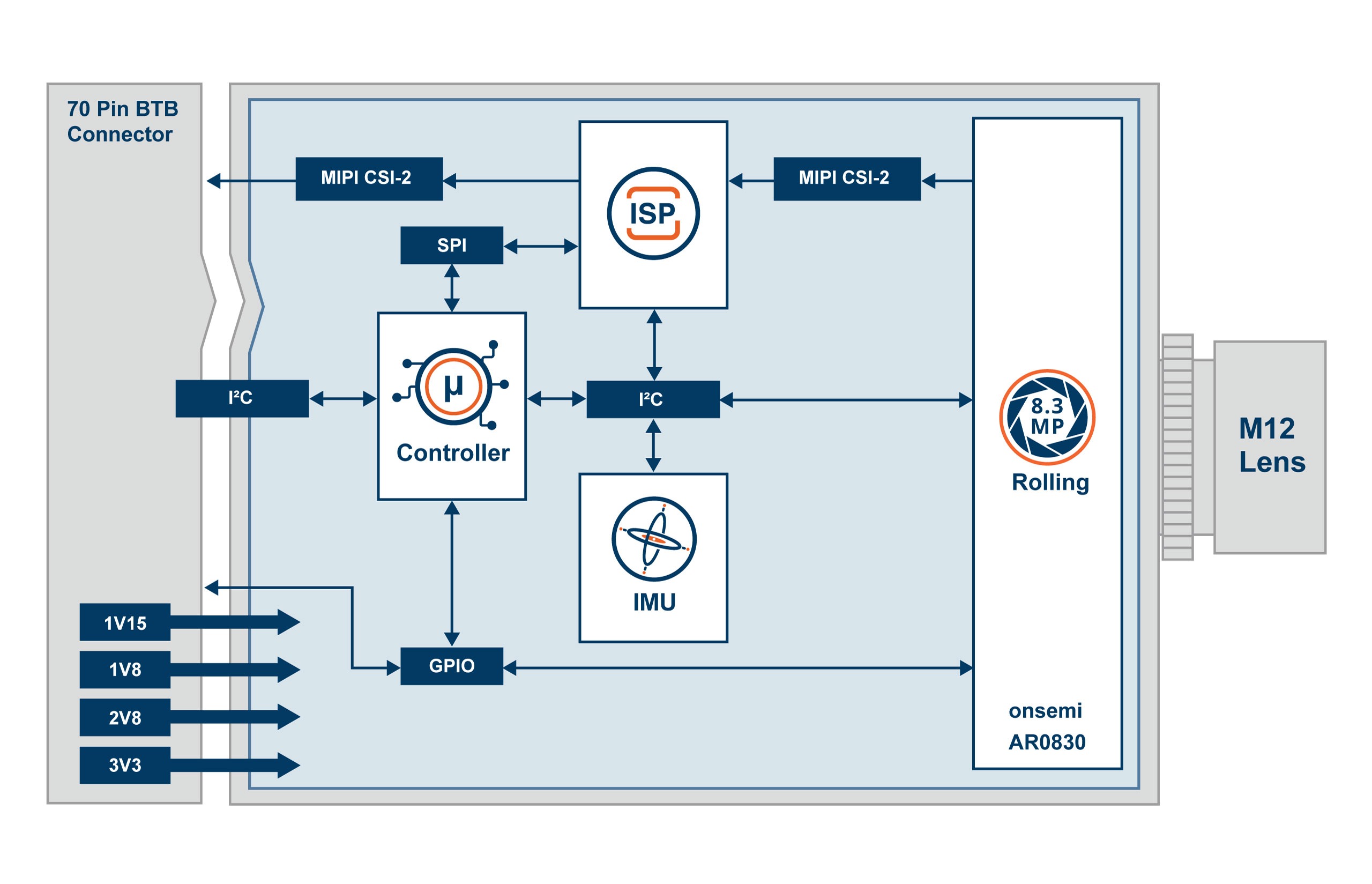

Block Diagram

Dimensions

Spectral Characteristics

Part Numbers

Order Information Example:

TEVM-AR0830-x-Sxx-xx-xxx

	Code	Description
Chromaticity	C	Color
Chromaticity	M	Monochrome
Lens	-	-

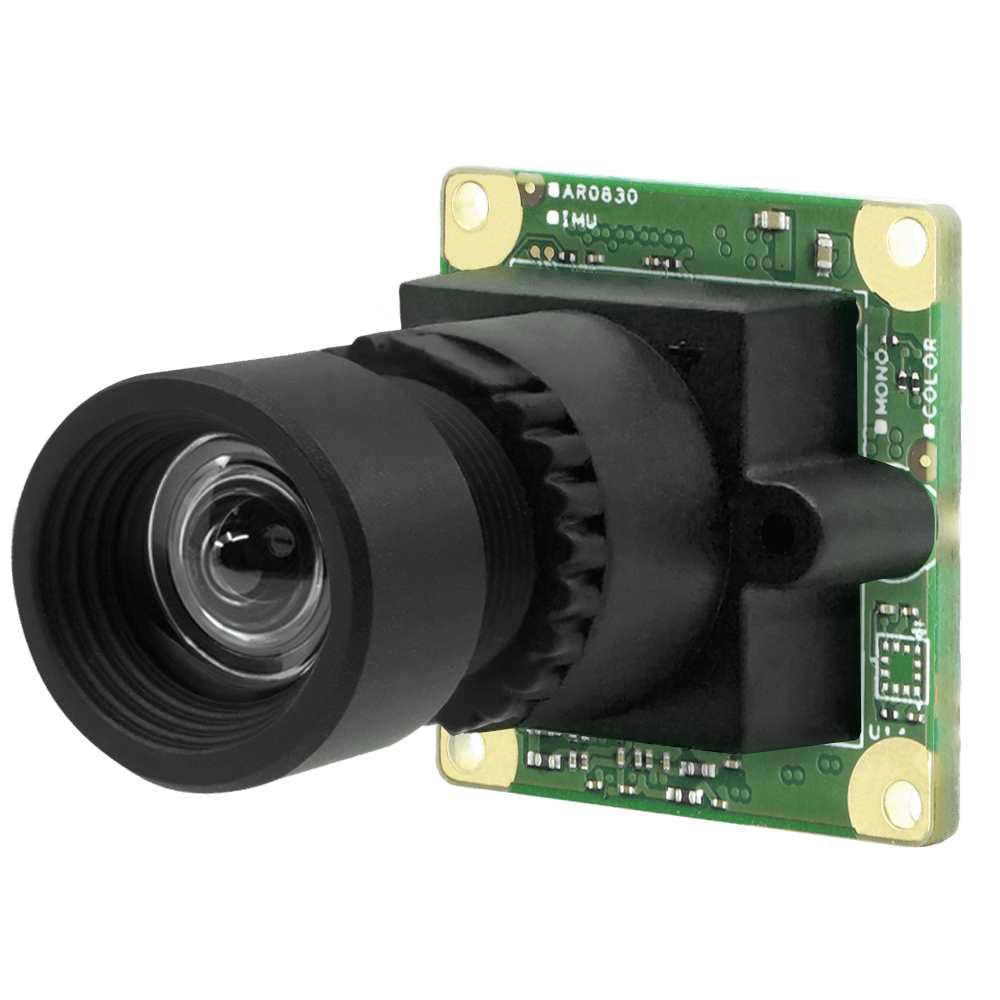

	S30	S-Mount Module D-FOV 30°

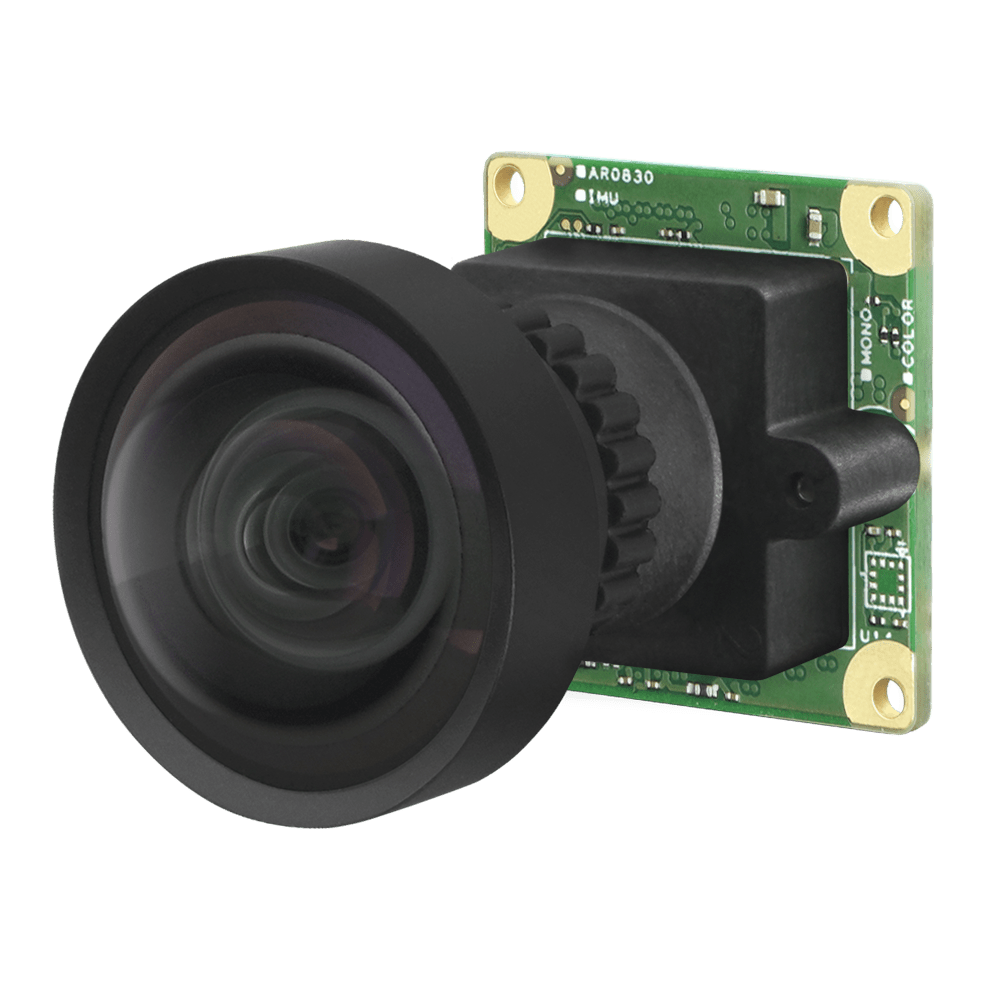

	S96	S-Mount Module D-FOV 96°

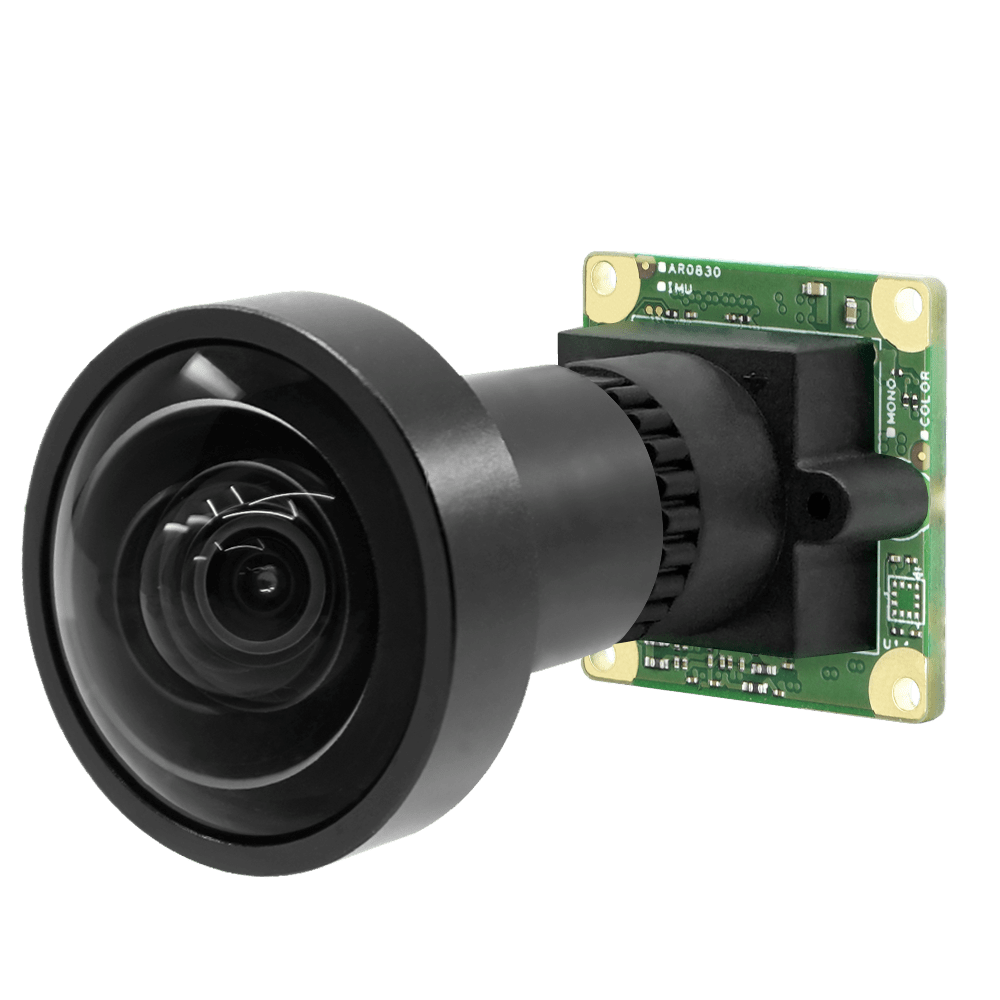

	S108	S-Mount Module D-FOV 108°

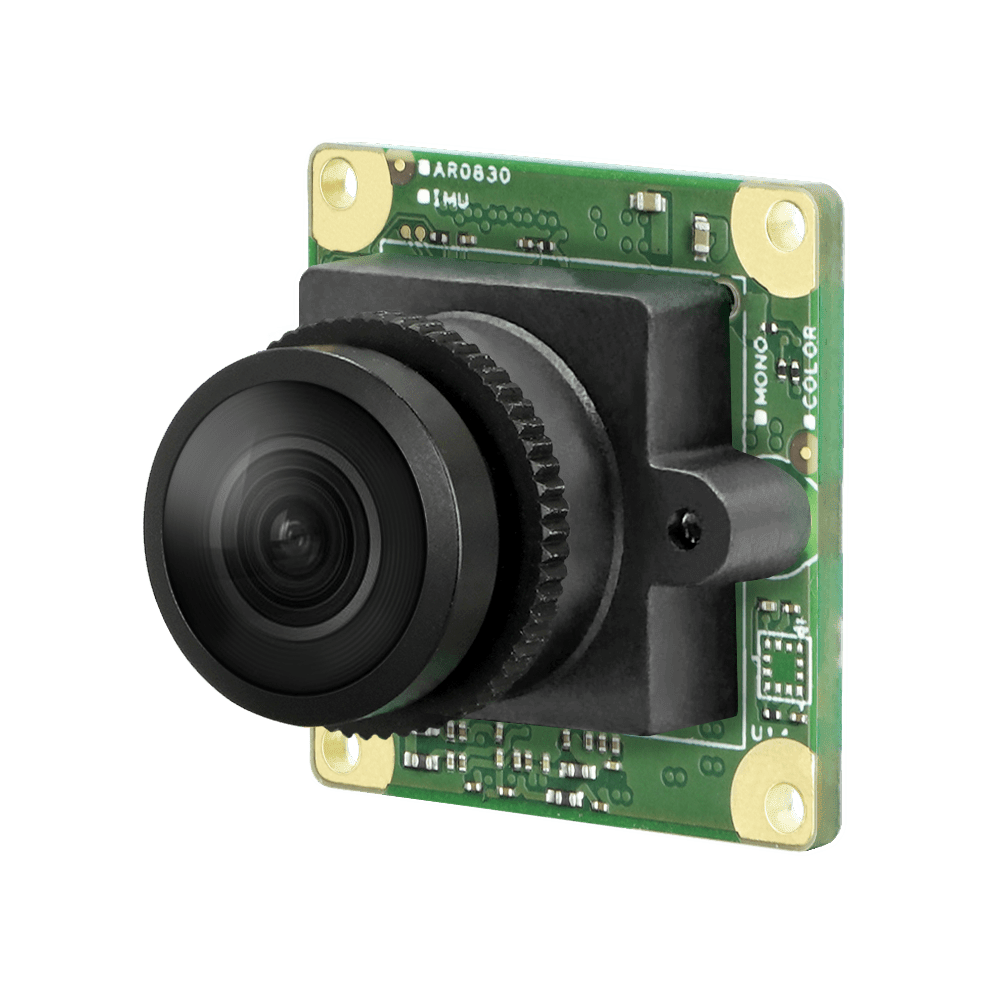

	S205	S-Mount Module D-FOV 205°
Filter	-	-
Filter	IR	IR Cut Filter 650nm
Evaluation Kit	-	70 pin Standardized Camera Connector
	EVK	70 pin Standardized Camera Connector with FPC cable
	RPI15	15 pin Standardized ZIF Connector with FFC cable
	RPI22	22 pin Standardized ZIF Connector with FFC cable
	NXP	Mini-SAS connection cable for NXP Evaluation Board
