TechNexion TEVM MIPI CSI-2 cameras combine image capture, onboard ISP, and integrated 6-axis IMU data in one compact camera module.
Designed for embedded vision applications that require both visual input and motion awareness, TEVM cameras help developers capture real-time image, motion, and orientation data for robotics, AMR, automation, smart devices, and AI vision systems.
For many embedded vision projects, image data alone is not enough.
Applications such as robotics, navigation, SLAM evaluation, vibration monitoring, and AI vision systems operating in dynamic environments often need to understand not only what the camera sees, but also how the camera or system is moving.
With a MIPI CSI-2 interface, onboard ISP, and integrated 6-axis IMU, TechNexion TEVM cameras help developers understand how the camera is moving, tilting, or rotating while capturing images, while bringing camera input and motion data into the embedded platform through a compact camera module.
AMR
UAV / Drone
Robotics
SLAM
MIPI Interface
Compatible with MIPI connector and easy to change among our camera modules to fit the project requirement.
Built-in ISP
A built-in ISP takes care of color correction, calibration, exposure, and more.
Integrated 6-Axis IMU
Equipped with an integrated 6-axis IMU that delivers real-time motion and orientation data.
Global / Rolling Shutter
Choose rolling shutter for smooth imaging or global shutter for crisp, distortion-free captures.
Integrating TechNexion MIPI CSI-2 cameras into your system is fast and straightforward, with readily available product drivers and integration guides.

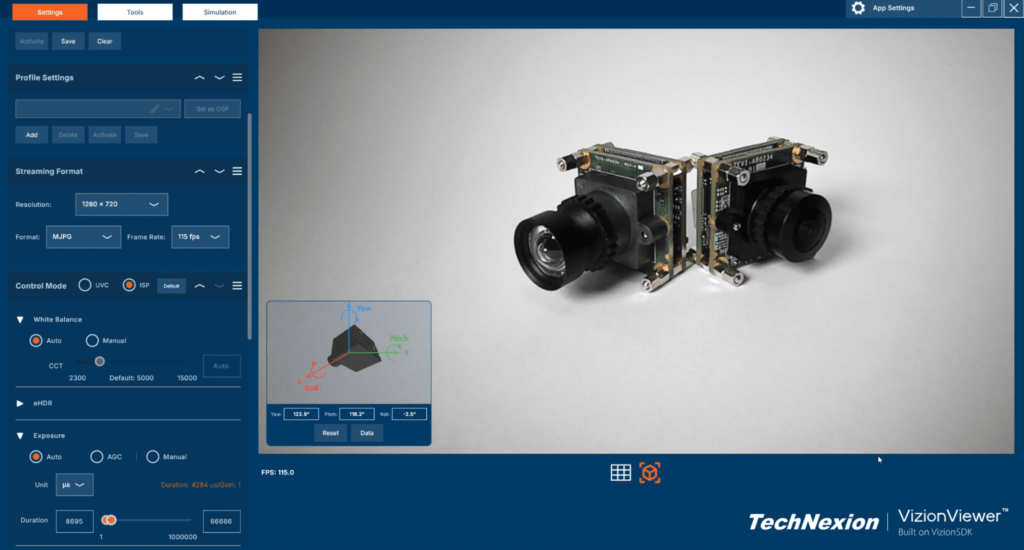

Our TEVM cameras are fully supported by VizionViewer™, a cross-platform software for real-time video streaming, image capture, camera configuration, and IMU data visualization, including yaw, pitch, and roll.
For advanced control and automation, developers can use VizionSDK — a powerful SDK supporting both C++ and Python, compatible with Windows and Linux environments.
Together, these tools provide everything your engineering team needs for quick evaluation, customization, and seamless deployment.
TechNexion TEVM MIPI CSI-2 Sensor Modules are supported on a large selection processor platforms, including NXP, NVIDIA, Texas Instruments, Intel, Renesas, ST, BeagleBoard and Raspberry Pi.
These modules are supplied with everything required for a rapid deployment, allowing you to innovate effortlessly.
To learn more about compatibility. Reach out to your TechNexion representative to enable MIPI CSI-2 support on your evaluation board.
TechNexion EVK
RPI15
RPI22
Mini-SAS
 | i.MX95 i.MX93 i.MX8M Plus i.MX8M Nano / Mini |  | Jetson AGX Orin Jetson Orin NX Jetson Orin Nano Jetson Nano |
 | RZ/V2N RZ/V2H |  | Sitara AM62 / AM62A Sitara AM67 Sitara AM68 / AM69 Jacinto TDA4VM Jacinto TDA4VH |
 | Alder Lake-N Meteor Lake |  | BeagleY-AI BeaglePlay |
 | Raspberry Pi 4 Raspberry Pi 5 |  | STM32 MP25 |
TechNexion EVK
RPI15
RPI22
Mini-SAS
| Part Number | Sensor | Resolution | Chromaticity | Shutter Type | IMU |
|---|---|---|---|---|---|
| TEVM-AR0144 | onsemi AR0144 | 1MP | Color | Global | Yes |

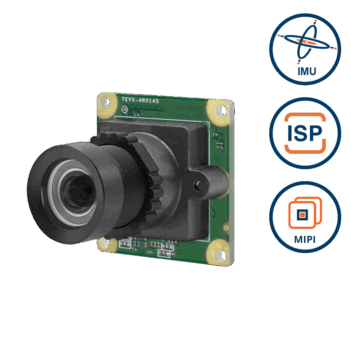

| TEVM-AR0145 | onsemi AR0145 | 1MP | Color, Mono | Global | Yes |
| TEVM-AR0234 | onsemi AR0234 | 2MP | Color | Global | Yes |
| TEVM-AR0235 | onsemi AR0235 | 2MP | Color, Mono | Global | Yes |
| TEVM-AR0246 | onsemi AR0246 | 2MP | Color | Rolling | Yes |

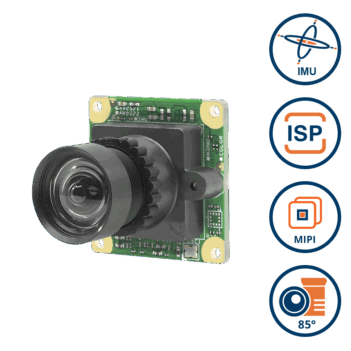

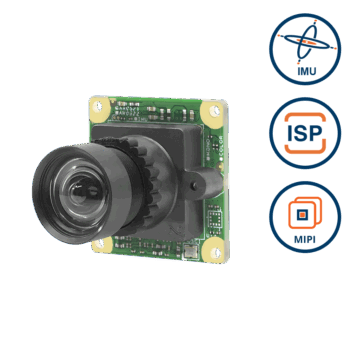

| TEVM-AR0521 | onsemi AR0521 | 5MP | Color | Rolling | Yes |

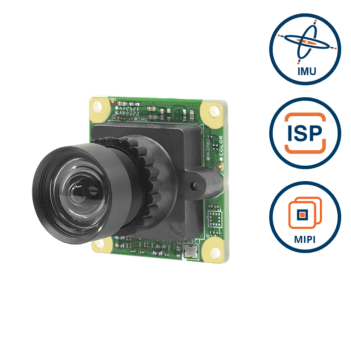

| TEVM-AR0522 | onsemi AR0522 | 5MP | Color, Mono | Rolling | Yes |
| TEVM-AR0821 | onsemi AR0821 | 8MP | Color | Rolling | Yes |

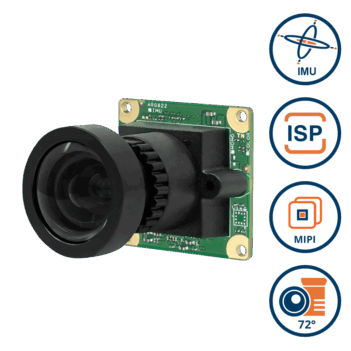

| TEVM-AR0822 | onsemi AR0822 | 8MP | Color, Mono | Rolling | Yes |
| TEVM-AR0830 | onsemi AR0830 | 8MP | Color, Mono | Rolling | Yes |

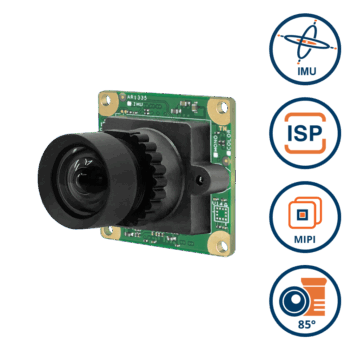

| TEVM-AR1335 | onsemi AR1335 | 13MP | Color | Rolling | Yes |
TechNexion MIPI CSI-2 cameras come with OSP (on sensor profile) support enabling fast boot up and availability of multi camera setups in robotic and industrial embedded applications by providing granular configuration support right inside the camera and completely user definable and configurable with VizionSDK and VizionViewer™ software.
By using a standard S-Mount and C-Mount lens assemblies. Our team of optical engineers can assist with precise customization in response to specific requirements to fit your embedded vision project involving FOV, TTL, MOD or mechanical or environmental constraints ensuring optimal performance across a range of use cases.
Searching for a lens with or without an IR-cut filter is as easy as select a standard TechNexion camera sensor. However for custom filters in other light spectrums our optical engineers are standby for a consultation to learn more about your embedded vision project.
Contact your TechNexion sales representative for a consultation if you have questions regarding any of the aforementioned subjects.
