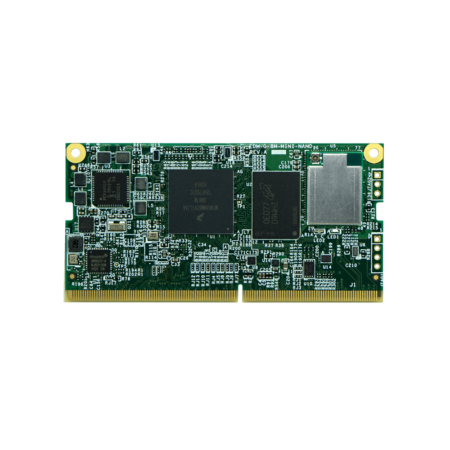

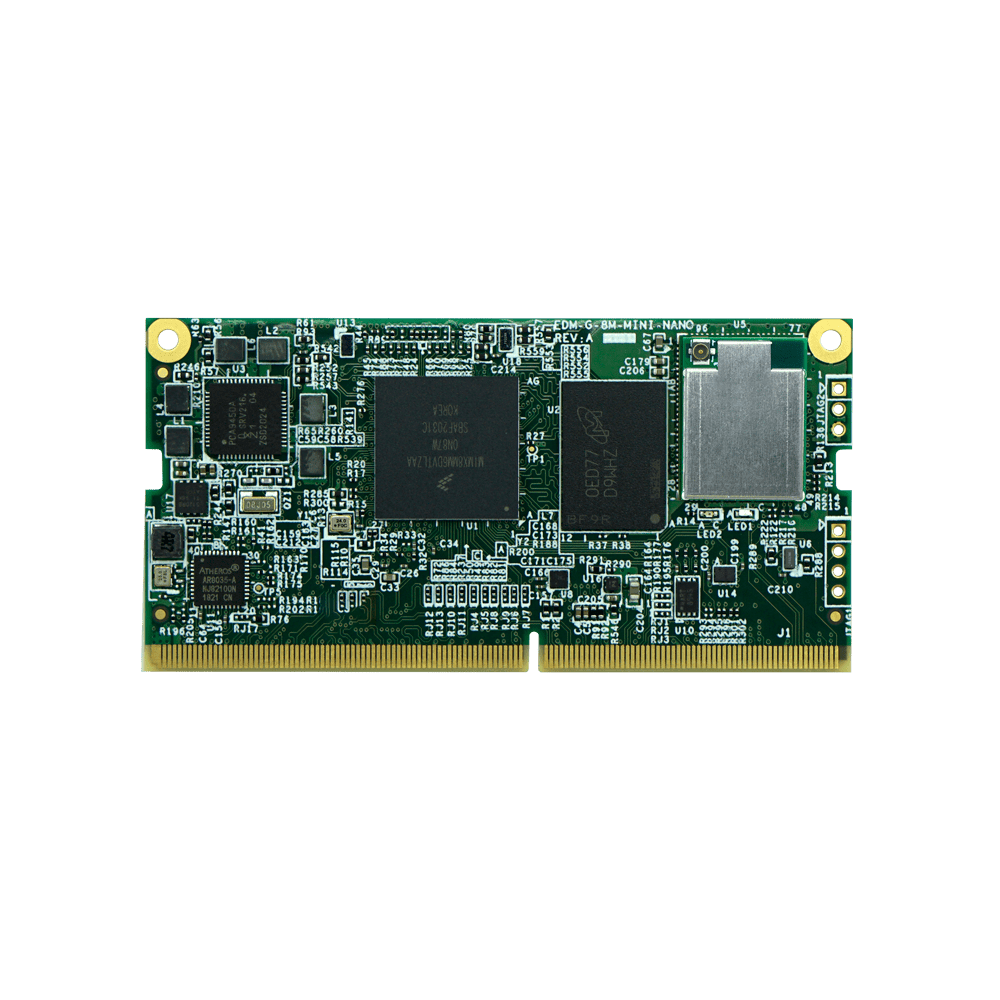

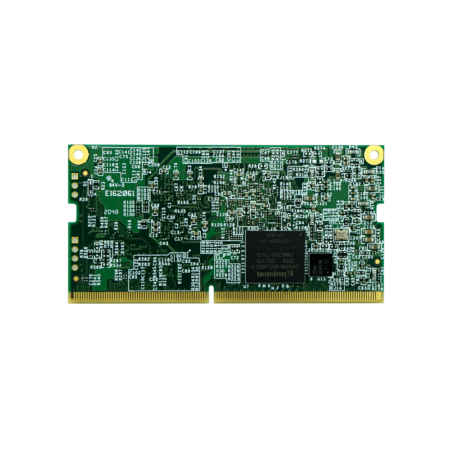

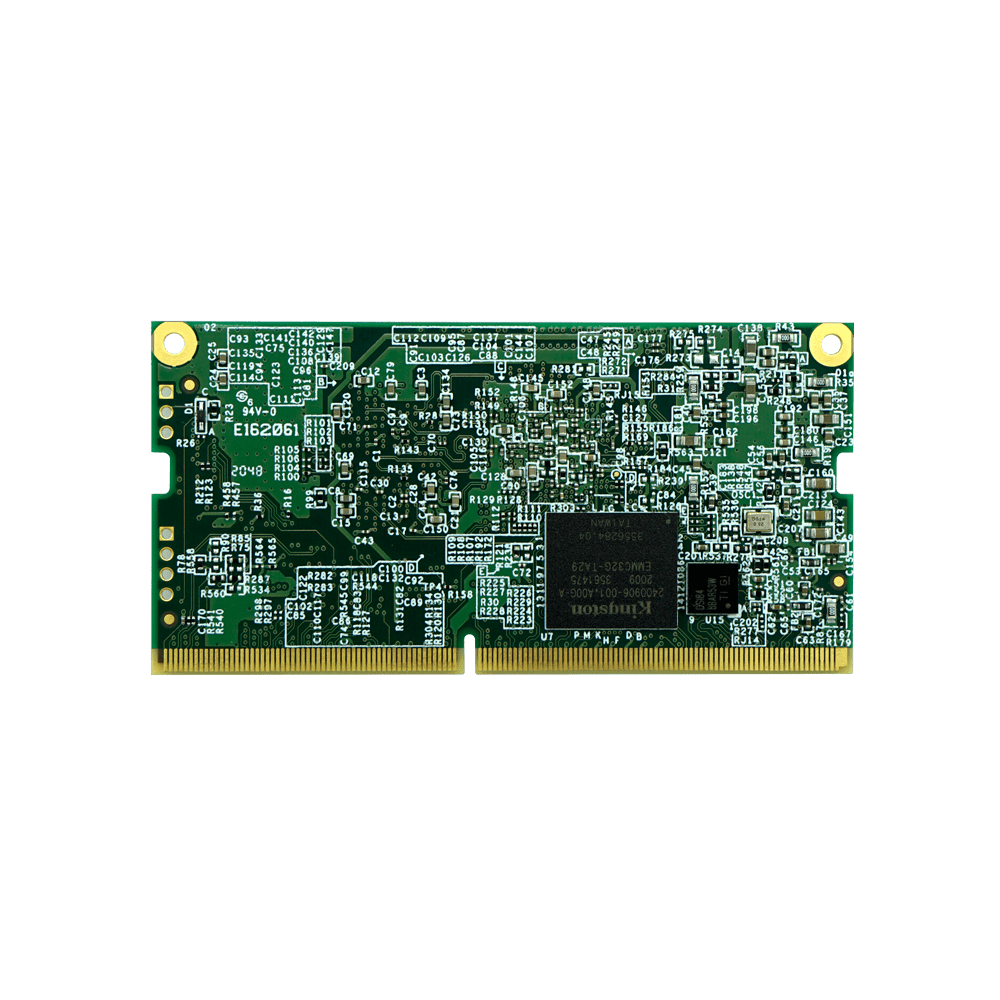

EDM-G-IMX8MMQ16-R20-E32-L-9377-TI

Name: EDM-G-IMX8MMQ16-R20-E32-L-9377-TI
Brand: TechNexion
SKU: EDMGIMX8MMQ16R20E32L9377TI
Availability: InStock

SKU: EDMGIMX8MMQ16R20E32L9377TI Category: EDM MODULES

Product Brief

EDM TYPE-G SOM NXP I.MX8M Mini QUAD 1.6GHZ + 2GB RAM + 32GB EMMC + LVDS + QCA9377 802.11AC + BLUETOOTH INDUSTRIAL TEMP -40~85C

Available on backorder

Specifications

Core System

Processor	NXP i.MX8M Mini
Processor Speed	1.6 Ghz
Architecture	ARM Cortex-A53 + M4
PMIC	NXP PCA9450
Memory	2GB LPDDR4
Storage	32GB eMMC
Board-to-Board Connector	260-pin DDR4 SO-DIMM
System on Module	EDM SOM
Debug Interface	JTAG Interface by Through-hole

AI / Vision Capabilities

AI / ML	OpenCL CPU: 32 GOPS
Camera	MIPI CSI (4 lanes)

Connectivity

Network LAN	1x Realtek RTL8211F
Wi-Fi	Qualcomm Atheros QCA9377 Wi-Fi 5 – 802.11 a/b/g/n/ac
Bluetooth	Qualcomm Atheros QCA9377 Bluetooth
Antenna	MHF4 connector

Signaling

I/O	LVDS LAN MIPI CSI PCIe USB USB OTG I²S SDIO UART SPI I²C PWM GPIO

Video

GPU Engine	GC NanoUltra (1 shader) GC520L (2D) OpenGL ES 2.0
Video decode	1080p60 (h.265, VP9, h.264, VP8)
Video encode	1080p60 (h.264)

Audio

Audio Codec	On carrier board
Audio Interface	I²S (2 channel)

Power Specifications

Power Input	5V DC +/-5%
Power Consumption	Depending on Configuration

Software Support

Standard Support	Linux Yocto Android Ubuntu
Extended Support	Boot2Qt Commercial Linux FreeRTOS Real Time OS

Environmental and Mechanical

Certification and Compliance

FCC	FCC ID: 2AKZA-QCA9377
IC	IC: 22364-QCA9377
CE	EN 300 328 v2.2.2 EN 301 893 v2.1.1 EN 55032 / EN 55024
TELEC (Japan)	TELEC: 201-180629
RCM (Australia/New Zealand)	RCM Compliant
Certification	Compliant with RoHS / REACH directives
Bluetooth Logo	QDID 150839 (Bluetooth 4.2) QDID 193238 (Bluetooth 5)

Commercial Information

Brand	TechNexion
SKU Number	EDMGIMX8MMQ16R20E32L9377TI
Country of Origin	Taiwan
HTSN	8473.30.1180
ECCN	5A992.c Mass Market
CCATS	740.17(b)(1) Mass Market (No License Required)
REACH / RoHS	Yes

EDM-G-IMX8M-MINI Block Diagram

EDM-G-IMX8M-MINI Dimensions
