EDM-G-IMX8M-NANO

  • Modern System on Module form factor
  • Up to 4 Cortex-A53 1.5 GHz processors
  • NXP i.MX 8M Nano applications processor
  • Armv8 64-Bit CPU cores

Order this product

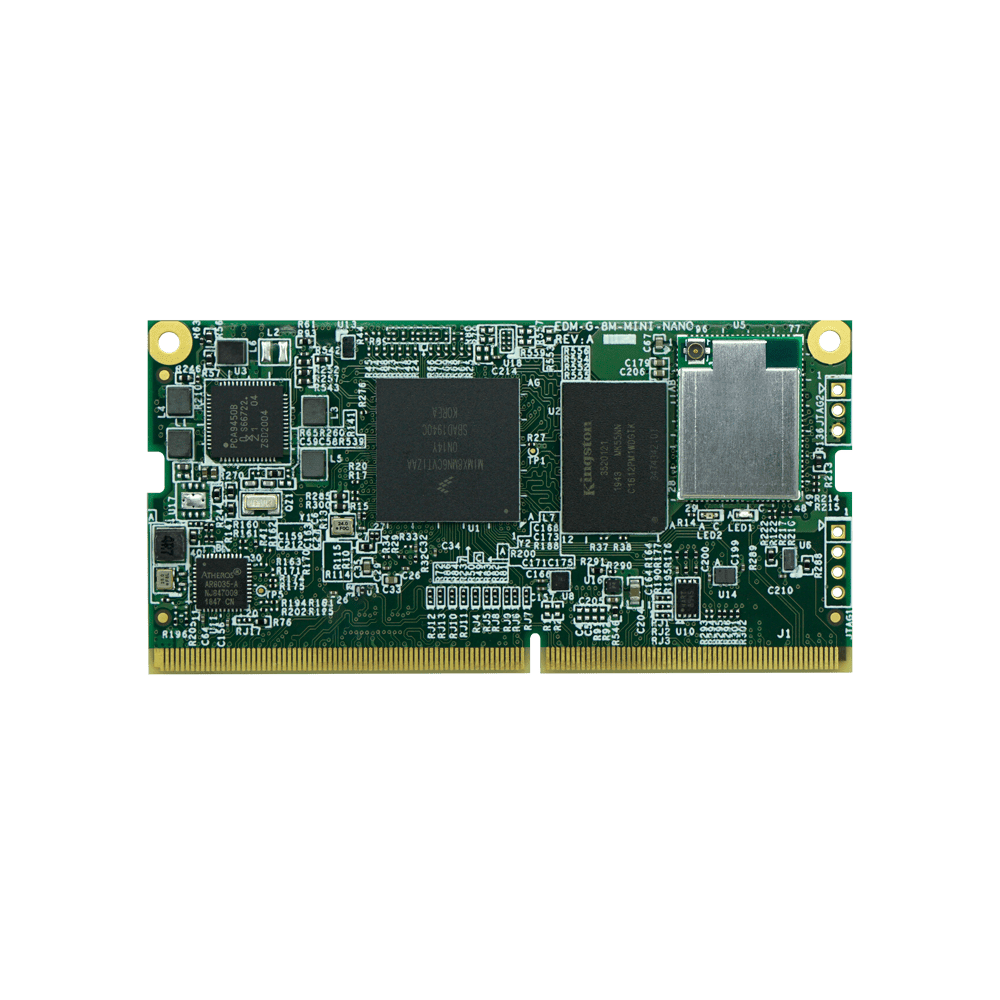

EDM-G-IMX8M-NANO-9377 TOP

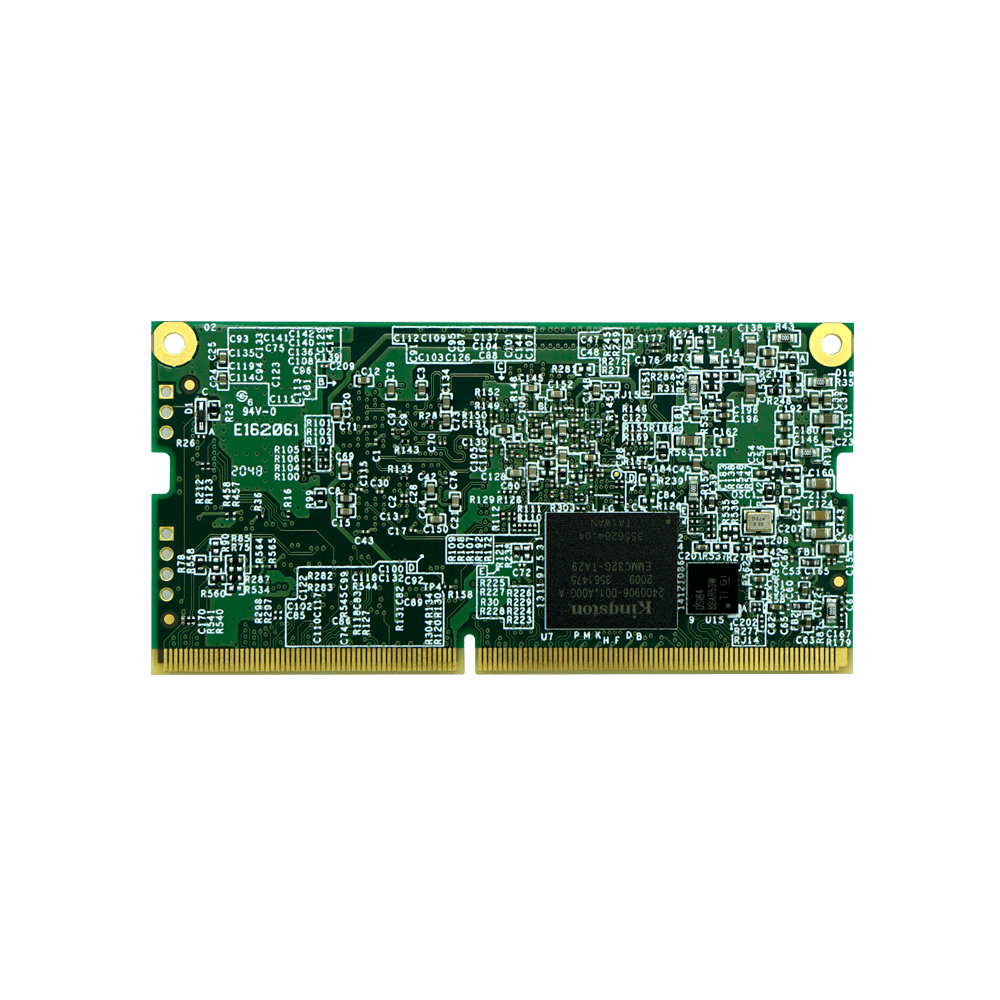

EDM-G-IMX8M-NANO BACK

Highlights

64-bit Performance

64-bit ARMv8 Cortex-A53 cores with a modern graphical user interface designed for typical industrial and medical applications.

Cost Saving

Scalability with a single software BSP is what the NXP i.MX Family is famous for. Keep your investment to a minimum and easily scale up or down to meet the product requirements.

I/O

Rich I/O is available for extension and connection.

Camera Integration

Machine Vision camera modules are ready off-the-shelf from TechNexion. Seamless integration and optimization from the first day of your project.

Certified Connectivity

Simplify your design with pre-certified wireless options - from the module to the antennas - and make end-device certification processes more predictable while cutting costs.

Sortware Platform

We advocate Open Source Software and support Linux, Ubuntu, Yocto and Android. Perfect solutions to success can be tailored easily.

Interfaces

Packed with a wide array of interfaces. Our System-on-Modules are as a Swiss Army knife when connecting over serial port, CAN bus, I2C, SPI or USB.

Pin Compatibility

Scalability at it's finest is what sets TechNexion System-on-Modules apart. A single carrier board can host from a low-power i.MX8M Nano to a powerful SOC with integrated NPU that the i.MX8M Plus brings to the EDM System-on-Module family.

Core System
Processor

NXP i.MX8M Nano

Architecture

ARM Cortex-A53 + M7

AI / ML

OpenCL CPU: 32 GOPS

PMIC

NXP PCA9450

Memory

Upto 2GB LPDDR4

Storage

32GB eMMC (default)

Board-to-Board Connector

EDM Type G connector (260-pin)

System on Module

EDM SOM

Debug Interface

JTAG Interface by Through-hole

Connectivity
Network LAN

1x Atheros AR8035 Gigabit LAN

Wi-Fi

Qualcomm Atheros QCA9377 Wi-Fi 5 – 802.11 a/b/g/n/ac (optional)

Bluetooth

Qualcomm Atheros QCA9377 Bluetooth (optional)

Antenna

MHF4 connector (optional)

Signaling
I/O

LAN
MIPI CSI
MIPI DSI
USB
USB OTG
I²S
SDIO
UART
SPI
I²C
PWM
GPIO

Video
GPU Engine

GC7000UL (2 shaders)
OpenGL® ES 2.0/3.0/3.1, Vulkan®, OpenCL™ 1.2

Camera

MIPI CSI (4 lanes)

Audio
Audio Codec

On carrier board

Audio Interface

I²S (2 channel)

Power Specifications
Power Input

5V DC +/-5%

Power Consumption

Depending on Configuration

Operating Systems
Standard Support

Linux
Yocto
Android
Ubuntu

Extended Support

Boot2Qt
Commercial Linux
FreeRTOS
Real Time OS

Environmental and Mechanical
Dimensions

69.6 x 35mm

Form Factor

EDM Type G

Relative Humidity

10 to 90 %

MTBF

100,000+ Hours

Shock

15G half-sine 11 ms duration

Operation Temperature

Commercial: 0° to +60° C
Industrial: -40° to +85° C

Vibration

1 Grms random 5-500Hz hr/axis

Weight

8 grams

Certification and Compliance
FCC

FCC ID: 2AKZA-QCA9377

IC

IC: 22364-QCA9377

CE

EN 300 328 v2.2.2
EN 301 893 v2.1.1
EN 55032 / EN 55024

TELEC (Japan)

TELEC: 201-180629

RCM (Australia/New Zealand)

RCM Compliant

Certification

Compliant with RoHS / REACH directives

Bluetooth Logo

QDID 150839 (Bluetooth 4.2)
QDID 150839 (Bluetooth 5)

Commercial Information
Brand

TechNexion

Country of Origin

Taiwan

HTSN

8473.30.1180

ECCN

5A992.c Mass Market

CCATS

740.17(b)(1) Mass Market (No License Required)

REACH / RoHS

YES

EDM-G-IMX8M-NANO Block Diagram
EDM-G-IMX8M-NANO Dimensions
Order Information Example:

EDM-G-IMX8MNQ-xx-Rxx-Exx-xxxx-xx

 CodeDescription
ProcessorIMX8MNQNXP i.MX8M Nano
Processor Speed141.4Ghz
151.5Ghz
MemoryR101GB LPDDR4
R202GB LPDDR4
Storage E3232GB eMMC
Bluetooth / WiFi--
93771x Qualcomm Atheros QCA9377 802.11 a/b/g/n/ac + Bluetooth
Temperature Range -Commercial Temperature range (0~60° C)(Default)
TIIndustrial Temperature range (-40~85° C)



Standard Parts
EDM-G-IMX8M-NANO TOP

EDM-G-IMX8MNQ15-R10-E32

EDM TYPE-G SOM NXP I.MX8M Nano QUAD 1.5GHZ + 1GB LPDDR4 + 32GB EMMC

EDM-G-IMX8M-NANO-9377 TOP

EDM-G-IMX8MNQ15-R10-E32-9377

EDM TYPE-G SOM NXP I.MX8M Nano QUAD 1.5GHZ + 1GB LPDDR4 + 32GB EMMC + QCA9377 802.11AC + BLUETOOTH

EDM-G-IMX8M-NANO TOP

EDM-G-IMX8MNQ15-R20-E32

EDM TYPE-G SOM NXP I.MX8M Nano QUAD 1.5GHZ + 2GB LPDDR4 + 32GB EMMC

EDM-G-IMX8M-NANO-9377 TOP

EDM-G-IMX8MNQ15-R20-E32-9377

EDM TYPE-G SOM NXP I.MX8M Nano QUAD 1.5GHZ + 2GB LPDDR4 + 32GB EMMC + QCA9377 802.11AC + BLUETOOTH

EDM-G-IMX8M-NANO TOP

EDM-G-IMX8MNQ14-R10-E32-TI

EDM TYPE-G SOM NXP I.MX8M Nano QUAD 1.4GHZ + 1GB LPDDR4 + 32GB EMMC INDUSTRIAL TEMP -40~85C

EDM-G-IMX8M-NANO-9377 TOP

EDM-G-IMX8MNQ14-R10-E32-9377-TI

EDM TYPE-G SOM NXP I.MX8M Nano QUAD 1.4GHZ + 1GB LPDDR4 + 32GB EMMC + QCA9377 802.11AC + BLUETOOTH INDUSTRIAL TEMP -40~85C

EDM-G-IMX8M-NANO TOP

EDM-G-IMX8MNQ14-R20-E32-TI

EDM TYPE-G SOM NXP I.MX8M Nano QUAD 1.4GHZ + 2GB LPDDR4 + 32GB EMMC INDUSTRIAL TEMP -40~85C

EDM-G-IMX8M-NANO-9377 TOP

EDM-G-IMX8MNQ14-R20-E32-9377-TI

EDM TYPE-G SOM NXP I.MX8M Nano QUAD 1.4GHZ + 2GB LPDDR4 + 32GB EMMC + QCA9377 802.11AC + BLUETOOTH INDUSTRIAL TEMP -40~85C
