Available to connect the camera module quickly to our System-on-Modules.
Captures high-speed dynamic images clearly within an ultra-short exposure time.
Color correction, Lens calibration, over-exposure management, and multiple functions are already taken care of with a built-in ISP.
We provide lens calibration and correction adjustment.
Compatible with MIPI connector and easy to change among our camera modules to fit the project requirement.
Rugged and Reliable
Operates reliably in harsh industrial environments and conditions, such as strong vibrations, extreme temperatures and wet or dusty conditions.
Supports various platforms, programming languages and easy to build on TN-Vizion SDK series.
Time to Market
With our pre-calibrated lens and integrated software, the camera can work directly and accelerate your time-to-market.
|Environmental and Mechanical|
|Certification and Compliance|
Order Information Example:
|S83||S-Mount Module D-FOV 83°|
|IR||IR Cut Filter 650nm|
|Evaluation Kit||-||70 pin Standardized Camera Connector|
|EVK||70 pin Standardized Camera Connector with FPC cable|
|RPI15||15 pin Standardized ZIF Connector with FFC cable|
|RPI22||22 pin Standardized ZIF Connector with FFC cable|
|NXP||Mini-SAS connection cable for NXP Evaluation Board|
MIPI-CSI2 Sensor onsemi AR0144 1MP Color Global Shutter with ISP + 83 Degree M12 Lens with IR-Cut Filter

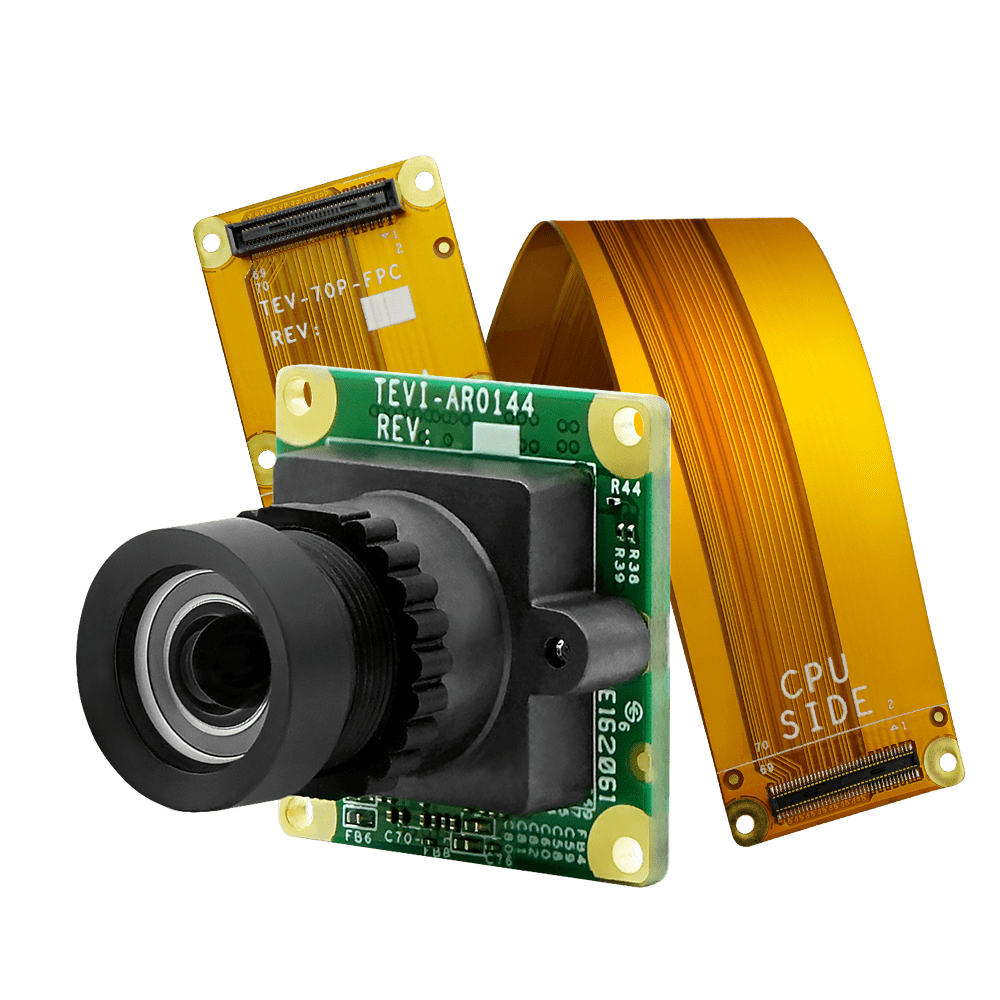

MIPI-CSI2 Sensor onsemi AR0144 1MP Color Global Shutter with ISP + 83 Degree M12 Lens with IR-Cut Filter + FPC Cable for Technexion SOM EVK

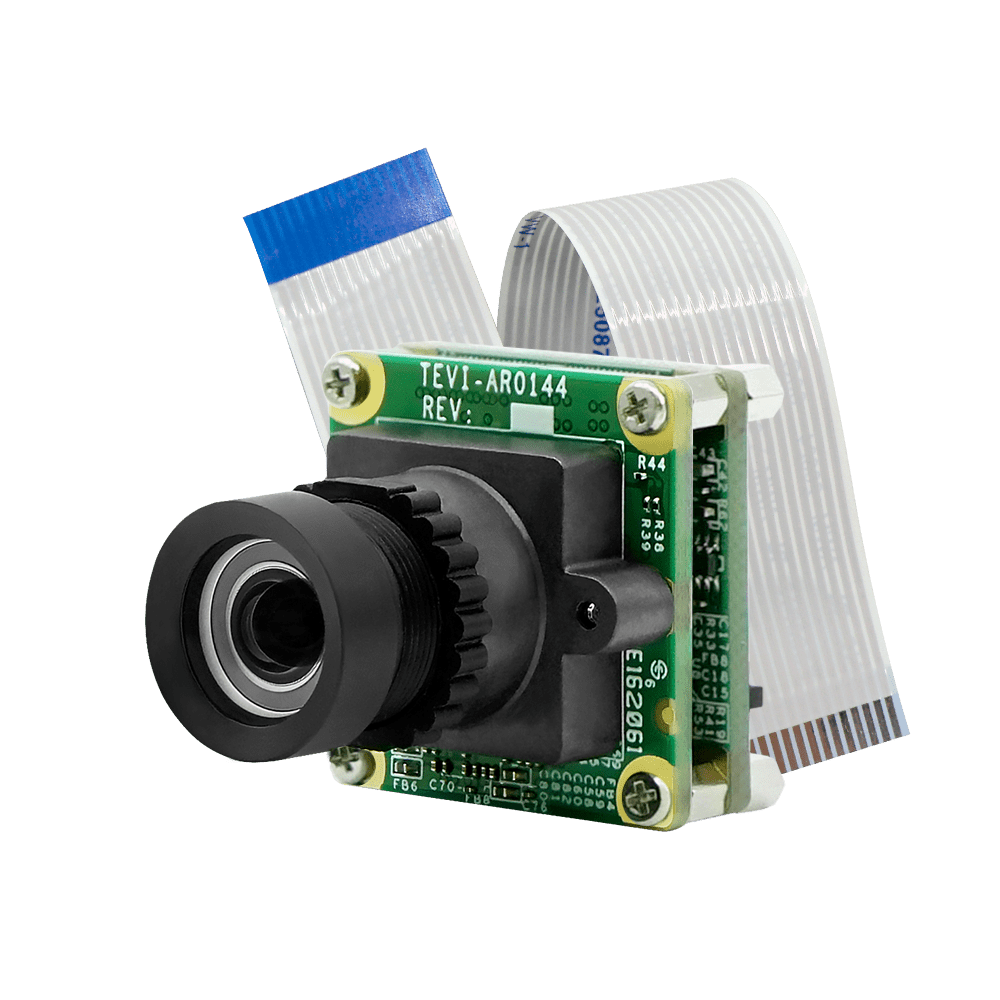

MIPI-CSI2 Sensor onsemi AR0144 1MP Color Global Shutter with ISP + 83 Degree M12 Lens with IR-Cut Filter + RPI 15 Pin Converter and Flex PCB
MIPI-CSI2 Sensor onsemi AR0144 1MP Color Global Shutter with ISP + 83 Degree M12 Lens with IR-Cut Filter + RPI 22 Pin Converter and Flex PCB
- Compatible with TechNexion i.MX8 Family
- Integrated device tree driver in Linux 5.4 Kernel
- Android 10 and Android 11 Ready
15-Pin RPi / NVidia EVK
- Connect seamlessly to Nvidia Jetson and Xavier NX
