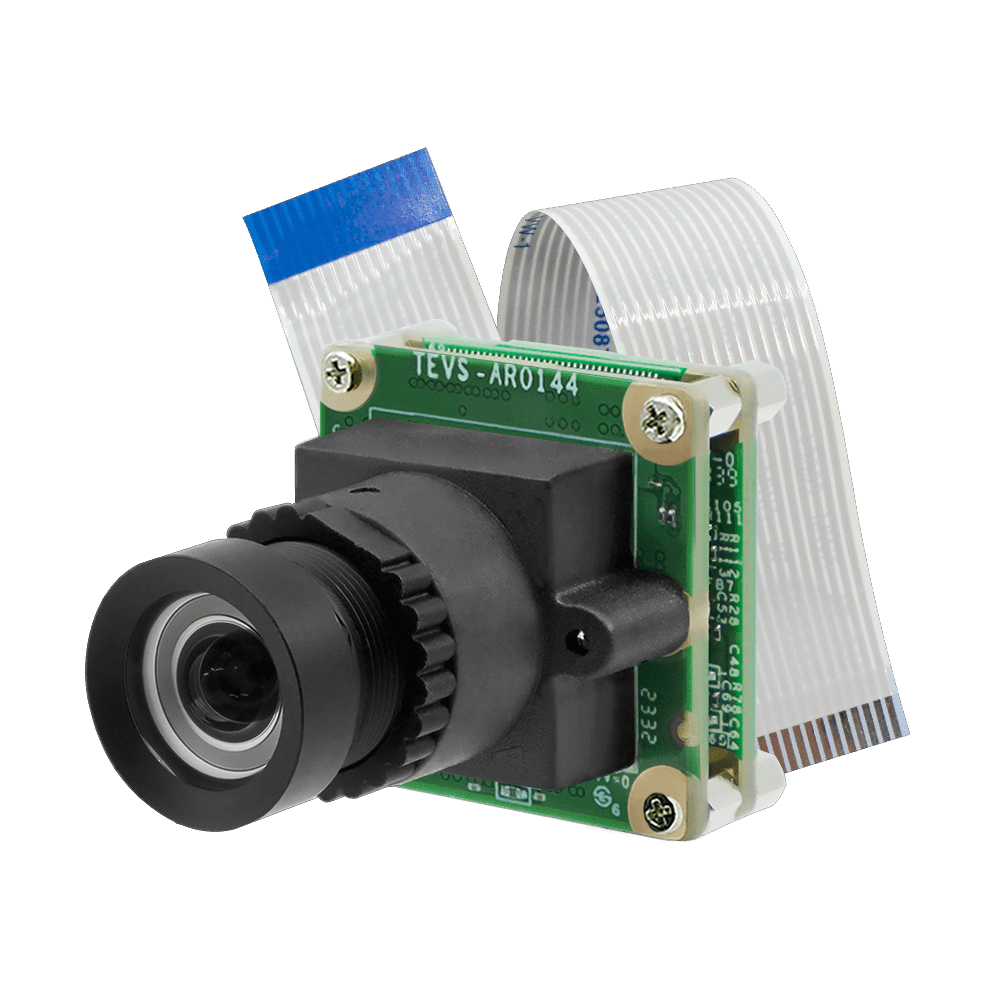

TEVS-AR0144-RPI15 Medium FOV

TEVS-AR0144-C-S83-IR-RPI15

SKU: TEVSAR0144CS83IRRPI15 Category: MIPI-CSI2 Sensors

More Information

Product Brief

MIPI-CSI2 Sensor onsemi AR0144 1MP Color Global Shutter with ISP + 83 Degree M12 Lens with IR-Cut Filter + RPI 15 Pin Converter and Flex PCB

100 in stock (can be backordered)

Quantity	Discount (%)	Price
1 - 99	—	$112.00
100 - 249	5 %	$106.40
250 - 499	10 %	$100.80
500+	15 %	$95.20

x

Specifications

Additional information

Camera Information

CMOS Sensor	onsemi AR0144
Active Pixels	1280 (H) x 800 (V) = 1MP
Pixel Size	3.0 μm x 3.0 μm
Optical Format	1/4” (Diagonal 4.5 mm)
Shutter Type	Global Shutter
Chromaticity	Color
Illuminated type	Front Side Illuminated (FSI)
Maximum Frame Rate (UYVY)	1280 x 800 @ 60 fps 1280 x 720 @ 60 fps 640 x 480 @ 60 fps
Maximum S/N Ratio	38 dB
Input Clock Range	48 MHz
Output Format	UYVY

Interface

Module Data Transmission	MIPI CSI-2, up to 4 lanes
Communication Interface	I2C
Connector	15 Pin Standardized ZIF Connector

Power Specifications

Supply Voltage	Analog: 2.8V I/O: 1.8V Digital: 1.15V & 3.3V
Power Consumption	1280 x 800 @ 60 fps ≤ 486 mW
SW Standby Power	≤ 46 mW Standby
HW Standby Power	≤ 21 mW Standby

Software Support

Platform Support	NVIDIA Jetson Nano NVIDIA Xavier NX TI Jacinto™ TDA4VM / AM68 Raspberry Pi 4
Operation Systems	Linux
SDK	VizionViewer™ / VizionSDK

Lens Information

Focus Type	Fixed Focus
Focal Length	2.85 mm
Aperture	F2.8
Module D-FOV	82.6° ± 5%
Module H-FOV	73.5° ± 5%
Module V-FOV	50.3° ± 5%
TTL	20 mm
BFL	2.03 mm
MOD	0.3 m
Distortion	< – 0.35%
IR-Filter	650 nm
Lens Operating Temperature	-20°C to +60°C

Environmental and Mechanical

Dimensions	24.5(W) x 24.5(H) x 19.2(D) mm
Weight	≤ 18 grams
Operation Temperature	-30°C to +70℃

Certification and Compliance

Certification	Compliant with CE / FCC / RoHS / REACH directives

Commercial Information

Brand	TechNexion
Country of Origin	Taiwan
HTSN	8525.80.5050
ECCN	EAR99
REACH / RoHS	Yes

Spectral Characteristics

AR0144 Spectral Characteristics

Switch Setting

AR0144 Switch

You may be interested in…

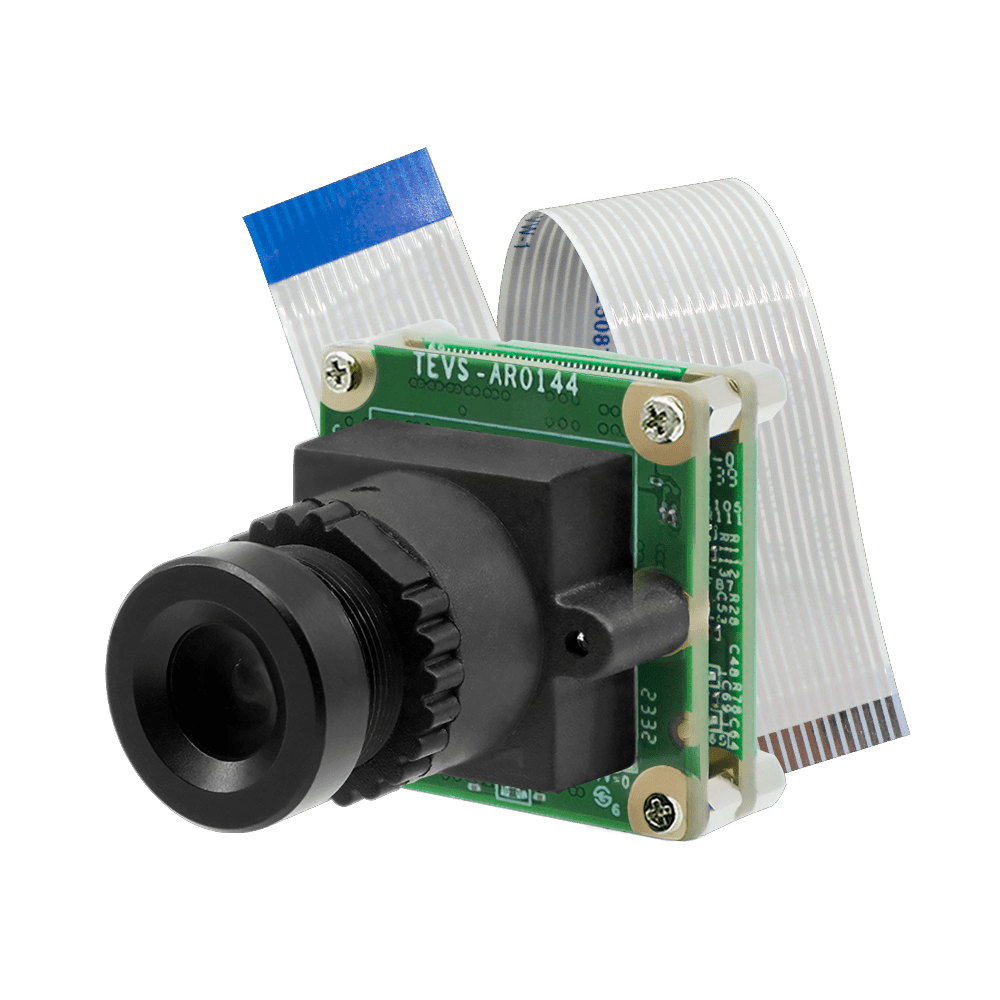

TEVS-AR0144-C-S33-IR-RPI15
