TEVS-AR0144-EVK Narrow FOV

TEVS-AR0144-C-S33-IR-EVK

SKU: TEVSAR0144CS33IREVK Category: MIPI-CSI2 Sensors

More Information

Product Brief

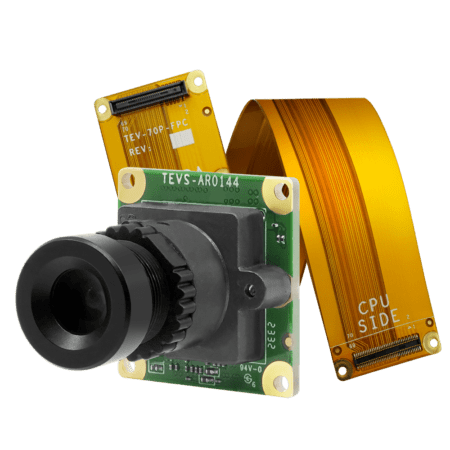

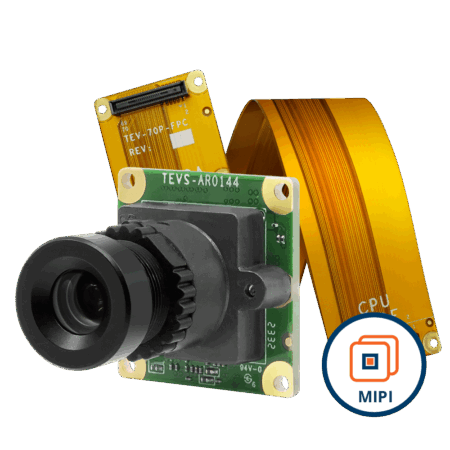

MIPI-CSI2 Sensor onsemi AR0144 1MP Color Global Shutter with ISP + 33 Degree M12 Lens with IR-Cut Filter + FPC Cable for Technexion SOM EVK

1 in stock

Quantity	Discount (%)	Price
1 - 99	—	$108.00
100 - 249	5 %	$102.60
250 - 499	10 %	$97.20
500+	15 %	$91.80

x

Specifications

Additional information

Camera Information

CMOS Sensor	onsemi AR0144
Active Pixels	1280 (H) x 800 (V) = 1MP
Pixel Size	3.0 μm x 3.0 μm
Optical Format	1/4” (Diagonal 4.5 mm)
Shutter Type	Global Shutter
Chromaticity	Color
Illuminated type	Front Side Illuminated (FSI)
Maximum Frame Rate (YUY2)	1280 x 800 @ 60 fps 1280 x 720 @ 60 fps 640 x 480 @ 60 fps
Maximum S/N Ratio	38 dB
Input Clock Range	48 MHz
Output Format	YUV2

Interface

Module Data Transmission	MIPI CSI-2, up to 4 lanes
Communication Interface	I2C
Connector	70 Pin Standardized Camera Connector

Power Specifications

Supply Voltage	Analog: 2.8V I/O: 1.8V Digital: 1.15V & 3.3V
Power Consumption	1280 x 800 @ 55 fps ≤ 434 mW
Standby Power	≤ 23 mW Standby

Software Support

Platform Support	NXP i.MX8M Nano / Mini / Plus
Operation Systems	Linux Yocto Android
SDK	VizionViewer™ / VizionSDK

Lens Information

Focus Type	Fixed Focus
Focal Length	8 mm
Aperture	F1.8
Lens D-FOV	34.0°
Lens H-FOV	28.2°
Lens V-FOV	17.5°
Module D-FOV	33.1° ± 5%
Module H-FOV	28.0° ± 5%
Module V-FOV	17.4° ± 5%
TTL	25.22 mm
BFL	6.92 mm
MOD	0.2 m
Distortion	< – 5.11%
IR-Filter	650 nm
Lens Operating Temperature	-20°C to +60°C

Environmental and Mechanical

Dimensions	24.5(W) x 24.5(H) x 18.5(D) mm
Weight	≤ 12 grams
Operation Temperature	-30°C to +70℃

Certification and Compliance

Certification	Compliant with CE / FCC / RoHS / REACH directives

Commercial Information

Brand	TechNexion
Country of Origin	Taiwan
HTSN	8525.80.5050
ECCN	EAR99
REACH / RoHS	Yes

Block Diagram

TEVS-AR0144 Block Diagram

Spectral Characteristics

AR0144 Spectral Characteristics

Switch Setting

AR0144 Switch
