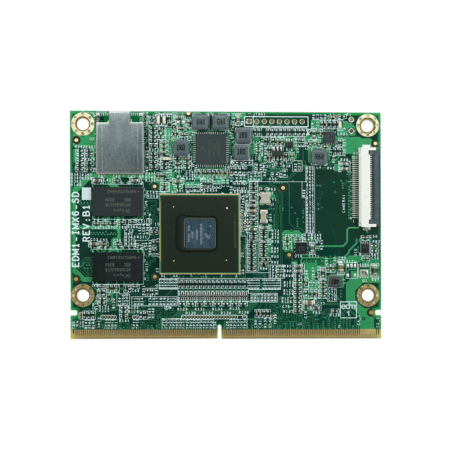

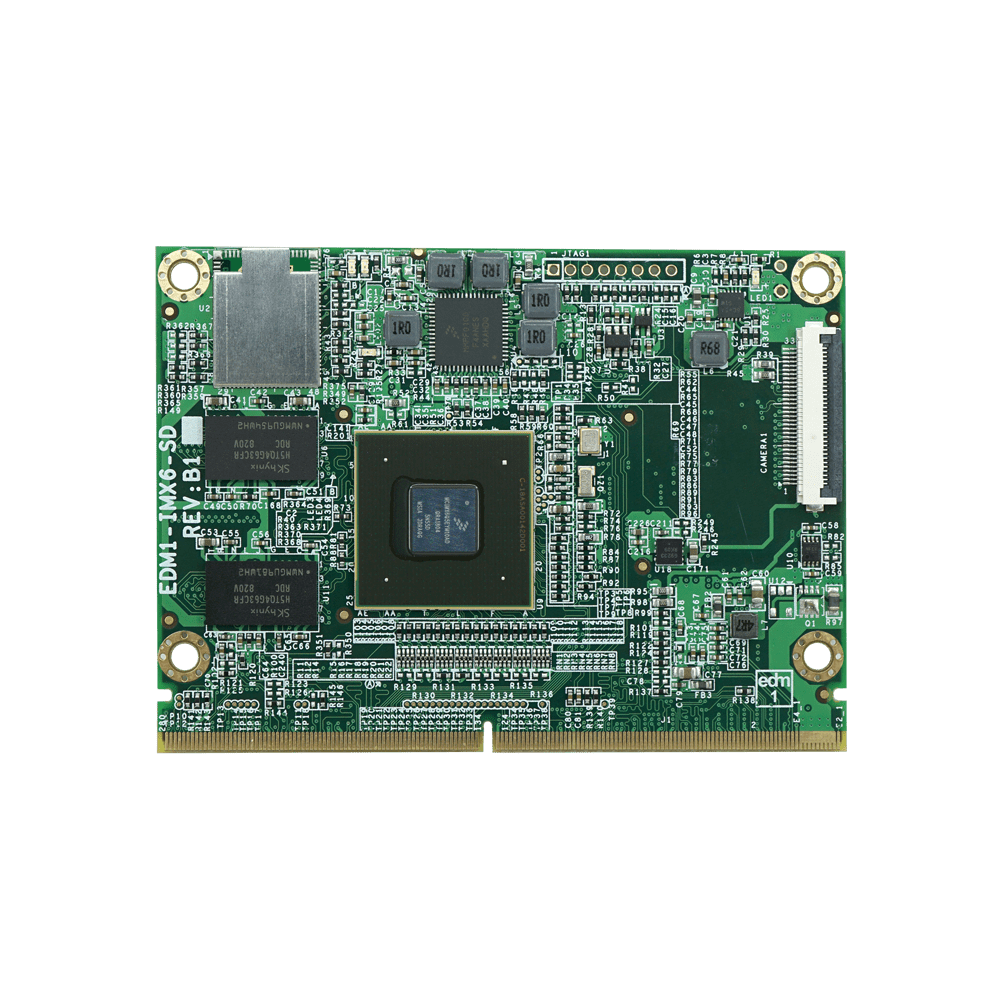

EDM1-IMX6Q10-R20-MSD-9377
$136.00
EDM System-on-Module based around NXP i.MX6 Quad SoC with 2GB of DDR3 memory, SD card slot and QCA-9377 Wireless and Bluetooth.
2 in stock (can be backordered)
Specifications
Additional information
Processor Speed | 1.0 Ghz |
---|---|
Architecture | ARM Cortex-A9 |
PMIC | NXP MMPF0100 |
Memory | 2GB DDR3 |
Storage | MicroSD |
Board-to-Board Connector | EDM connector (314-pin MXM3) |
System on Module | EDM SOM |
Debug Interface | JTAG Interface by Through-hole |
Network LAN | 1x Atheros AR8035 Gigabit LAN |
Wi-Fi | Qualcomm Atheros QCA9377 Wi-Fi 5 – 802.11 a/b/g/n/ac |
Bluetooth | Qualcomm Atheros QCA9377 Bluetooth |
Antenna | MHF4 connector |
I/O | HDMI, LVDS, RGB TTL, LAN, MIPI CSI-2, MIPI DSI, PCIe, SATA, USB, USB OTG, I²S, SPDIF, SDIO, CAN, UART, SPI, I²C, PWM, GPIO |
GPU Engine | Vivante GC2000 (Dual/Quad), Vivante GC320 (2D Composition), Vivante GC355 (Dual / Quad) |
Video Decode | 1080p60 H.264 (Dual/Quad) |
Video Encode | BP/Dual 720p |
Camera | MIPI CSI (4 lanes) |
Audio Codec | On carrier board |
Audio Interface | I²S (2 channel) |
Power Input | 5V DC +/-5% |
Power Consumption | Depending on Configuration |
Standard Support | Linux, Yocto, Ubuntu, Android |
Extended Support | Commercial Linux, Real Time OS |
USA | FCC ID: 2AKZA-QCA9377 |
Canada | IC: 22364-QCA9377 |
European Union | EN 300 328 v2.2.2, EN 301 893 v2.1.1, EN 55032 / EN 55024 |
Japan | TELEC: 201-180629 |
Australia / New Zealand | RCM Compliant |
Certification | Compliant with RoHS / REACH directives |
Bluetooth Logo | QDID 150839 (Bluetooth 4.2), QDID 193238 (Bluetooth 5) |
Dimensions | 82 x 60 mm |
Form Factor | EDM Type 1 |
Relative Humidity | 10 to 90 % |
MTBF | 100,000+ Hours |
Shock | 15G half-sine 11 ms duration |
Operation Temperature | Commercial: 0°C to +60°C |
Vibration | 1 Grms random 5-500Hz hr/axis |
Weight | 20 grams |
Brand | TechNexion |
Country of Origin | Taiwan |
HTSN | 8473.30.1180 |
ECCN | 5A992.c Mass Market |
CCATS | 740.17(b)(1) Mass Market (No License Required) |
REACH / RoHS | Yes |
