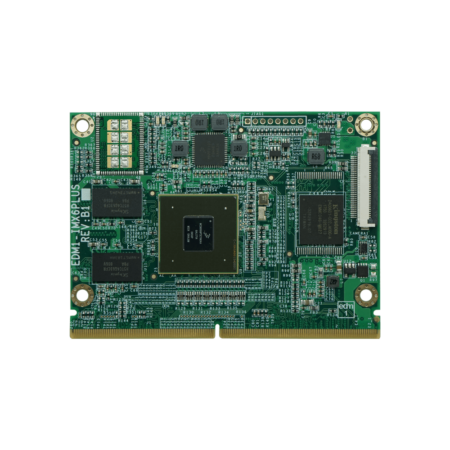

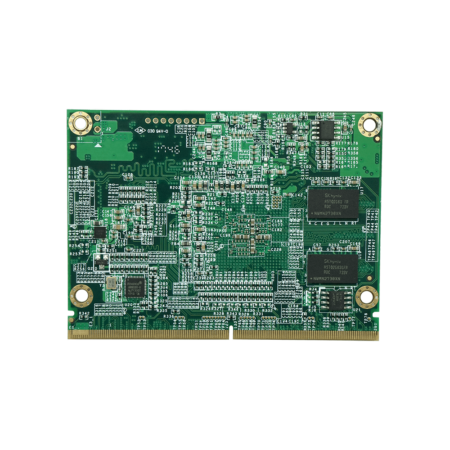

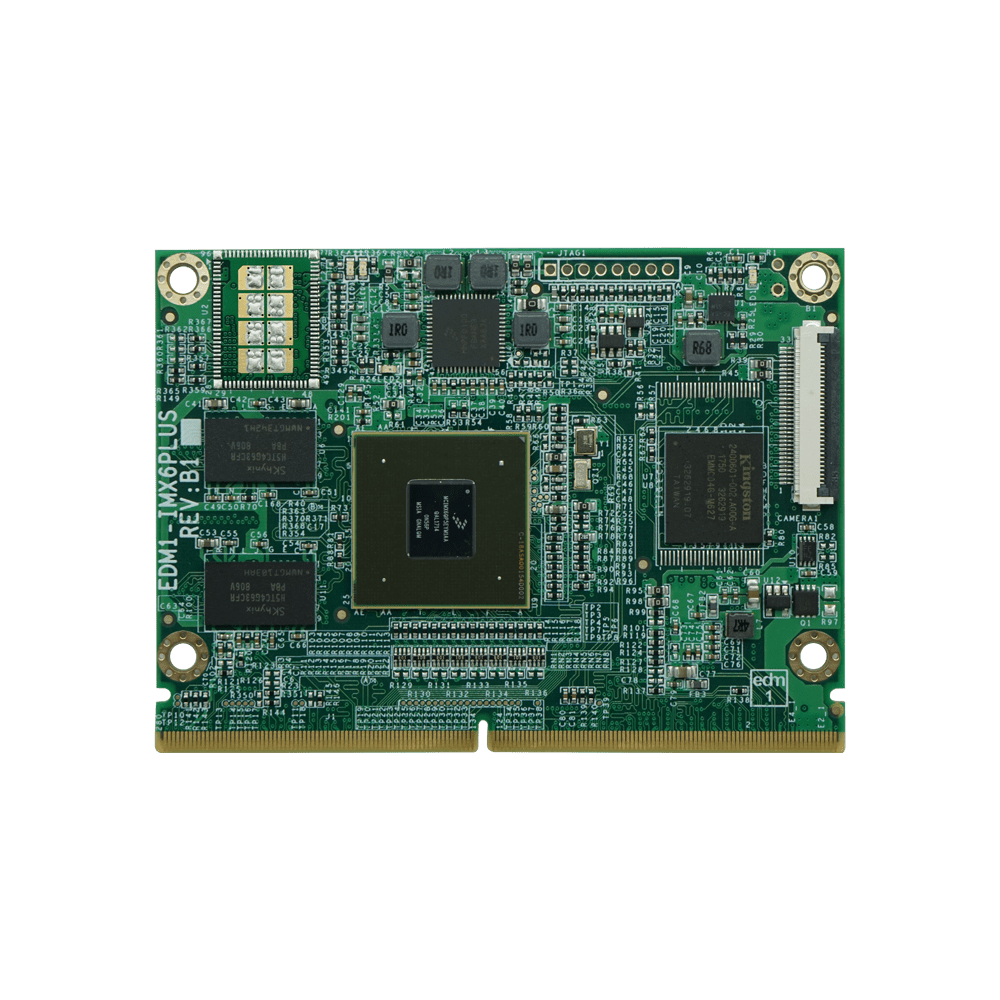

EDM1-IMX6Q10-R20-E16

Name: EDM1-IMX6Q10-R20-E16
Brand: TechNexion
SKU: EDM1IMX6Q10R20E16
Availability: InStock

SKU: EDM1IMX6Q10R20E16 Categories: LEGACY, SOM’S Tags: android, edm, imx6, linux, ubuntu, yocto

Product Brief

EDM System-on-Module based around NXP i.MX6 Quad SoC with 2GB of DDR3 memory, 16GB eMMC.

4 in stock (can be backordered)

Additional information

Core System

Processor	NXP i.MX6 Quad
Processor Speed	1.0 Ghz
Architecture	ARM Cortex-A9
PMIC	NXP MMPF0100
Memory	2GB DDR3
Storage	16GB eMMC
Board-to-Board Connector	EDM connector (314-pin MXM3)
System on Module	EDM SOM
Debug Interface	JTAG Interface by Through-hole

Connectivity

Network LAN	1x Atheros AR8035 Gigabit LAN

Signaling

I/O	HDMI LVDS RGB TTL LAN MIPI CSI MIPI DSI PCIe SATA USB USB OTG I²S SPDIF SDIO CAN UART SPI I²C PWM GPIO

Video

GPU Engine	Vivante GC2000 (Dual/Quad) Vivante GC320 (2D Composition) Vivante GC355 (Dual / Quad)
Video decode	1080p60 H.264 (Dual/Quad)
Video encode	BP/Dual 720p
Camera	MIPI CSI (4 lanes)

Audio

Audio Codec	On carrier board
Audio Interface	I²S (2 channel)

Power Specifications

Power Input	5V DC +/-5%
Power Consumption	Depending on Configuration

Operating Systems

Standard Support	Linux Yocto Android Ubuntu
Extended Support	Commercial Linux Real Time OS

Environmental and Mechanical

Certification and Compliance

Certification	Compliant with RoHS / REACH directives

Commercial Information

Brand	TechNexion
SKU Number	EDM1IMX6Q10R20E16
Country of Origin	Taiwan
HTSN	8473.30.1180
ECCN	5A992.c Mass Market
CCATS	740.17(b)(1) Mass Market (No License Required)
REACH / RoHS	YES

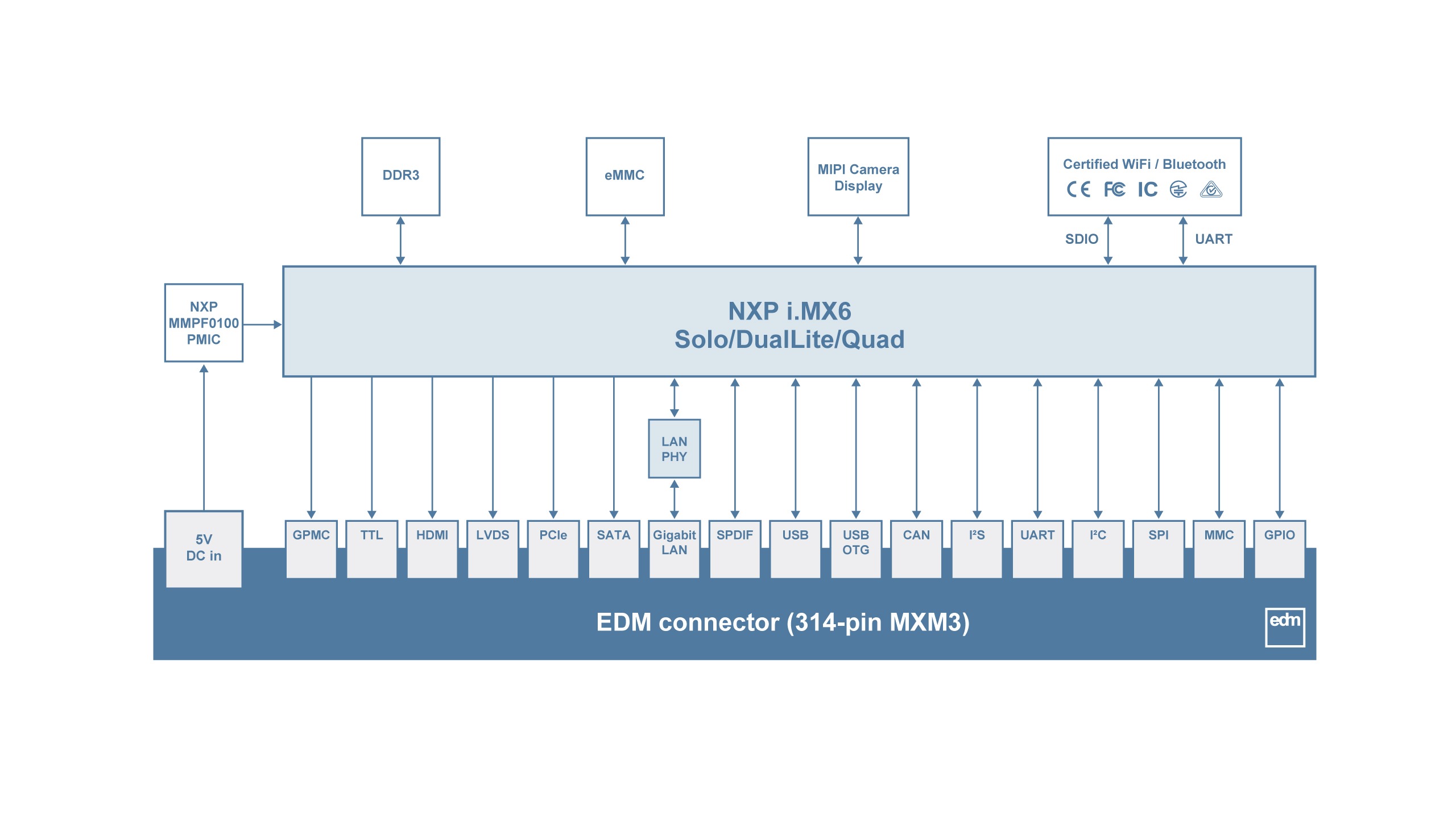

EDM1-IMX6-eMMC Block Diagram

EDM1-IMX6 Dimensions
