EDM1-IMX6Q10-R20-E16-9377

Name: EDM1-IMX6Q10-R20-E16-9377
Brand: TechNexion
SKU: EDM1IMX6Q10R20E169377
Availability: InStock

SKU: EDM1IMX6Q10R20E169377 Categories: LEGACY, SOM’S

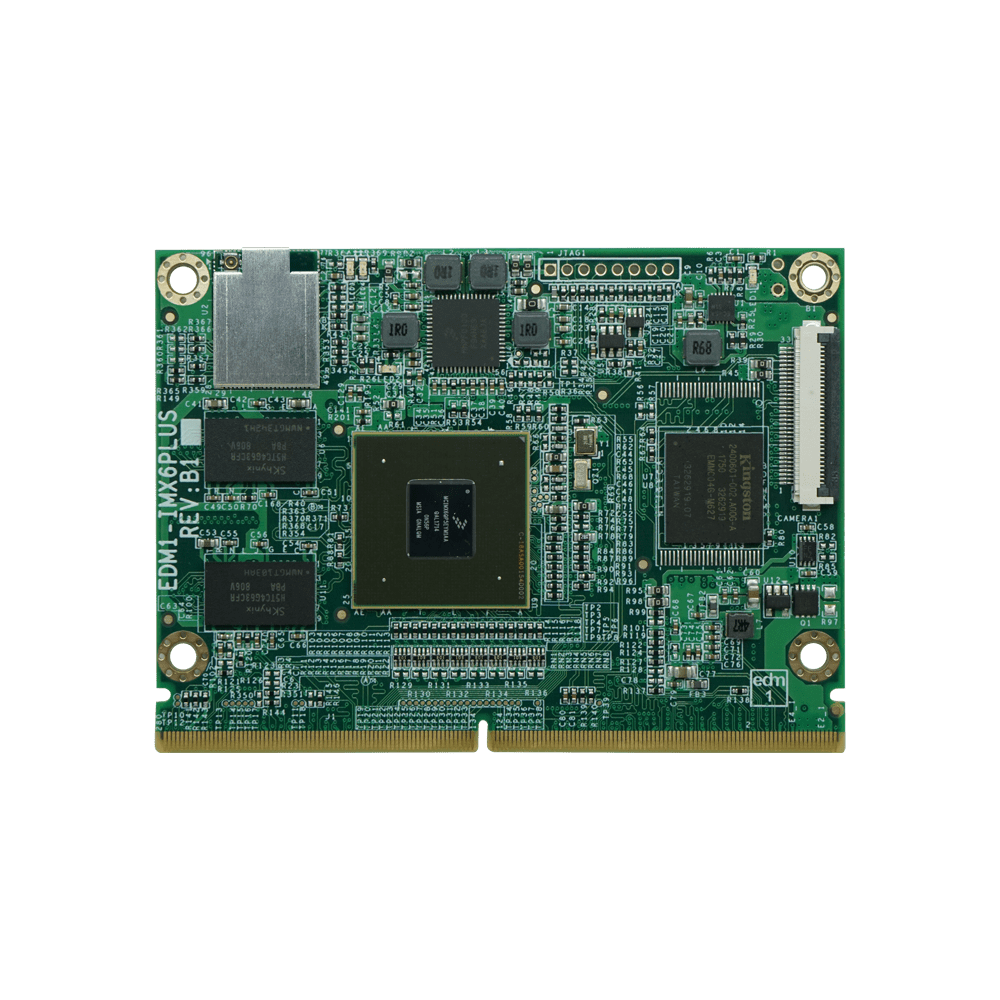

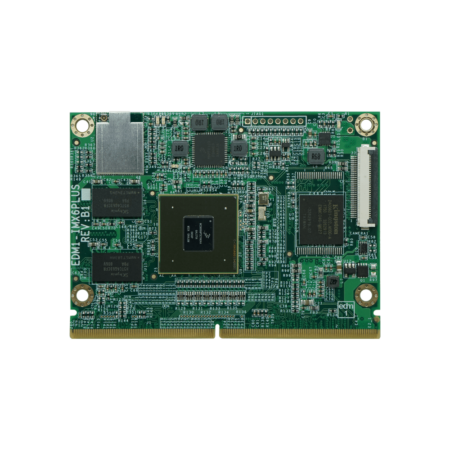

EDM System-on-Module based around NXP i.MX6 Quad SoC with 2GB of DDR3 memory, 16GB eMMC and QCA-9377 Wireless and Bluetooth.

Product Brief

9 in stock (can be backordered)

Specifications

Core System

Processor Speed	1.0 Ghz
Architecture	ARM Cortex-A9
PMIC	NXP MMPF0100
Memory	2GB DDR3
Storage	16GB eMMC
Board-to-Board Connector	EDM connector (314-pin MXM3)
System on Module	EDM SOM
Debug Interface	JTAG Interface by Through-hole

AI / Vision Capabilities

Camera	MIPI CSI (4 lanes)

Connectivity

Network LAN	1x Atheros AR8035 Gigabit LAN
Wi-Fi	Qualcomm Atheros QCA9377 Wi-Fi 5 – 802.11 a/b/g/n/ac
Bluetooth	Qualcomm Atheros QCA9377 Bluetooth
Antenna	MHF4 connector

Signaling

I/O	HDMI LVDS TTL RGB LAN MIPI CSI-2 MIPI DSI PCIe SATA USB USB OTG I²S SPDIF SDIO CAN UART SPI I²C PWM GPIO

Video

GPU Engine	Vivante GC2000 (Dual/Quad) Vivante GC320 (2D Composition) Vivante GC355 (Dual / Quad)
Video Decode	1080p60 H.264 (Dual/Quad)
Video Encode	BP/Dual 720p

Audio

Audio Codec	On carrier board
Audio Interface	I²S (2 channel)

Power Specifications

Power Input	5V DC +/-5%
Power Consumption	Depending on Configuration

Software Support

Standard Support	Linux Yocto Ubuntu Android
Extended Support	Commercial Linux Real Time OS

Environmental and Mechanical

Certification and Compliance

USA	FCC ID: 2AKZA-QCA9377
Canada	IC: 22364-QCA9377
European Union	EN 300 328 v2.2.2 EN 301 893 v2.1.1 EN 55032 / EN 55024
Japan	TELEC: 201-180629
Australia / New Zealand	RCM Compliant
Certification	Compliant with RoHS / REACH directives
Bluetooth Logo	QDID 150839 (Bluetooth 4.2) QDID 193238 (Bluetooth 5)

Commercial Information

Brand	TechNexion
Country of Origin	Taiwan
HTSN	8473.30.1180
ECCN	5A992.c Mass Market
CCATS	740.17(b)(1) Mass Market (No License Required)
REACH / RoHS	Yes

EDM1-IMX6-eMMC Block Diagram

EDM1-IMX6 Dimensions
