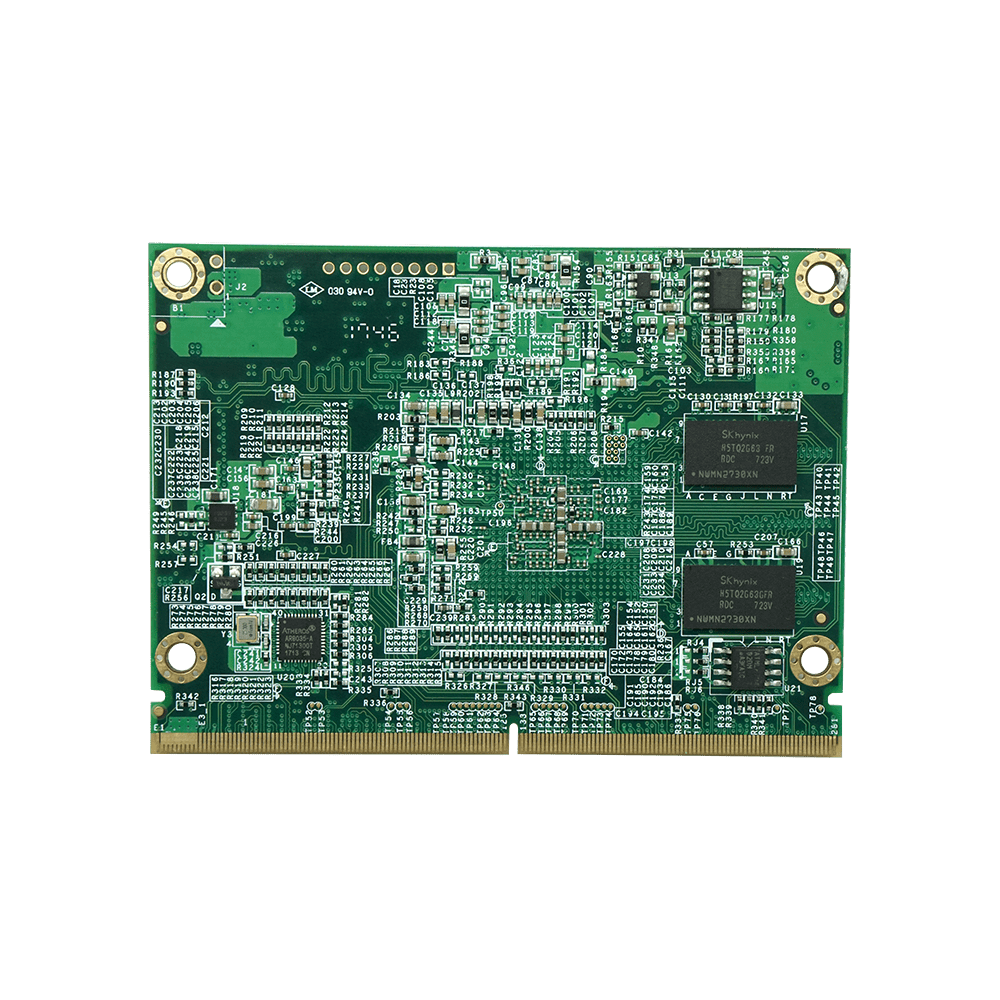

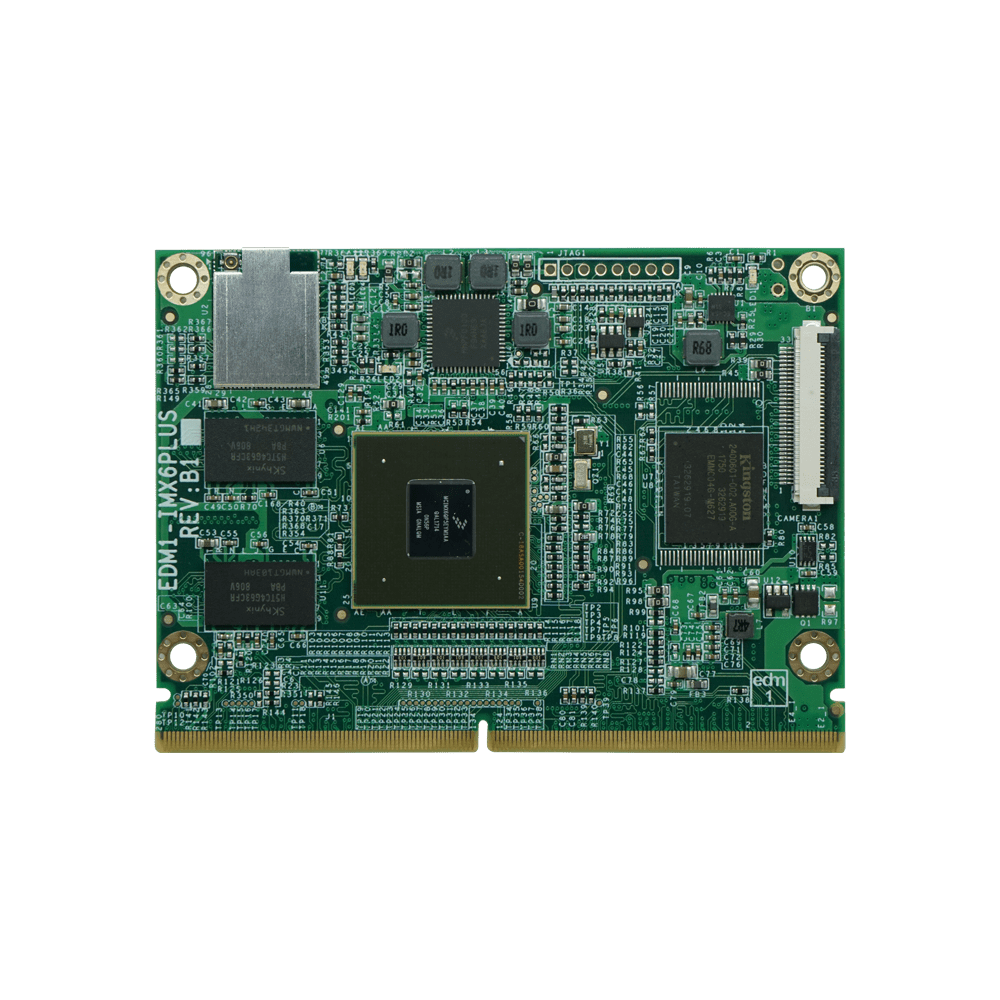

Highlights

Core System
Processor

NXP i.MX6 Solo
NXP i.MX6 Duallite
NXP i.MX6 Quad
NXP i.MX6 QuadPlus

Architecture

ARM Cortex-A9

PMIC

NXP MMPF0100

Memory

upto 2GB DDR3

Storage

16GB eMMC (default)
MicroSD

Board-to-Board Connector

EDM connector (314-pin MXM3)

System on Module

EDM SOM

Debug Interface

JTAG Interface by Through-hole

Connectivity
Network LAN

1x Atheros AR8035 Gigabit LAN

Wi-Fi

Qualcomm Atheros QCA9377 Wi-Fi 5 – 802.11 a/b/g/n/ac (optional)

Bluetooth

Qualcomm Atheros QCA9377 Bluetooth (optional)

Antenna

MHF4 connector

Signaling
I/O

HDMI
LVDS
RGB TTL
LAN
MIPI CSI
MIPI DSI
PCIe
SATA
USB
USB OTG
I²S
SPDIF
SDIO
CAN
UART
SPI
I²C
GPMC
PWM
GPIO

Video
GPU Engine

Vivante GC2000 (Dual/Quad)
Vivante GC2000+ (QuadPlus)
Vivante GC320 (2D Composition)
Vivante GC355 (Dual/Quad/QuadPlus)
Vivante GC880 (Solo/DualLite)

Video decode

1080p30 + D1 (Solo/DualLite)
1080p60 H.264 (Dual/Quad)
HD (1080p +720p) (QuadPlus)

Video encode

1080p30 H.264
BP/Dual 720p

Camera

MIPI CSI (4 lanes)

Audio
Audio Codec

On carrier board

Audio Interface

I²S (2 channel)

Power Specifications
Power Input

5V DC +/-5%

Power Consumption

Depending on Configuration

Operating Systems
Standard Support

Linux
Yocto
Android
Ubuntu

Extended Support

Commercial Linux

Certification and Compliance
FCC

FCC ID: 2AKZA-QCA9377

IC

IC: 22364-QCA9377

CE

EN 300 328 v2.2.2
EN 301 893 v2.1.1
EN 55032 / EN 55024

TELEC (Japan)

TELEC: 201-180629

RCM (Australia/New Zealand)

RCM Compliant

Certification

Compliant with RoHS / REACH directives

Bluetooth Logo

QDID 150839 (Bluetooth 4.2)

Environmental and Mechanical
Dimensions

82 x 60 mm

Form Factor

EDM Type 1

Relative Humidity

10 to 90 %

MTBF

100,000+ Hours

Shock

15G half-sine 11 ms duration

Operation Temperature

Commercial: 0° to +60° C
Industrial: -40° to +85° C

Vibration

20G/0-600Hz

Weight

20 grams

Shop Data
Brand

TechNexion

Country of Origin

Taiwan

HTSN

8473.30.1180

ECCN

5A992.c Mass Market

CCATS

Mass Market (No License Required)

REACH / RoHS

YES

EDM1-IMX6 Block Diagram
EDM1-IMX6 Dimensions
Order Information Example:

EDM1-IMX6xx-xx-Rxx-xxx-xxxx-xx

 CodeDescription
ProcessorIMX6SNXP i.MX6 Solo
IMX6UNXP i.MX6 Duallite
IMX6QNXP i.MX6 Quad
IMX6QPNXP i.MX6 QuadPlus
Processor Speed08800MHz
101.0Ghz
MemoryR05512MB DDR3
R101GB DDR3
R202GB DDR3
Storage MSDMicroSD Cardslot
E1616GB eMMC
Bluetooth / WiFi--
93771x Qualcomm Atheros QCA9377 802.11 a/b/g/n/ac + Bluetooth
Temperature Range -Commercial Temperature range (0~60° C)(Default)
TIIndustrial Temperature range (-40~85° C)



Standard Parts

EDM1-IMX6Q10-R20-E16

EDM COMPACT TYPE 1 NXP I.MX6 QUAD 1GHZ + PMIC + 2GB RAM + 16GB EMMC + GIGABIT LAN

EDM1-IMX6Q10-R20-E16-9377

EDM COMPACT TYPE 1 NXP I.MX6 QUAD 1GHZ + PMIC + 2GB RAM + 16GB EMMC + GIGABIT LAN + QCA9377 802.11AC + BLUETOOTH

EDM1-IMX6Q10-R20-E16-TI

EDM COMPACT TYPE 1 NXP I.MX6 QUAD 1GHZ + PMIC + 2GB RAM + 16GB EMMC + GIGABIT LAN INDUSTRIAL TEMP -40~85C

EDM1-IMX6Q10-R20-E16-9377-TI

EDM COMPACT TYPE 1 NXP I.MX6 QUAD 1GHZ + PMIC + 2GB RAM + 16GB EMMC + GIGABIT LAN + QCA9377 802.11AC + BLUETOOTH INDUSTRIAL TEMP -40~85C

EDM1-IMX6Q10-R20-MSD

EDM COMPACT TYPE 1 NXP I.MX6 QUAD 1GHZ + PMIC + 2GB RAM + SD CARDSLOT + GIGABIT LAN

EDM1-IMX6Q10-R20-MSD-9377

EDM COMPACT TYPE 1 NXP I.MX6 QUAD 1GHZ + PMIC + 2GB RAM + SD CARDSLOT + GIGABIT LAN + QCA9377 802.11AC + BLUETOOTH

EDM1-IMX6QP10-R20-E16

EDM COMPACT TYPE 1 NXP I.MX6 QUADPLUS 1GHZ + PMIC + 2GB RAM + 16GB EMMC + GIGABIT LAN

EDM1-IMX6QP10-R20-E16-9377

EDM COMPACT TYPE 1 NXP I.MX6 QUADPLUS 1GHZ + PMIC + 2GB RAM + 16GB EMMC + GIGABIT LAN + QCA9377 802.11AC + BLUETOOTH

EDM1-IMX6QP10-R20-E16-TI

EDM COMPACT TYPE 1 NXP I.MX6 QUADPLUS 1GHZ + PMIC + 2GB RAM + 16GB EMMC + GIGABIT LAN INDUSTRIAL TEMP -40~85C

EDM1-IMX6QP10-R20-E16-9377-TI

EDM COMPACT TYPE 1 NXP I.MX6 QUADPLUS 1GHZ + PMIC + 2GB RAM + 16GB EMMC + GIGABIT LAN + QCA9377 802.11AC + BLUETOOTH INDUSTRIAL TEMP -40~85C

EDM1-IMX6QP10-R20-MSD

EDM COMPACT TYPE 1 NXP I.MX6 QUADPLUS 1GHZ + PMIC + 2GB RAM + SD CARDSLOT + GIGABIT LAN

EDM1-IMX6QP10-R20-MSD-9377

EDM COMPACT TYPE 1 NXP I.MX6 QUADPLUS 1GHZ + PMIC + 2GB RAM + SD CARDSLOT + GIGABIT LAN + QCA9377 802.11AC + BLUETOOTH

EDM1-IMX6U10-R10-E16

EDM COMPACT TYPE 1 NXP I.MX6 DUALLITE 1GHZ + PMIC + 1GB RAM + 16GB EMMC + GIGABIT LAN

EDM1-IMX6U10-R10-E16-9377

EDM COMPACT TYPE 1 NXP I.MX6 DUALLITE 1GHZ + PMIC + 1GB RAM + 16GB EMMC + GIGABIT LAN + QCA9377 802.11AC + BLUETOOTH

EDM1-IMX6U08-R10-E16-TI

EDM COMPACT TYPE 1 NXP I.MX6 DUALLITE 800MHZ + PMIC + 1GB RAM + 16GB EMMC + GIGABIT LAN INDUSTRIAL TEMP -40~85C

EDM1-IMX6U08-R10-E16-9377-TI

EDM COMPACT TYPE 1 NXP I.MX6 DUALLITE 800MHZ + PMIC + 1GB RAM + 16GB EMMC + GIGABIT LAN + QCA9377 802.11AC + BLUETOOTH INDUSTRIAL TEMP -40~85C

EDM1-IMX6U10-R10-MSD

EDM COMPACT TYPE 1 NXP I.MX6 DUALLITE 1GHZ + PMIC + 1GB RAM + SD CARDSLOT + GIGABIT LAN

EDM1-IMX6U10-R10-MSD-9377

EDM COMPACT TYPE 1 NXP I.MX6 DUALLITE 1GHZ + PMIC + 1GB RAM + SD CARDSLOT + GIGABIT LAN + QCA9377 802.11AC + BLUETOOTH

EDM1-IMX6S10-R05-E16

EDM COMPACT TYPE 1 NXP I.MX6 SOLO 1GHZ + PMIC + 512MB RAM + 16GB EMMC + GIGABIT LAN

EDM1-IMX6S10-R05-E16-9377

EDM COMPACT TYPE 1 NXP I.MX6 SOLO 1GHZ + PMIC + 512MB RAM + 16GB EMMC + GIGABIT LAN + QCA9377 802.11AC + BLUETOOTH

EDM1-IMX6S10-R05-E16-TI

EDM COMPACT TYPE 1 NXP I.MX6 SOLO 800MHZ + PMIC + 512MB RAM + 16GB EMMC + GIGABIT LAN INDUSTRIAL TEMP -40~85C

EDM1-IMX6S08-R05-E16-9377-TI

EDM COMPACT TYPE 1 NXP I.MX6 SOLO 800MHZ + PMIC + 512MB RAM + 16GB EMMC + GIGABIT LAN + QCA9377 802.11AC + BLUETOOTH INDUSTRIAL TEMP -40~85C

EDM1-IMX6S10-R05-MSD

EDM COMPACT TYPE 1 NXP I.MX6 SOLO 1GHZ + PMIC + 512MB RAM + SD CARDSLOT + GIGABIT LAN

EDM1-IMX6S10-R05-MSD-9377

EDM COMPACT TYPE 1 NXP I.MX6 SOLO 1GHZ + PMIC + 512MB RAM + SD CARDSLOT + GIGABIT LAN + QCA9377 802.11AC + BLUETOOTH
