EDM1-IMX6Q10-R20-E16-TI

Name: EDM1-IMX6Q10-R20-E16-TI
Brand: TechNexion
SKU: EDM1IMX6Q10R20E16TI
Price: 163.40 USD
Availability: PreOrder

SKU: EDM1IMX6Q10R20E16TI Categories: LEGACY, SOM’S Tags: android, edm, imx6, industrial, linux, temperature, ubuntu, yocto

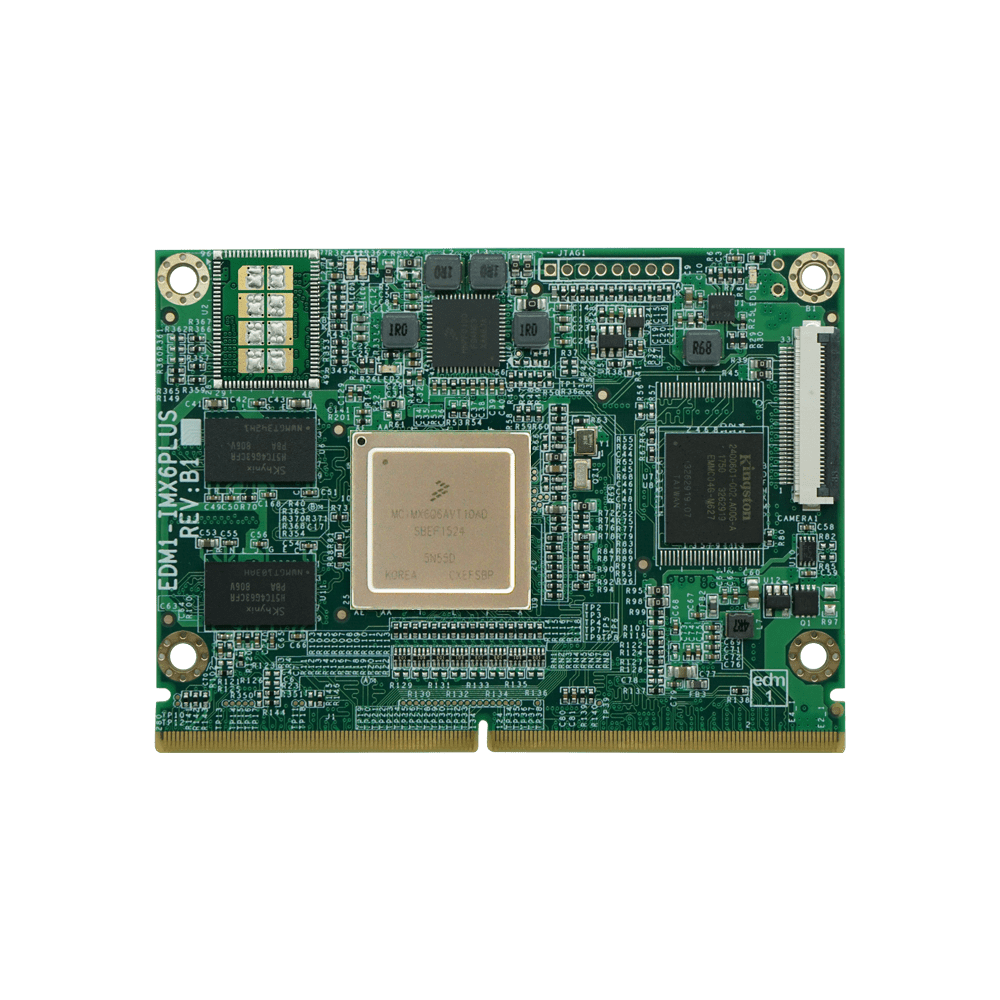

EDM System-on-Module based around NXP i.MX6 Quad SoC with 2GB of DDR3 memory, 16GB eMMC, Industrial Temp -40~85C.

Available on backorder

Additional information

Core System

Processor	NXP i.MX6 Quad
Processor Speed	1.0 Ghz
Architecture	ARM Cortex-A9
PMIC	NXP MMPF0100
Memory	2GB DDR3
Storage	16GB eMMC
Board-to-Board Connector	EDM connector (314-pin MXM3)
System on Module	EDM SOM
Debug Interface	JTAG Interface by Through-hole

Connectivity

Network LAN	1x Atheros AR8035 Gigabit LAN

Signaling

I/O	HDMI LVDS RGB TTL LAN MIPI CSI MIPI DSI PCIe SATA USB USB OTG I²S SPDIF SDIO CAN UART SPI I²C PWM GPIO

Video

GPU Engine	Vivante GC2000 (Dual/Quad) Vivante GC320 (2D Composition) Vivante GC355 (Dual / Quad)
Video decode	1080p60 H.264 (Dual/Quad)
Video encode	BP/Dual 720p
Camera	MIPI CSI (4 lanes)

Audio

Audio Codec	On carrier board
Audio Interface	I²S (2 channel)

Power Specifications

Power Input	5V DC +/-5%
Power Consumption	Depending on Configuration

Operating Systems

Standard Support	Linux Yocto Android Ubuntu
Extended Support	Commercial Linux Real Time OS

Environmental and Mechanical

Certification and Compliance

FCC	FCC ID: 2AKZA-QCA9377
IC	IC: 22364-QCA9377
CE	EN 300 328 v2.2.2 EN 301 893 v2.1.1 EN 55032 / EN 55024
TELEC (Japan)	TELEC: 201-180629
RCM (Australia/New Zealand)	RCM Compliant
Certification	Compliant with RoHS / REACH directives
Bluetooth Logo	QDID 150839 (Bluetooth 4.2)

Commercial Information

Brand	TechNexion
SKU Number	EDM1IMX6Q10R20E16TI
Country of Origin	Taiwan
HTSN	8473.30.1180
ECCN	5A992.c Mass Market
CCATS	740.17(b)(1) Mass Market (No License Required)
REACH / RoHS	YES

EDM1-IMX6-eMMC Block Diagram

EDM1-IMX6 Dimensions
