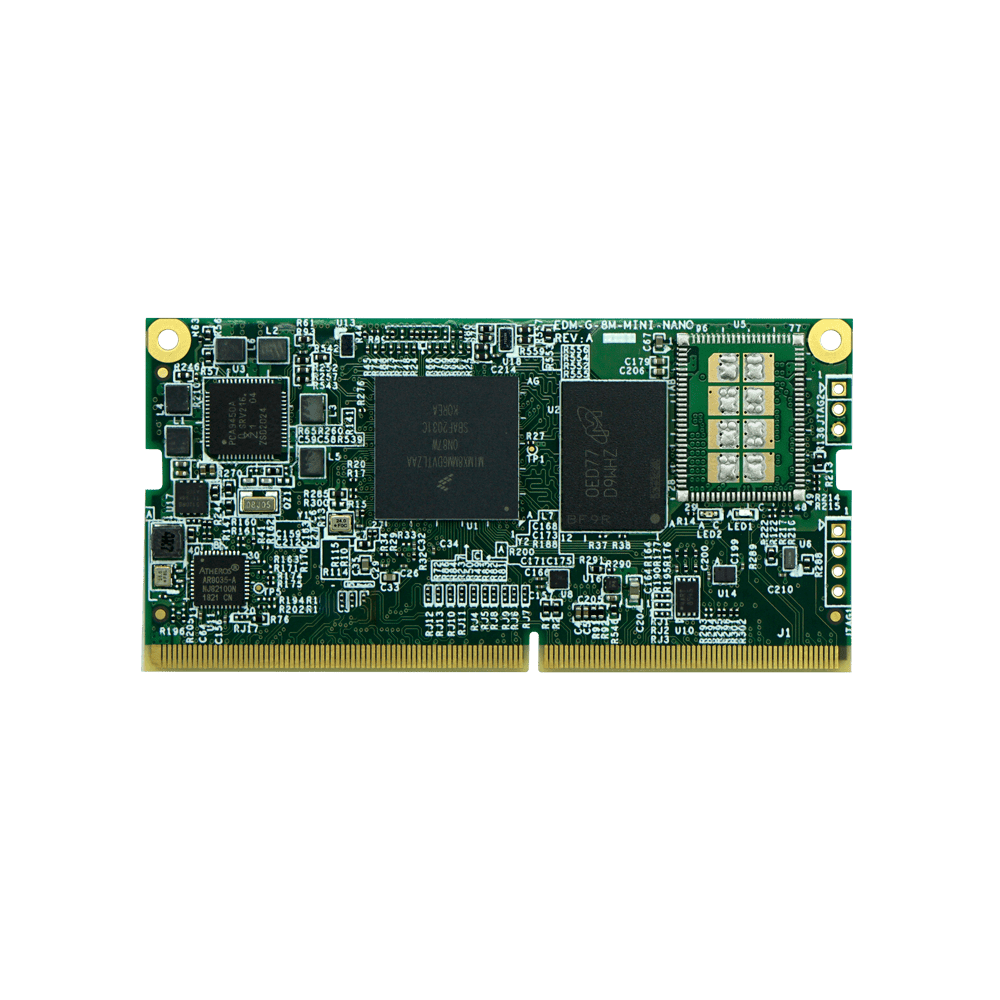

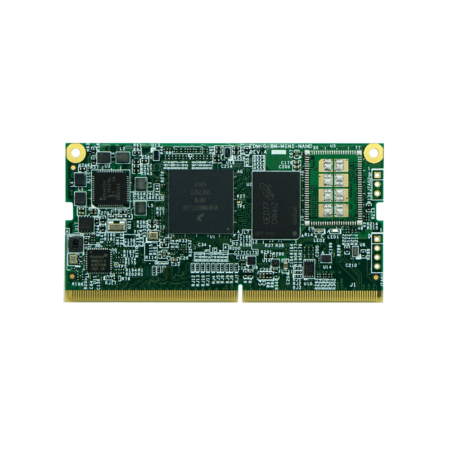

EDM-G-IMX8MMQ18-R40-E32-L

Name: EDM-G-IMX8MMQ18-R40-E32-L
Brand: TechNexion
SKU: EDMGIMX8MMQ18R40E32L
Availability: InStock

SKU: EDMGIMX8MMQ18R40E32L Category: EDM MODULES Tags: android, edm, imx8mmini, linux, ubuntu, yocto

Product Brief

EDM TYPE-G SOM NXP I.MX8M Mini QUAD 1.8GHZ + 4GB LPDDR4 + 32GB EMMC + LVDS

4 in stock (can be backordered)

Additional information

Core System

Processor	NXP i.MX8M Mini
Processor Speed	1.8 Ghz
Architecture	ARM Cortex-A53 + M4
AI / ML	OpenCL CPU: 32 GOPS
PMIC	NXP PCA9450
Memory	4GB LPDDR4
Storage	32GB eMMC
Board-to-Board Connector	260-pin DDR4 SO-DIMM
System on Module	EDM SOM
Debug Interface	JTAG Interface by Through-hole

Connectivity

Network LAN	1x Realtek RTL8211F

Signaling

I/O	LVDS LAN MIPI CSI PCIe USB USB OTG I²S SDIO UART SPI I²C PWM GPIO

Video

GPU Engine	GC NanoUltra (1 shader) GC520L (2D) OpenGL ES 2.0
Video decode	1080p60 (h.265, VP9, h.264, VP8)
Video encode	1080p60 (h.264)
Camera	MIPI CSI (4 lanes)

Audio

Audio Codec	On carrier board
Audio Interface	I²S (2 channel)

Power Specifications

Power Input	5V DC +/-5%
Power Consumption	Depending on Configuration

Software Support

Standard Support	Linux Yocto Android Ubuntu
Extended Support	Boot2Qt Commercial Linux FreeRTOS Real Time OS

Environmental and Mechanical

Certification and Compliance

Certification	Compliant with RoHS / REACH directives

Commercial Information

Brand	TechNexion
SKU Number	EDMGIMX8MMQ18R40E32L
Country of Origin	Taiwan
HTSN	8473.30.1180
ECCN	5A992.c Mass Market
CCATS	740.17(b)(1) Mass Market (No License Required)
REACH / RoHS	Yes

EDM-G-IMX8M-MINI Block Diagram

EDM-G-IMX8M-MINI Dimensions
