LEX System 2NOR02 USB3 Camera Solution

LEX System is a global leader in industrial and embedded computing, known for designing reliable, high-performance platforms with long product lifecycles and robust I/O, trusted across transportation, automation, and smart city applications.

By working together, TechNexion and LEX make it easy to add USB3 camera support to LEX’s Jetson-based platforms. Developers can get vision systems up and running quickly, without complicated setup. This makes it easier to build and deploy AI solutions at the edge.

LEX System website

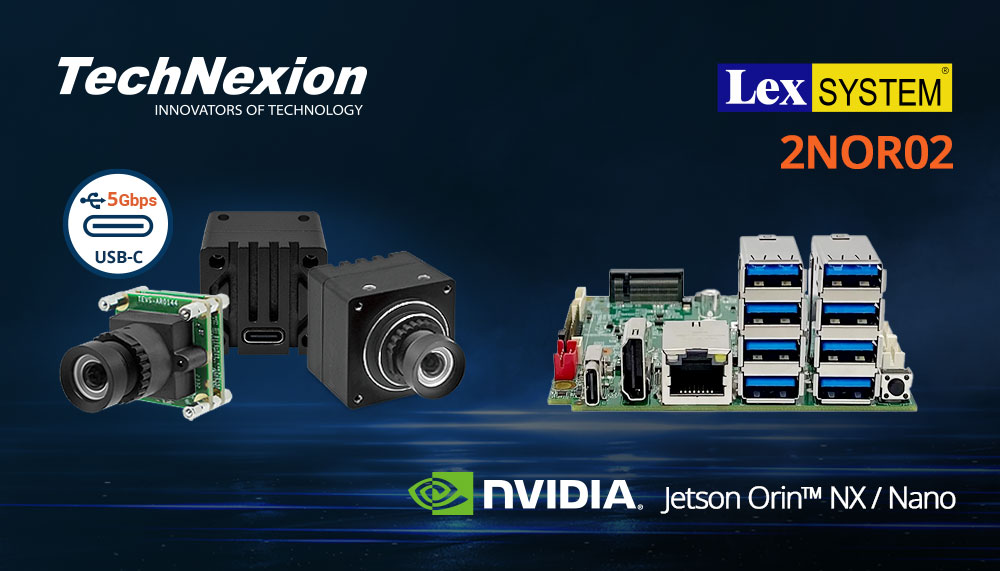

LEX 2NOR02 with USB3 camera
LEX 2NOR02 camera solution

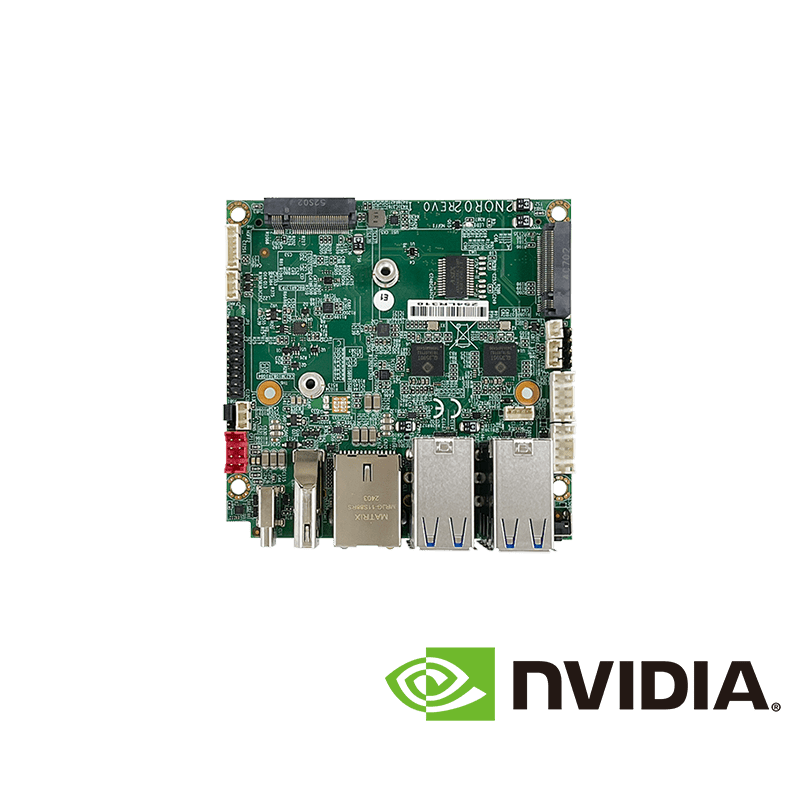

LEX SYSTEM 2NOR02

The LEX 2NOR02 is a compact carrier board powered by NVIDIA® Jetson Orin™ NX / Nano modules, delivering up to 100 TOPS of AI performance at the edge. Designed for compute-intensive video applications, the board offers a rich set of I/O, including 1 x HDMI®, 1 x GbE LAN, 8 x USB 3.1 ports, 1 x USB Type-C (OTG), RS232, dual M.2 slots, and Nano SIM support. With flexible power input and versatile expansion options, the 2NOR02 is ideal for developers building AI-driven vision systems using USB3 cameras.

Learn more

TechNexion USB3 Cameras on 2NOR02

TechNexion offers a selection of USB3 cameras that connect easily to the LEX 2NOR02 via standard USB 3.1 ports, no additional adapter boards or drivers required. These UVC-compliant cameras are ideal for development, prototyping, and evaluation, supporting popular Jetson-based applications like object detection, face recognition, and motion tracking. With support for both rolling and global shutter sensors, they provide a simple way to capture video streams without complex integration steps.

LEX 2NOR02 with USB3 camera

Step-by-Step Integration

Getting started with TechNexion USB3 cameras on the LEX 2NOR02 is quick and straightforward. Our developer guide provides clear instructions for connection, camera detection, and video streaming—helping you get up and running in minutes.

Read the Developer Guide

TechNexion USB3 Camera Lineup

UVCI-AR0144-SL Medium FOV

Board Level

VCI-AR0144-SL Medium FOV Kit

S-Mount

VCI-AR0144-CB Kit

C-Mount

Part NumberSensorResolutionChromaticityShutter TypeLensEnclosureOutput Format
VCI-AR0144-SLonsemi AR01441MPColorGlobalS-MountClosed HousingUSB Type-C
VCI-AR0144-CBonsemi AR01441MPColorGlobalC-MountClosed HousingUSB Type-C
UVCI-AR0144-SLonsemi AR01441MPColorGlobalS-MountBoard LevelUSB Type-C
VCS-AR0145-SLonsemi AR01451MPMonoGlobalS-MountClosed HousingUSB Type-C
VCS-AR0145-CBonsemi AR01451MPMonoGlobalC-MountClosed HousingUSB Type-C
UVCS-AR0145-SLonsemi AR01451MPMonoGlobalS-MountBoard LevelUSB Type-C
VCI-AR0234-SLonsemi AR02342MPColorGlobalS-MountClosed HousingUSB Type-C
VCI-AR0234-CBonsemi AR02342MPColorGlobalC-MountClosed HousingUSB Type-C
UVCI-AR0234-SLonsemi AR02342MPColorGlobalS-MountBoard LevelUSB Type-C
VCI-AR0521-SLonsemi AR05215MPColorRollingS-MountClosed HousingUSB Type-C
VCI-AR0521-CBonsemi AR05215MPColorRollingC-MountClosed HousingUSB Type-C
UVCI-AR0521-SLonsemi AR05215MPColorRollingS-MountBoard LevelUSB Type-C
VCI-AR0522-SLonsemi AR05225MPColor, MonoRollingS-MountClosed HousingUSB Type-C
VCI-AR0522-CBonsemi AR05225MPColor, MonoRollingC-MountClosed HousingUSB Type-C
UVCI-AR0522-SLonsemi AR05225MPColor, MonoRollingS-MountBoard LevelUSB Type-C
VCI-AR0821-SLonsemi AR08218MPColorRollingS-MountClosed HousingUSB Type-C
VCI-AR0821-CBonsemi AR08218MPColorRollingC-MountClosed HousingUSB Type-C
UVCI-AR0821-SLonsemi AR08218MPColorRollingS-MountBoard LevelUSB Type-C
VCI-AR0822-SLonsemi AR08228MPColor, MonoRollingS-MountClosed HousingUSB Type-C
VCI-AR0822-CBonsemi AR08228MPColor, MonoRollingC-MountClosed HousingUSB Type-C
UVCI-AR0822-SLonsemi AR08228MPColor, MonoRollingS-MountBoard LevelUSB Type-C
VCI-AR1335-SLonsemi AR133513MPColorRollingS-MountClosed HousingUSB Type-C
VCI-AR1335-CBonsemi AR133513MPColorRollingC-MountClosed HousingUSB Type-C
UVCI-AR1335-SLonsemi AR133513MPColorRollingS-MountBoard LevelUSB Type-C

Let’s build smarter vision together
