LEX System 2NOR01 GMSL2™ Camera Solution

LEX System is a global leader in industrial and embedded computing, known for designing reliable, high-performance platforms with long product lifecycles and robust I/O, trusted across transportation, automation, and smart city applications.

As a hardware partner, TechNexion collaborates closely with LEX System to deliver integrated embedded vision solutions. Our GMSL2 camera modules are pre-validated on the LEX 2NOR01 carrier board, helping developers accelerate deployment of real-time AI applications with less integration effort.

LEX SYSTEM 2NOR01

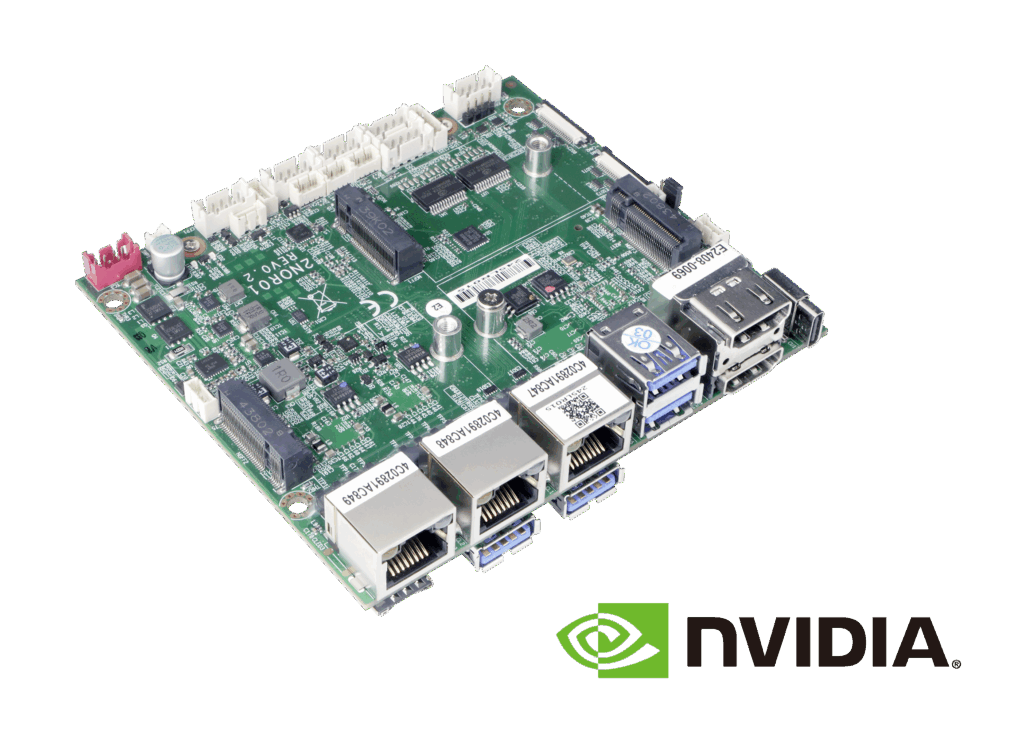

The LEX 2NOR01 is a compact carrier board designed for NVIDIA Jetson Orin NX and Orin Nano modules. It offers rich connectivity, including multiple GbE ports, USB 3.2, M.2 slots, and real-time I/O—making it ideal for AI inference at the edge. Combined with rugged design and a small form factor, the 2NOR01 is well-suited for intelligent transportation systems, surveillance, and industrial inspection.

TechNexion GMSL2 Cameras on 2NOR01

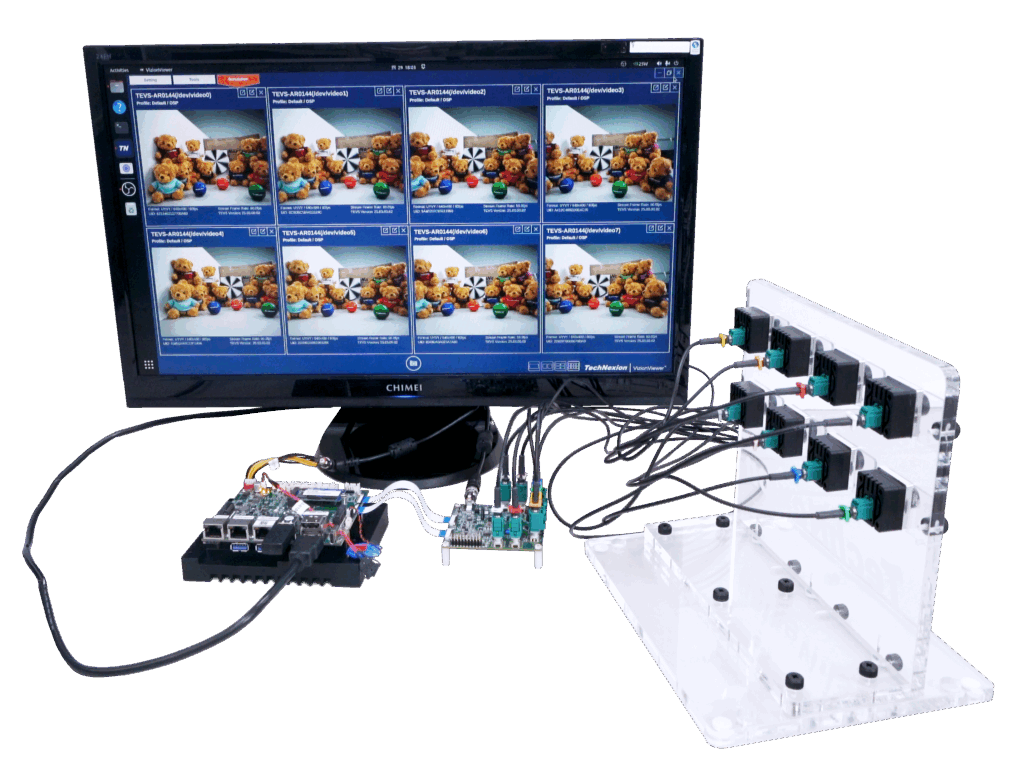

TechNexion’s GMSL2 camera modules integrate seamlessly with the LEX 2NOR01 through dedicated expansion ports. In our demo setup, you can see up to four high-resolution GMSL2 cameras running simultaneously with full synchronization, enabled by JetPack 6.2. These cameras support features like global shutter, HDR, and wide-angle lenses—making them ideal for capturing real-time video in challenging environments. Full driver and software support is provided, so you can focus on your application without worrying about low-level integration.

Step-by-Step Integration

Our official guide walks you through the complete integration process, from hardware setup to driver installation and camera testing with JetPack 6.2. Whether you’re deploying a single camera or a synchronized multi-camera system, the instructions are clear, tested, and optimized for the 2NOR01 platform.

TechNexion GMSL2 Camera Lineup

Board Level

S-Mount

C-Mount

Part Number	Sensor	Resolution	Chromaticity	Shutter Type	Lens	Enclosure	Output Format
VLS-GM2-AR0144-SL	onsemi AR0144	1MP	Color	Global	S-Mount	Closed Housing	GMSL2™
VLS-GM2-AR0144-CB	onsemi AR0144	1MP	Color	Global	C-Mount	Closed Housing	GMSL2™
UVLS-GM2-AR0144-SL	onsemi AR0144	1MP	Color	Global	S-Mount	Board Level	GMSL2™
VLS-GM2-AR0234-SL	onsemi AR0234	2MP	Color	Global	S-Mount	Closed Housing	GMSL2™
VLS-GM2-AR0234-CB	onsemi AR0234	2MP	Color	Global	C-Mount	Closed Housing	GMSL2™
UVLS-GM2-AR0234-SL	onsemi AR0234	2MP	Color	Global	S-Mount	Board Level	GMSL2™
VLS-GM2-AR0521-SL	onsemi AR0521	5MP	Color	Rolling	S-Mount	Closed Housing	GMSL2™
VLS-GM2-AR0521-CB	onsemi AR0521	5MP	Color	Rolling	C-Mount	Closed Housing	GMSL2™
UVLS-GM2-AR0521-SL	onsemi AR0521	5MP	Color	Rolling	S-Mount	Board Level	GMSL2™
VLS-GM2-AR0522-SL	onsemi AR0522	5MP	Color, Mono	Rolling	S-Mount	Closed Housing	GMSL2™
VLS-GM2-AR0522-CB	onsemi AR0522	5MP	Color, Mono	Rolling	C-Mount	Closed Housing	GMSL2™
UVLS-GM2-AR0522-SL	onsemi AR0522	5MP	Color, Mono	Rolling	S-Mount	Board Level	GMSL2™
VLS-GM2-AR0821-SL	onsemi AR0821	8MP	Color	Rolling	S-Mount	Closed Housing	GMSL2™
VLS-GM2-AR0821-CB	onsemi AR0821	8MP	Color	Rolling	C-Mount	Closed Housing	GMSL2™
UVLS-GM2-AR0821-SL	onsemi AR0821	8MP	Color	Rolling	S-Mount	Board Level	GMSL2™
VLS-GM2-AR0822-SL	onsemi AR0822	8MP	Color, Mono	Rolling	S-Mount	Closed Housing	GMSL2™
VLS-GM2-AR0822-CB	onsemi AR0822	8MP	Color, Mono	Rolling	C-Mount	Closed Housing	GMSL2™
UVLS-GM2-AR0822-SL	onsemi AR0822	8MP	Color, Mono	Rolling	S-Mount	Board Level	GMSL2™
VLS-GM2-AR1335-SL	onsemi AR1335	13MP	Color	Rolling	S-Mount	Closed Housing	GMSL2™
VLS-GM2-AR1335-CB	onsemi AR1335	13MP	Color	Rolling	C-Mount	Closed Housing	GMSL2™
UVLS-GM2-AR1335-SL	onsemi AR1335	13MP	Color	Rolling	S-Mount	Board Level	GMSL2™
