PICO-IMX7D10-R05-E16-9377

SKU: PICOIMX7D10R05E169377 Category:

$84.00

PICO System-on-Module based around NXP i.MX7 Dual SoC with 512MB of DDR3L memory, 16GB eMMC and QCA-9377 Wireless and Bluetooth.

1 in stock (can be backordered)

Quantity Discount (%) Price
1 - 99 $84.00
100 - 249 5 % $79.80
250 - 499 10 % $75.60
500+ 15 % $71.40
x

Specifications

Additional information

Brand

TechNexion

Country of Origin

Taiwan

ECCN

5A992.c Mass Market

CCATS

740.17(b)(1) Mass Market (No License Required)

REACH / RoHS

Yes

HTSN

8473.30.1180

Processor

NXP i.MX7 Dual

Processor Speed

1.0 Ghz

Architecture

ARM Cortex-A7 + M4

PMIC

NXP PF3000

Memory

512MB DDR3L

Storage

16GB eMMC

Board-to-Board Connector

PICO 70-pin Hirose connectors

System on Module

PICO SOM

Network LAN

RGMII

Wi-Fi

Qualcomm Atheros QCA9377 Wi-Fi 5 – 802.11 a/b/g/n/ac

Bluetooth

Qualcomm Atheros QCA9377 Bluetooth

Antenna

MHF4 connector

I/O

RGMII, RGB TTL, MIPI CSI-2, MIPI DSI, PCIe, USB, USB OTG, I²S, SDIO, CAN, UART, SPI, I²C, PWM, GPIO

Camera

MIPI CSI (2 lanes)

Audio Codec

On carrier board

Power Input

5V DC +/-5%

Power Consumption

Depending on Configuration

Extended Support

Boot2Qt, Commercial Linux, FreeRTOS, Real Time OS

Standard Support

Linux, Yocto, Ubuntu, Android

USA

FCC ID: 2AKZA-QCA9377

Canada

IC: 22364-QCA9377

European Union

EN 300 328 v2.2.2, EN 301 893 v2.1.1, EN 55032 / EN 55024

Japan

TELEC: 201-180629

Australia / New Zealand

RCM Compliant

Certification

Compliant with RoHS / REACH directives

Bluetooth Logo

QDID 150839 (Bluetooth 4.2), QDID 193238 (Bluetooth 5)

Dimensions

37 x 40 mm

Form Factor

PICO

Relative Humidity

10 to 90 %

MTBF

100,000+ Hours

Shock

15G half-sine 11 ms duration

Operation Temperature

Commercial: 0°C to +60°C

Vibration

1 Grms random 5-500Hz hr/axis

GPU Engine

Image re-sizing / rotation / overlay and CSC Pixel Processing Pipeline

Weight

8 grams

Audio Interface

I²S (2 channel)

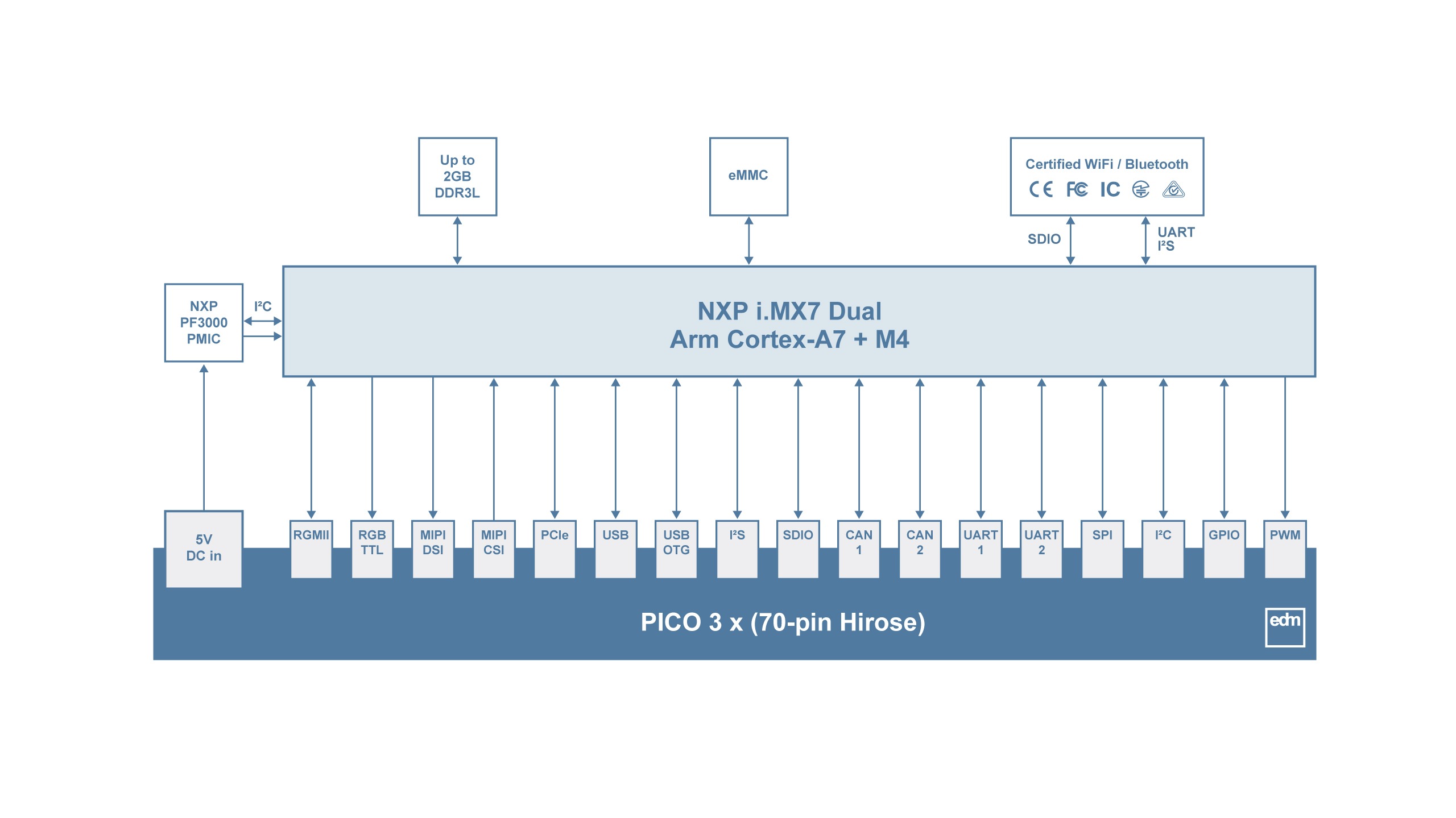

Blockdiagram

PICO-IMX7-eMMC Block Diagram

Dimensions

PICO-IMX7 Dimensions
