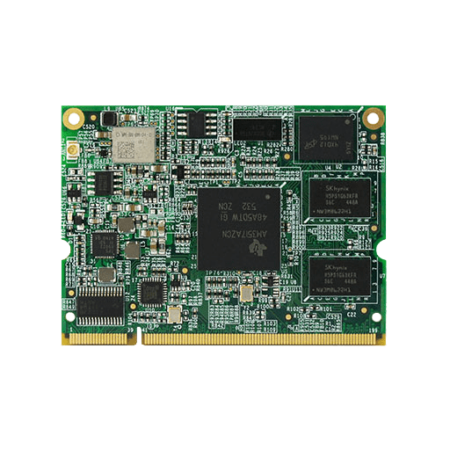

TAM-3517 TOP

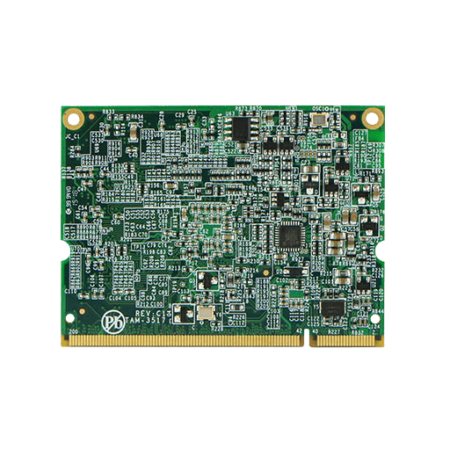

TAM-3517 BACK

TAM-3517

SKU: TAM3517 Categories: ,

TI AM3517 SYSTEM ON MODULE WITH 256MB DDR2 RAM AND 512MB NAND FLASH

Available on backorder

Quantity Discount (%) Price
1 - 99 — $84.00
100 - 499 4.76 % $80.00
500 - 999 7.74 % $77.50
1,000+ 10.71 % $75.00
x

Specifications

Additional information

Core System
Processor

TI Sitara AM3517

Architecture

ARM Cortex-A8

PMIC

TPS65023

Memory

256MB DDR2

Storage

NAND Flash (512MB Default)

Board-to-Board Connector

200-pin SO-DIMM
Signaling
I/O

RGB TTL
LAN
USB
USB OTG
I²S
SDIO
CAN
UART
SPI
I²C
GPMC
PWM
GPIO

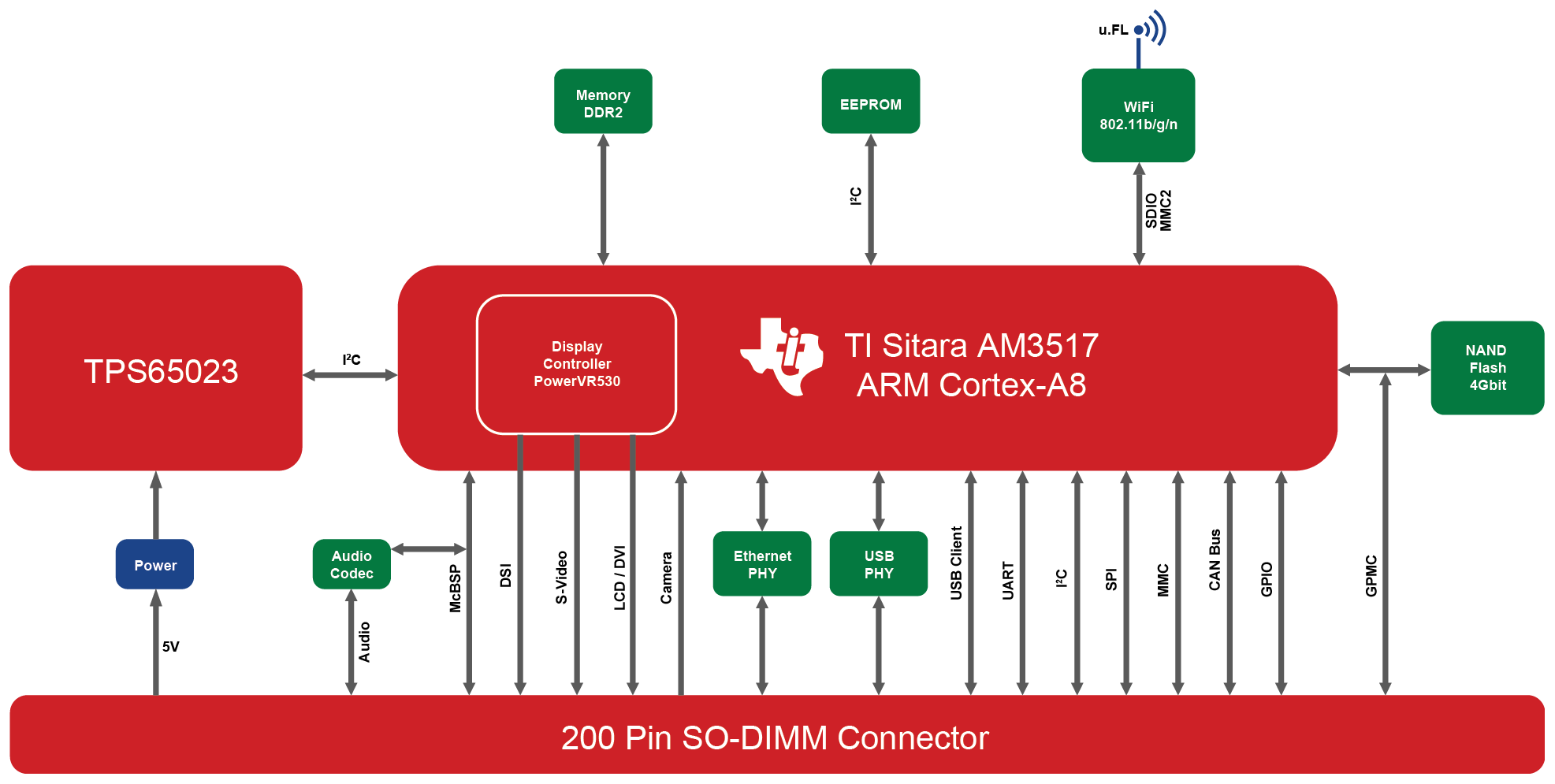

Block Diagram

TAM-3517 Block Diagram

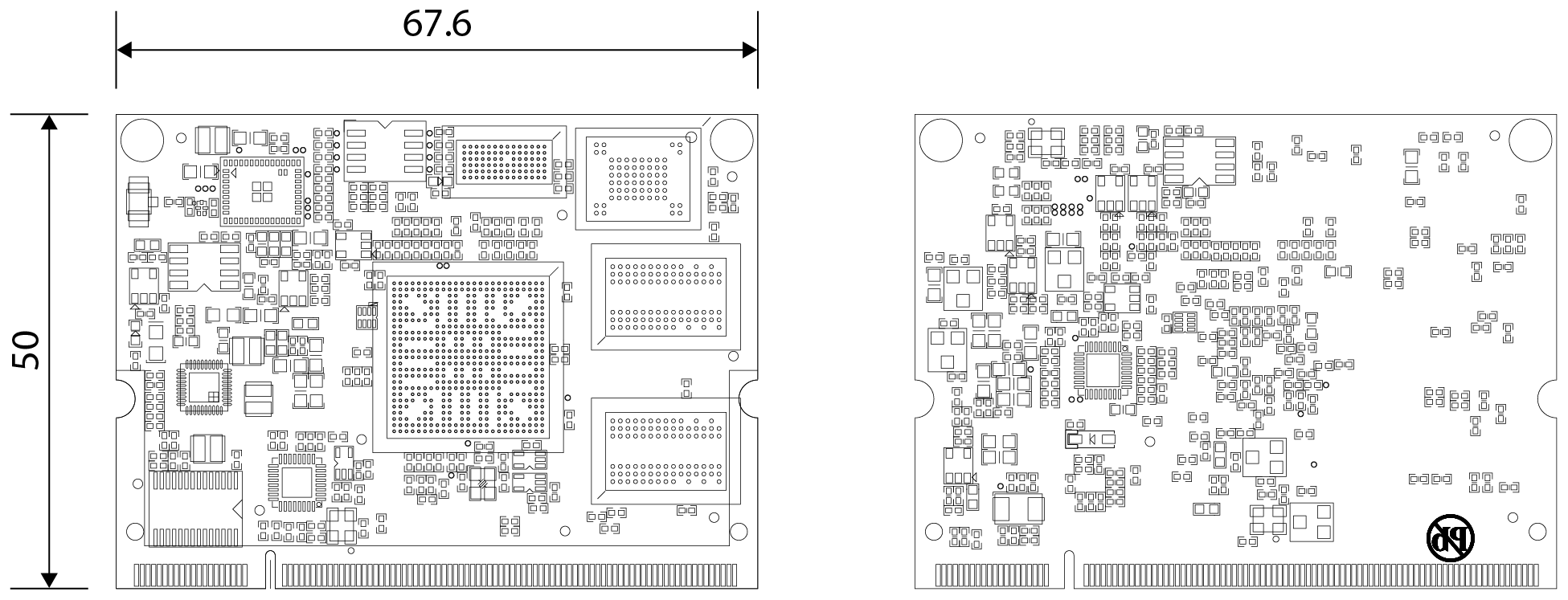

Dimensions

TAM-3517 Dimensions
