EDM1-IMX6S10-R05-MSD

Name: EDM1-IMX6S10-R05-MSD
Brand: TechNexion
SKU: EDM1IMX6S10R05MSD
Availability: InStock

SKU: EDM1IMX6S10R05MSD Categories: LEGACY, SOM’S Tags: android, edm, imx6, linux, ubuntu, yocto

Product Brief

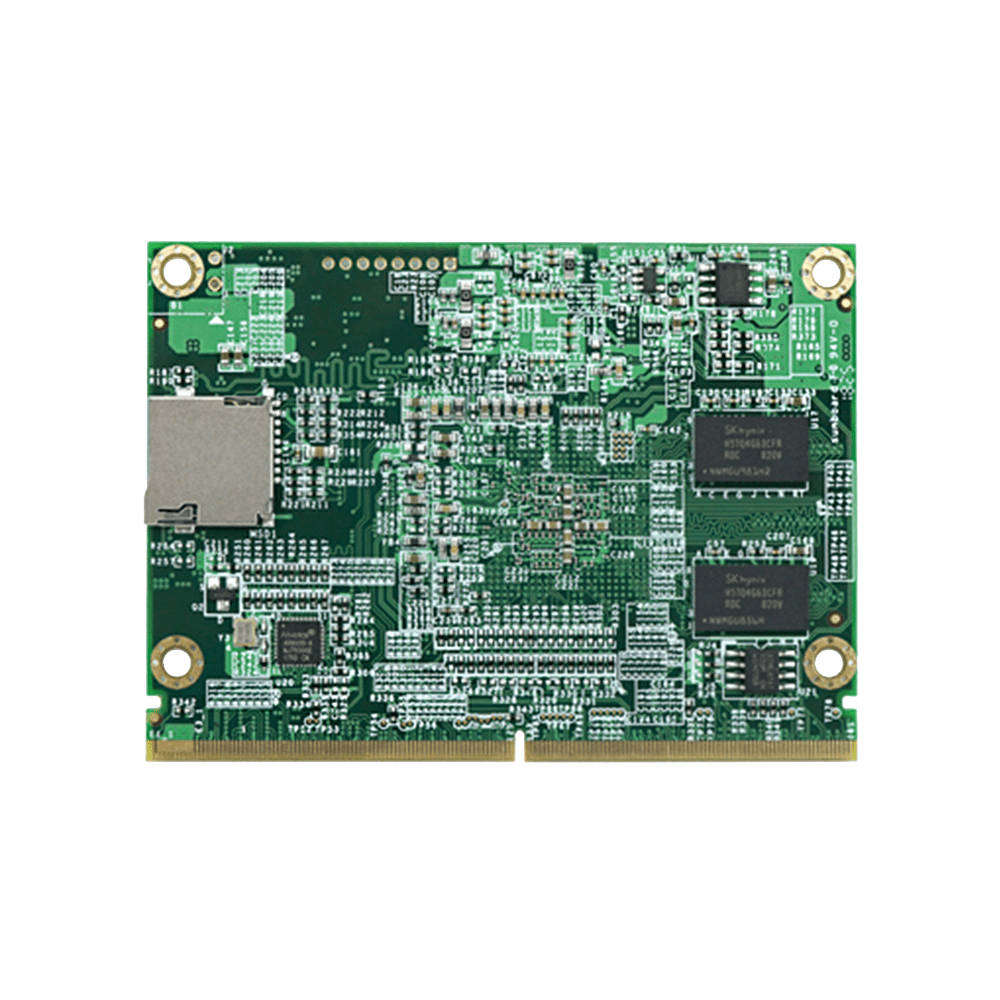

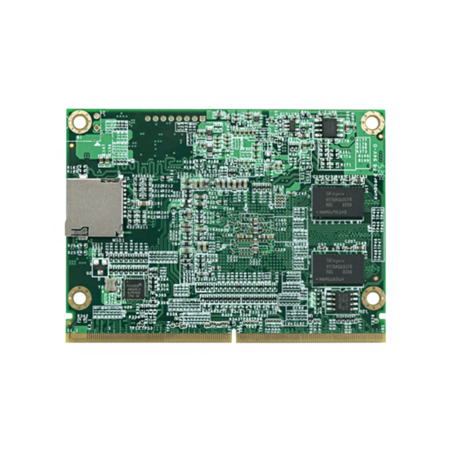

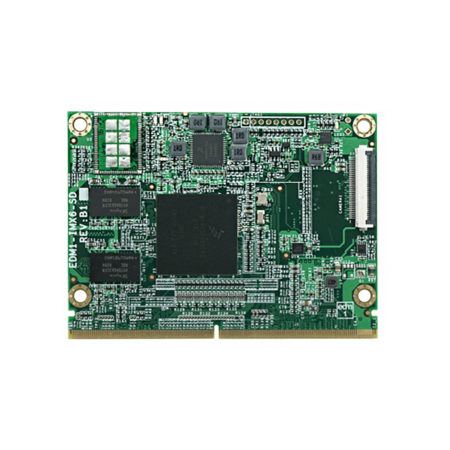

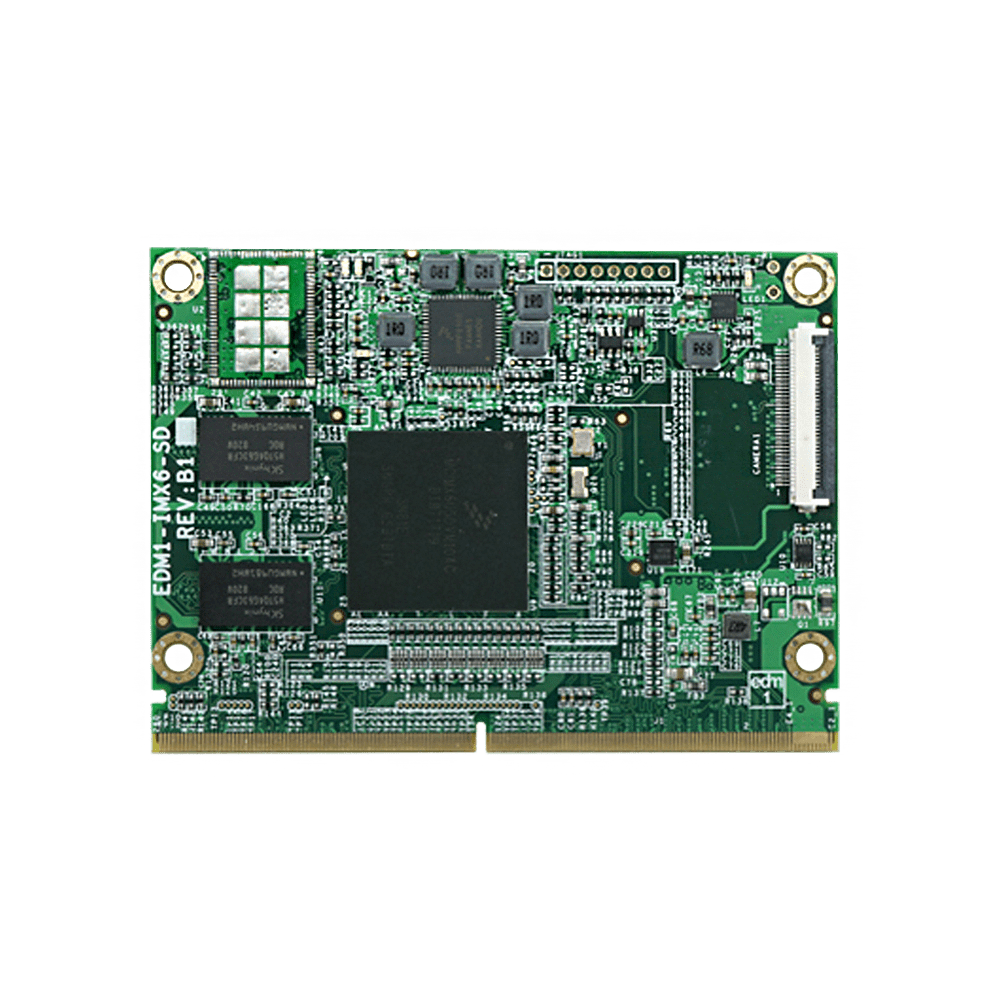

EDM System-on-Module based around NXP i.MX6 Solo SoC with 512MB of DDR3 memory, SD card slot.

10 in stock (can be backordered)

Additional information

Core System

Processor	NXP i.MX6 Solo
Processor Speed	1.0 Ghz
Architecture	ARM Cortex-A9
PMIC	NXP MMPF0100
Memory	512MB DDR3
Storage	MicroSD
Board-to-Board Connector	EDM connector (314-pin MXM3)
System on Module	EDM SOM
Debug Interface	JTAG Interface by Through-hole

Connectivity

Network LAN	1x Atheros AR8035 Gigabit LAN

Signaling

I/O	HDMI LVDS RGB TTL LAN MIPI CSI MIPI DSI PCIe USB USB OTG I²S SPDIF SDIO CAN UART SPI I²C PWM GPIO

Video

GPU Engine	Vivante GC320 (2D Composition) Vivante GC880 (Solo/DualLite)
Video decode	1080p30 + D1 (Solo/DualLite)
Video encode	BP/Dual 720p
Camera	MIPI CSI (2 lanes)

Audio

Audio Codec	On carrier board
Audio Interface	I²S (2 channel)

Power Specifications

Power Input	5V DC +/-5%
Power Consumption	Depending on Configuration

Operating Systems

Standard Support	Linux Yocto Android Ubuntu
Extended Support	Commercial Linux Real Time OS

Environmental and Mechanical

Certification and Compliance

Certification	Compliant with RoHS / REACH directives

Commercial Information

Brand	TechNexion
SKU Number	EDM1IMX6S10R05MSD
Country of Origin	Taiwan
HTSN	8473.30.1180
ECCN	5A992.c Mass Market
CCATS	740.17(b)(1) Mass Market (No License Required)
REACH / RoHS	YES

EDM1-IMX6-MSD Block Diagram

EDM1-IMX6 Dimensions
