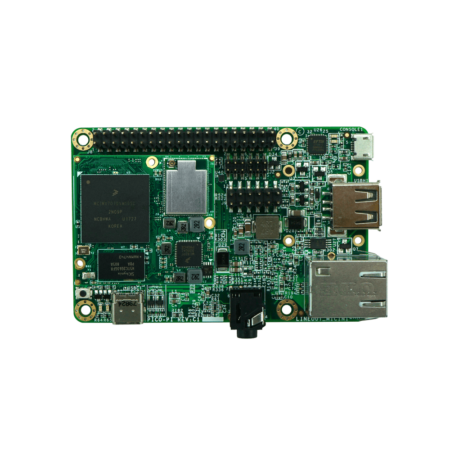

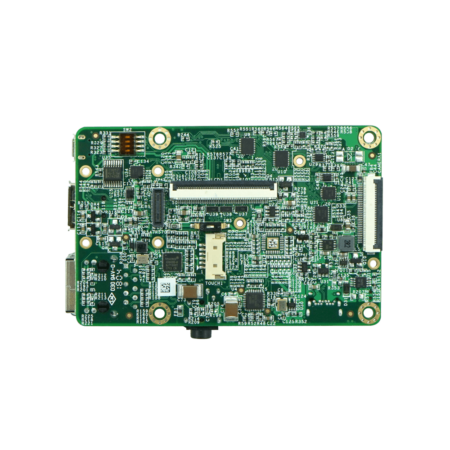

| Core System |
|---|
| Processor | NXP i.MX7 Dual
|
|---|
| Architecture | ARM Cortex-A7 + M4
|
|---|
| PMIC | NXP PF3000
|
|---|
| Memory | Upto 1GB DDR3L
|
|---|
| Storage | 16GB eMMC (default)
|
|---|
| Board-to-Board Connector | Edison compatibile connector
PICO 70-pin Hirose connectors
|
|---|
| System on Module | PICO SOM
|
|---|
| Debug Interface | Micro USB debug
|
|---|
|
| Connectivity |
|---|
| Network LAN | 1x Atheros AR8035 Gigabit LAN
|
|---|
| Wi-Fi | Qualcomm Atheros QCA9377 Wi-Fi 5 – 802.11 a/b/g/n/ac
|
|---|
| Bluetooth | Qualcomm Atheros QCA9377 Bluetooth
|
|---|
| Antenna | MHF4 connector
|
|---|
|
| Signaling |
|---|
| I/O | RS232
RGB TTL
LAN
MIPI CSI
MIPI DSI
USB
USB OTG
I²S
UART
SPI
I²C
PWM
GPIO
|
|---|
|
| Video |
|---|
| GPU Engine | Image re-sizing / rotation / overlay and CSC Pixel Processing Pipeline
|
|---|
| Camera | MIPI CSI (2 lanes)
|
|---|
|
| Audio |
|---|
| Audio Codec | NXP SGTL5000
|
|---|
| Audio Interface | I²S (2 channel)
|
|---|
| Audio Connectors | CTIA compliant 3.5mm audio jack
|
|---|
|
| Power Specifications |
|---|
| Power Input | 5V DC +/-5%
|
|---|
| Power Consumption | Depending on Configuration
|
|---|
| Power Connector | USB OTG (Type-C)
|
|---|
|
| Software Support |
|---|
| Standard Support | Linux
Yocto
Android
Ubuntu
|
|---|
| Extended Support | Commercial Linux
|
|---|
|
| External Connectors |
|---|
| Network | 1x RJ45
|
|---|
| USB | 1x USB 2.0 Host
1x USB 2.0 OTG (Type-C)
|
|---|
| Buttons | 1x Reset
|
|---|
|
| Environmental and Mechanical |
|---|
| Dimensions | 85.6 (W) x 56.5 (H) x 17.5 (D) mm
|
|---|
| Weight | 43 grams
|
|---|
| Relative Humidity | 10 to 90 %
|
|---|
| MTBF | 100,000+ Hours
|
|---|
| Shock | 15G half-sine 11 ms duration
|
|---|
| Operation Temperature | Commercial: 0°C to +60°C
|
|---|
| Vibration | 1 Grms random 5-500Hz hr/axis
|
|---|
|
| Certification and Compliance |
|---|
| FCC | FCC ID: 2AKZA-QCA9377
|
|---|
| IC | IC: 22364-QCA9377
|
|---|
| CE | EN 300 328 v2.2.2
EN 301 893 v2.1.1
EN 55032 / EN 55024
|
|---|
| TELEC (Japan) | TELEC: 201-180629
|
|---|
| RCM (Australia/New Zealand) | RCM Compliant
|
|---|
| Certification | Compliant with RoHS / REACH directives
|
|---|
| Bluetooth Logo | QDID 150839 (Bluetooth 4.2)
QDID 193238 (Bluetooth 5)
|
|---|
|
| Commercial Information |
|---|
| Brand | TechNexion
|
|---|
| Country of Origin | Taiwan
|
|---|
| HTSN | 8473.30.1180
|
|---|
| ECCN | 5A992.c Mass Market
|
|---|
| REACH / RoHS | Yes
|
|---|
|
