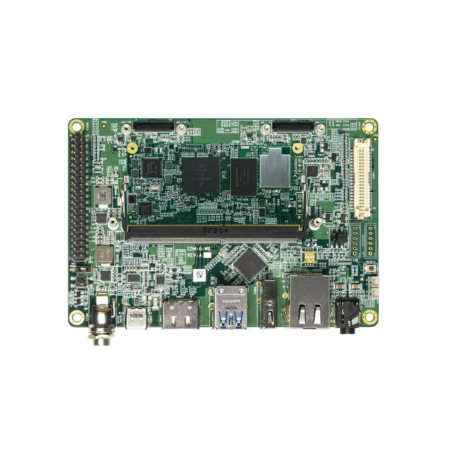

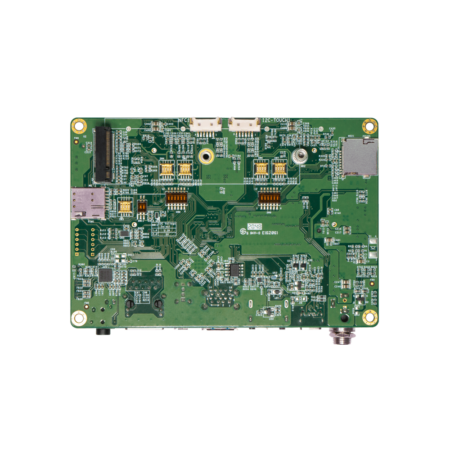

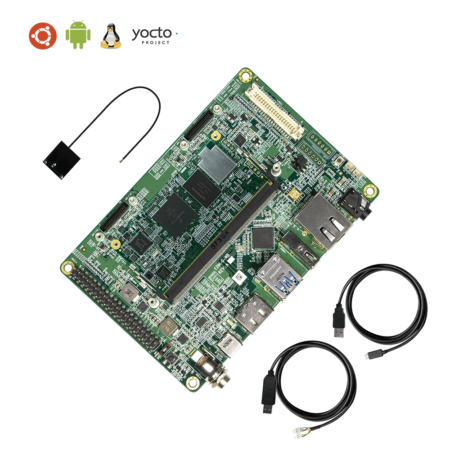

WB-EDM-G-IMX8M-NANO

SKU: WBEDMGIMX8MNANO Category:

Specifications

Additional information

Core System
Processor

NXP i.MX8M Nano

Architecture

ARM Cortex-A53 + M7

PMIC

NXP PCA9450

Memory

Upto 2GB LPDDR4

Storage

32GB eMMC (default)

Board-to-Board Connector

EDM Type G connector (260-pin)

System on Module

EDM SOM

Debug Interface

JTAG Interface by Through-hole

AI / Vision Capabilities
AI / ML

OpenCL CPU: 32 GOPS

Connectivity
Network LAN

1x Atheros AR8035 Gigabit LAN

Wi-Fi

Qualcomm Atheros QCA9377 Wi-Fi 5 – 802.11 a/b/g/n/ac

Bluetooth

Qualcomm Atheros QCA9377 Bluetooth

Antenna

MHF4 connector

Signaling
I/O

LAN
MIPI CSI
MIPI DSI
USB
USB OTG
I²S
SDIO
UART
SPI
I²C
PWM
GPIO

Certification and Compliance
FCC

FCC ID: 2AKZA-QCA9377

IC

IC: 22364-QCA9377

CE

EN 300 328 v2.2.2
EN 301 893 v2.1.1
EN 55032 / EN 55024

TELEC (Japan)

TELEC: 201-180629

RCM (Australia/New Zealand)

RCM Compliant

Certification

Compliant with RoHS / REACH directives

Bluetooth Logo

QDID 150839 (Bluetooth 4.2)
QDID 193238 (Bluetooth 5)

Blockdiagram

WB-EDM-G-IMX8M-NANO Block Diagram

Dimensions

WB-EDM-G-IMX8M-NANO Dimensions
