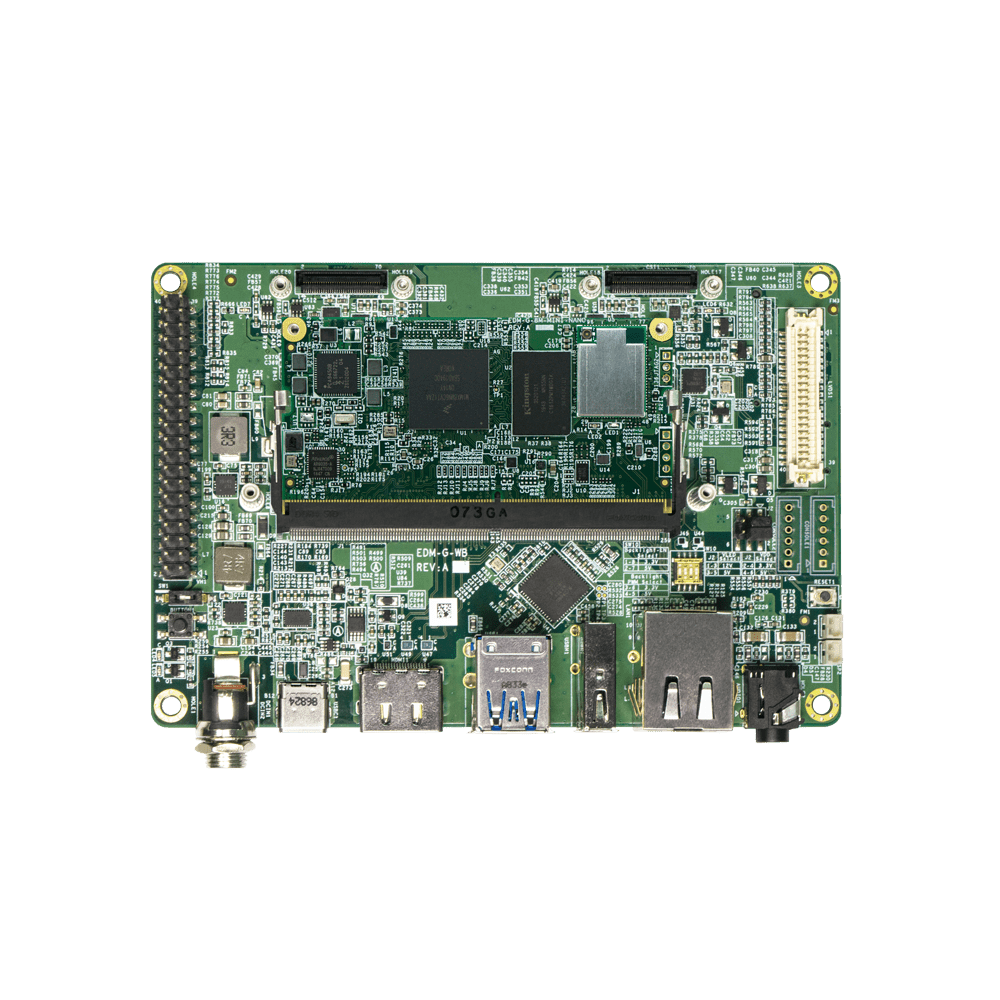

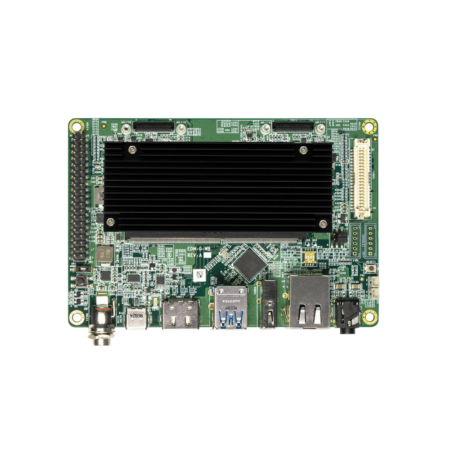

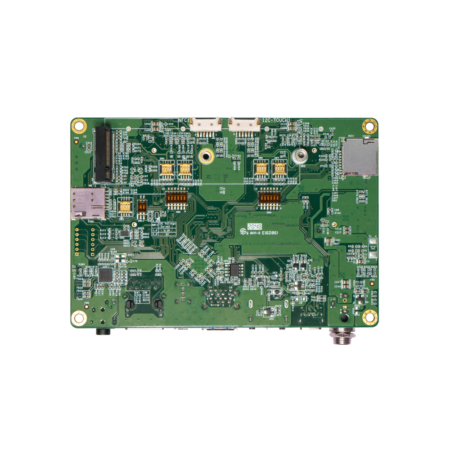

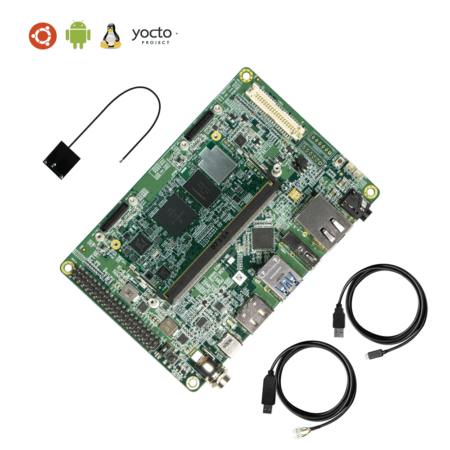

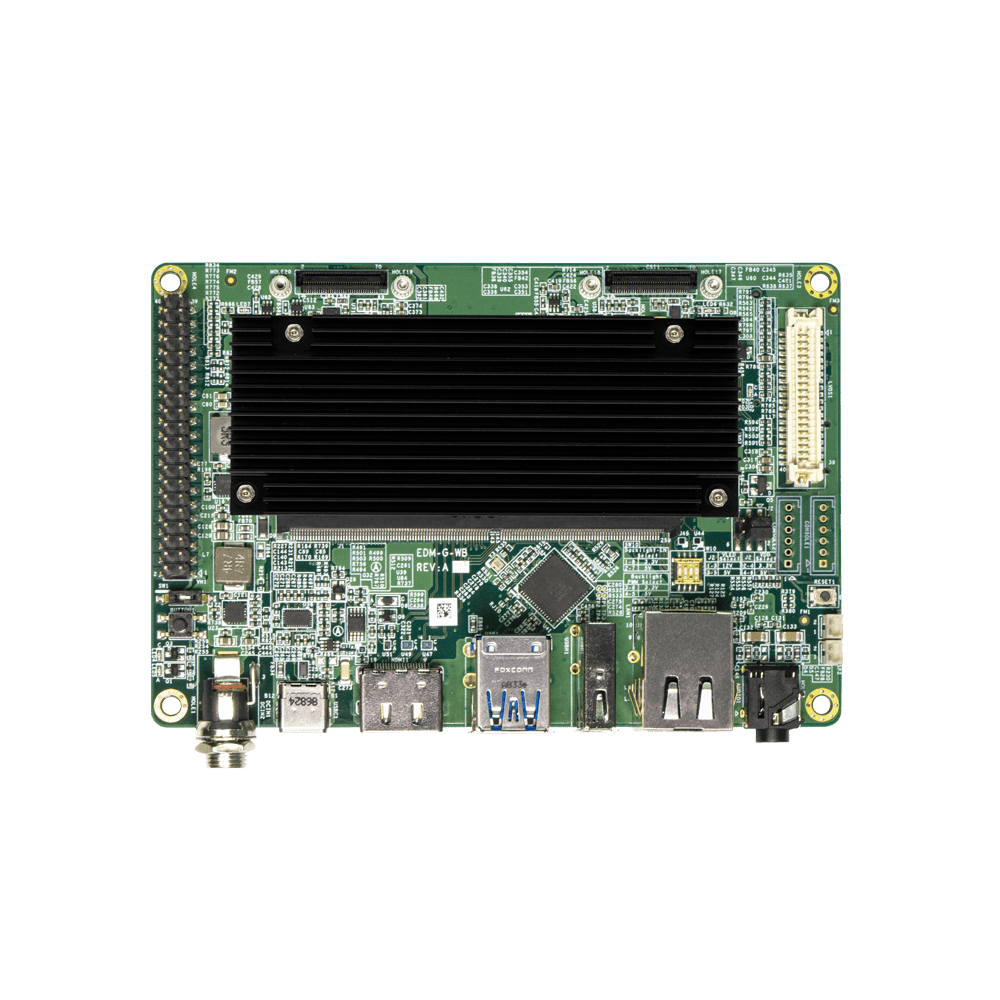

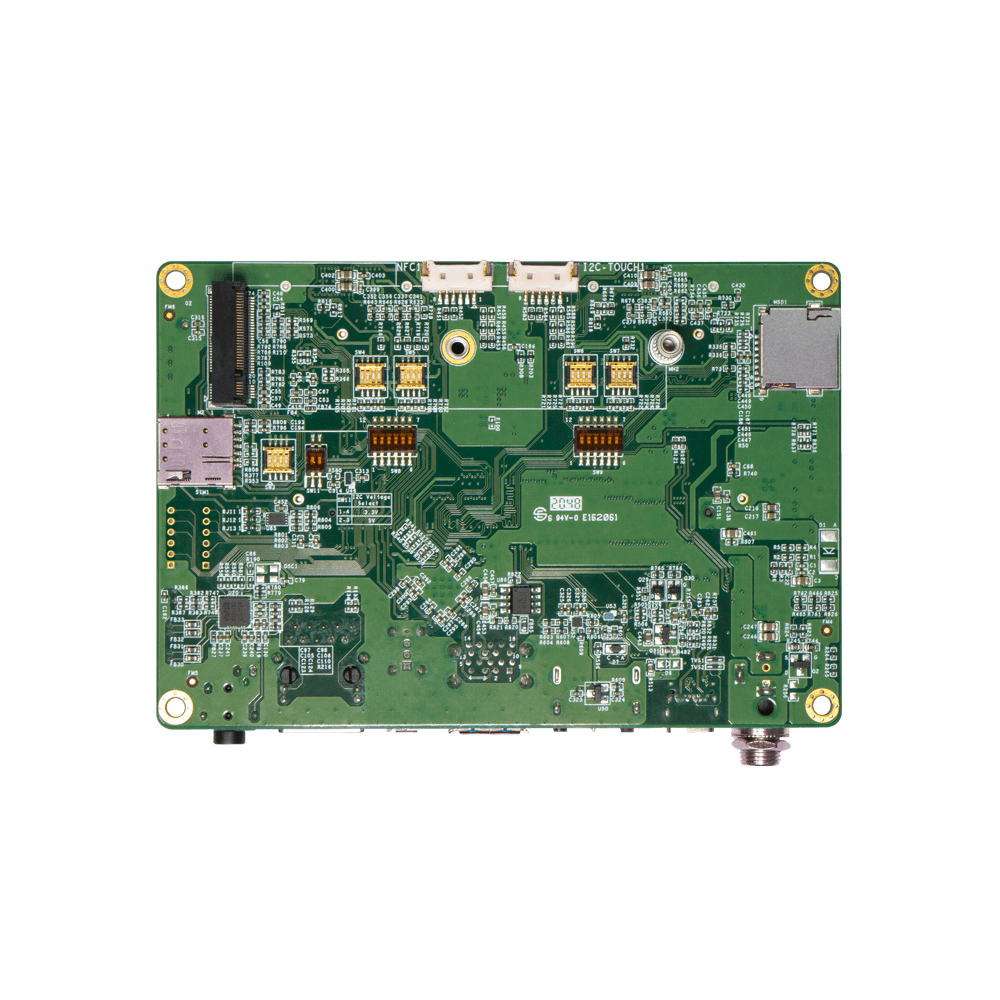

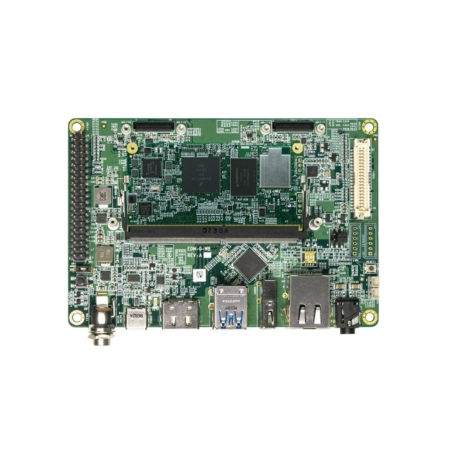

WB-EDM-G-IMX8M-MINI

SKU: WBEDMGIMX8MMINI Category: Evaluation Kits

Product Brief

Quantity	Discount (%)	Price
1	—	$309.00

Specifications

Core System

Processor	NXP i.MX8M Mini
Architecture	ARM Cortex-A53 + M4
PMIC	NXP PCA9450
Memory	Upto 8GB LPDDR4
Storage	32GB eMMC (default)
Board-to-Board Connector	260-pin DDR4 SO-DIMM
System on Module	EDM SOM
Debug Interface	JTAG Interface by Through-hole

AI / Vision Capabilities

AI / ML	OpenCL CPU: 32 GOPS

Connectivity

Network LAN	1x Realtek RTL8211F
Wi-Fi	Qualcomm Atheros QCA9377 Wi-Fi 5 – 802.11 a/b/g/n/ac
Bluetooth	Qualcomm Atheros QCA9377 Bluetooth
Antenna	MHF4 connector

Signaling

I/O	LVDS LAN MIPI CSI-2 MIPI DSI PCIe USB USB OTG I²S SDIO UART SPI I²C PWM GPIO

Certification and Compliance

USA	FCC ID: 2AKZA-QCA9377
Canada	IC: 22364-QCA9377
European Union	EN 300 328 v2.2.2 EN 301 893 v2.1.1 EN 55032 / EN 55024
Japan	TELEC: 201-180629
Australia / New Zealand	RCM Compliant
Certification	Compliant with RoHS / REACH directives
Bluetooth Logo	QDID 150839 (Bluetooth 4.2) QDID 193238 (Bluetooth 5)

WB-EDM-G-IMX8M-MINI Block Diagram

WB-EDM-G-IMX8M-MINI Dimensions
