TWP-1560-IMX6

SKU: TWP1560IMX6 Categories: ,

TWP-1560-IMX6 is a scalable multimedia HMI based on an NXP i.MX6 multicore Cortex-A9™ processor.

More information
Product Brief

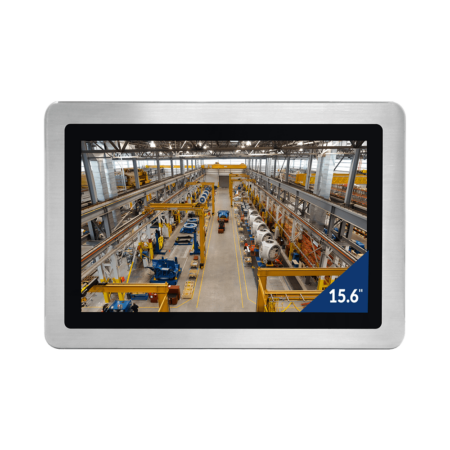

TWP-1560-IMX6 FRONT
TWP-1560-IMX6 FRONT

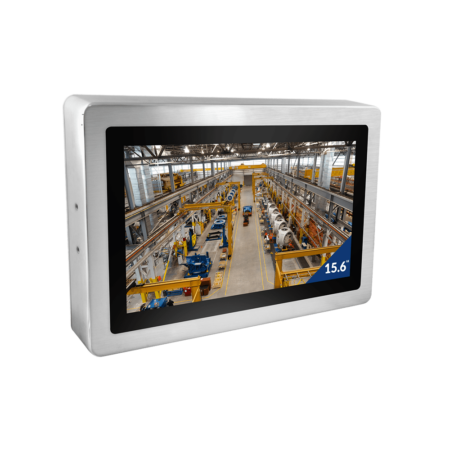

TWP-1560-IMX6 34RIGHT TOP

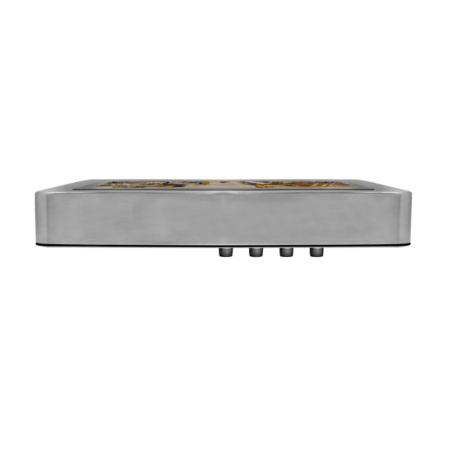

TWP-1560-IMX6 BOTTOM SIDE

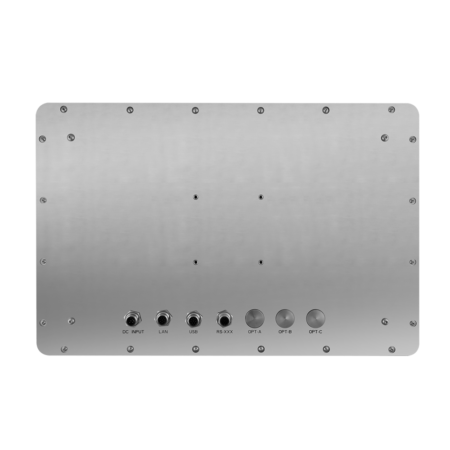

TWP-1560-IMX6 BACK
Volume Pricing
Out of stock
Factory Stock
Out of stock
Distributor Stock

Specifications

Additional information

Core System
Processor

NXP i.MX6 Solo
NXP i.MX6 Duallite
NXP i.MX6 Quad

Architecture

ARM Cortex-A9

PMIC

NXP MMPF0100

Memory

Upto 2GB DDR3

Storage

4GB eMMC
Connectivity
Network LAN

1x Atheros AR8035 Gigabit LAN

Power over Ethernet

PoE function 802.3at (optional)
Video
GPU Engine

Vivante GC2000 (Quad)
Vivante GC320 (2D Composition)
Vivante GC355 (Quad)
Vivante GC880 (Solo/DualLite)

Video Decode

1080p30 + D1 (Solo/DualLite)
1080p60 H.264 (Quad)

Video Encode

1080p30 H.264
BP/Dual 720p
Power Specifications
Power Input

12 VDC
9-36V DC (wide power input)

Power Connector

3-pin M12

Power Consumption

Depending on Configuration
Software Support
Standard Support

Linux
Yocto
Ubuntu
Android
Mounting Options
VESA Mounting

75*75 VESA MIS-D Standard (separate purchase)

YOKE Mounting

Yoke Standard 50mm (separate purchase)
Display
LCD

15.6 inch widescreen LCD with LED backlight

Resolution

1366 x 768 pixels

Luminance

300 cd/m²

Maximum Colors

16.7 million

Touchscreen

Projective Capacitive (multitouch)
External Connectors
Network

1x 8-pin M12

USB

1x 8-pin M12 (2x USB 2.0 Host)

Serial Port

1x 8-pin M12 (1x RS-232)
Expansion Interfaces
Expansion Slots

2x M.2 Slot
2x mini-PCIe with SIM Card Slot
Environmental and Mechanical
Enclosure Material

Metal

Dimensions

438 (W) x 289 (H) x 56 (D) mm

Weight

7100 grams

Frontbezel

Stainless Steel

IP Rating

IP69K

MTBF

50,000 Hours

Shock

15G half-sine 11 ms duration

Vibration

1 Grms random 5-500Hz hr/axis

Relative Humidity

10 to 90 %

Operation Temperature

Commercial: 0°C to +50°C
Certification and Compliance
Certification

Compliant with CE / FCC / RoHS / REACH directives
Commercial Information
Brand

TechNexion

Country of Origin

Taiwan

HTSN

8471.90.0000

ECCN

5A992.c Mass Market

CCATS

740.17(b)(1) Mass Market (No License Required)

REACH / RoHS

Yes

Blockdiagram

TWP-1560-IMX6-01 Blockdiagram

Dimensions

TWP-1560-IMX6 Dimensions
