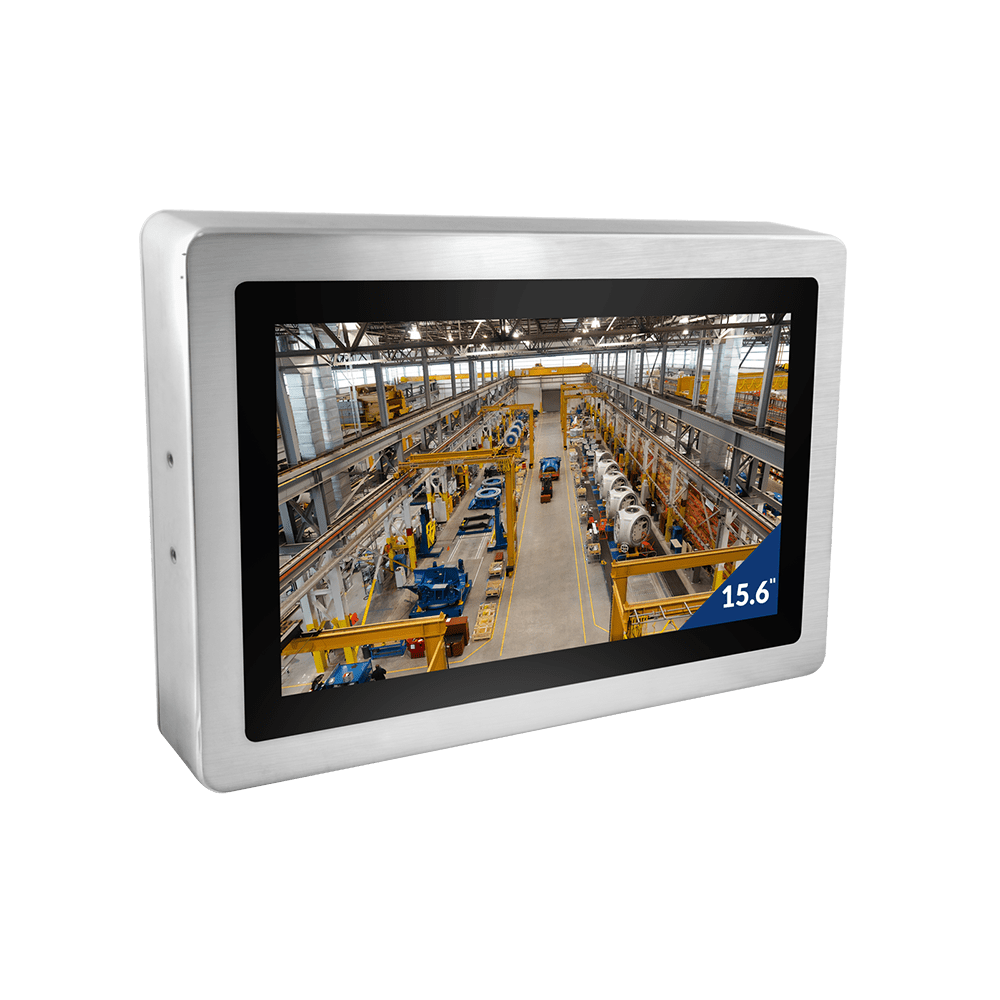

Highlights

Performance

The NXP i.MX 6 Family is available in single, dual and quad core 32-bit Arm Cortex-A9, making them a cost-effective choice for a modern graphical user interface while providing sufficient power for typical industrial and multimedia applications.

PoE

Various power modules are available. No matter your project require 9~36 VDC wide power input or Power over Ethernet. We have you covered.

Software Platform

As a true opensource software advocate. TechNexion products are supported with a source code BSP Linux and Android AOSP. Third party consultants can tailor solutions easily to make every embedded project a success.

Waterproof

The SUS304 Stainless steel enclosure of the TWP-1560-IMX6 meets IP69 Waterproof standards.

M.2

Connect your TWP to the cloud with an internal M.2 Wireless Communication or 4G/LTE module.

Rugged and Reliable

Power Saving

The TWP-1560-IMX6 is a cable- and Fan-less low power designed system ideal to use in vibration prone wet applications.

Industrial I/O

The TWP series come with more interfaces than a Swiss Army Knife can pack. UARTs, CAN, GPIOs to connect devices. USB, SD for expansion and peripherals and surround audio, VGA and HDMI for multimedia connectivity.

Core System
Processor

NXP i.MX6 Solo
NXP i.MX6 Duallite
NXP i.MX6 Quad

Architecture

ARM Cortex-A9

PMIC

NXP MMPF0100

Memory

Upto 2GB DDR3

Storage

4GB eMMC

Connectivity
Network LAN

1x Atheros AR8035 Gigabit LAN

Power over Ethernet

PoE function 802.3at (optional)

Video
GPU Engine

Vivante GC2000 (Quad)
Vivante GC320 (2D Composition)
Vivante GC355 (Quad)
Vivante GC880 (Solo/DualLite)

Video decode

1080p30 + D1 (Solo/DualLite)
1080p60 H.264 (Quad)

Video encode

1080p30 H.264
BP/Dual 720p

Power Specifications
Power Input

12 VDC
9-36V DC (wide power input)

Power Consumption

Depending on Configuration

Power Connector

3-pin M12

Operating Systems
Standard Support

Linux
Yocto
Android
Ubuntu

Environmental and Mechanical
Enclosure Material

Metal

Frontbezel

Stainless Steel

IP Rating

IP69K

Dimensions

438 (W) x 289 (H) x 56 (D) mm

Relative Humidity

10 to 90 %

MTBF

50,000 Hours

Shock

15G half-sine 11 ms duration

Operation Temperature

Commercial: 0° to +50° C

Vibration

1 Grms random 5-500Hz hr/axis

Weight

7100 grams

Mounting Options
VESA Mounting

75*75 VESA MIS-D Standard (separate purchase)

YOKE Mounting

Yoke Standard 50mm (separate purchase)

Modular Expansion Options
Power Expansion Module

TXB-P1-1030V-LAN1 (8-36V 5A)
TXB-P1-12V-LAN1 (12V 3A)
TXB-P1-12V-POE1 (12V 3A) or (PoE 802.3at)

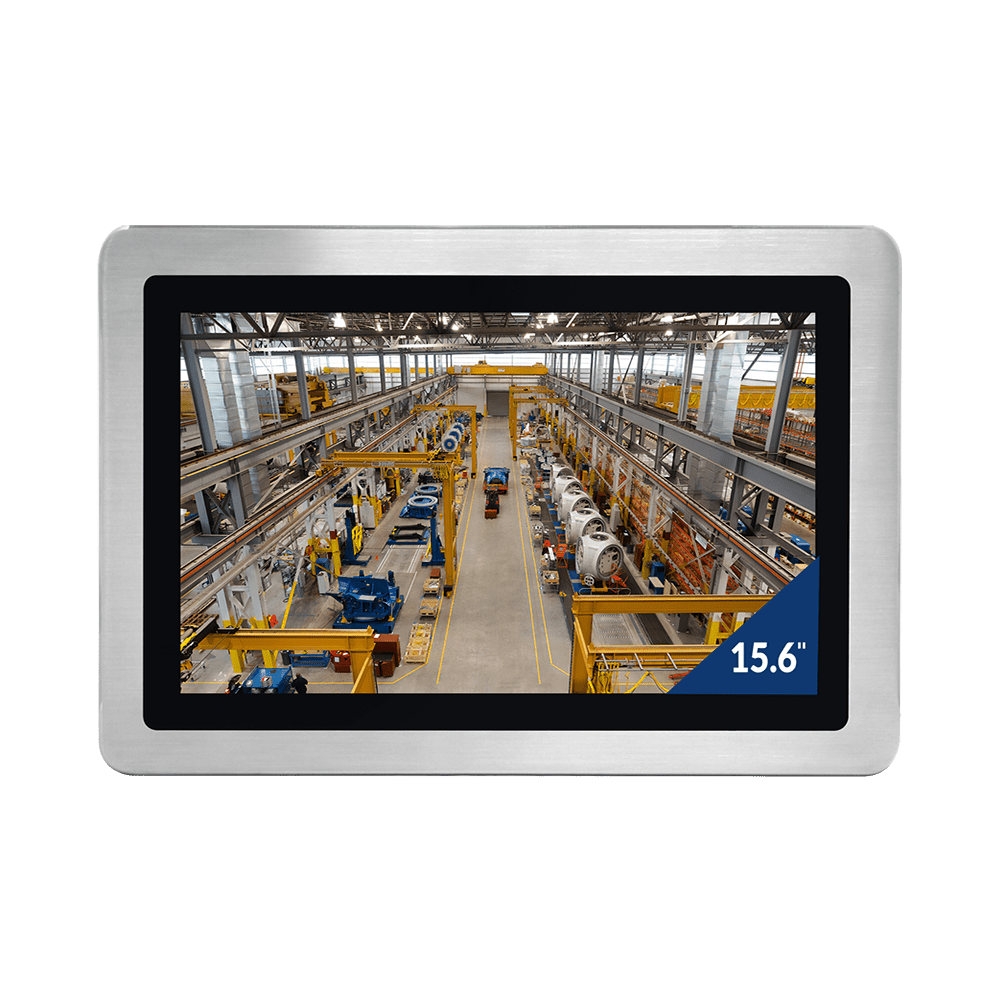

Display
LCD

15.6 inch widescreen LCD with LED backlight

Resolution

1366 x 768 pixels

Luminance

300 cd/m²

Maximum Colors

16.7 million

Touchscreen

Projective Capacitive (multitouch)

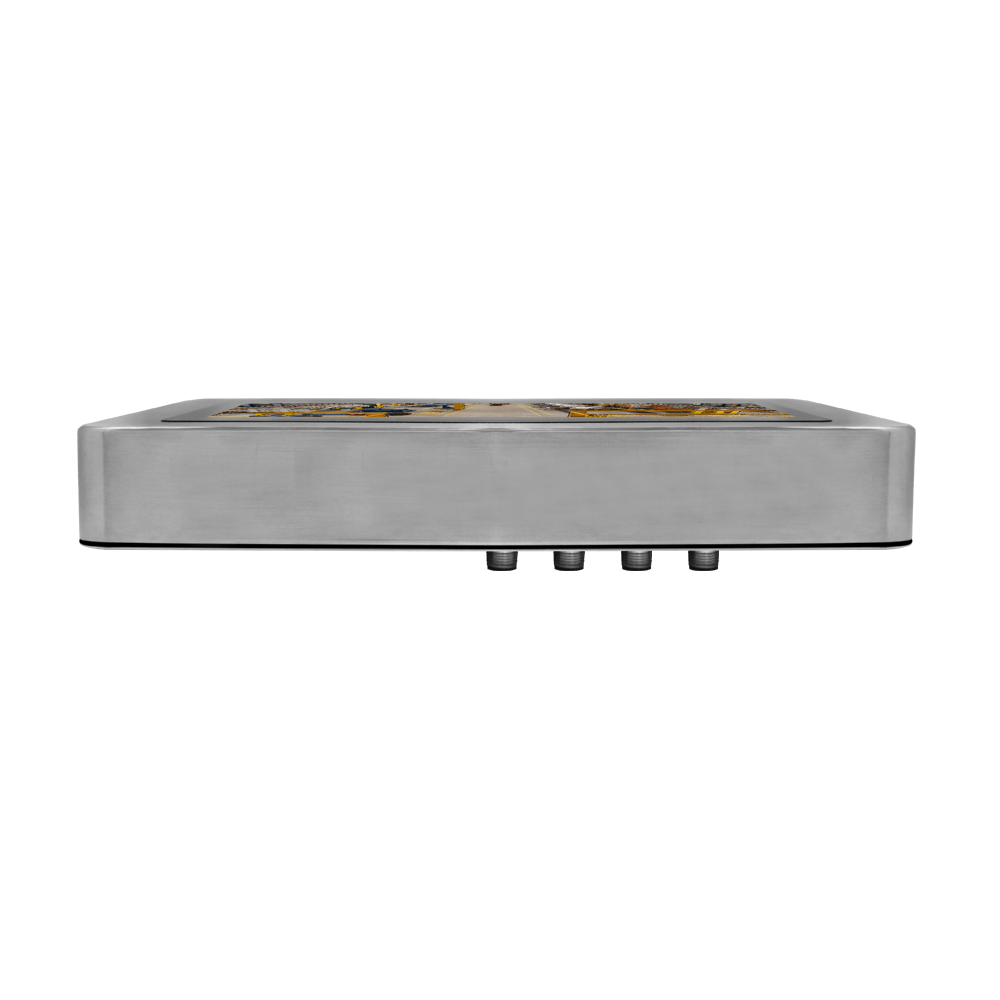

External Connectors
Network

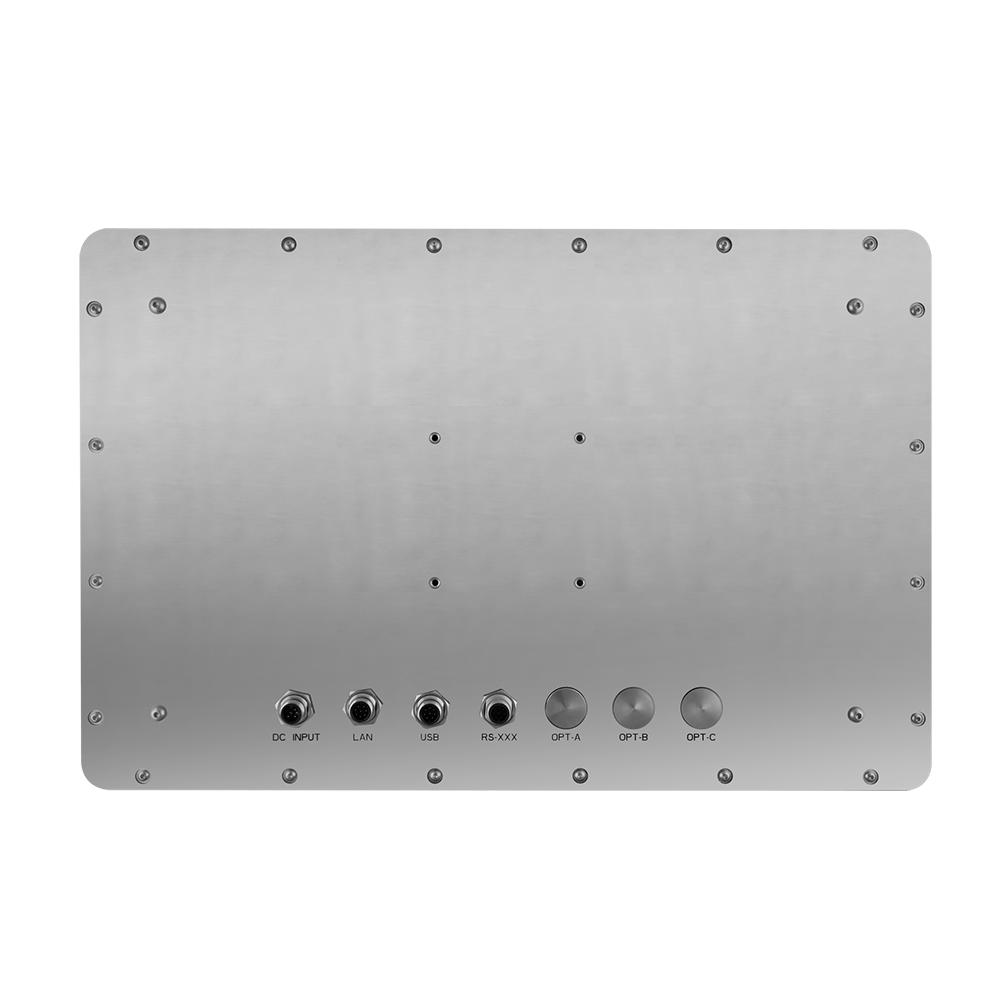

1x 8-pin M12

USB

1x 8-pin M12 (2x USB 2.0 Host)

Serial Port

1x 8-pin M12 (1x RS-232)

Expansion Interfaces
Expansion Slots

2x M.2 slot
2x mini-PCIe with SIM cardslot

Certification and Compliance
Certification

Compliant with CE / FCC / RoHS / REACH directives

Shop Data
Brand

TechNexion

Country of Origin

Taiwan

HTSN

8471.90.0000

ECCN

5A992.c Mass Market

CCATS

740.17(b)(1) Mass Market (No License Required)

REACH / RoHS

YES

TWP-1560-IMX6 Block Diagram
