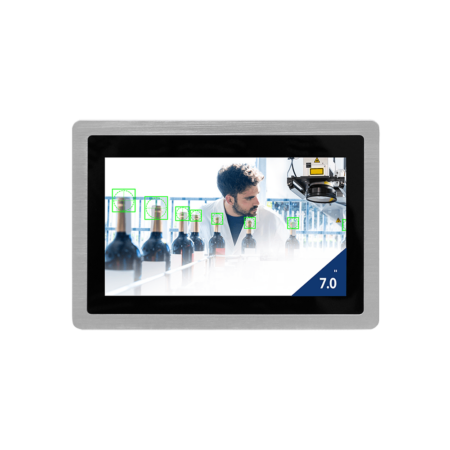

TC-0710 FRONT

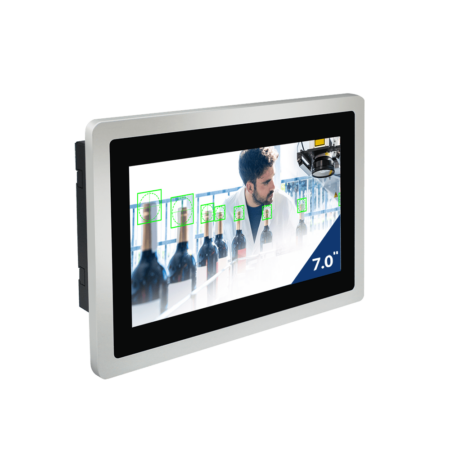

TC-0710 34RIGHT TOP

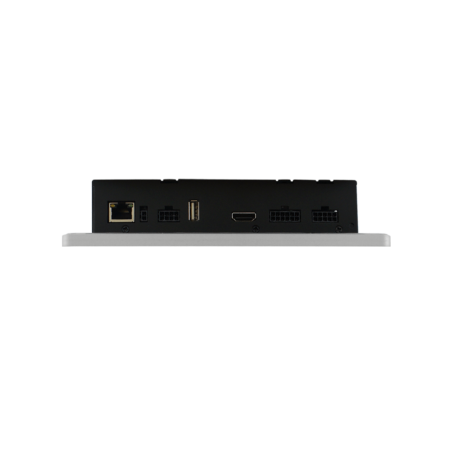

TC-0710 BOTTOM SIDE

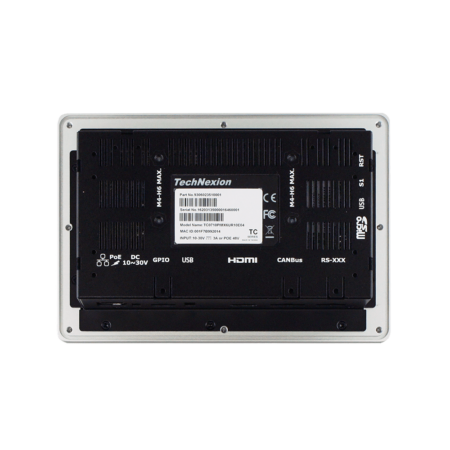

TC-0710 BACK

TC-0710

SKU: TC0710 Categories: ,

TC-0710 is an ultra-efficient, low power, fanless HMI based on a Solo, DualLite, or Quad core ARM Cortex-A9 NXP i.MX6 processor

More information
Product Brief

$525.00

Quantity Discount (%) Price
1 — $525.00

Specifications

Additional information

Core System
Processor

NXP i.MX6 Solo
NXP i.MX6 Duallite
NXP i.MX6 Quad

Architecture

ARM Cortex-A9

PMIC

NXP MMPF0100

Memory

Upto 2GB DDR3

Storage

16GB eMMC
Connectivity
Network LAN

1x Atheros AR8031 Gigabit LAN

Power over Ethernet

PoE function 802.3at
Video
GPU Engine

Vivante GC2000 (Quad)
Vivante GC320 (2D Composition)
Vivante GC355 (Quad)
Vivante GC880 (Solo/DualLite)

Video Decode

1080p30 + D1 (Solo/DualLite)
1080p60 H.264 (Quad)

Video Encode

1080p30 H.264
BP/Dual 720p
Audio
Audio Codec

NXP SGTL5000
Power Specifications
Power Input

10-30V DC

Power Connector

2-pin Micro-Fit 3.0

Power Consumption

Depending on Configuration
Software Support
Standard Support

Linux
Yocto
Ubuntu
Android

Extended Support

Commercial Linux
Mounting Options
Rear Mounting

6 mounting clips required (included)

VESA Mounting

35*75 VESA MIS C. Standard (separate purchase)

Surface Mounting

8 mounting holes
Display
LCD

7 inch widescreen LCD with LED Backlight

Resolution

1024 x 600 pixels

Luminance

500 cd/m²

Maximum Colors

16.7 million

Touchscreen

Projective Capacitive (multitouch)
External Connectors
External Display

1x HDMI

Network

1x RJ45

USB

1x USB 2.0 Host
1x USB 2.0 OTG

CAN BUS

2x Flex CAN version 2.0B compliant (galvanic isolated)

Serial Port

1x RS-232 (galvanic isolated)
1x RS-232/422/485 (galvanic isolated)

GPIO Connector

4x GPIO (galvanic isolated)

Buttons

1x Boot Select
1x Reset

SIM Card Slot

1x Micro-SIM Card Slot

SD Card Slot

1x MicroSD Card Slot
Environmental and Mechanical
Enclosure Material

Metal

Dimensions

198(W) x 137(H) x 48(D) mm

Weight

TBD

Frontbezel

Brushed Anodized Aluminium

IP Rating

IP65 Front

MTBF

50,000 Hours

Shock

15G half-sine 11 ms duration

Vibration

1 Grms random 5-500Hz hr/axis

Relative Humidity

10 to 90 %

Operation Temperature

Commercial: 0°C to +50°C
Certification and Compliance
Certification

Compliant with CE / FCC / RoHS / REACH directives
Commercial Information
Brand

TechNexion

Country of Origin

Taiwan

HTSN

8471.90.0000

ECCN

5A992.c Mass Market

CCATS

740.17(b)(1) Mass Market (No License Required)

REACH / RoHS

Yes

Blockdiagram

TC-0710 Block Diagram

Dimensions

TC-0710 Dimensions
