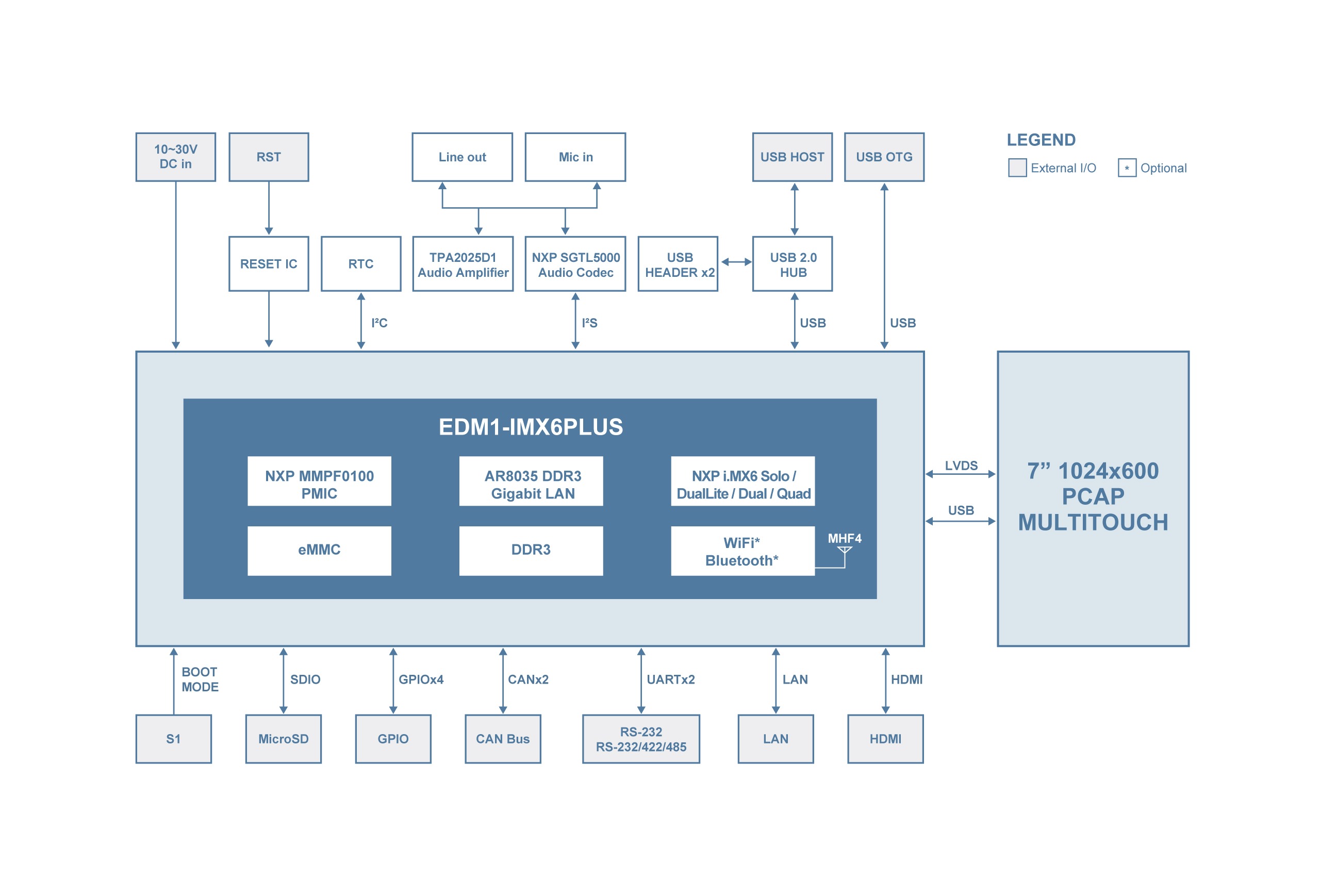

| Core System |
|---|
| Processor | NXP i.MX6 Solo
NXP i.MX6 Duallite
NXP i.MX6 Quad
|
|---|
| Architecture | ARM Cortex-A9
|
|---|
| PMIC | NXP MMPF0100
|
|---|
| Memory | Upto 2GB DDR3
|
|---|
| Storage | 4GB eMMC
|
|---|
|
| Connectivity |
|---|
| Network LAN | 1x Atheros AR8031 Gigabit LAN
|
|---|
| Power over Ethernet | PoE function 802.3at
|
|---|
|
| Video |
|---|
| GPU Engine | Vivante GC2000 (Quad)
Vivante GC320 (2D Composition)
Vivante GC355 (Quad)
Vivante GC880 (Solo/DualLite)
|
|---|
| Video decode | 1080p30 + D1 (Solo/DualLite)
1080p60 H.264 (Quad)
|
|---|
| Video encode | 1080p30 H.264
BP/Dual 720p
|
|---|
|
| Audio |
|---|
|
|
| Power Specifications |
|---|
| Power Input | 10-30V DC
|
|---|
| Power Consumption | Depending on Configuration
|
|---|
| Power Connector | 2-pin Micro-Fit 3.0
|
|---|
|
| Software Support |
|---|
| Standard Support | Linux
Yocto
Android
Ubuntu
|
|---|
| Extended Support | Commercial Linux
|
|---|
|
| Mounting Options |
|---|
| Rear Mounting | 6 mounting clips required (included)
|
|---|
| VESA Mounting | 35*75 VESA MIS C. Standard (separate purchase)
|
|---|
| Surface Mounting | 8 mounting holes
|
|---|
|
| Display |
|---|

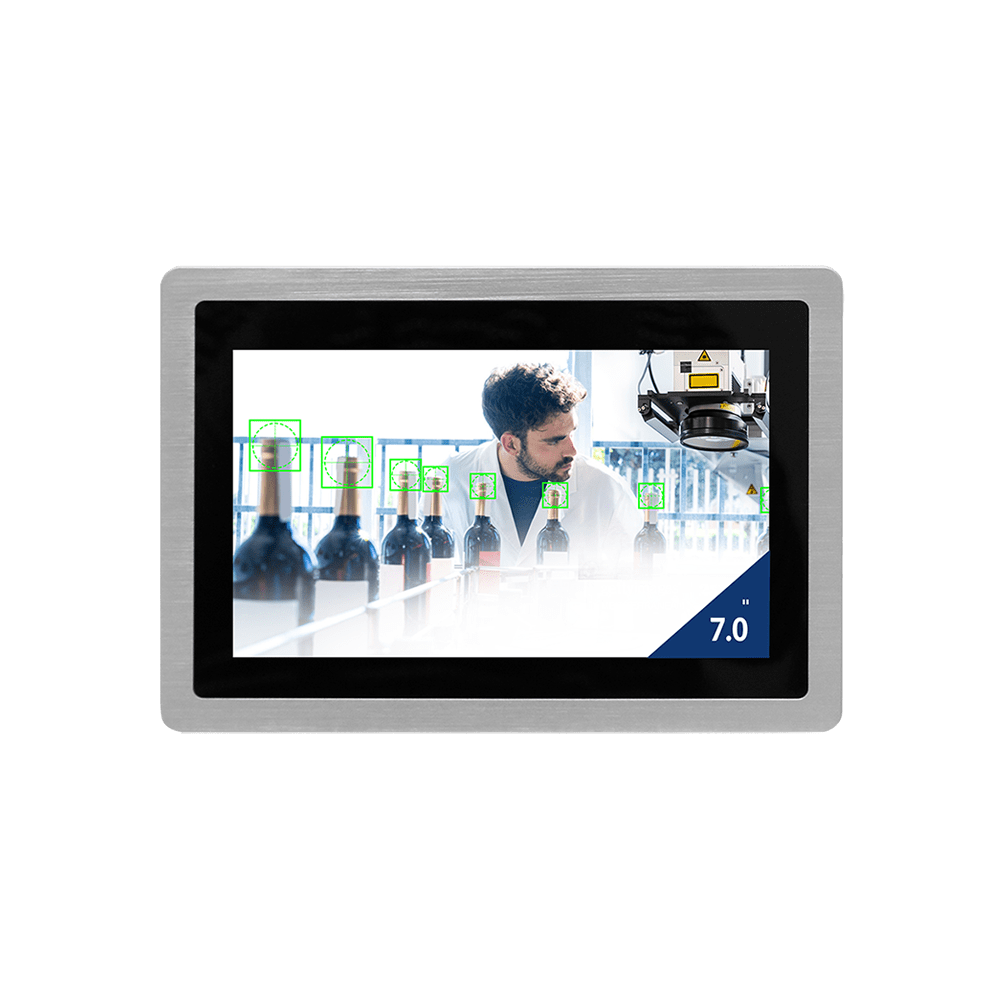

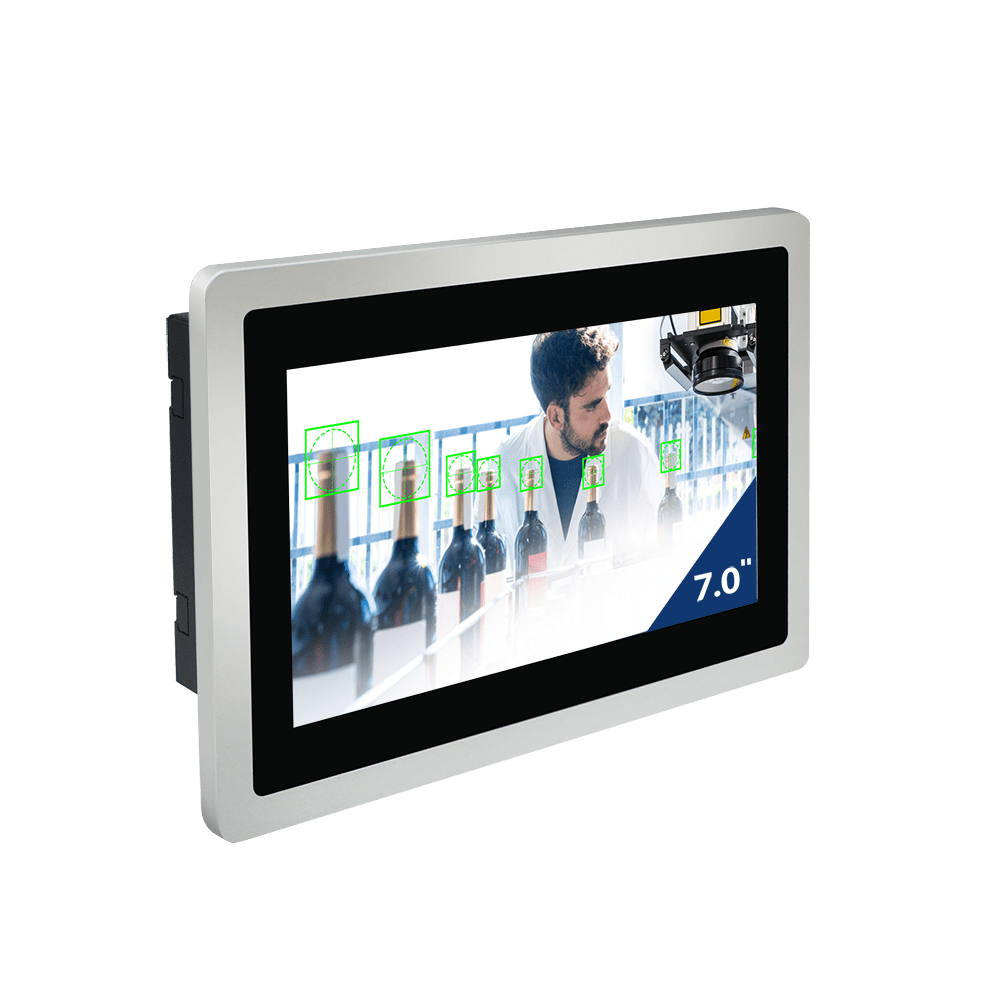

| LCD | 7 inch widescreen LCD with LED Backlight
|
|---|
| Resolution | 1024 x 600 pixels
|
|---|
| Luminance | 500 cd/m²
|
|---|
| Maximum Colors | 16.7 million
|
|---|
| Touchscreen | Projective Capacitive (multitouch)
|
|---|
|

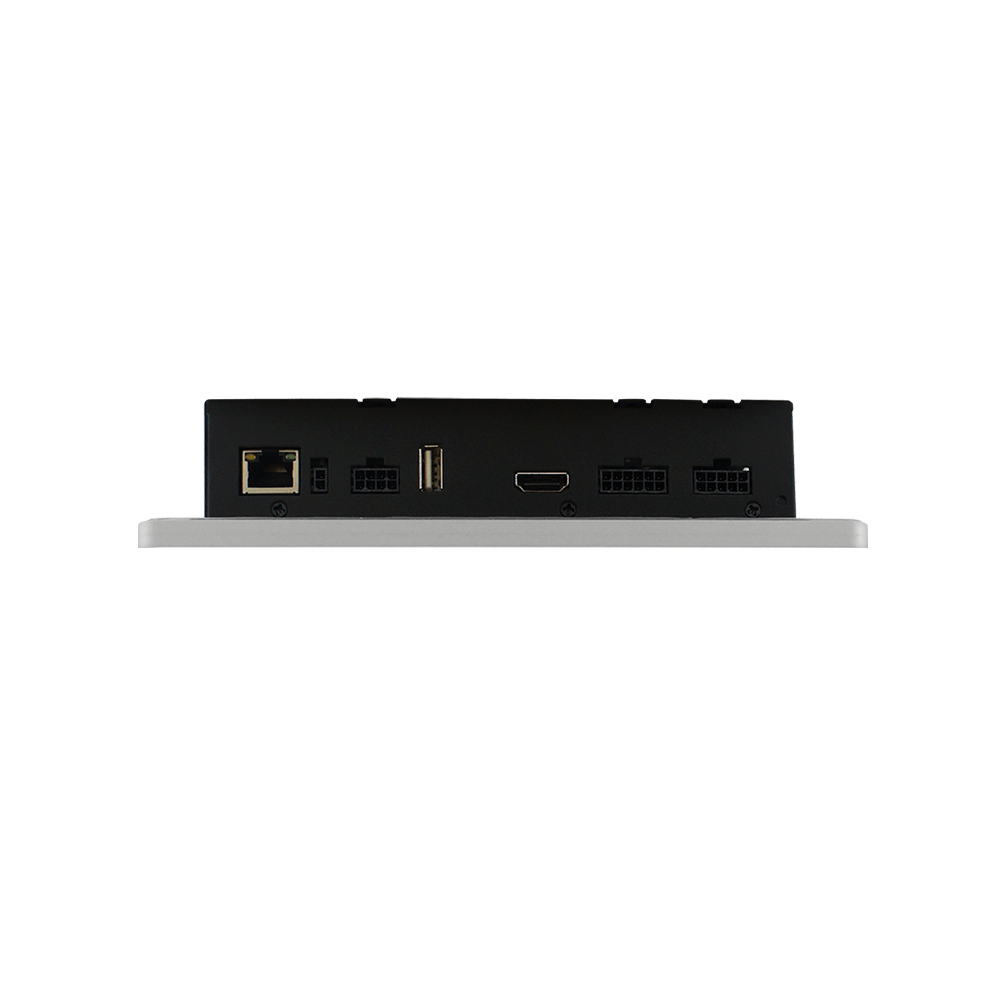

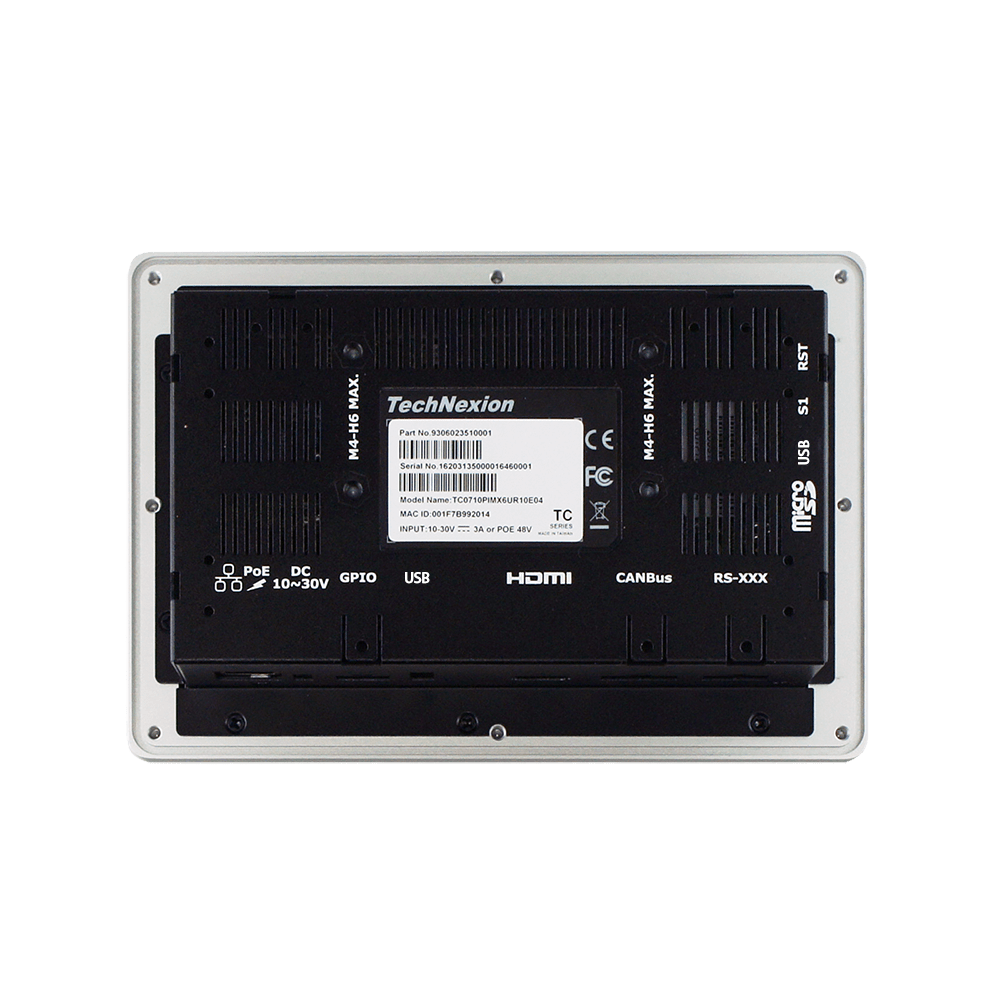

| External Connectors |
|---|
| External Display | 1x HDMI
|
|---|
| Network | 1x RJ45
|
|---|
| USB | 1x USB 2.0 Host
1x USB 2.0 OTG
|
|---|

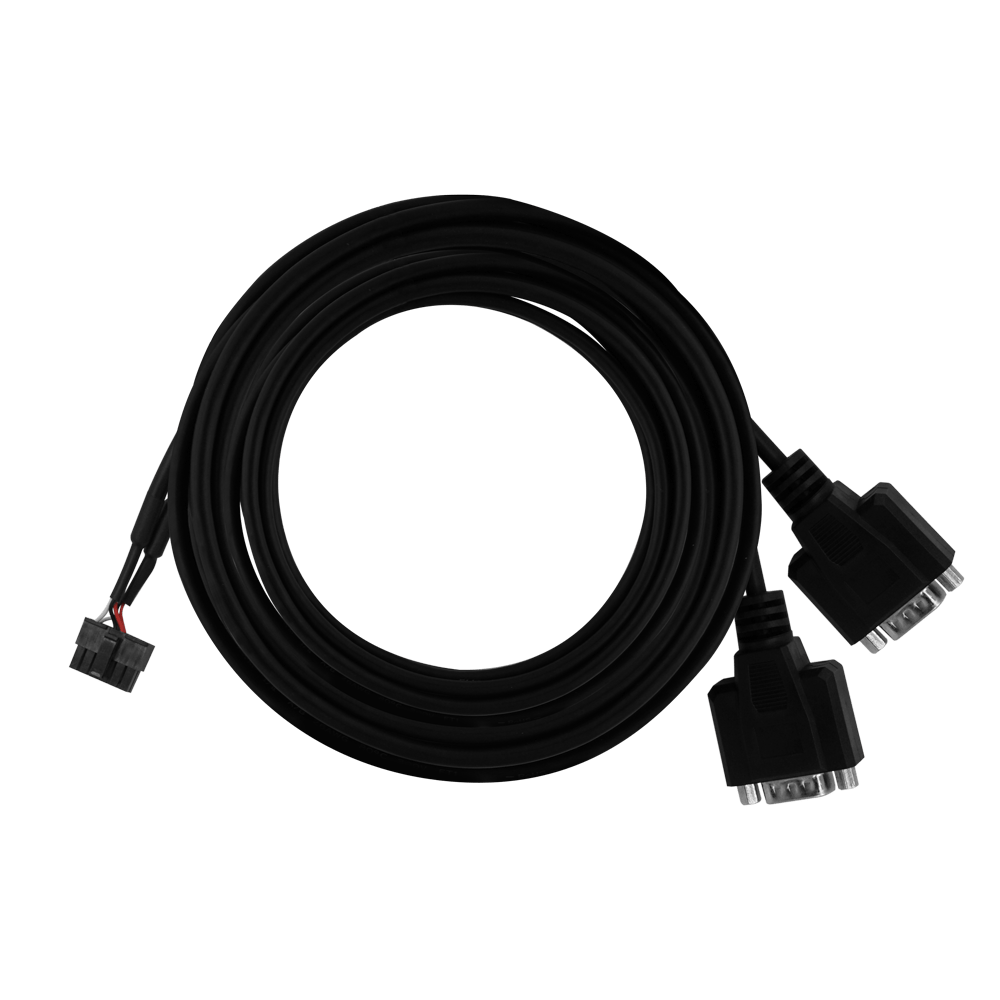

| CAN BUS | 2x Flex CAN version 2.0B compliant (galvanic isolated)
|
|---|

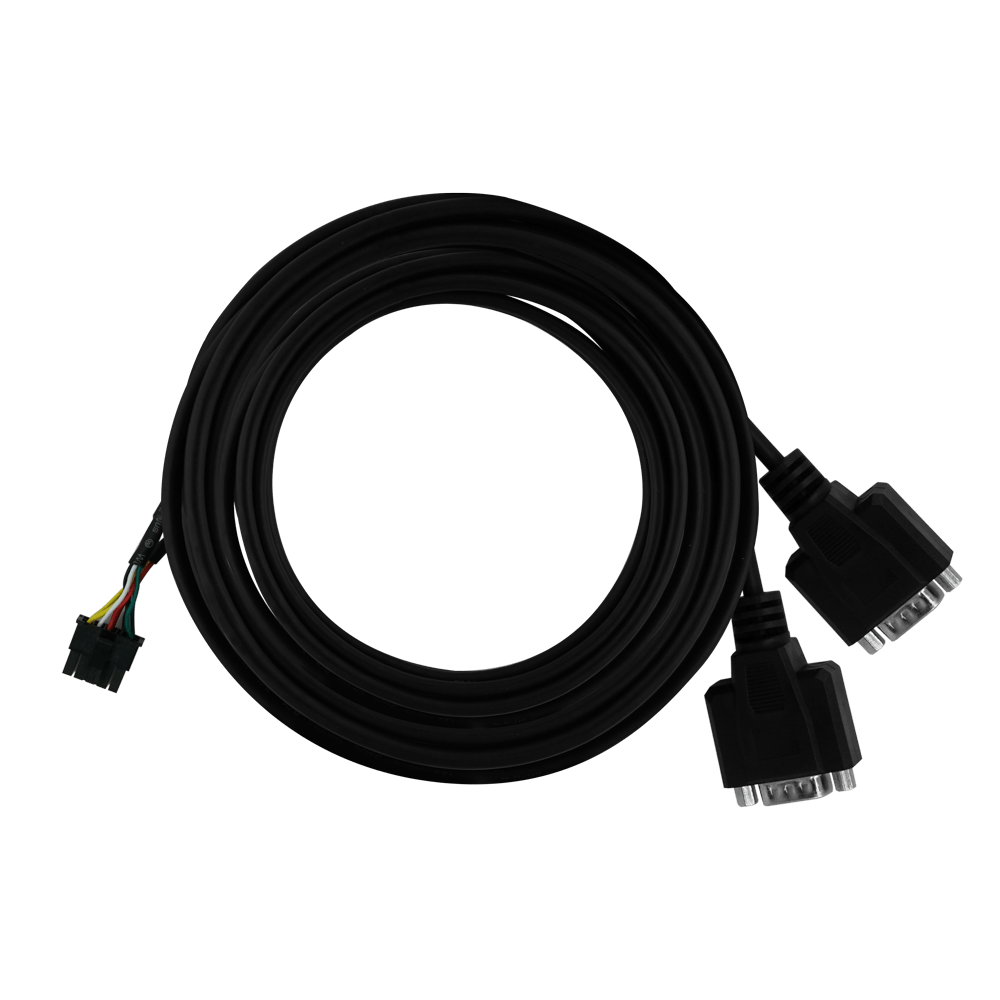

| Serial Port | 1x RS-232 (galvanic isolated)
1x RS-232/422/485 (galvanic isolated)
|
|---|

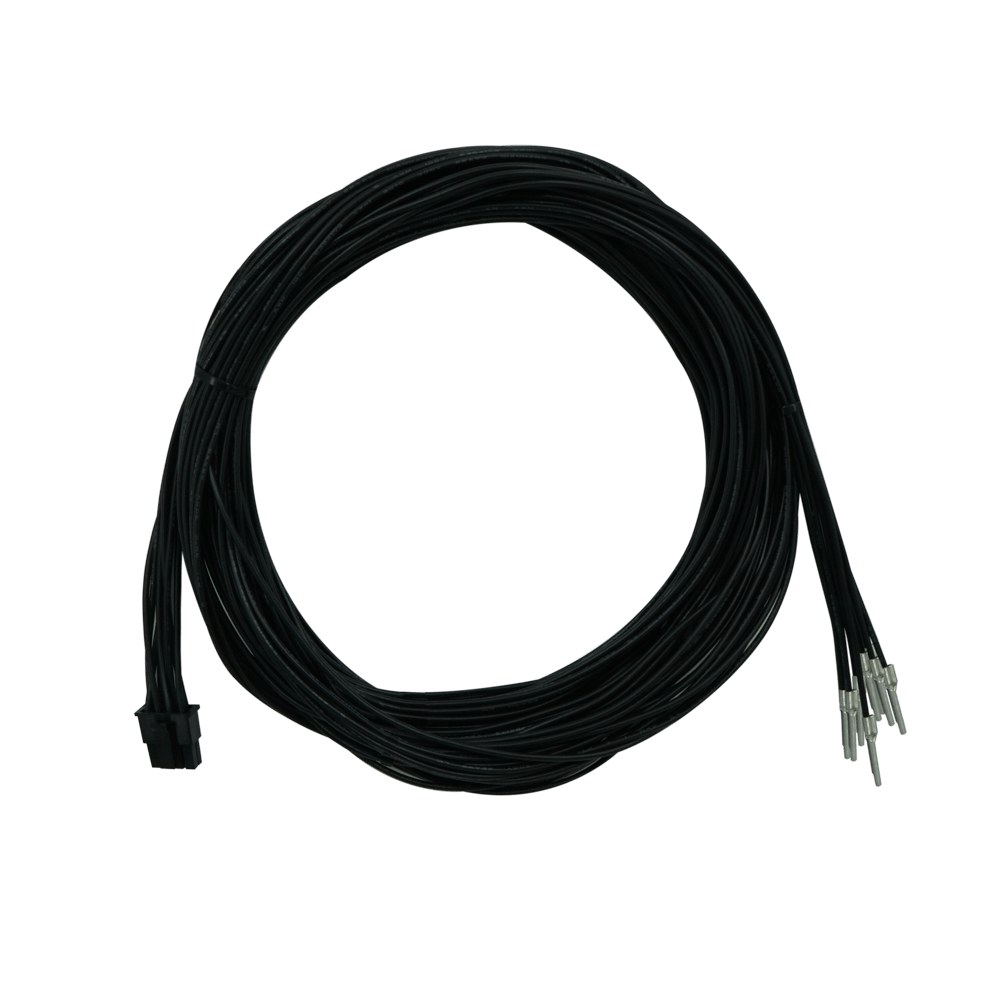

| GPIO Connector | 4x GPIO (galvanic isolated)
|
|---|
| Buttons | 1x Boot Select
1x Reset
|
|---|
| SIM Cardslot | 1x Micro-SIM cardslot
|
|---|
| SD Cardslot | 1x MicroSD Card Slot
|
|---|
|
| Environmental and Mechanical |
|---|
| Enclosure Material | Metal
|
|---|

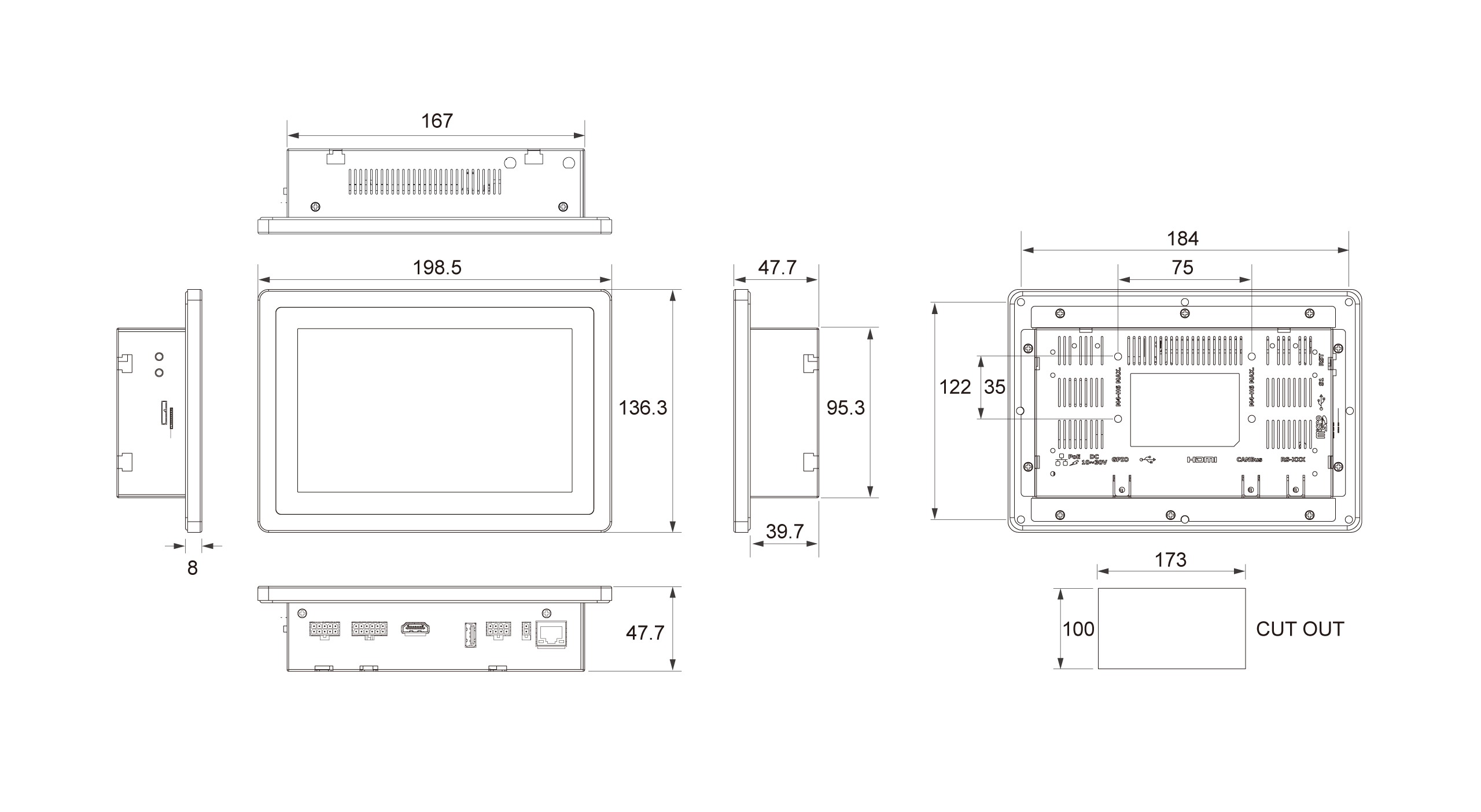

| Dimensions | 198(W) x 137(H) x 48(D) mm
|
|---|
| Weight | TBD
|
|---|
| Frontbezel | Brushed Anodized Aluminium
|
|---|
| Relative Humidity | 10 to 90 %
|
|---|
| IP Rating | IP65 Front
|
|---|
| MTBF | 50,000 Hours
|
|---|
| Shock | 15G half-sine 11 ms duration
|
|---|
| Operation Temperature | Commercial: 0°C to +50°C
|
|---|
| Vibration | 1 Grms random 5-500Hz hr/axis
|
|---|
|
| Certification and Compliance |
|---|
| Certification | Compliant with CE / FCC / RoHS / REACH directives
|
|---|
|
| Commercial Information |
|---|
| Brand | TechNexion
|
|---|
| Country of Origin | Taiwan
|
|---|
| HTSN | 8471.90.0000
|
|---|
| ECCN | 5A992.c Mass Market
|
|---|
| CCATS | 740.17(b)(1) Mass Market (No License Required)
|
|---|
| REACH / RoHS | Yes
|
|---|
|
