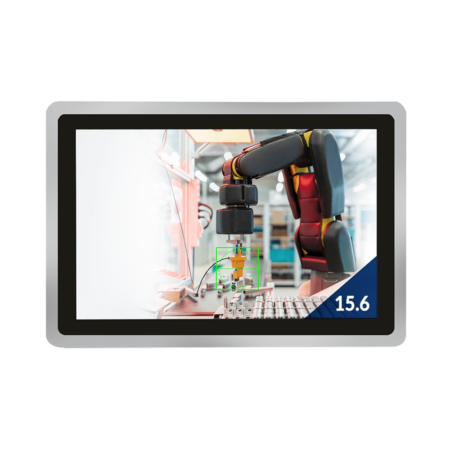

TEP-1560-IMX6 FRONT

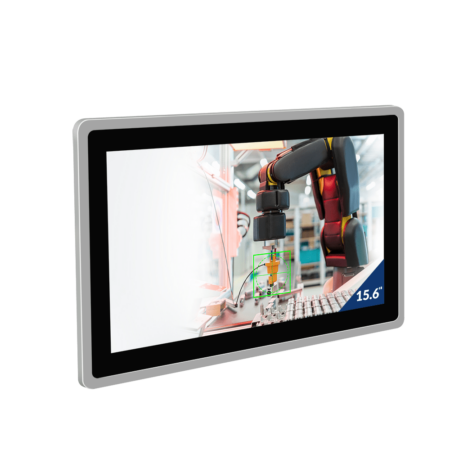

TEP-1560-IMX6 34RIGHT TOP

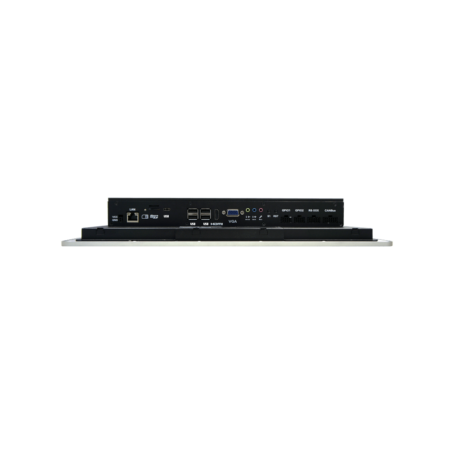

TEP-1560-IMX6 BOTTOM SIDE

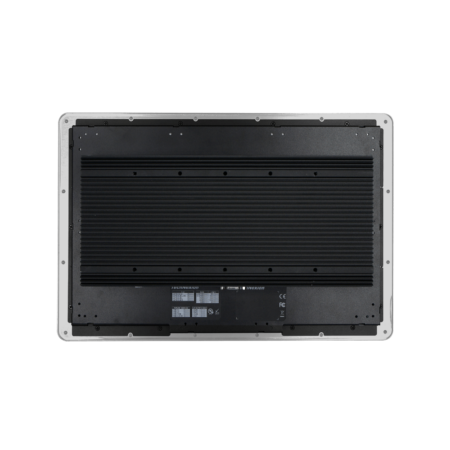

TEP-1560-IMX6 BACK

TEP-1560-IMX6

SKU: TEP1560IMX6 Categories: ,

TEP-1560-IMX6 is A scalable multimedia HMI based on an NXP i.MX6 Solo, DualLite, or Quad multicore Cortex-A9™ processor supporting 2D/3D graphic applications

More Information
Product Brief

$990.00

Quantity Discount (%) Price
1 — $990.00
x

Specifications

Additional information

Core System
Processor

NXP i.MX6 Solo
NXP i.MX6 Duallite
NXP i.MX6 Quad

Architecture

ARM Cortex-A9

PMIC

NXP MMPF0100

Memory

Upto 2GB DDR3

Storage

4GB eMMC
Connectivity
Network LAN

1x Atheros AR8035 Gigabit LAN

Power over Ethernet

PoE function 802.3at (optional)
Video
GPU Engine

Vivante GC2000 (Quad)
Vivante GC320 (2D Composition)
Vivante GC355 (Quad)
Vivante GC880 (Solo/DualLite)

Video Decode

1080p30 + D1 (Solo/DualLite)
1080p60 H.264 (Quad)

Video Encode

1080p30 H.264
BP/Dual 720p
Audio
Audio Codec

NXP SGTL5000

Audio Connectors

1x 3.5mm jack Microphone
1x 3.5mm jack Stereo Audio in
1x 3.5mm jack Stereo Audio out
Power Specifications
Power Input

12 VDC
9-36V DC (wide power input)

Power Connector

2-pin Micro-Fit 3.0

Power Consumption

Depending on Configuration
Software Support
Standard Support

Linux
Yocto
Ubuntu
Android

Extended Support

Commercial Linux
Mounting Options
Rear Mounting

14 mounting clips required (included)

VESA Mounting

100*100 VESA MIS-D Standard (separate purchase)

Surface Mounting

16 mounting holes
Display
LCD

15.6 inch widescreen LCD with LED backlight

Resolution

1366 x 768 pixels

Luminance

300 cd/m²

Maximum Colors

16.7 million

Touchscreen

Projective Capacitive (multitouch)
External Connectors
External Display

1x HDMI
1x VGA 15-pin D-SUB

Network

1x RJ45

USB

1x USB 2.0 OTG (Type-C)
4x USB 2.0 Host

CAN BUS

2x Flex CAN version 2.0B compliant

Serial Port

2x RS-232

GPIO Connector

8x GPIO

Buttons

1x Boot Select
1x Reset

Indicators

1x Programmable LED

SIM Card Slot

1x Micro-SIM Card Slot

SD Card Slot

1x MicroSD Card Slot
Environmental and Mechanical
Enclosure Material

Metal

Dimensions

407 (W) x 257 (H) x 62 (D) mm

Weight

4000 grams

Frontbezel

Brushed Anodized Aluminium

IP Rating

IP65 Front

MTBF

50,000 Hours

Shock

15G half-sine 11 ms duration

Vibration

1 Grms random 5-500Hz hr/axis

Relative Humidity

10 to 90 %

Operation Temperature

Commercial: 0°C to +50°C
Expansion Interfaces
Expansion Slots

2x M.2 Slot
2x mini-PCIe with SIM Card Slot
Certification and Compliance
Certification

Compliant with CE / FCC / RoHS / REACH directives
Commercial Information
Brand

TechNexion

Country of Origin

Taiwan

HTSN

8471.90.0000

ECCN

5A992.c Mass Market

CCATS

740.17(b)(1) Mass Market (No License Required)

REACH / RoHS

Yes

Blockdiagram

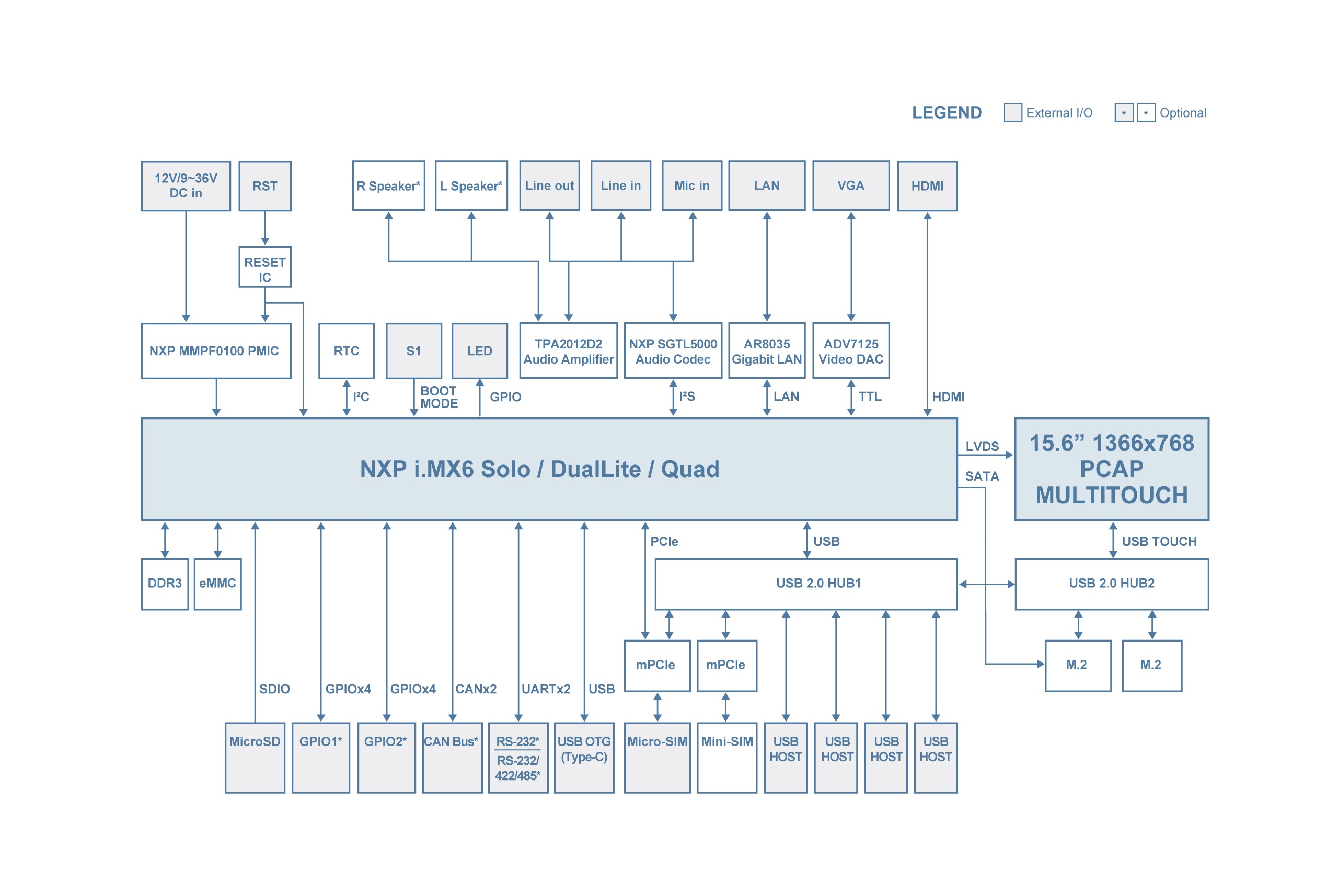

TEP-1560-IMX6 Block Diagram

Dimensions

TEP-1560-IMX6 Dimensions
