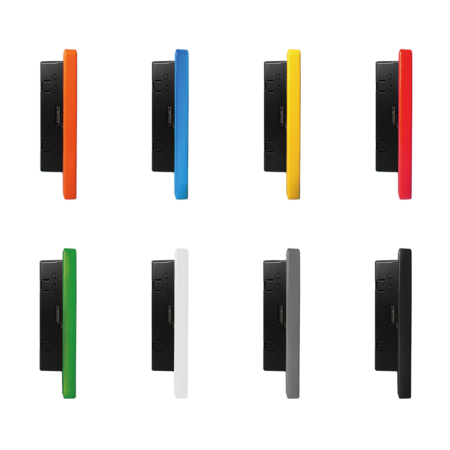

TC-0700 COLORS

TC-0700

SKU: TC0700 Categories: ,
More information
Product Brief

TC-0700 is an ultra-slim, low power, fanless HMI based on a Solo or DualLite core ARM Cortex-A9 NXP i.MX6 processor

Specifications

Additional information

Core System
Processor

NXP i.MX6 Solo
NXP i.MX6 Duallite

Architecture

ARM Cortex-A9

PMIC

NXP MMPF0100

Memory

Upto 2GB DDR3

Storage

4GB eMMC
Connectivity
Network LAN

1x Atheros AR8035 Gigabit LAN

Power over Ethernet

PoE function 802.3at
Video
GPU Engine

Vivante GC320 (2D Composition)
Vivante GC880 (Solo/DualLite)

Video decode

1080p30 + D1 (Solo/DualLite)

Video encode

BP/Dual 720p
Audio
Audio Codec

NXP SGTL5000
Power Specifications
Power Input

10-30V DC

Power Consumption

Depending on Configuration

Power Connector

2-pin Micro-Fit 3.0
Software Support
Standard Support

Linux
Yocto
Android
Ubuntu

Extended Support

Commercial Linux
Mounting Options
Rear Mounting

6 mounting clips required (included)

VESA Mounting

35*75 VESA MIS C. Standard (separate purchase)
Display
LCD

7 inch widescreen LCD with LED Backlight

Resolution

1024 x 600 pixels

Luminance

500 cd/m²

Maximum Colors

16.7 million

Touchscreen

Projective Capacitive (multitouch)

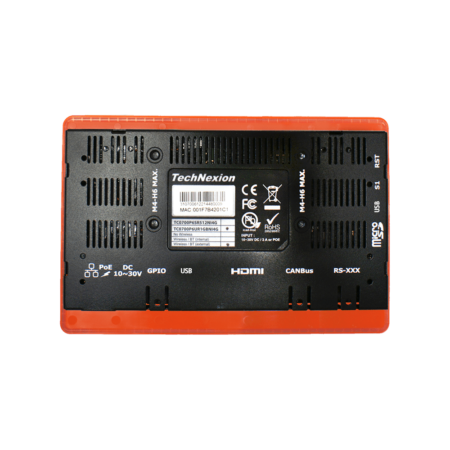

External Connectors
External Display

1x HDMI

Network

1x RJ45

USB

1x USB 2.0 Host
1x USB 2.0 OTG

CAN BUS

2x Flex CAN version 2.0B compliant (galvanic isolated)

Serial Port

1x RS-232 (galvanic isolated)
1x RS-232/422/485 (galvanic isolated)

GPIO Connector

4x GPIO (galvanic isolated)

Buttons

1x Boot Select
1x Reset

SD Cardslot

1x MicroSD Card Slot
Environmental and Mechanical
Enclosure Material

Metal

Dimensions

TBD

Weight

TBD

Frontbezel

Colorful Plastic Frame

Relative Humidity

10 to 90 %

MTBF

50,000 Hours

Shock

15G half-sine 11 ms duration

Operation Temperature

Commercial: 0°C to +50°C

Vibration

1 Grms random 5-500Hz hr/axis
Certification and Compliance
Certification

Compliant with CE / FCC / RoHS / REACH directives
Commercial Information
Brand

TechNexion

Country of Origin

Taiwan

HTSN

8471.90.0000

ECCN

5A992.c Mass Market

CCATS

740.17(b)(1) Mass Market (No License Required)

REACH / RoHS

Yes
