TEVS-AR0830-M-S205-IR

Name: TEVS-AR0830-M-S205-IR
Brand: TechNexion
SKU: TEVSAR0830MS205IR
Availability: PreOrder

SKU: TEVSAR0830MS205IR Category: TEVS MIPI CSI-2 Series Brand: TechNexion

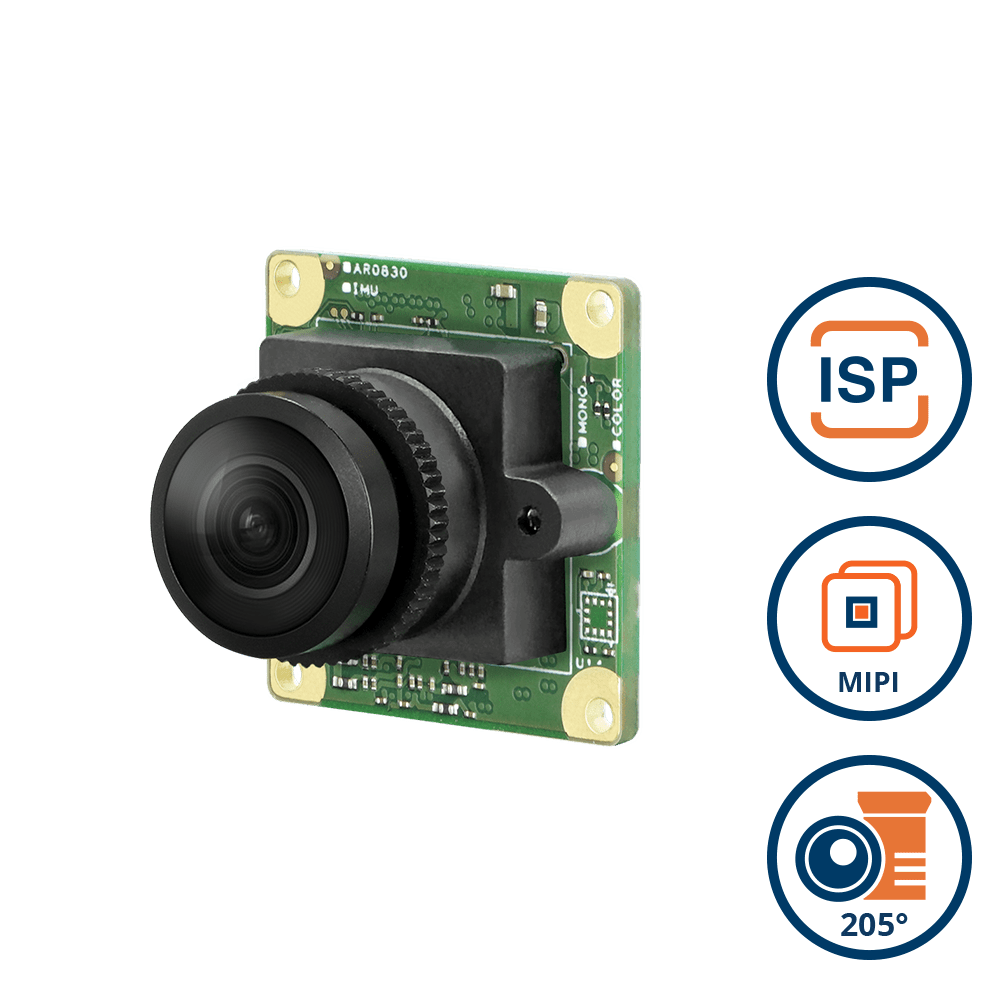

MIPI CSI-2 Sensor onsemi AR0830 8MP 4K Monochrome Rolling Shutter with onboard ISP + 205 Degree M12 Lens with IR-Cut Filter

Product Brief

Available on backorder

Specifications

Camera Information

CMOS Sensor	onsemi AR0830
Active Pixels	3840 (H) x 2160 (V) = 8MP
Pixel Size	1.4 μm x 1.4 μm
Illuminated type	Front Side Illuminated (FSI)
Maximum S/N Ratio	39.9 dB
Input Clock Range	48 MHz
Optical Format	1/2.9” (Diagonal 6.17 mm)
Shutter Type	Rolling Shutter
Chromaticity	Mono
Maximum Frame Rate (YUY2)	3840 x 2160 @ 15 fps 2560 x 1440 @ 30 fps 1920 x 1080 @ 60 fps 1280 x 720 @ 60 fps 640 x 480 @ 60 fps
Output Format	YUV422-UYVY YUV420 RGB888 RGB565 RGB555 JPEG MJPEG(JPG) RAW8 RAW10 RAW12

Interface

Power Specifications

Software Support

Platform Support	NVIDIA Jetson AGX Orin NVIDIA Jetson Orin Nano / NX NVIDIA Jetson Xavier NX NVIDIA Jetson Nano NXP i.MX93 / i.MX95 NXP i.MX8M Nano / Mini / Plus TI Sitara™ AM62 / AM62A / AM67 TI Sitara™ AM68 / AM69 TI Jacinto™ TDA4VM / TDA4VH BeagleY®-AI / BeaglePlay® Raspberry Pi 4 / Raspberry Pi 5 ST STM32MP25 Renesas RZ/V2H Intel Alder Lake-N Intel Meteor Lake
Operation Systems	Linux Yocto Android
SDK	VizionViewer™ / VizionSDK

Lens Information

Environmental and Mechanical

Certification and Compliance

Certification	Compliant with CE / FCC / RoHS / REACH directives

Commercial Information
