EDM-WIZARD-IMX8M

SKU: EDMWIZARDIMX8M Category:
More Information
Product Brief

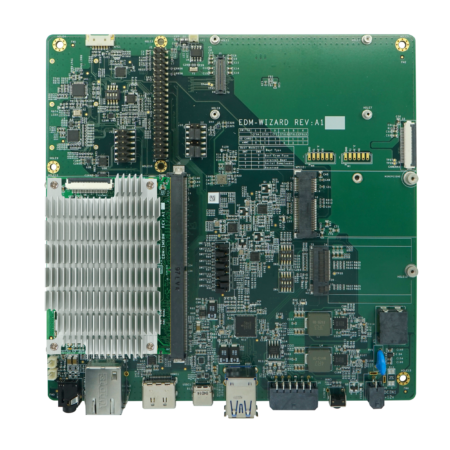

EDM-WIZARD-IMX8M TOP

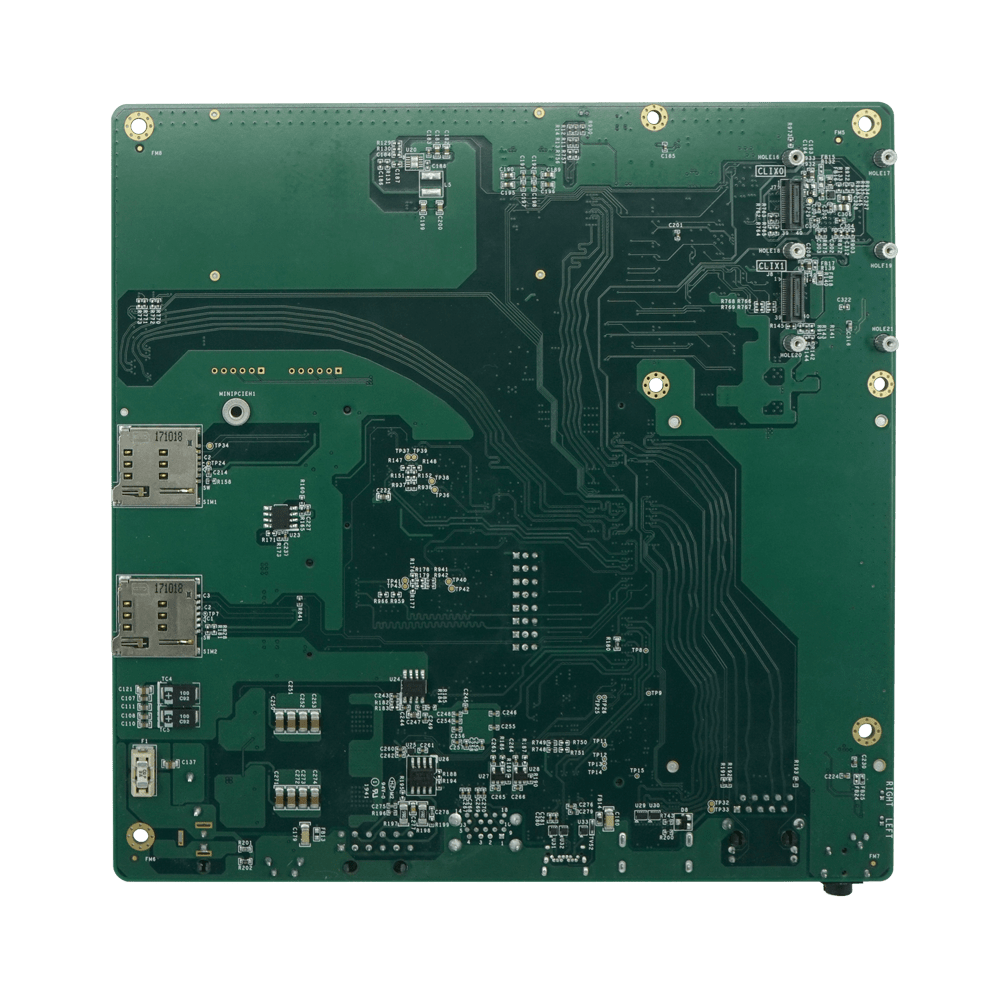

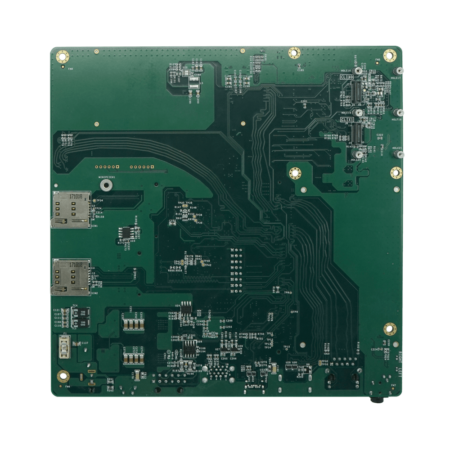

EDM-WIZARD-IMX8M BACK
Volume Pricing
Out of stock
Factory Stock
Out of stock
Distributor Stock

Specifications

Additional information

Core System
Processor

NXP i.MX8M Quad

Processor Speed

1.3 Ghz

Architecture

ARM Cortex-A53 + M4

PMIC

ROHM BD71847

Memory

Upto 4GB LPDDR4

Storage

16GB eMMC (default)

Board-to-Board Connector

EDM connector (314-pin MXM3)

System on Module

EDM SOM

Debug Interface

UART Interface by Through-hole
AI / Vision Capabilities
Camera

MIPI CSI (4 lanes)
Connectivity
Network LAN

1x Atheros AR8035 Gigabit LAN

Wi-Fi

Qualcomm Atheros QCA9377 Wi-Fi 5 – 802.11 a/b/g/n/ac

Bluetooth

Qualcomm Atheros QCA9377 Bluetooth

Antenna

MHF4 connector
Signaling
I/O

HDMI
LAN
MIPI CSI-2
MIPI DSI
PCIe
USB
USB OTG
I²S
UART
SPI
I²C
PWM
GPIO
Video
GPU Engine

Vivante GC7000Lite

Video Decode

4K UltraHD HDR 4Kp60, H.265 VP9

Video Encode

1080p120 H.264
Audio
Audio Codec

Cirrus Logic WM8960

Audio Interface

I²S (2 channel)

Audio Connectors

CTIA compliant 3.5mm audio jack
Power Specifications
Power Input

12V DC +/-5%

Power Connector

2-pin Micro-Fit 3.0

Power Consumption

Depending on Configuration
Software Support
Standard Support

Linux
Yocto
Android
External Connectors
External Display

1x HDMI

Network

1x RJ45

USB

1x USB 2.0 OTG (Type-C)
2x USB 3.0 Host

Buttons

1x Reset

SIM Card Slot

2x Micro-SIM Card Slot
Expansion Interfaces
Expansion Slots

1x M.2 Slot
1x mini-PCIe
Environmental and Mechanical
Dimensions

170 (W) x 170 (H) x 26.8 (D) mm

Weight

240 grams

Form Factor

Mini-ITX

MTBF

50,000 Hours

Shock

15G half-sine 11 ms duration

Vibration

1 Grms random 5-500Hz hr/axis

Relative Humidity

10 to 90 %

Operation Temperature

Commercial: 0°C to +60°C
Certification and Compliance
USA

FCC ID: 2AKZA-QCA9377

Canada

IC: 22364-QCA9377

European Union

EN 300 328 v2.2.2
EN 301 893 v2.1.1
EN 55032 / EN 55024

Japan

TELEC: 201-180629

Australia / New Zealand

RCM Compliant

Certification

Compliant with RoHS / REACH directives

Bluetooth Logo

QDID 150839 (Bluetooth 4.2)
QDID 193238 (Bluetooth 5)
Commercial Information
Brand

TechNexion

Country of Origin

Taiwan

HTSN

8473.30.1180

ECCN

5A992.c Mass Market

CCATS

740.17(b)(1) Mass Market (No License Required)

REACH / RoHS

Yes

Blockdiagram

EDM-WIZARD-IMX8M Block Diagram

Dimensions

EDM-WIZARD-IMX8M Dimensions
