EDM-WIZARD-IMX8M

  • The EDM-WIZARD-IMX8M platform can be applied in a wide range of applications ranging from simple IoT devices to applications with high level of complexity.
  • Features NXP i.MX8M Quad processor that runs up to 1.3GHz per core, based on the ARM Cortex A-53 + M4 architecture, delivered in advanced low-power process.
  • Features video quality with full 4K UltraHD resolution and HDR.
  • Software source code at your fingertips: Android, Linux and Yocto.

Order this product

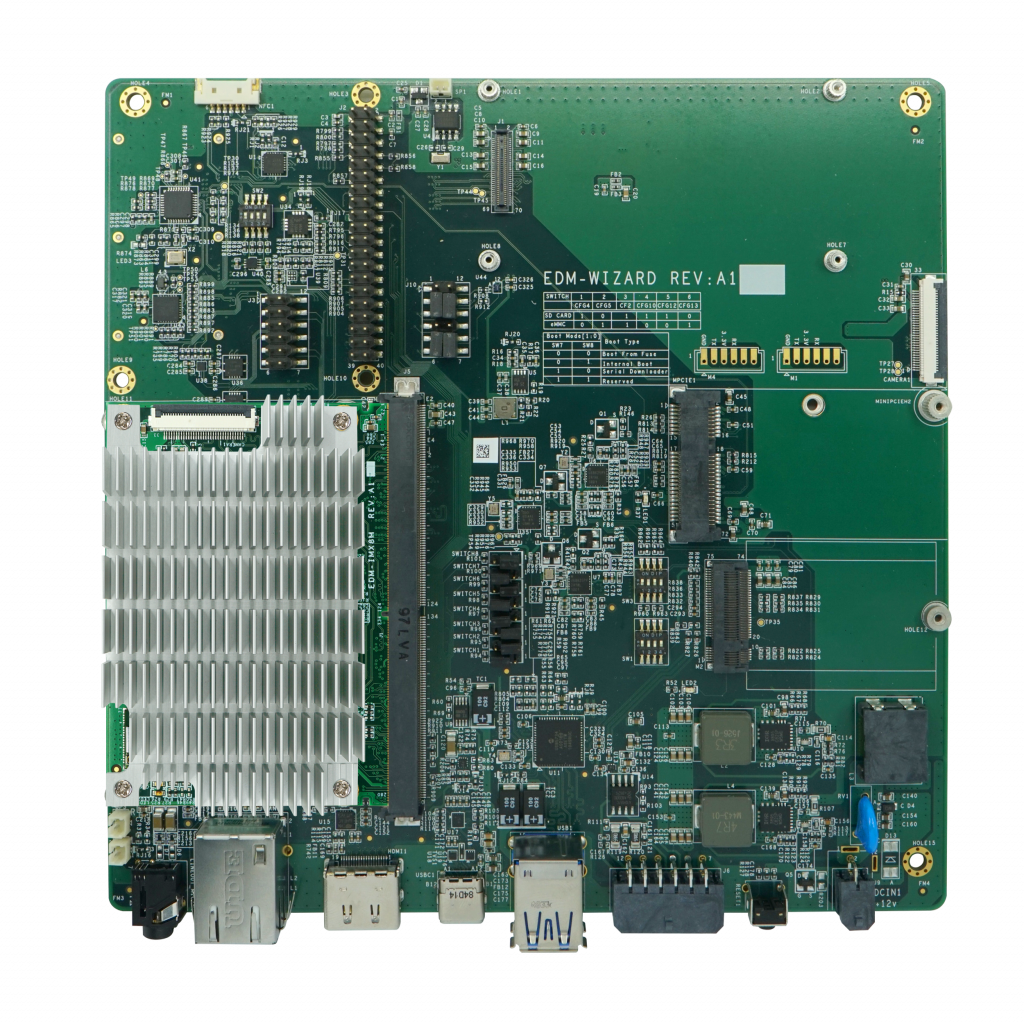

EDM-WIZARD-IMX8M TOP
EDM-WIZARD-IMX8M BACK

Highlights

64-bit Performance

Low power NXP i.MX8M mini 64-bit Cortex-A53 comes with a Full-HD multimedia user experience for ubiquitous IIOT and Edge applications.

I/O

Rich I/O is available for extension and connection.

Camera Integration

Machine Vision camera modules are ready off-the-shelf from TechNexion. Seamless integration and optimization from the first day of your project.

Certified Connectivity

Simplify your design with pre-certified wireless options - from the module to the antennas - and make end-device certification processes more predictable while cutting costs.

Sortware Platform

We advocate Open Source Software and support Linux, Ubuntu, Yocto and Android. Perfect solutions to success can be tailored easily.

Interfaces

Packed with a wide array of interfaces. Our System-on-Modules are as a Swiss Army knife when connecting over serial port, CAN bus, I2C, SPI or USB.

Cost Saving

Scalability with a single software BSP is what the NXP i.MX Family is famous for. Keep your investment to a minimum and easily scale up or down to meet the product requirements.

Pin Compatibility

Scalability at it's finest is what sets TechNexion System-on-Modules apart. A single carrier board can host from a low-power i.MX6UL/ULL to a powerful SOC that the i.MX8M or i.MX8M Mini brings to the PICO System-on-Module family.

Core System
Processor

NXP i.MX8M Quad

Processor Speed

1.3 Ghz

Architecture

ARM Cortex-A53 + M4

PMIC

ROHM BD71847

Memory

Upto 4GB LPDDR4

Storage

16GB eMMC (default)

Board-to-Board Connector

EDM connector (314-pin MXM3)

System on Module

EDM SOM

Debug Interface

UART Interface by Through-hole

Connectivity
Network LAN

1x Atheros AR8035 Gigabit LAN

Wi-Fi

Qualcomm Atheros QCA9377 Wi-Fi 5 – 802.11 a/b/g/n/ac

Bluetooth

Qualcomm Atheros QCA9377 Bluetooth

Antenna

MHF4 connector

Signaling
I/O

HDMI
LAN
MIPI CSI
MIPI DSI
PCIe
USB
USB OTG
I²S
UART
SPI
I²C
PWM
GPIO

Video
GPU Engine

Vivante GC7000Lite

Video decode

4K UltraHD HDR 4Kp60, H.265 VP9

Video encode

1080p120 H.264

Camera

MIPI CSI (4 lanes)

Audio
Audio Codec

Cirrus Logic WM8960

Audio Interface

I²S (2 channel)

Audio Connectors

CTIA compliant 3.5mm audio jack

Power Specifications
Power Input

12V DC +/-5%

Power Consumption

Depending on Configuration

Power Connector

2-pin Micro-Fit 3.0

Operating Systems
Standard Support

Linux
Yocto
Android

Environmental and Mechanical
Dimensions

170 (W) x 170 (H) x 26.8 (D) mm

Form Factor

Mini-ITX

Relative Humidity

10 to 90 %

MTBF

50,000 Hours

Shock

15G half-sine 11 ms duration

Operation Temperature

Commercial: 0° to +60° C

Vibration

1 Grms random 5-500Hz hr/axis

Weight

240 grams

External Connectors
External Display

1x HDMI

Network

1x RJ45

USB

1x USB 2.0 OTG (Type-C)
2x USB 3.0 Host

Buttons

1x Reset

SIM Cardslot

2x Micro-SIM cardslot

Expansion Interfaces
Expansion Slots

1x M.2 slot
1x mini-PCIe

Certification and Compliance
FCC

FCC ID: 2AKZA-QCA9377

IC

IC: 22364-QCA9377

CE

EN 300 328 v2.2.2
EN 301 893 v2.1.1
EN 55032 / EN 55024

TELEC (Japan)

TELEC: 201-180629

RCM (Australia/New Zealand)

RCM Compliant

Certification

Compliant with RoHS / REACH directives

Bluetooth Logo

QDID 150839 (Bluetooth 4.2)
QDID 193238 (Bluetooth 5)

Commercial Information
Brand

TechNexion

Country of Origin

Taiwan

HTSN

8473.30.1180

ECCN

5A992.c Mass Market

CCATS

740.17(b)(1) Mass Market (No License Required)

REACH / RoHS

YES

EDM-WIZARD-IMX8M Block Diagram
EDM-WIZARD-IMX8M Dimensions
