Category: EDM System-on-Modules

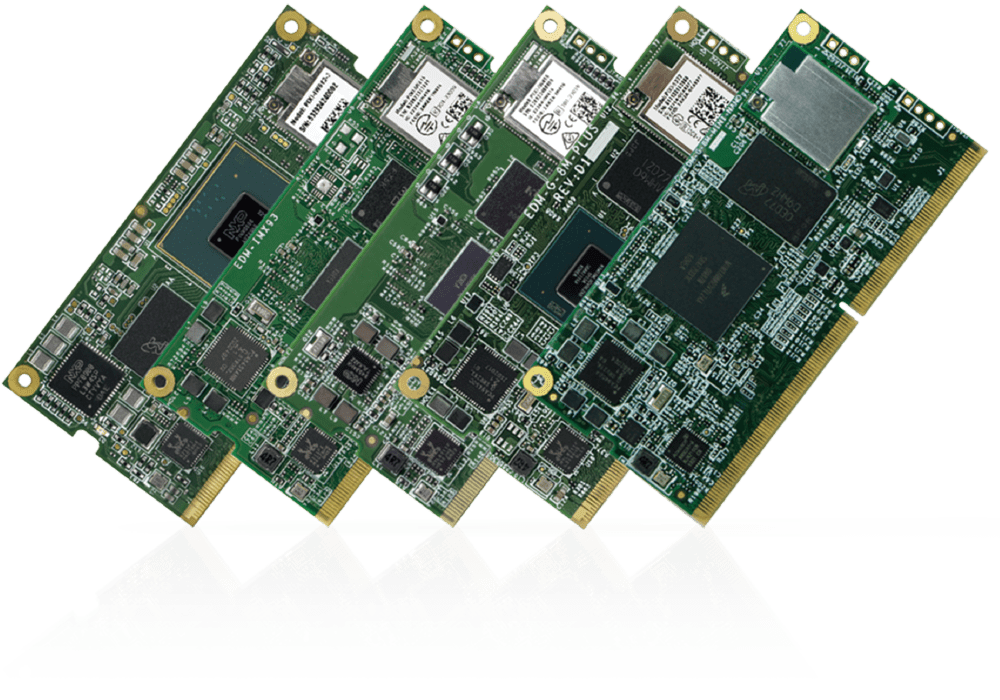

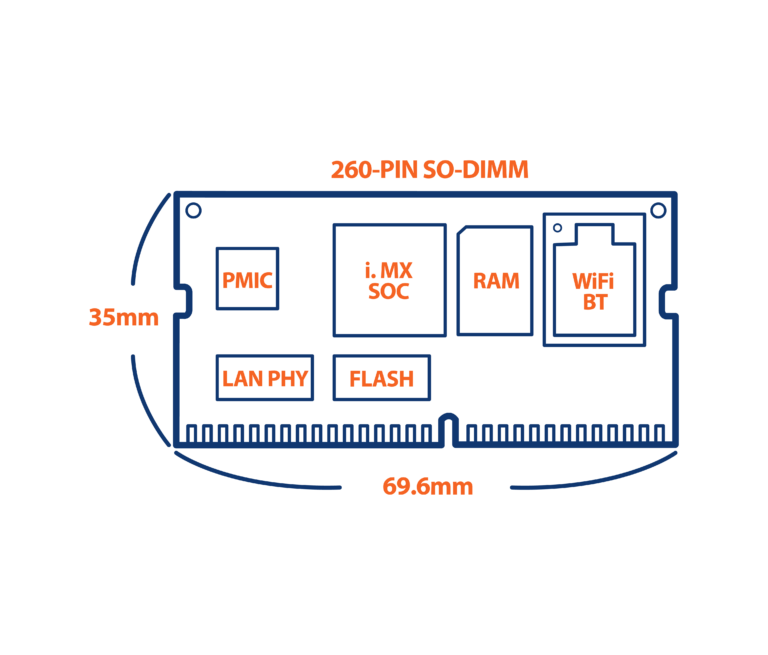

The EDM Module Family offers a scalable compact formfactor System-on-Module using a 260 pin SO-DIMM edge connector for embedded systems. Designed to meet complex application requirements, these modules combine powerful processors, standardized connectivity, and integrated components to simplify development and accelerate time to market.

Select Your EDM Modules
Download the EDM Catalog

Get all the essential specs in one place.
Our catalog includes detailed mechanical drawings, I/O interfaces, wireless certifications for everything you need to evaluate and integrate EDM modules into your next project.

Download Now

Key Highlights

Faster Time to Market
A complete design that is ready to deploy assists you to focus on application from day one. Helping you to bring products to your customers much faster.

Longevity
15+ years availability from the start of production ensuring the same product to be available during the lifetime of your  embedded project.

Scalable and Pin-Compatible

A complete family stretching multiple generations of SOC technology enabling true scalability and futureproof your design.

Sourcecode Software
Yocto Linux, Debian or Android sourcecode can be easily obtained from our github account for seamless development.

Comprehensive Interface
Packed with versatile interfaces, including serial ports, CAN bus, I2C, SPI, and USB, for diverse connectivity.

Pre-Certified Wi-Fi
Pre-certified wireless options simplify design and reduce costs for end-device certifications.

Power Efficiency
Low power consumption makes EDM
Module perfect for battery-powered
and energy-sensitive applications.

Online Technical Help
Provides expert resources and guidance to streamline development and integration.

SOM Family Comparison: AXON vs. EDM vs. PICO

FeatureAXONEDMPICO
Connector4*80-pin
Hirose connectors		260-pin
Edge connectors		70-pin
Hirose connectors
Size58 x 37 mm69.6 x 35 mm37 x 40 mm
Key AdvantagesInterface SupersetLow-cost single connectorSmallest size
Applications• Edge Computing
• Vehicle vision applications
• Drone / UAV / Robotics		• General Embedded
• Edge AI / Vision Applications
• Smart manufacturing		• Small compact embedded devices
• Vibration prone applications
• Low-power mobile applications

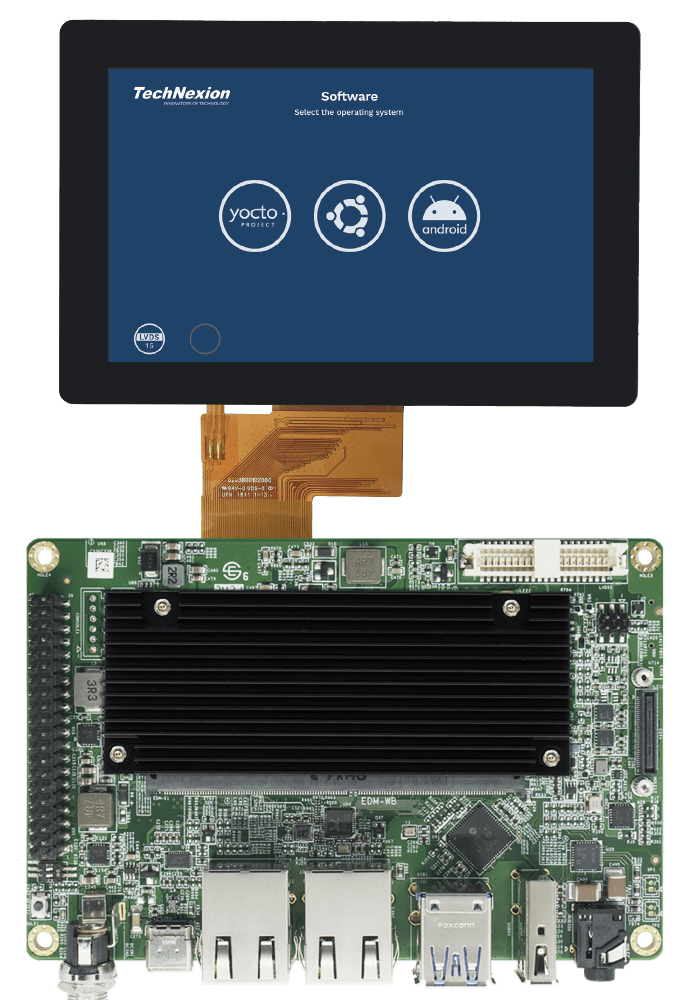

Starter Kits that Deliver

Proof of concept within a day. It’s possible with TechNexion’s System on Module Starter kits that bring all bits of hardware to the table. Backed up with demo Yocto, Linux and Debian pre-installed on your evaluation kit and take literally a minute to boot after you receive your kit on your doorstep.

Need a touch display or a camera solution? You can easily add these to the kit and software driver is already made available, assisting you quickly with your proof of concept validation steps.

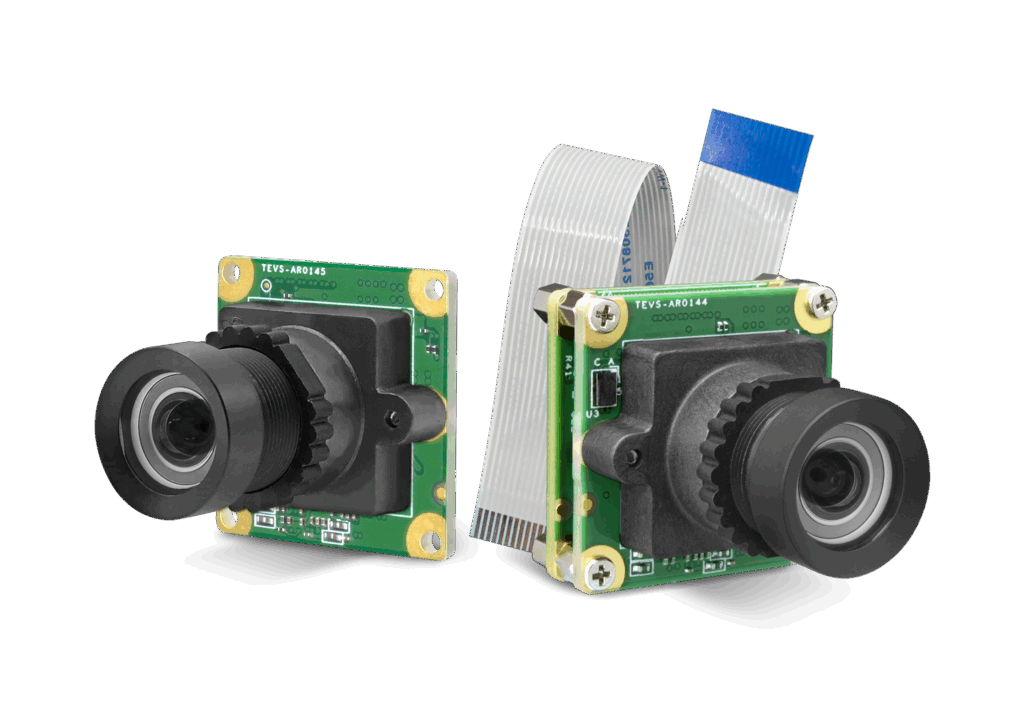

Embedded Vision Made Easy

Integration of Embedded vision camera sensors in your system with TechNexion SOMs is made easy with the TechNexion unified camera driver that comes pre-installed and packaged with your TechNexion System-on-Module.

All TechNexion Embedded Vision products are supported with VizionViewer and VizionSDK, giving your engineering team full control over the camera settings by using C# or Python.

VizionViewer™
Download now
VizionSDK
Start now

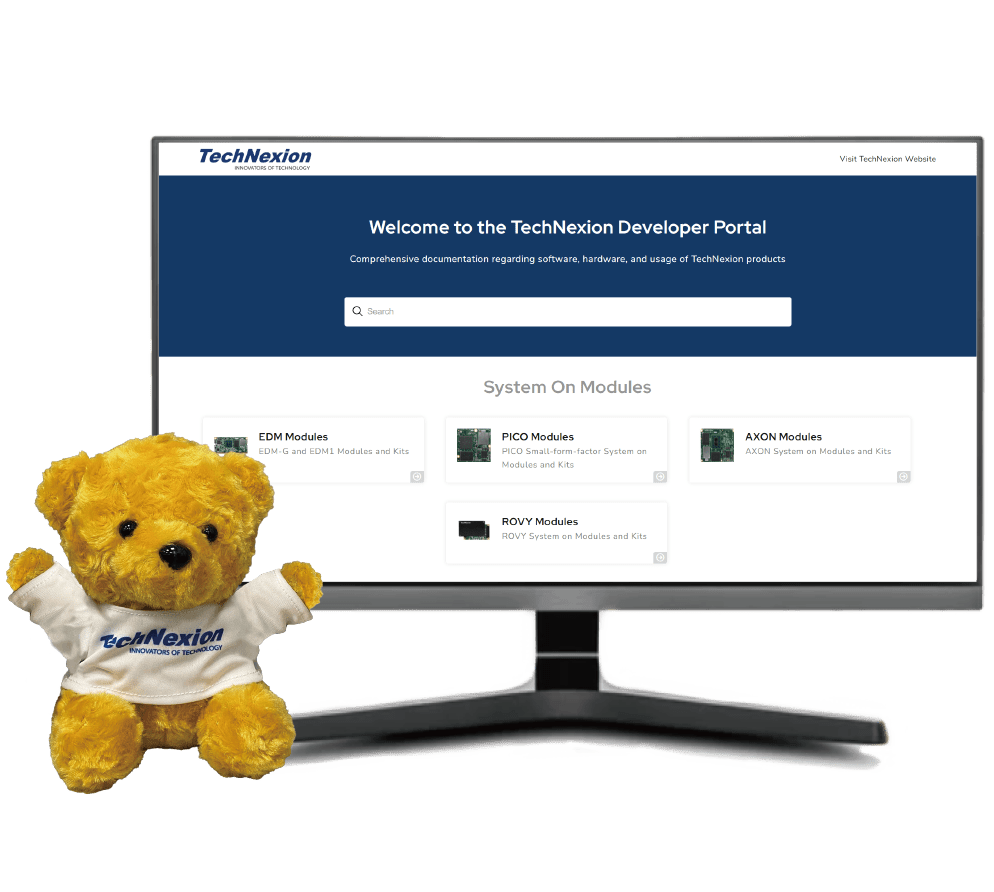

Online Support

TechNexion offers comprehensive online support with detailed manuals, quick start guides, and FAQs to help you integrate and deploy EDM modules with ease.

Whether you’re at the prototyping or production stage, everything you need is just a click away to streamline your development process.

Source Code Software

Yocto, Linux, Debian, or Android source code can be easily accessed through our official GitHub repository, enabling seamless development and integration. With complete BSPs, build instructions, and driver support, developers can customize systems with confidence.

Our open-source approach ensures transparency, flexibility, and faster innovation, whether you’re building embedded applications for industrial, medical, or consumer use.

Schematic for Carrier Board Design

Building a custom carrier board? TechNexion provides reference schematics and professional design review services to help you reduce hardware risks and ensure compatibility.

Whether you’re a beginner or an experienced developer, we support you in making your design work right the first time.

Pre-certified Wireless / Bluetooth

All EDM modules feature globally pre-certified Wi-Fi and Bluetooth connectivity. This eliminates the need for additional RF certifications, allowing faster time-to-market and reduced costs. Enjoy seamless and reliable wireless performance with minimal engineering effort.

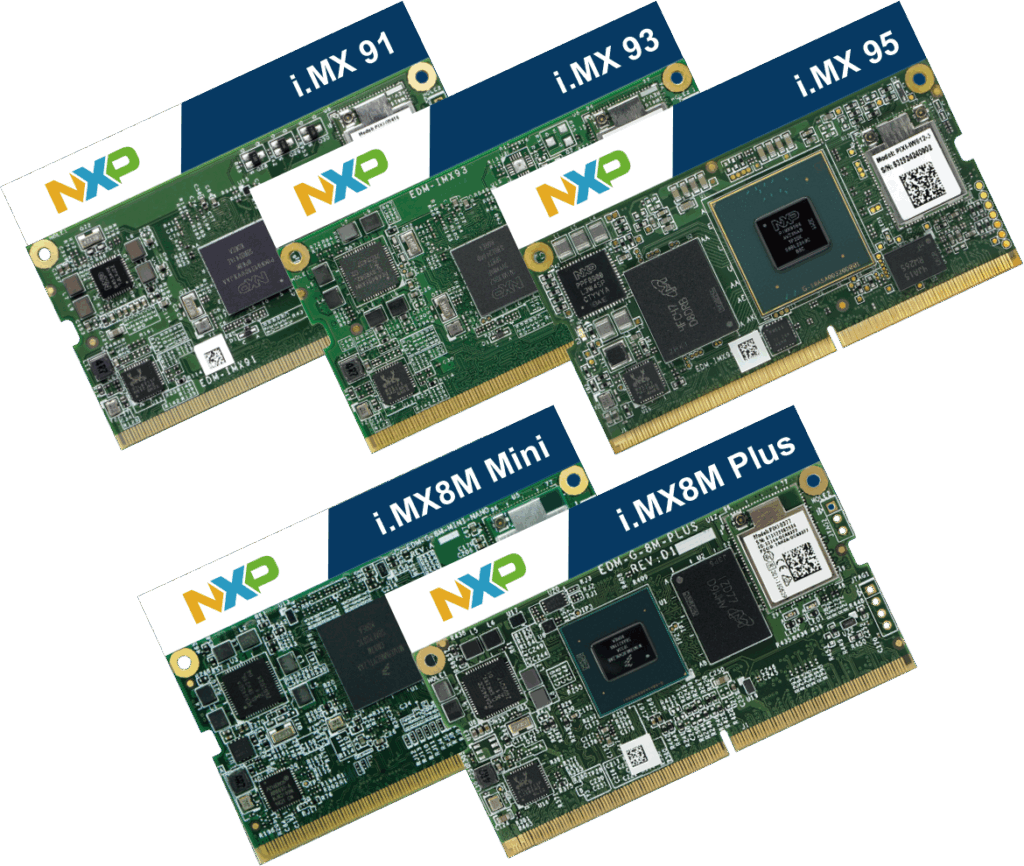

EDM System-on-Modules

Selected filters

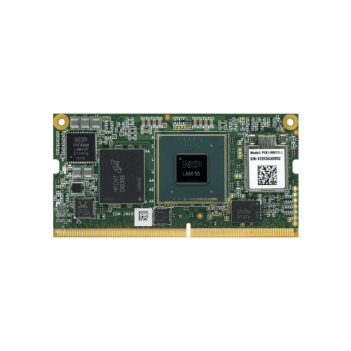

EDM-IMX95 TOP

NXP i.MX95 EDM System-on-Module

EDM-IMX95
  • NXP i.MX 95 applications processor
  • Up to 6 Cortex-A55 processors
  • Ultra-fast 16GB LPDDR5
  • Neural Processing Unit (NPU)
  • Image Signal Processor (ISP)
  • Virtual channel camera support (8 cameras)
ProcessorNXP i.MX95
Memoryupto 16GB LPDDR5
Storage64GB eMMC
WiFi/BTWiFi 6 + BT 5.3 (IW611)
SOMEDM
Temperature0 ~ 60C, -40 ~ 85C
View Product

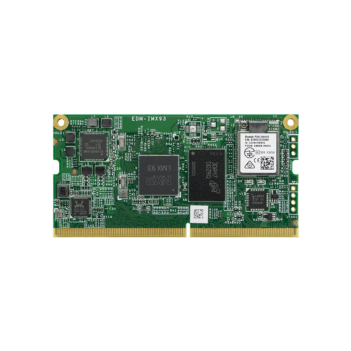

EDM-IMX93 TOP

NXP i.MX93 EDM System-on-Module

EDM-IMX93
  • NXP i.MX 93 applications processor
  • 2 Cortex-A55 processors
  • Neural Processing Unit (NPU)
  • Arm Ethos U-65 microNPU
  • Pre-Certified Wireless Radio (Wi-Fi + Bluetooth)
ProcessorNXP i.MX93
Memoryupto 2GB LPDDR4x
Storage32GB eMMC
WiFi/BTWiFi4 + BT 5.2 (IW416)
SOMEDM
Temperature0 ~ 60C, -40 ~ 85C
View Product
EDM-G-IMX8M-PLUS-9377 TOP

EDM Type G Module with NXP i.MX8M Plus SOC

EDM-G-IMX8M-PLUS
  • NXP i.MX 8M Plus applications processor
  • Up to 4 Cortex-A53 1.8 GHz processors
  • Cortex-M7 processor with speeds up to 800 MHz
  • Neural Processing Unit (NPU)
  • Image Signal Processor (ISP)
  • Armv8 64-Bit CPU cores
ProcessorNXP i.MX8M Plus
Memoryupto 8GB LPDDR4
Storage32GB eMMC
WiFi/BTWiFi 5 + BT5
SOMEDM
Temperature0 ~ 60C, -40 ~ 85C
View Product
