EDM-IMX91

  • NXP i.MX 91 applications processor
  • Arm Cortex-A55 processor

Order this product

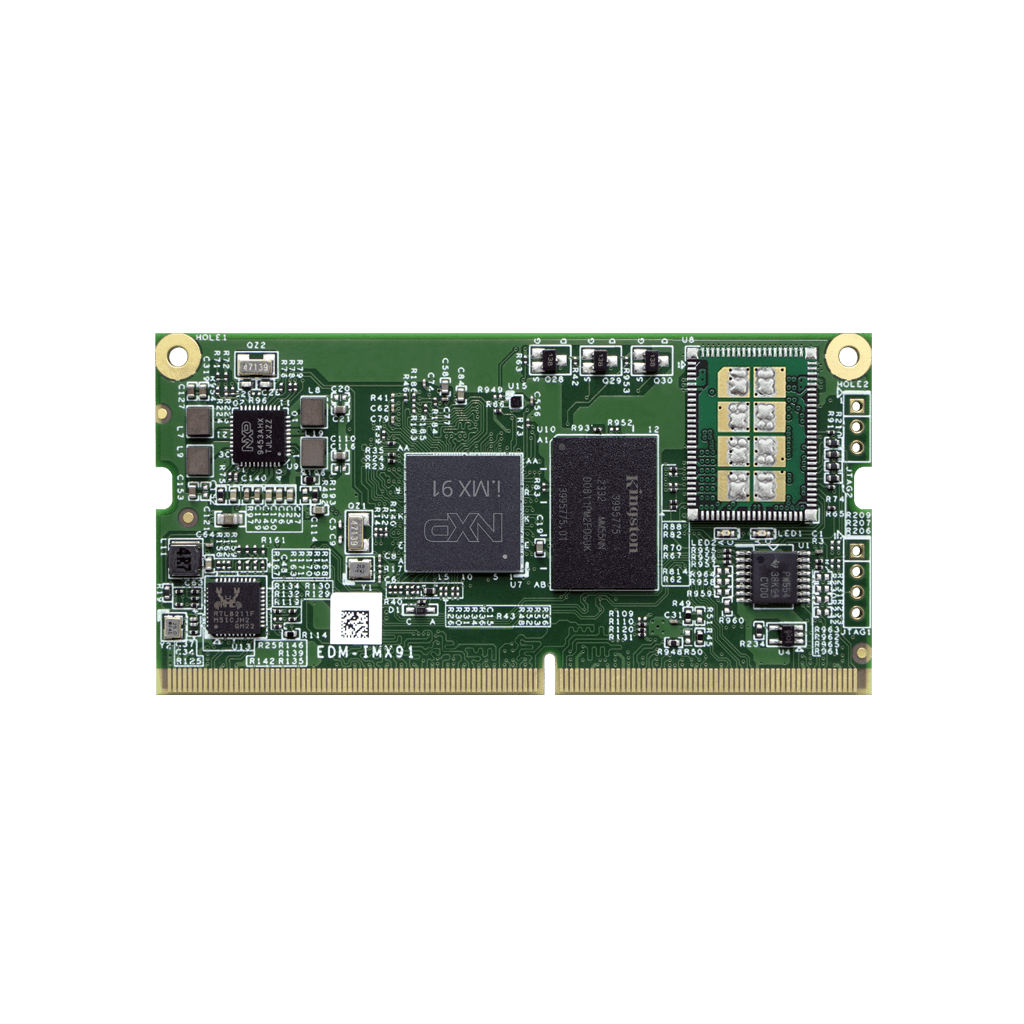

EDM-IMX91 TOP
EDM-IMX91 TOP

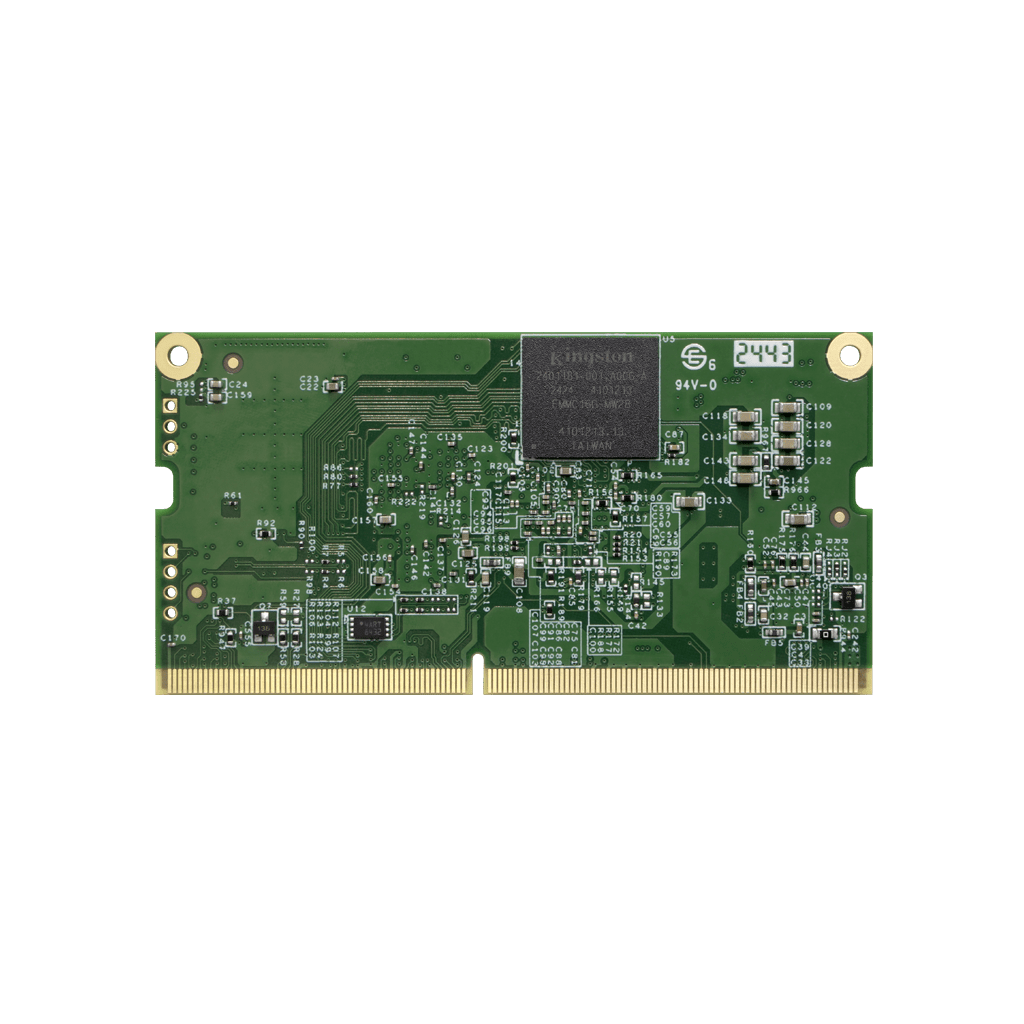

EDM-IMX91 Back

EDM-IMX91 Highlights

Sourcecode Software

We advocate Open Source Software and support Linux, Yocto and Debian. Perfect solutions to success can be tailored easily.

Rugged and Reliable

Operates reliably in harsh industrial environments and conditions, such as strong vibrations, extreme temperatures and wet or dusty conditions.

Certified Connectivity

Simplify your design with pre-certified wireless options - from the module to the antennas - and make end-device certification processes more predictable while cutting costs.

Time to Market

Specifications

Core System
Processor

NXP i.MX91

Architecture

Arm Cortex-A55

PMIC

NXP PF9453

Memory

1GB LPDDR4

Storage

16GB eMMC (default)

Board-to-Board Connector

260-pin DDR4 SO-DIMM

System on Module

EDM SOM

Debug Interface

UART Interface by Through-hole

Connectivity
Network LAN

1x Realtek RTL8211F

Wi-Fi

NXP IW416 Wi-Fi 4 – 802.11 a/b/g/n (optional)

Bluetooth

NXP IW416 Bluetooth (optional)

Antenna

MHF4 connector (optional)

Signaling
TTL

1x

LAN

1x

USB 2.0

2x

I²S

1x

CAN

1x

UART

2x

I²C

3x

SDIO/SD/MMC

1x SDIO

GPIO

14x

Audio
Audio Codec

On carrier board

Audio Interface

I²S

Power Specifications
Power Input

5V DC +/-5%

Power Consumption

Depending on Configuration

Software Support
Standard Support

Linux
Yocto
Debian

Environmental and Mechanical
Dimensions

69.6 (W) x 35 (H) x 4.47 (D) mm

Weight

11 grams

Form Factor

EDM

Relative Humidity

10 to 90 %

Operation Temperature

Commercial: 0°C to +60°C

Certification and Compliance
USA

FCC ID: 2AKZA-IW416

Canada

IC: 22364-IW416

European Union

EN 55032 / EN 55035
EN 300 328 v2.2.2
EN 301 893 v2.1.1

Japan

TELEC: 201-230590

Australia / New Zealand

RCM Compliant

Certification

Compliant with RoHS / REACH directives

Bluetooth Logo

QDID 218991 (Bluetooth 5.2)

Commercial Information
Brand

TechNexion

Country of Origin

Taiwan

HTSN

8525.80.5050

ECCN

EAR99

CCATS

740.17(b)(1) Mass Market (No License Required)

REACH / RoHS

Yes

Blockdiagram
