UVC-VL-GM2-1CAM

Connect GMSL2 camera via USB Type-C – No native GMSL interface required

Plug-and-play bridging for x86/ARM systems

Embedded camera 15meter over single wire COAX

Easy and convenient aluminum design with screw locking mechanism

USB Type-C Frame Grabber

Order this product

UVC-VL-GM2-1CAM Highlights

Automotive Ready

Delivers data and power up to 15 meters away from the embedded system using a single wire COAX cable.

Fanless

Fanless design with convenient screw holes for easy installation.

Power Optimized

Various power modules provide a wide power input voltage range.

Software Platform

Supports various platforms, programming languages and easy to build on TN-Vizion SDK series.

Specifications

Information

Deserializer	MAX96724

Interface

Support Camera Quantity	1 Camera
Connector	FAKRA SMB Jack Z-Code
External Interface	USB Type-C 5 Gbps

Power Specifications

Power Connector	DC Jack
Power Input	10-30V DC
Connector	USB Type-C 5 Gbps
USB Power Input	5V 1A
Power Consumption	Depending on Configuration

Software Support

SDK	VizionViewer™ / VizionSDK

Environmental and Mechanical

Dimensions	83(W) x 52(H) x 22.1(D) mm
Weight	107 grams
Operation Temperature	-40°C to +70℃

Commercial Information

Brand	TechNexion
Country of Origin	Taiwan
HTSN	8473.30.1180
ECCN	EAR99
REACH / RoHS	Yes

Block Diagram

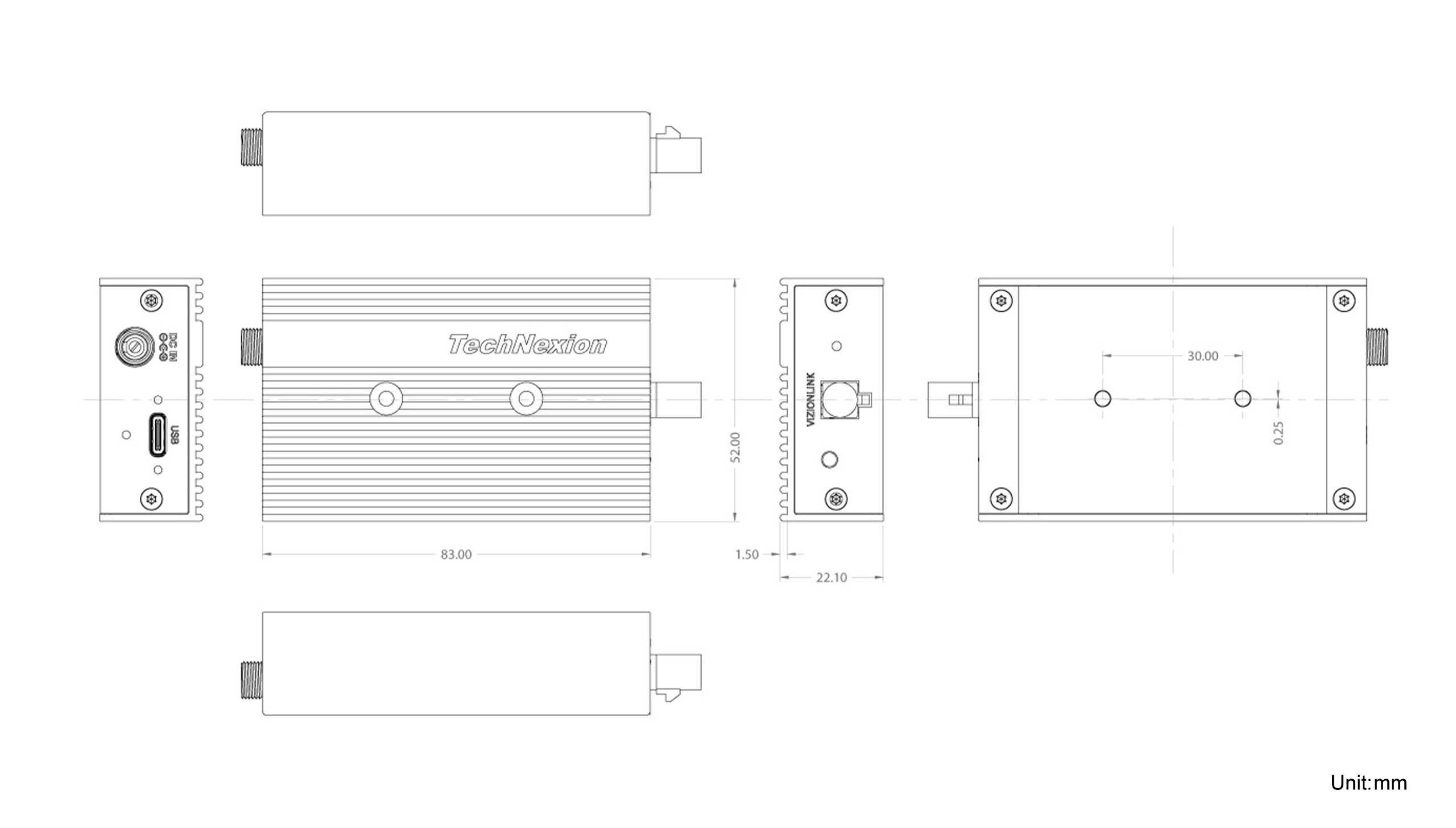

Dimensions

Documentation

Getting Started

Product Brief

Quick Installation Guide

Support Portal

Mechanical

DXF File

STP 3D File

Certification

Declaration of Conformity

RoHS / REACH

Conflict Minerals

Get a Quote

Fill out the details below and one of our representatives will contact you shortly.

All Products

UVC-VL-GM2-4CAM

4 PORT USB TYPE C FRAME GRABBER ADAPTOR FOR VIZIONLINK GMSL2 CAMERA

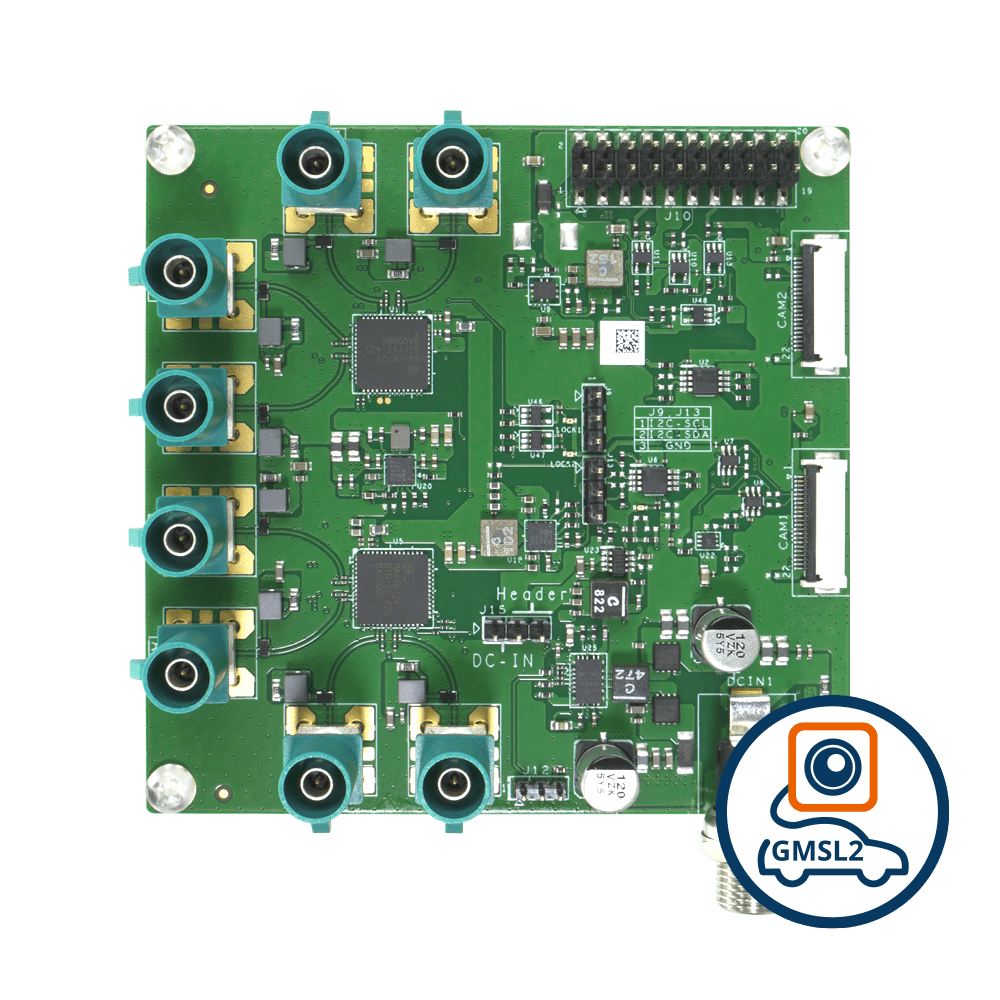

VL-GM2-8CAM-RPI22
