PCIE-VL-3480

  • High Speed 8-port camera frame grabber card.
  • Vizionlink™ Ready FAKRA connectors.
  • Embedded camera's 15meter over a single wire COAX.
  • Windows 11 / 10 / 7, Linux, and Android software support.
  • PCI-Express Gen 3 x4 lane expansion card.
  • Fanless design.

8 Port Camera Frame Grabber

Order this product
PCIE-VL-3480 - 8 Port Vizionlink PCIE Frame Grabber
PCIE-VL-3480 34RIGHT TOP
PCIE-VL-3480 BACK

PCIE-VL-3480 Highlights

FAKRA Cable

Delivers data and power up to 15 meters away from the embedded system using a single wire COAX cable.

Fanless

Fanless design with convenient screw holes for easy installation.

PCI Express

Easy installation of PCI Express Gen3 x1 lane low profile compliant card without additional power supply.

Software Platform

Supports various platforms, programming languages and easy to build on TN-Vizion SDK series.

Specifications

Environmental and Mechanical
Weight

305 grams

Form Factor

PCI Express x4 Lane Card

Relative Humidity

10 to 90 %

MTBF

50,000 Hours

Shock

15G half-sine 11 ms duration

Operation Temperature

Industrial: -40°C to +85°C

Vibration

1 Grms random 5-500Hz hr/axis

Certification and Compliance
Certification

Compliant with CE / FCC / RoHS / REACH directives

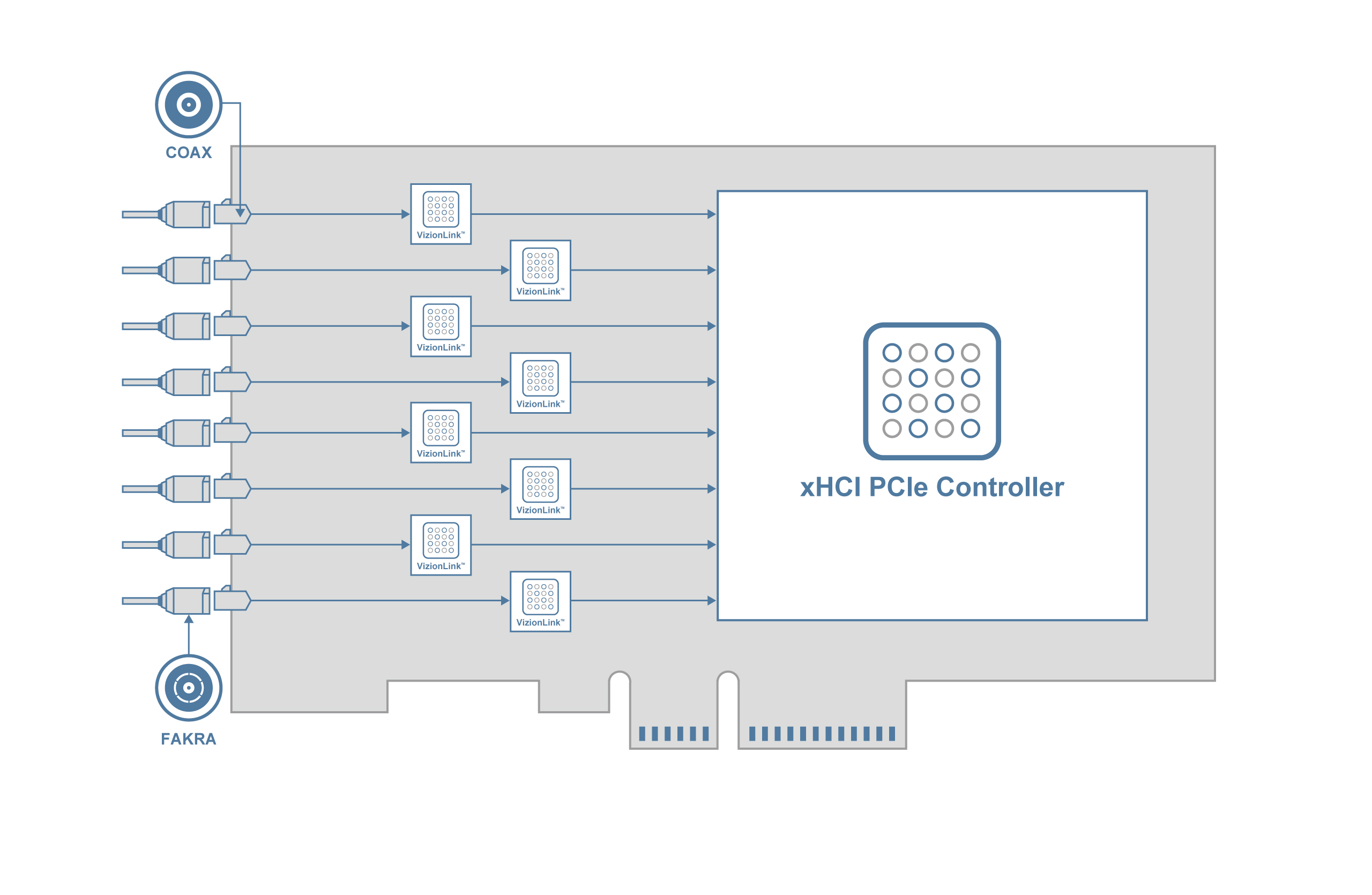

Block Diagram

PCIE-VL-3480 Block Diagram

Dimensions

PCIE-VL-3480 Dimension

Compatible Camera's

  • 1 - 8MP Vizionlink Camera's
  • IP68 Waterproof Design
  • Rolling and Global Shutter Options
  • Plug-and-Play Installation
