TechNexion

PIXI-9377-P

  • Qualcomm QCA-9377 802.11ac + Bluetooth Combo Module
  • Pre-certified FCC/CE/IC/RCM/TELEC
  • Windows 10 , Linux, Android Support
  • PCI Express + USB Interface
  • M.2 1216 Formfactor

Order this product
PIXI-9377-P TOP

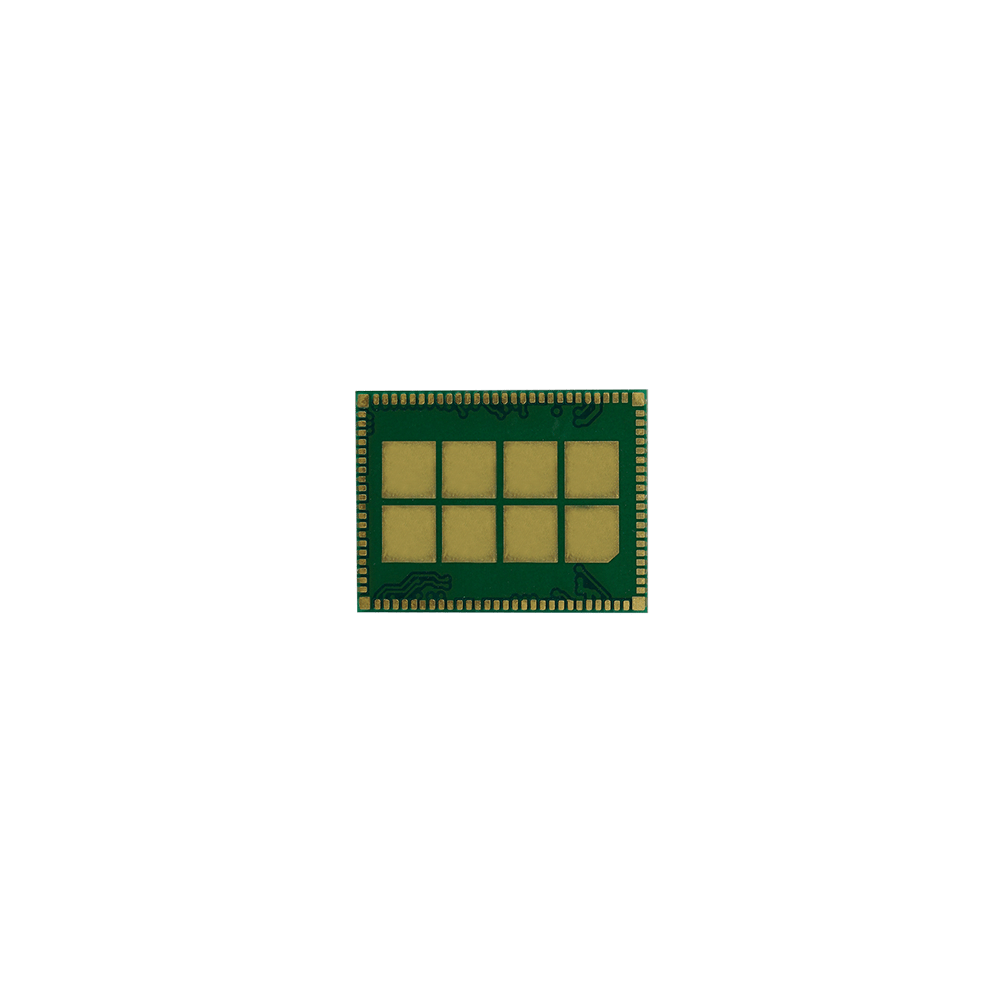

PIXI-9377-P BACK

Highlights

Certified Connectivity

Simplify your design with pre-certified wireless options — from the module to the antennas — to make end-device certification processes more predictable while cutting costs.

Rugged and Reliable

Our Wi-Fi / Bluetooth modules are available in industrial grade configurations to withstand the worst environmental challenges your embedded product might face.

Software

Windows 10 drivers and Mainline Linux support available out of the box. Why said integration has to be difficult?

Evaluation Kits

Get started with our Mini-PCIe or M.2 Modules based around the PIXI-9377-P. Use them in your embedded product or design the PIXI-9377-P onto your own board.

Connectivity
Wi-Fi

Qualcomm Atheros QCA9377 Wi-Fi 5 – 802.11 a/b/g/n/ac

Bluetooth

Qualcomm Atheros QCA9377 Bluetooth

Antenna

MHF4 connector

Power Specifications
Power Input

3.3V DC

Power Consumption

Depending on Configuration

Certification and Compliance
FCC

FCC ID: 2AKZA-QCA9377

IC

IC: 22364-QCA9377

CE

EN 300 328 v2.2.2
EN 301 893 v2.1.1
EN 55032 / EN 55024

TELEC (Japan)

TELEC: 201-180629

RCM (Australia/New Zealand)

RCM Compliant

Certification

Compliant with CE / FCC / RoHS / REACH directives

Bluetooth Logo

QDID 150839 (Bluetooth 4.2)

Environmental and Mechanical
Dimensions

12 x 16 mm

Form Factor

M.2 LGA Type 1216

Relative Humidity

10 to 90 %

MTBF

50,000 Hours

Shock

15G half-sine 11 ms duration

Operation Temperature

Industrial: -40° to +85° C

Vibration

1 Grms random 5-500Hz hr/axis

Weight

≤ 2 grams

PIXI-9377-P Block Diagram

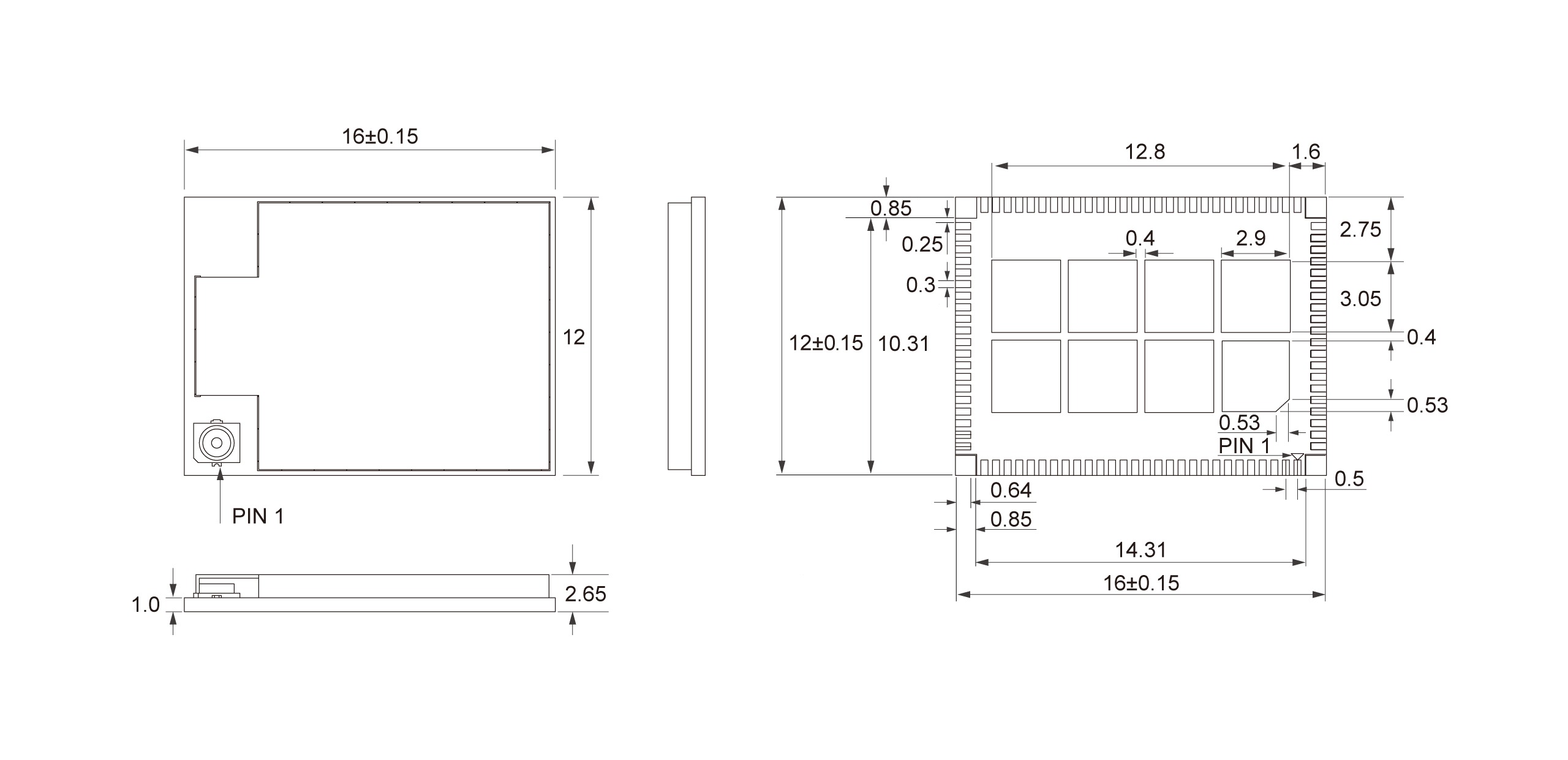

PIXI-9377-P Dimensions

STIX MPCIE Module

Easily evaluate the PIXI-9377 with our Mini-PCIe module.

Documentation

Getting Started

Mechanical

Certification
