LEX System is a global leader in industrial and embedded computing, known for designing reliable, high-performance platforms with long product lifecycles and robust I/O, trusted across transportation, automation, and smart city applications.
Through our close collaboration with LEX System, TechNexion ensures seamless GMSL camera support on the 2NOR03 platform—enabling developers to easily build high-performance, multi-camera vision systems on LEX’s Jetson Orin-based hardware. This partnership brings together rugged industrial computing and advanced imaging technology for demanding AI edge applications.

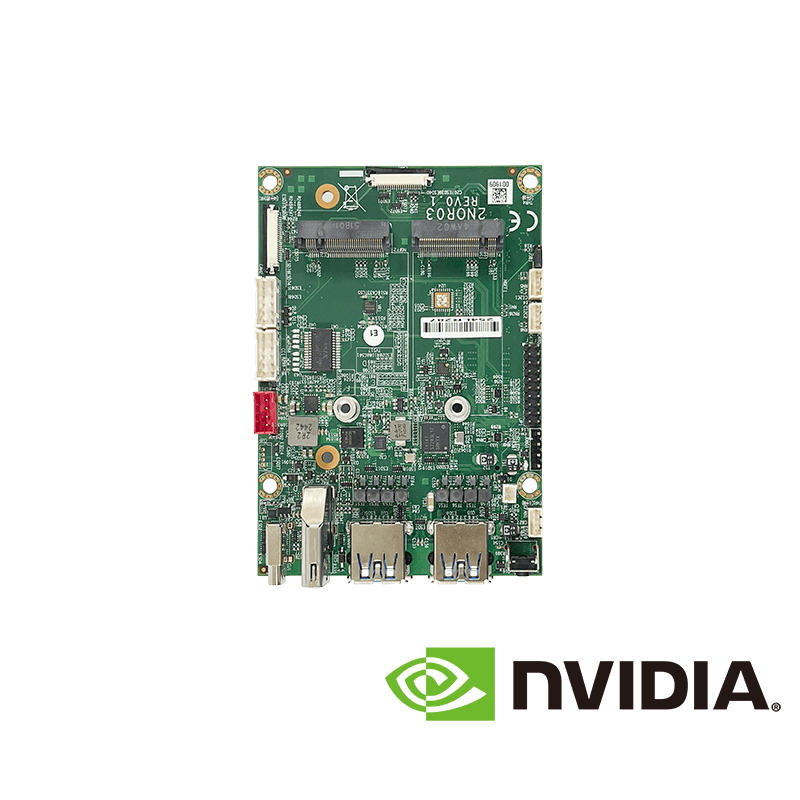

LEX SYSTEM 2NOR03
The LEX 2NOR03 is a compact carrier board built for NVIDIA® Jetson Orin™ NX / Nano modules, delivering up to 100 TOPS of AI performance. Designed for edge AI applications, it features a well-rounded set of interfaces, including dedicated MIPI CSI connectors for vision expansion. Its small form factor and processing power make it well-suited for high-performance computing at the edge.
TechNexion GMSL2 Cameras on 2NOR03

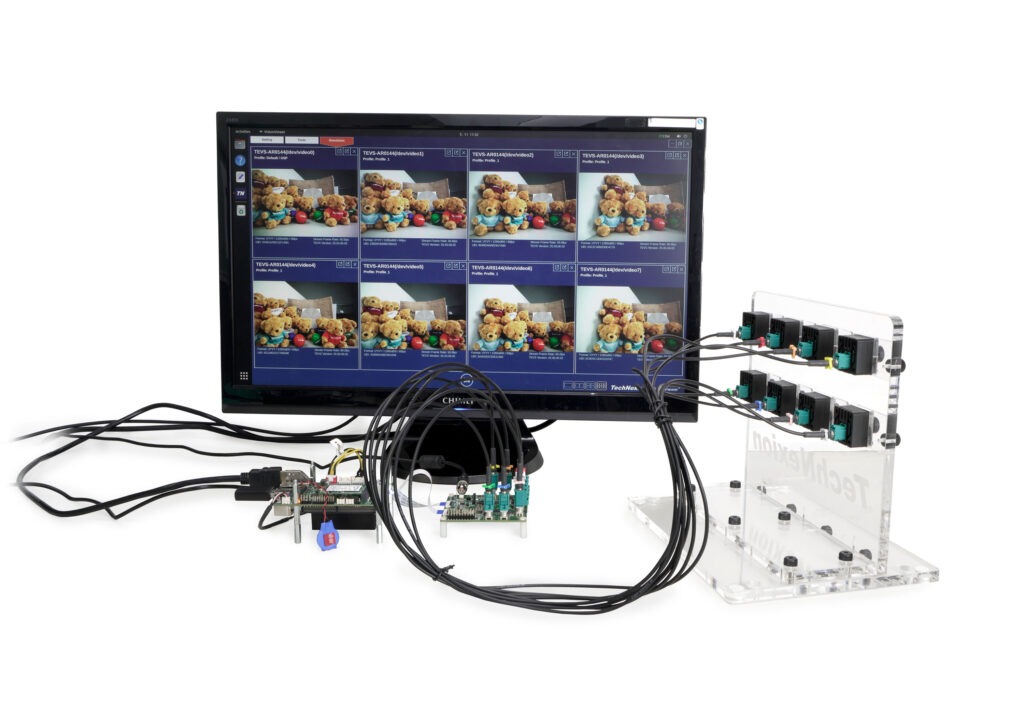

TechNexion GMSL2™ cameras are fully compatible with the LEX 2NOR03 via our VL-GM2-8CAM-RPI22 adapter board, enabling up to 8 high-resolution cameras over long-distance coaxial connections. With support for frame synchronization, rugged housings, and a unified driver architecture, our cameras deliver robust performance for industrial-grade applications. Whether you need wide-angle S-mount lenses or low-light global shutter sensors, TechNexion helps you build scalable, real-world vision systems on LEX hardware.
Step-by-Step Integration
Our developer guide walks you through the entire setup—from hardware connection to camera driver installation and sample streaming. Get started quickly with JetPack 6.2 support and our fully documented guide here.
TechNexion GMSL2 Camera Lineup
Board Level
S-Mount
C-Mount
| Part Number | Sensor | Resolution | Chromaticity | Shutter Type | Lens | Enclosure | Interface |
|---|---|---|---|---|---|---|---|
| VLS-GM2-AR0144-SL | onsemi AR0144 | 1MP | Color | Global | S-Mount | Closed Housing | GMSL2™ |
| VLS-GM2-AR0144-CB | onsemi AR0144 | 1MP | Color | Global | C-Mount | Closed Housing | GMSL2™ |
| UVLS-GM2-AR0144-SL | onsemi AR0144 | 1MP | Color | Global | S-Mount | Board Level | GMSL2™ |
| VLS-GM2-AR0145-SL | onsemi AR0145 | 1MP | Mono | Global | S-Mount | Closed Housing | GMSL2™ |
| VLS-GM2-AR0145-CB | onsemi AR0145 | 1MP | Mono | Global | C-Mount | Closed Housing | GMSL2™ |
| UVLS-GM2-AR0145-SL | onsemi AR0145 | 1MP | Mono | Global | S-Mount | Board Level | GMSL2™ |
| VLS-GM2-AR0234-SL | onsemi AR0234 | 2MP | Color | Global | S-Mount | Closed Housing | GMSL2™ |
| VLS-GM2-AR0234-CB | onsemi AR0234 | 2MP | Color | Global | C-Mount | Closed Housing | GMSL2™ |
| UVLS-GM2-AR0234-SL | onsemi AR0234 | 2MP | Color | Global | S-Mount | Board Level | GMSL2™ |
| VLS-GM2-AR0521-SL | onsemi AR0521 | 5MP | Color | Rolling | S-Mount | Closed Housing | GMSL2™ |
| VLS-GM2-AR0521-CB | onsemi AR0521 | 5MP | Color | Rolling | C-Mount | Closed Housing | GMSL2™ |
| UVLS-GM2-AR0521-SL | onsemi AR0521 | 5MP | Color | Rolling | S-Mount | Board Level | GMSL2™ |
| VLS-GM2-AR0522-SL | onsemi AR0522 | 5MP | Color, Mono | Rolling | S-Mount | Closed Housing | GMSL2™ |
| VLS-GM2-AR0522-CB | onsemi AR0522 | 5MP | Color, Mono | Rolling | C-Mount | Closed Housing | GMSL2™ |
| UVLS-GM2-AR0522-SL | onsemi AR0522 | 5MP | Color, Mono | Rolling | S-Mount | Board Level | GMSL2™ |
| VLS-GM2-AR0821-SL | onsemi AR0821 | 8MP | Color | Rolling | S-Mount | Closed Housing | GMSL2™ |
| VLS-GM2-AR0821-CB | onsemi AR0821 | 8MP | Color | Rolling | C-Mount | Closed Housing | GMSL2™ |
| UVLS-GM2-AR0821-SL | onsemi AR0821 | 8MP | Color | Rolling | S-Mount | Board Level | GMSL2™ |
| VLS-GM2-AR0822-SL | onsemi AR0822 | 8MP | Color, Mono | Rolling | S-Mount | Closed Housing | GMSL2™ |
| VLS-GM2-AR0822-CB | onsemi AR0822 | 8MP | Color, Mono | Rolling | C-Mount | Closed Housing | GMSL2™ |
| UVLS-GM2-AR0822-SL | onsemi AR0822 | 8MP | Color, Mono | Rolling | S-Mount | Board Level | GMSL2™ |
| VLS-GM2-AR1335-SL | onsemi AR1335 | 13MP | Color | Rolling | S-Mount | Closed Housing | GMSL2™ |
| VLS-GM2-AR1335-CB | onsemi AR1335 | 13MP | Color | Rolling | C-Mount | Closed Housing | GMSL2™ |
| UVLS-GM2-AR1335-SL | onsemi AR1335 | 13MP | Color | Rolling | S-Mount | Board Level | GMSL2™ |
