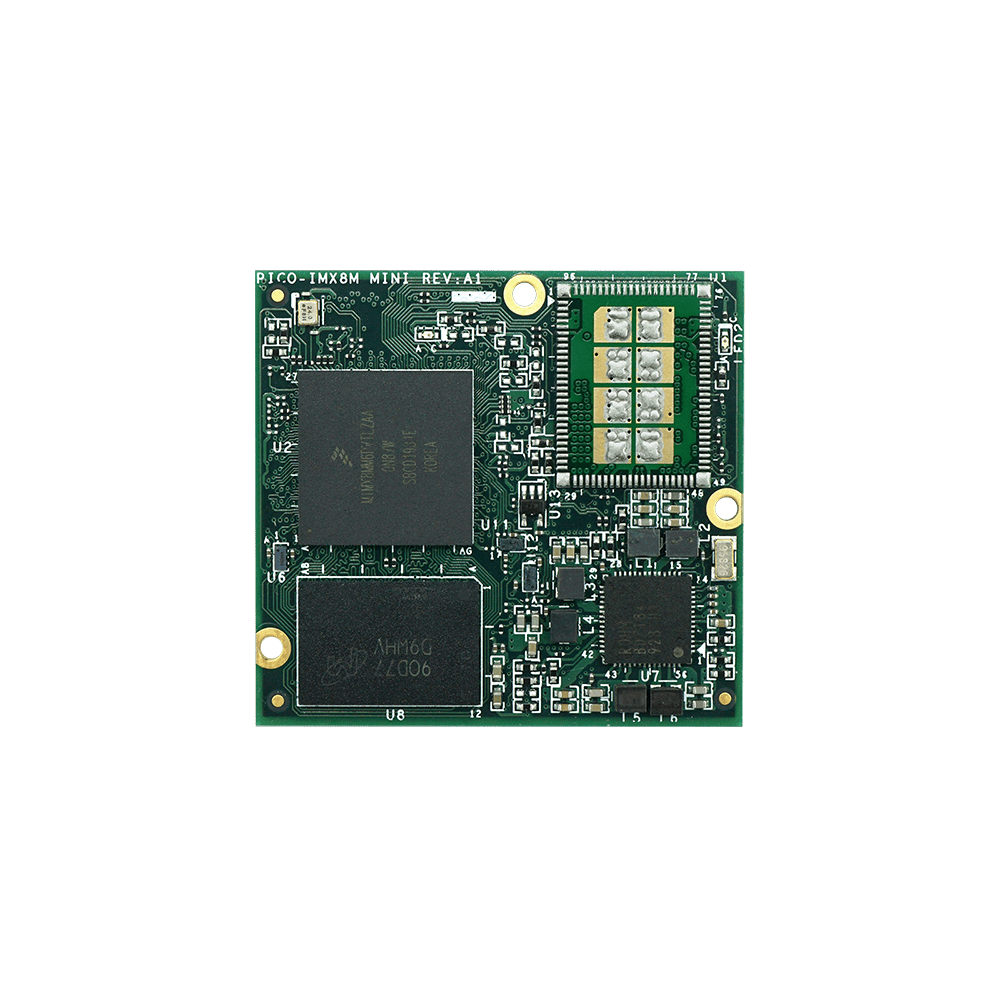

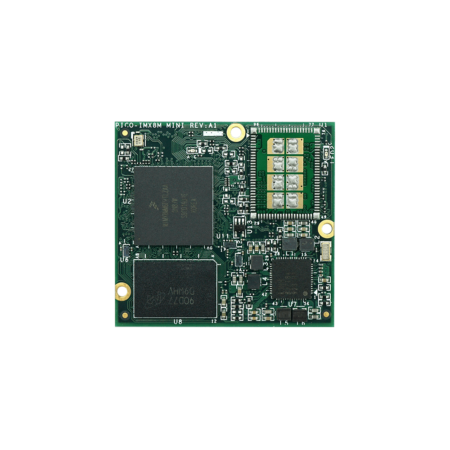

PICO-IMX8M-MINI TOP
PICO-IMX8M-MINI BACK

PICO-IMX8MMQ18-R40-E16

SKU: PICOIMX8MMQ18R40E16 Category:
More information
Product Brief

PICO System-on-Module based around NXP i.MX8M Mini SoC with 4GB of LPDDR4 memory, 16GB eMMC.

16 in stock (can be backordered)

Quantity Discount (%) Price
1 - 99 — $90.00
100 - 249 5 % $85.50
250 - 499 10 % $81.00
500+ 15 % $76.50
x

Specification

Additional information

Core System
Processor

NXP i.MX8M Mini

Processor Speed

1.8 Ghz

Architecture

ARM Cortex-A53 + M4

AI / ML

OpenCL CPU: 32 GOPS

PMIC

ROHM BD71847

Memory

4GB LPDDR4

Storage

16GB eMMC

Board-to-Board Connector

PICO 70-pin Hirose connectors

System on Module

PICO SOM
Connectivity
Network LAN

RGMII
Signaling
I/O

RGMII
MIPI CSI
MIPI DSI
PCIe
USB
USB OTG
I²S
SDIO
UART
SPI
I²C
PWM
GPIO
Video
GPU Engine

GC NanoUltra (1 shader)
GC520L (2D)
OpenGL ES 2.0

Video decode

1080p60 (h.265, VP9, h.264, VP8)

Video encode

1080p60 (h.264)

Camera

MIPI CSI (4 lanes)
Audio
Audio Codec

On carrier board

Audio Interface

I²S (2 channel)
Power Specifications
Power Input

5V DC +/-5%

Power Consumption

Depending on Configuration
Software Support
Standard Support

Linux
Yocto
Android
Ubuntu

Extended Support

Boot2Qt
Commercial Linux
FreeRTOS
Real Time OS
Environmental and Mechanical
Dimensions

37 x 40 mm

Weight

8 grams

Form Factor

PICO

Relative Humidity

10 to 90 %

MTBF

100,000+ Hours

Shock

15G half-sine 11 ms duration

Operation Temperature

Commercial: 0°C to +60°C

Vibration

1 Grms random 5-500Hz hr/axis
Certification and Compliance
Certification

Compliant with RoHS / REACH directives
Commercial Information
Brand

TechNexion

SKU Number

PICOIMX8MMQ18R40E16

Country of Origin

Taiwan

HTSN

8473.30.1180

ECCN

5A992.c Mass Market

CCATS

740.17(b)(1) Mass Market (No License Required)

REACH / RoHS

Yes

Blockdiagram

PICO-IMX8M-MINI Block Diagram

Dimensions

PICO-IMX8M-MINI Dimensions
