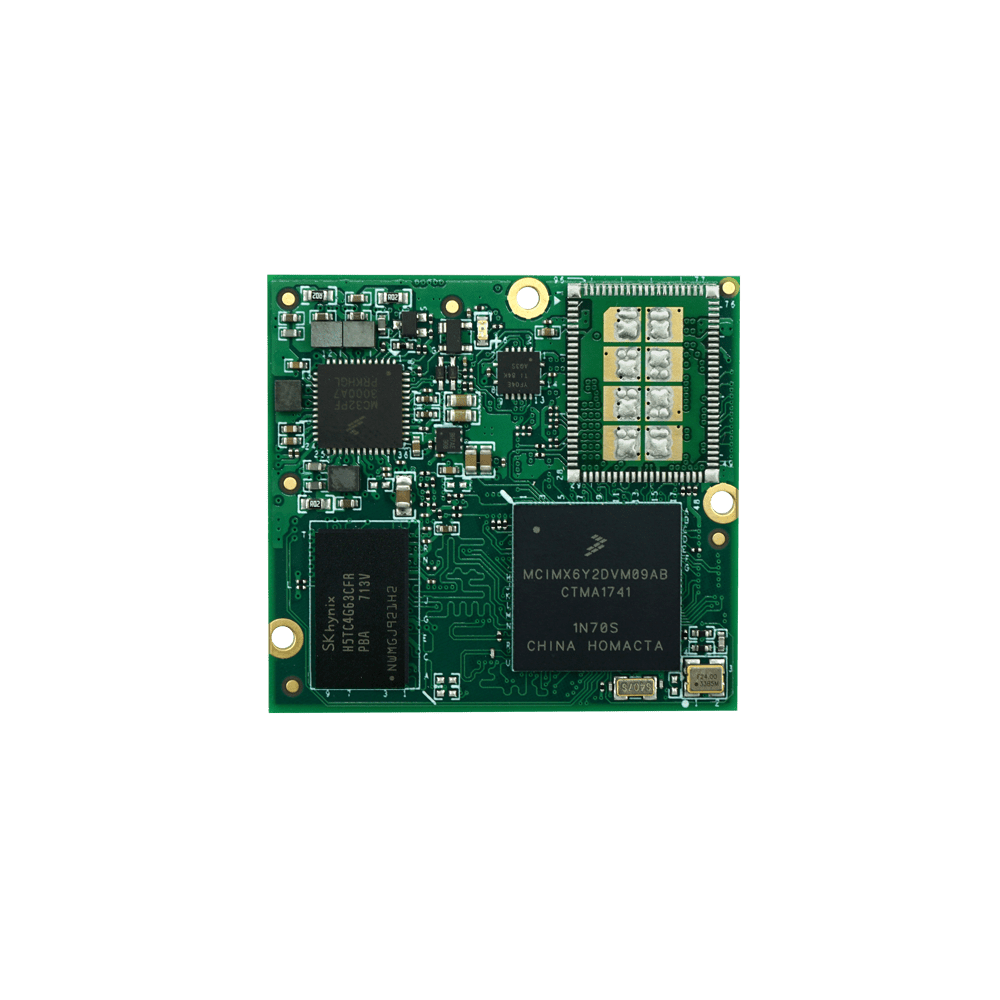

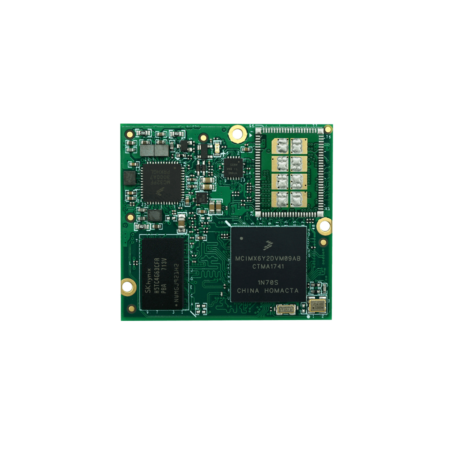

PICO-IMX6ULL TOP

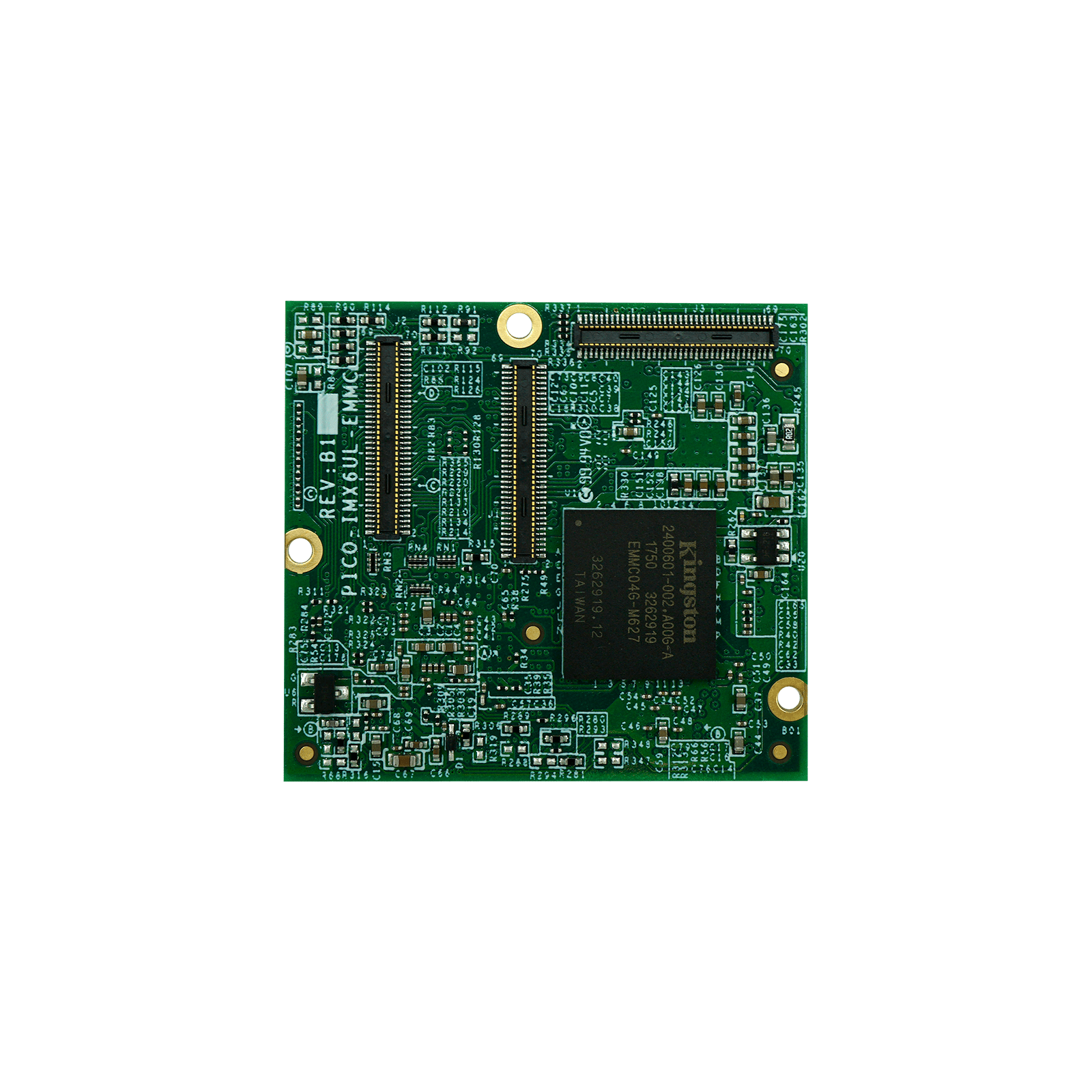

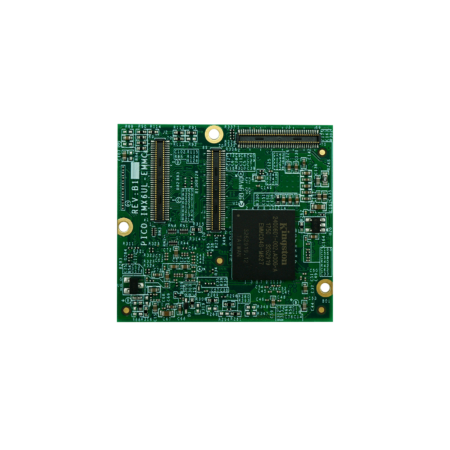

PICO-IMX6ULL BACK

PICO-IMX6Y208-R02-E04-TI

SKU: PICOIMX6Y208R02E04TI Category:
More information
Product Brief

PICO System-on-Module based around NXP i.MX6 ULL SoC with 256MB of DDR3L memory, 4GB eMMC, Industrial Temp -40~85C.

Available on backorder

Quantity Discount (%) Price
1 - 99 — $54.00
100 - 249 5 % $51.30
250 - 499 10 % $48.60
500+ 15 % $45.90
x

Specification

Additional information

Core System
Processor

NXP i.MX6ULL

Processor Speed

792 Mhz

Architecture

ARM Cortex-A7

PMIC

NXP PF3000

Memory

256MB DDR3L

Storage

4GB eMMC

Board-to-Board Connector

PICO 70-pin Hirose connectors

System on Module

PICO SOM
Connectivity
Network LAN

RMII
Signaling
I/O

RMII
RGB TTL
USB
USB OTG
I²S
CAN
UART
SPI
I²C
PWM
GPIO
Video
GPU Engine

Image re-sizing / rotation / overlay and CSC Pixel Processing Pipeline
Audio
Audio Codec

On carrier board

Audio Interface

I²S (2 channel)
Power Specifications
Power Input

5V DC +/-5%

Power Consumption

Depending on Configuration
Software Support
Standard Support

Linux
Yocto
Ubuntu

Extended Support

Boot2Qt
Commercial Linux
Environmental and Mechanical
Dimensions

37 x 40 mm

Weight

8 grams

Form Factor

PICO

Relative Humidity

10 to 90 %

MTBF

100,000+ Hours

Shock

15G half-sine 11 ms duration

Operation Temperature

Industrial: -40°C to +85°C

Vibration

1 Grms random 5-500Hz hr/axis
Certification and Compliance
Certification

Compliant with RoHS / REACH directives
Commercial Information
Brand

TechNexion

SKU Number

PICOIMX6Y208R02E04TI

Country of Origin

Taiwan

HTSN

8473.30.1180

ECCN

5A992.c Mass Market

CCATS

740.17(b)(1) Mass Market (No License Required)

REACH / RoHS

Yes

Blockdiagram

PICO-IMX6ULL Block Diagram

Dimensions

PICO-IMX6ULL Dimensions
