PICO-IMX6Q10-R10-E16-TI

SKU: PICOIMX6Q10R10E16TI Category:

$145.00

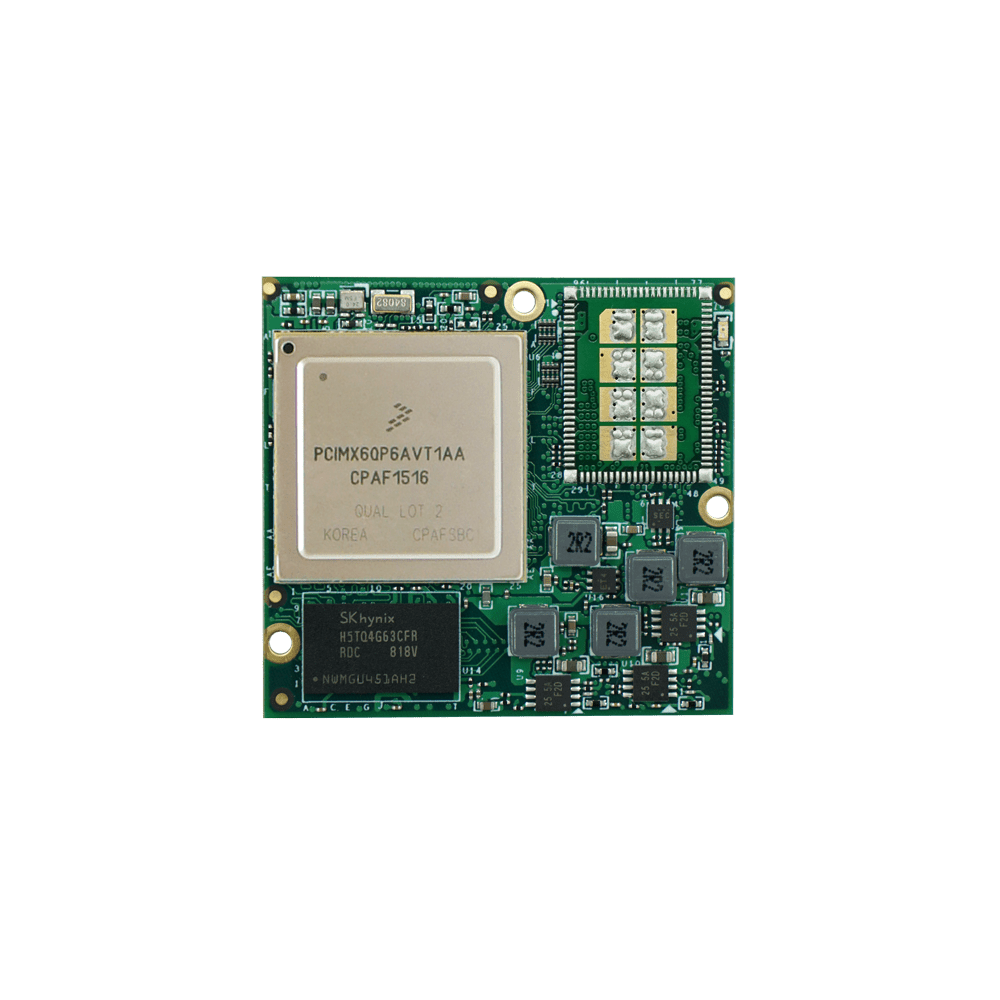

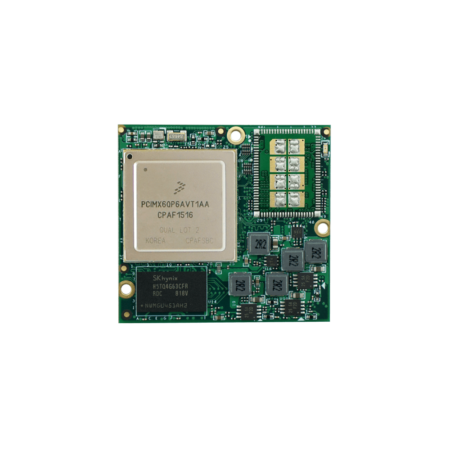

PICO System-on-Module based around NXP i.MX6 Quad SoC with 1GB of DDR3 memory, 16GB eMMC, Industrial Temp -40~85C.

Available on backorder

Quantity Discount (%) Price
1 - 99 $145.00
100 - 249 5 % $137.75
250 - 499 10 % $130.50
500+ 15 % $123.25
x

Specifications

Additional information

Brand

TechNexion

Country of Origin

Taiwan

ECCN

5A992.c Mass Market

CCATS

740.17(b)(1) Mass Market (No License Required)

REACH / RoHS

Yes

HTSN

8473.30.1180

Processor

NXP i.MX6 Quad

Processor Speed

1.0 Ghz

Architecture

ARM Cortex-A9

PMIC

Discrete Power Solution

Memory

1GB DDR3

Storage

16GB eMMC

Board-to-Board Connector

PICO 70-pin Hirose connectors

System on Module

PICO SOM

Network LAN

RGMII

I/O

RGMII, HDMI, LVDS, RGB TTL, MIPI CSI-2, MIPI DSI, PCIe, SATA, USB, USB OTG, I²S, SDIO, CAN, UART, SPI, I²C, PWM, GPIO

Camera

MIPI CSI (4 lanes)

Audio Codec

On carrier board

Power Input

5V DC +/-5%

Power Consumption

Depending on Configuration

Extended Support

Boot2Qt, Commercial Linux

Standard Support

Linux, Yocto, Ubuntu, Android

Certification

Compliant with RoHS / REACH directives

Dimensions

37 x 40 mm

Form Factor

PICO

Relative Humidity

10 to 90 %

MTBF

100,000+ Hours

Shock

15G half-sine 11 ms duration

Operation Temperature

Industrial: -40°C to +85°C

Vibration

1 Grms random 5-500Hz hr/axis

GPU Engine

Vivante GC2000 (Quad), Vivante GC320 (2D Composition), Vivante GC355 (Quad)

Weight

8 grams

Audio Interface

I²S (2 channel)

Video Decode

1080p60 H.264 (Quad)

Video Encode

1080p30 H.264

Blockdiagram

PICO-IMX6-eMMC Block Diagram

Dimensions

PICO-IMX6 Dimensions
