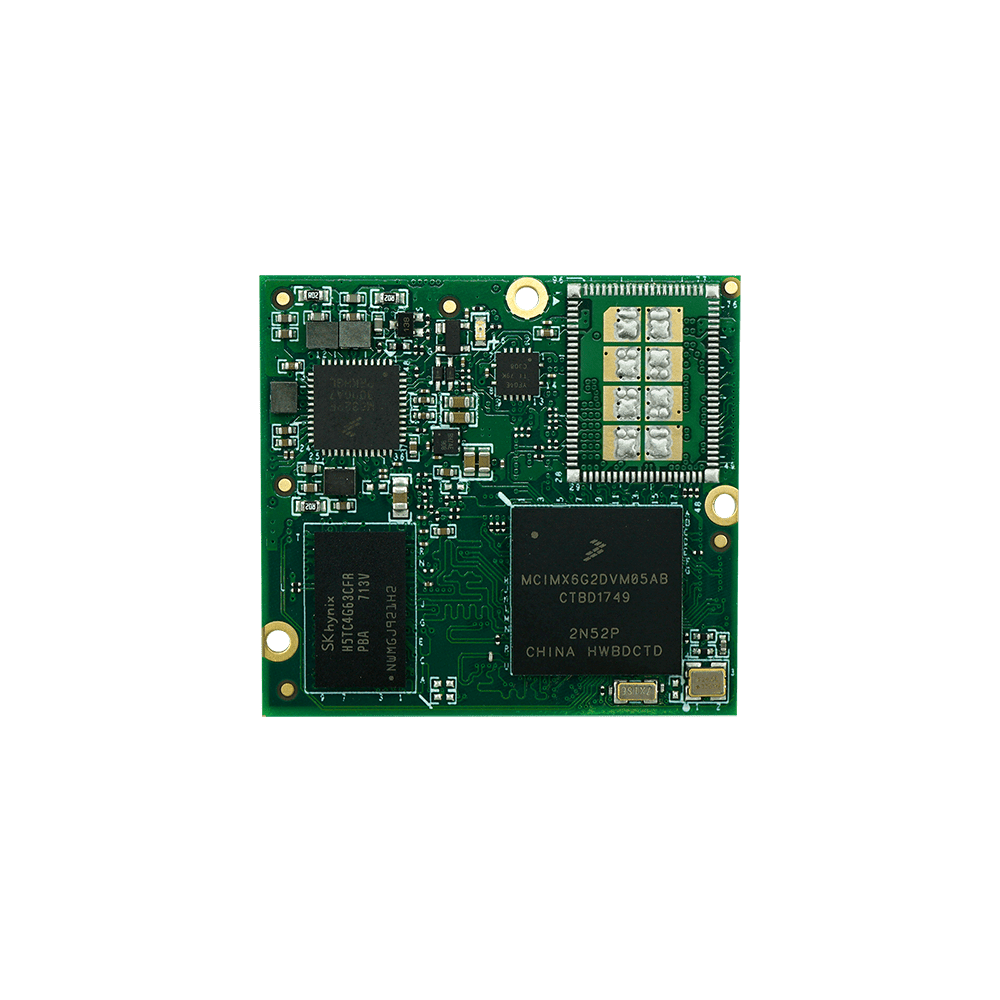

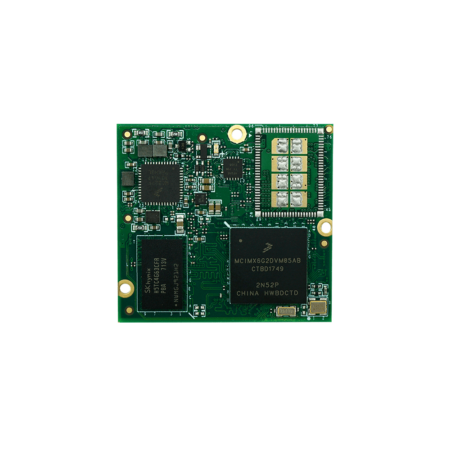

PICO-IMX6UL TOP
PICO-IMX6UL BACK

PICO-IMX6G205-R05-E04

PICO SOM NXP I.MX6 ULTRALITE 528MHZ + 512MB DDR3L + 4GB EMMC

Available on backorder

Quantity Price
1 - 49 $47.25
50 - 99 $45.90
100+ $44.55
x

PICO System-on-Module based around NXP i.MX6 Ultralite SoC with 512MB of DDR3L memory, 4GB eMMC.

Additional information

Core System
Processor

NXP i.MX6UL

Processor Speed

528 Mhz

Architecture

ARM Cortex-A7

PMIC

NXP PF3000

Memory

512MB DDR3L

Storage

4GB eMMC

Board-to-Board Connector

PICO 70-pin Hirose connectors

System on Module

PICO SOM
Connectivity
Network LAN

RMII
Signaling
I/O

RMII
RGB TTL
USB
USB OTG
I²S
CAN
UART
SPI
I²C
PWM
GPIO
Video
GPU Engine

Image re-sizing / rotation / overlay and CSC Pixel Processing Pipeline
Audio
Audio Codec

On carrier board

Audio Interface

I²S (2 channel)
Power Specifications
Power Input

5V DC +/-5%

Power Consumption

Depending on Configuration
Operating Systems
Standard Support

Linux
Yocto
Ubuntu

Extended Support

Boot2Qt
Commercial Linux
Certification and Compliance
FCC

FCC ID: 2AKZA-QCA9377

IC

IC: 22364-QCA9377

CE

EN 300 328 v2.2.2
EN 301 893 v2.1.1
EN 55032 / EN 55024

TELEC (Japan)

TELEC: 201-180629

RCM (Australia/New Zealand)

RCM Compliant

Certification

Compliant with RoHS / REACH directives

Bluetooth Logo

QDID 150839 (Bluetooth 4.2)
Environmental and Mechanical
Dimensions

37 x 40 mm

Form Factor

PICO

Relative Humidity

10 to 90 %

MTBF

100,000+ Hours

Shock

15G half-sine 11 ms duration

Operation Temperature

Commercial: 0° to +60° C

Vibration

1 Grms random 5-500Hz hr/axis

Weight

8 grams
Shop Data
Brand

TechNexion

Country of Origin

Taiwan

HTSN

8473.30.1180

ECCN

5A992.c Mass Market

CCATS

Mass Market (No License Required)

REACH / RoHS

YES
