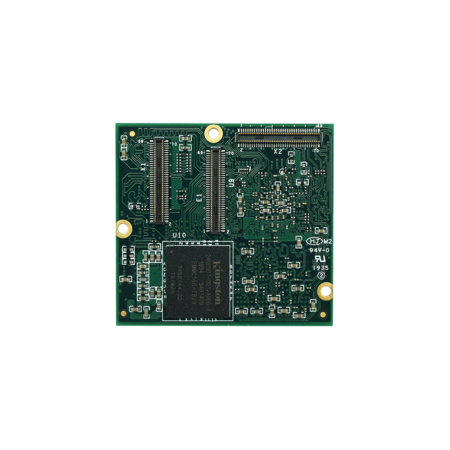

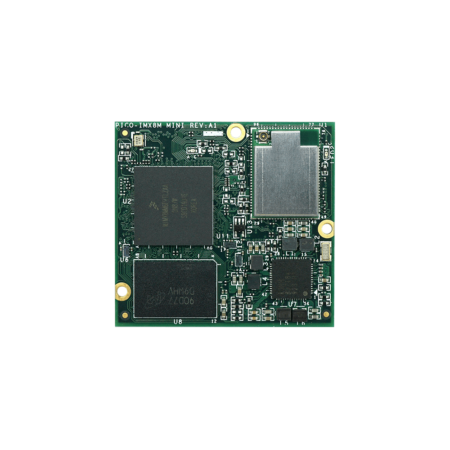

PICO-IMX8MMQ18-R40-E16-9377

Name: PICO-IMX8MMQ18-R40-E16-9377
Brand: TechNexion
SKU: PICOIMX8MMQ18R40E169377
Availability: InStock

SKU: PICOIMX8MMQ18R40E169377 Category: PICO COMPUTE MODULES

Product Brief

PICO System-on-Module based around NXP i.MX8M Mini SoC with 4GB of LPDDR4 memory, 16GB eMMC and QCA-9377 Wireless and Bluetooth.

290 in stock (can be backordered)

Specification

Core System

Connectivity

Network LAN	RGMII
Wi-Fi	Qualcomm Atheros QCA9377 Wi-Fi 5 – 802.11 a/b/g/n/ac
Bluetooth	Qualcomm Atheros QCA9377 Bluetooth
Antenna	MHF4 connector

Signaling

I/O	RGMII MIPI CSI MIPI DSI PCIe USB USB OTG I²S SDIO UART SPI I²C PWM GPIO

Video

GPU Engine	GC NanoUltra (1 shader) GC520L (2D) OpenGL ES 2.0
Video decode	1080p60 (h.265, VP9, h.264, VP8)
Video encode	1080p60 (h.264)
Camera	MIPI CSI (4 lanes)

Audio

Audio Codec	On carrier board
Audio Interface	I²S (2 channel)

Power Specifications

Power Input	5V DC +/-5%
Power Consumption	Depending on Configuration

Software Support

Standard Support	Linux Yocto Android Ubuntu
Extended Support	Boot2Qt Commercial Linux FreeRTOS Real Time OS

Environmental and Mechanical

Certification and Compliance

FCC	FCC ID: 2AKZA-QCA9377
IC	IC: 22364-QCA9377
CE	EN 300 328 v2.2.2 EN 301 893 v2.1.1 EN 55032 / EN 55024
TELEC (Japan)	TELEC: 201-180629
RCM (Australia/New Zealand)	RCM Compliant
Certification	Compliant with RoHS / REACH directives
Bluetooth Logo	QDID 150839 (Bluetooth 4.2) QDID 193238 (Bluetooth 5)

Commercial Information

Brand	TechNexion
SKU Number	PICOIMX8MMQ18R40E169377
Country of Origin	Taiwan
HTSN	8473.30.1180
ECCN	5A992.c Mass Market
CCATS	740.17(b)(1) Mass Market (No License Required)
REACH / RoHS	Yes

PICO-IMX8M-MINI Block Diagram

PICO-IMX8M-MINI Dimensions
