| Core System |
| Processor | NXP i.MX6 Solo
NXP i.MX6 Duallite
NXP i.MX6 Quad
|
|---|
| Architecture | ARM Cortex-A9
|
|---|
| PMIC | NXP MMPF0100
|
|---|
| Memory | Upto 2GB DDR3
|
|---|
| Storage | 4GB eMMC
|
|---|
|
| Connectivity |
| Network LAN | 1x Atheros AR8035 Gigabit LAN
|
|---|
| Power over Ethernet | PoE function 802.3at (optional)
|
|---|
|
| Video |
| GPU Engine | Vivante GC2000 (Quad)
Vivante GC320 (2D Composition)
Vivante GC355 (Quad)
Vivante GC880 (Solo/DualLite)
|
|---|
| Video decode | 1080p30 + D1 (Solo/DualLite)
1080p60 H.264 (Quad)
|
|---|
| Video encode | 1080p30 H.264
BP/Dual 720p
|
|---|
|
| Power Specifications |
| Power Input | 12 VDC
9-36V DC (wide power input)
|
|---|
| Power Consumption | Depending on Configuration
|
|---|
| Power Connector | 3-pin M12
|
|---|
|
| Operating Systems |
| Standard Support | Linux
Yocto
Android
Ubuntu
|
|---|
|
| Environmental and Mechanical |

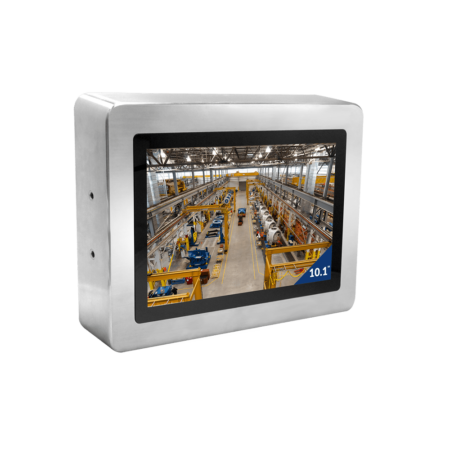

| Enclosure Material | Metal
|
|---|
| Frontbezel | Stainless Steel
|
|---|
| IP Rating | IP69K
|
|---|
| Dimensions | 293 (W) x 211 (H) x 56 (D) mm
|
|---|
| Relative Humidity | 10 to 90 %
|
|---|
| MTBF | 50,000 Hours
|
|---|
| Shock | 15G half-sine 11 ms duration
|
|---|
| Operation Temperature | Commercial: 0° to +50° C
|
|---|
| Vibration | 1 Grms random 5-500Hz hr/axis
|
|---|
| Weight | 3600 grams
|
|---|
|
| Mounting Options |
| VESA Mounting | 75*75 VESA MIS-D Standard (separate purchase)
|
|---|
| YOKE Mounting | Yoke Standard 50mm (separate purchase)
|
|---|
|
| Modular Expansion Options |
| Power Expansion Module | TXB-P1-1030V-LAN1 (8-36V 5A)
TXB-P1-12V-LAN1 (12V 3A)
TXB-P1-12V-POE1 (12V 3A) or (PoE 802.3at)
|
|---|
|
| Display |

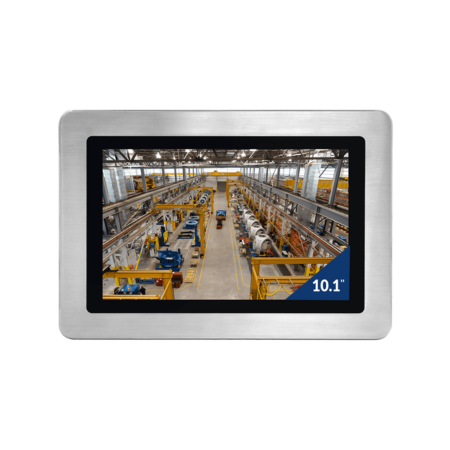

| LCD | 10.1 inch widescreen LCD with LED Backlight
|
|---|
| Resolution | 1280 x 800 pixels
|
|---|
| Luminance | 350 cd/m²
|
|---|
| Maximum Colors | 16.7 million
|
|---|
| Touchscreen | Projective Capacitive (multitouch)
|
|---|
|

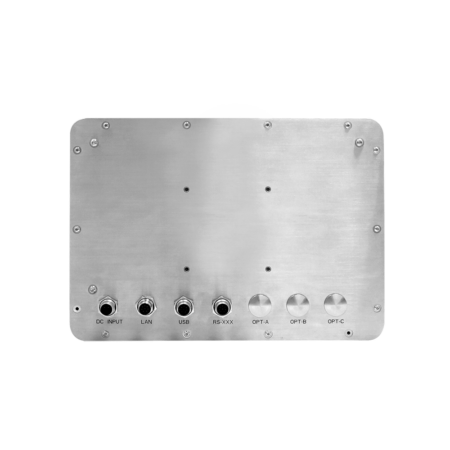

| External Connectors |
| Network | 1x 8-pin M12
|
|---|
| USB | 1x 8-pin M12 (2x USB 2.0 Host)
|
|---|
| Serial Port | 1x 8-pin M12 (1x RS-232)
|
|---|
|
| Expansion Interfaces |
| Expansion Slots | 2x M.2 slot
2x mini-PCIe with SIM cardslot
|
|---|
|
| Certification and Compliance |
| Certification | Compliant with CE / FCC / RoHS / REACH directives
|
|---|
|
| Commercial Information |
| Brand | TechNexion
|
|---|
| Country of Origin | Taiwan
|
|---|
| HTSN | 8471.90.0000
|
|---|
| ECCN | 5A992.c Mass Market
|
|---|
| CCATS | 740.17(b)(1) Mass Market (No License Required)
|
|---|
| REACH / RoHS | YES
|
|---|
|
