VCI-AR0522-C-CB-IR

SKU: VCIAR0522CCBIR Category:

$137.00

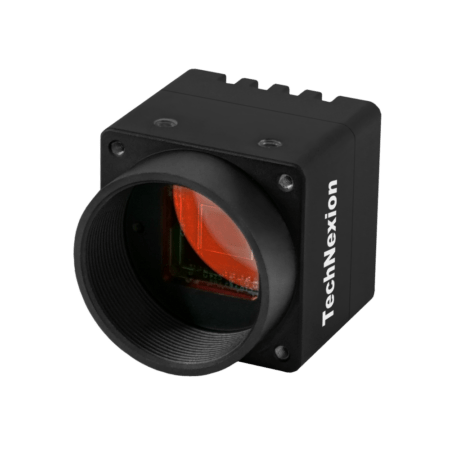

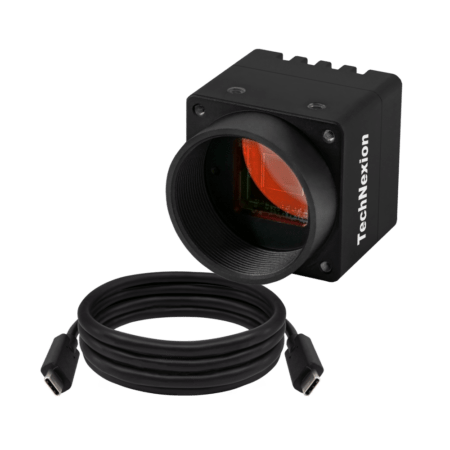

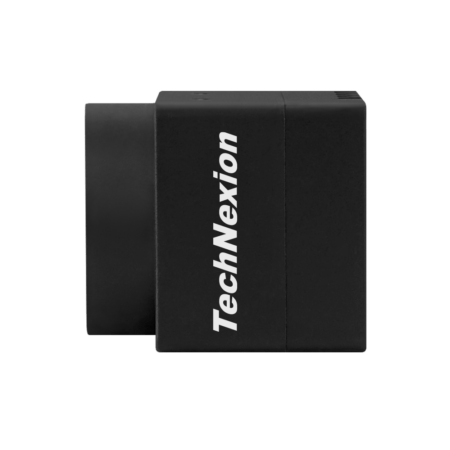

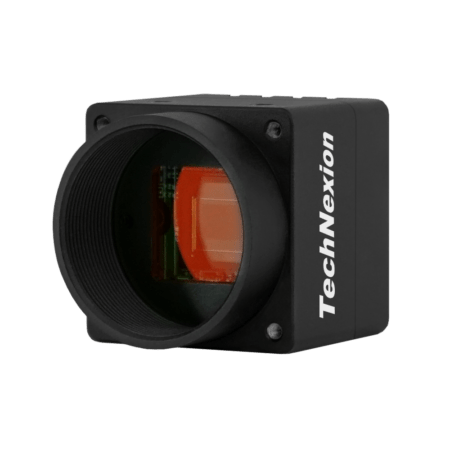

USB3 Type-C Camera with onsemi AR0522 5MP Color Rolling Shutter with Onboard ISP + IR-Cut Filter with C Mount Body + Incl. 1 Meter USB C Cable

Specifications

Additional information

CMOS Sensor

onsemi AR0522

Active Pixels

2592 (H) x 1944 (V) = 5MP

Pixel Size

2.2 µm x 2.2 µm

Optical Format

1/2.5" (Diagonal 7.13mm)

Shutter Type

Rolling Shutter

Chromaticity

Color

Illuminated type

Back Side Illuminated (BSI)

Maximum Frame Rate (MJPEG)

2592 x 1944 @ 60 fps, 2560 x 1440 @ 60 fps, 1920 x 1080 @ 60 fps, 1280 x 960 @ 80 fps, 1280 x 720 @ 80 fps, 640 x 480 @ 120 fps

Maximum Frame Rate (YUV422-UYVY)

2592 x 1944 @ 24 fps, 2560 x 1440 @ 32 fps, 1920 x 1080 @ 60 fps, 1280 x 960 @ 60 fps, 1280 x 720 @ 60 fps, 640 x 480 @ 120 fps

Maximum S/N Ratio

40 dB

Output Format

YUV422-UYVY, MJPEG

Connector

USB Type-C 5 Gbps

Supply Voltage

5V ± 5%

Power Consumption

UYVY 2592 x 1944 @ 24 fps ≤ 1.2W

Standby Power

≤ 0.1W Standby

Operation Systems

UVC Plug-and-play, Windows 10/11, Linux, Yocto

SDK

VizionViewer™ / VizionSDK

Dimensions

29.5(W) x 29.5(H) x 33.8(D) mm

Weight

39 grams

Relative Humidity

10 to 90 %

MTBF

50,000 Hours

Shock

15G half-sine 11 ms duration

Operation Temperature

-30°C to +70℃

Vibration

1 Grms random 5-500Hz hr/axis

Certification

Compliant with CE / FCC / RoHS / REACH directives

Brand

TechNexion

Country of Origin

Taiwan

HTSN

8525.80.5050

ECCN

EAR99

REACH / RoHS

Yes

Block Diagram

VCI-AR0522-CB Block Diagram

Dimensions

VCI-AR0522-CB Dimensions

Spectral Characteristics

AR0522 Spectral Characteristics
