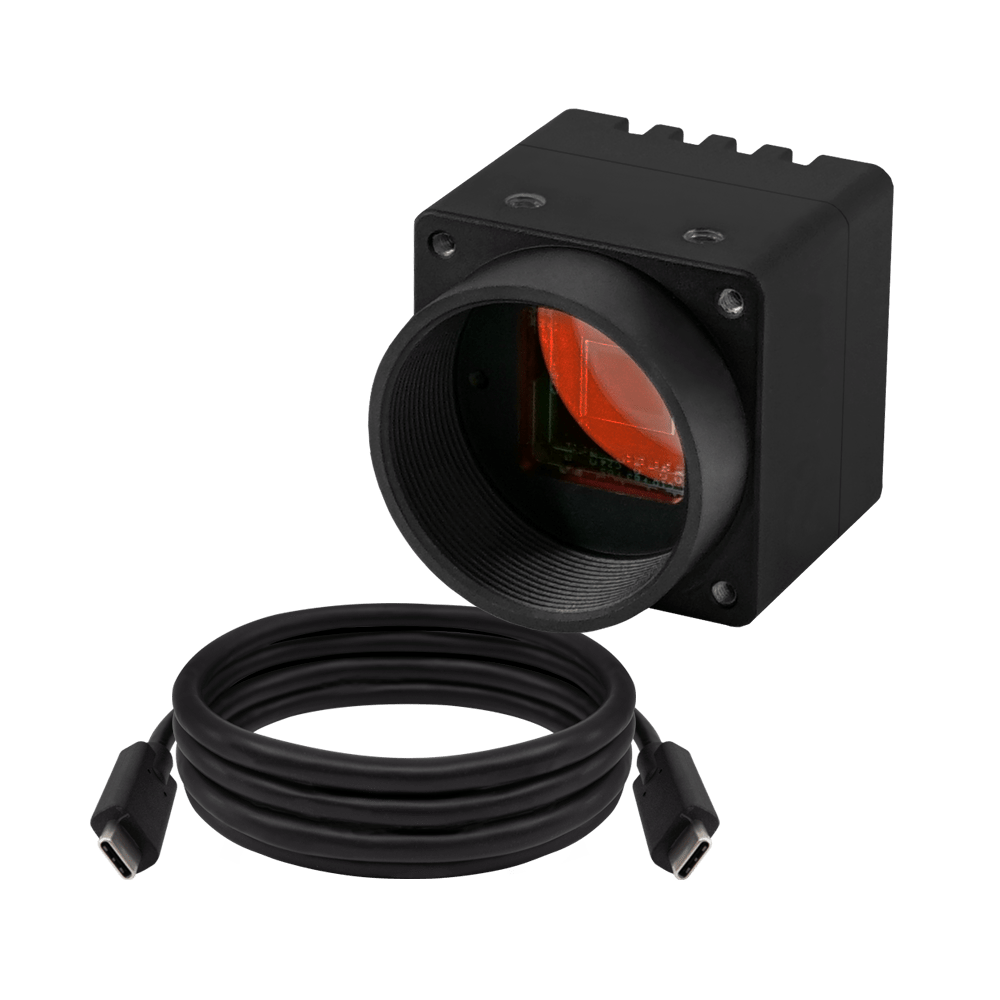

| Camera Information |
|---|
| CMOS Sensor | onsemi AR0522
|
|---|
| Active Pixels | 2592 (H) x 1944 (V) = 5MP
|
|---|
| Pixel Size | 2.2 µm x 2.2 µm
|
|---|
| Illuminated type | Back Side Illuminated (BSI)
|
|---|
| Maximum S/N Ratio | 40 dB
|
|---|
| Optical Format | 1/2.5" (Diagonal 7.13mm)
|
|---|
| Shutter Type | Rolling Shutter
|
|---|
| Chromaticity | Color / Mono
|
|---|
| Maximum Frame Rate (YUV422-UYVY) | 2592 x 1944 @ 24 fps
2560 x 1440 @ 32 fps
1920 x 1080 @ 60 fps
1280 x 960 @ 60 fps
1280 x 720 @ 60 fps
640 x 480 @ 120 fps
|
|---|
| Maximum Frame Rate (MJPEG) | 2592 x 1944 @ 60 fps
2560 x 1440 @ 60 fps
1920 x 1080 @ 60 fps
1280 x 960 @ 80 fps
1280 x 720 @ 80 fps
640 x 480 @ 120 fps
|
|---|
| Output Format | UYVY
MJPEG(JPG)
|
|---|
|
| Interface |
|---|
| Connector | USB Type-C 5 Gbps
|
|---|
|
| Power Specifications |
|---|
| Supply Voltage | 5V ± 5%
|
|---|
| Power Consumption | UYVY 2592 x 1944 @ 24 fps ≤ 1.2W
|
|---|
| Standby Power | ≤ 0.1W Standby
|
|---|
|
| Software Support |
|---|
| Operation Systems | UVC Plug-and-play
Windows 10/11
Linux
Yocto
|
|---|
| SDK | VizionViewer™ / VizionSDK
|
|---|
|
| Environmental and Mechanical |
|---|
| Dimensions | 29.5(W) x 29.5(H) x 33.7(D) mm
|
|---|
| Weight | 39 grams
|
|---|
| MTBF | 50,000 Hours
|
|---|
| Shock | 15G half-sine 11 ms duration
|
|---|
| Vibration | 1 Grms random 5-500Hz hr/axis
|
|---|
| Relative Humidity | 10 to 90 %
|
|---|
| Operation Temperature | -30°C to +70℃
|
|---|
|
| Certification and Compliance |
|---|
| Certification | Compliant with CE / FCC / RoHS / REACH directives
|
|---|
|
| Commercial Information |
|---|
| Brand | TechNexion
|
|---|
| Country of Origin | Taiwan
|
|---|
| HTSN | 8525.89.5050
|
|---|
| ECCN | EAR99
|
|---|
| REACH / RoHS | Yes
|
|---|
|
