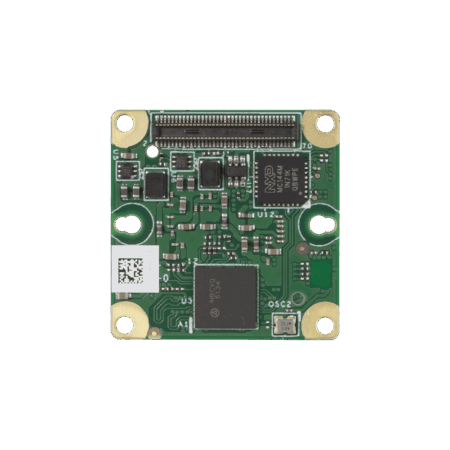

TEVM-AR0822-C

Name: TEVM-AR0822-C
Brand: TechNexion
SKU: TEVMAR0822C
Availability: PreOrder

SKU: TEVMAR0822C Category: TEVM MIPI CSI-2 Series Brand: TechNexion

MIPI CSI-2 Sensor onsemi AR0822 8MP 4K Color Rolling Shutter with onboard IMU + ISP

Product Brief

Available on backorder

Specifications

Camera Information

CMOS Sensor	onsemi AR0822
Active Pixels	3840 (H) x 2160 (V) = 8MP
Pixel Size	2.0 μm x 2.0 μm
Illuminated type	Back Side Illuminated (BSI)
Maximum S/N Ratio	40.5 dB
Input Clock Range	48 MHz
Optical Format	1/1.8” (Diagonal 8.81 mm)
Shutter Type	Rolling Shutter
Chromaticity	Color
Maximum Frame Rate (YUY2)	3840 x 2160 @ 15 fps 2560 x 1440 @ 30 fps 1920 x 1080 @ 60 fps 1280 x 720 @ 60 fps 640 x 480 @ 60 fps
Output Format	YUV422-UYVY YUV420 RGB888 RGB565 RGB555 JPEG MJPEG(JPG) RAW8 RAW10 RAW12
HDR Support	Yes

Interface

Power Specifications

Software Support

Platform Support	NVIDIA Jetson AGX Orin NVIDIA Jetson Orin Nano / NX NVIDIA Jetson Xavier NX NVIDIA Jetson Nano NXP i.MX93 / i.MX95 NXP i.MX8M Nano / Mini / Plus TI Sitara™ AM62 / AM62A / AM67 TI Sitara™ AM68 / AM69 TI Jacinto™ TDA4VM / TDA4VH BeagleY®-AI / BeaglePlay® Raspberry Pi 4 / Raspberry Pi 5 ST STM32MP25 Renesas RZ/V2H Intel Alder Lake-N Intel Meteor Lake
Operation Systems	Linux Android
SDK	VizionViewer™ / VizionSDK

Motion Sensors

IMU	ST Microelectronics LSM6DSO16IS
Accelerometer	3-axis accelerometer with selectable full scale: ±2/±4/±8/±16 g
Gyroscope	3-axis gyroscope with selectable full scale: ±125/±250/±500/±1000/±2000 dps
Temperature Sensor	Embedded temperature sensor

Environmental and Mechanical

Certification and Compliance

Certification	Compliant with CE / FCC / RoHS / REACH directives

Commercial Information

TEVM-AR0822 Block Diagram

AR0822 Spectral Characteristics

AR0822 Switch
