TEVS-AR0822-C-S72-IR-NXP
$195.00

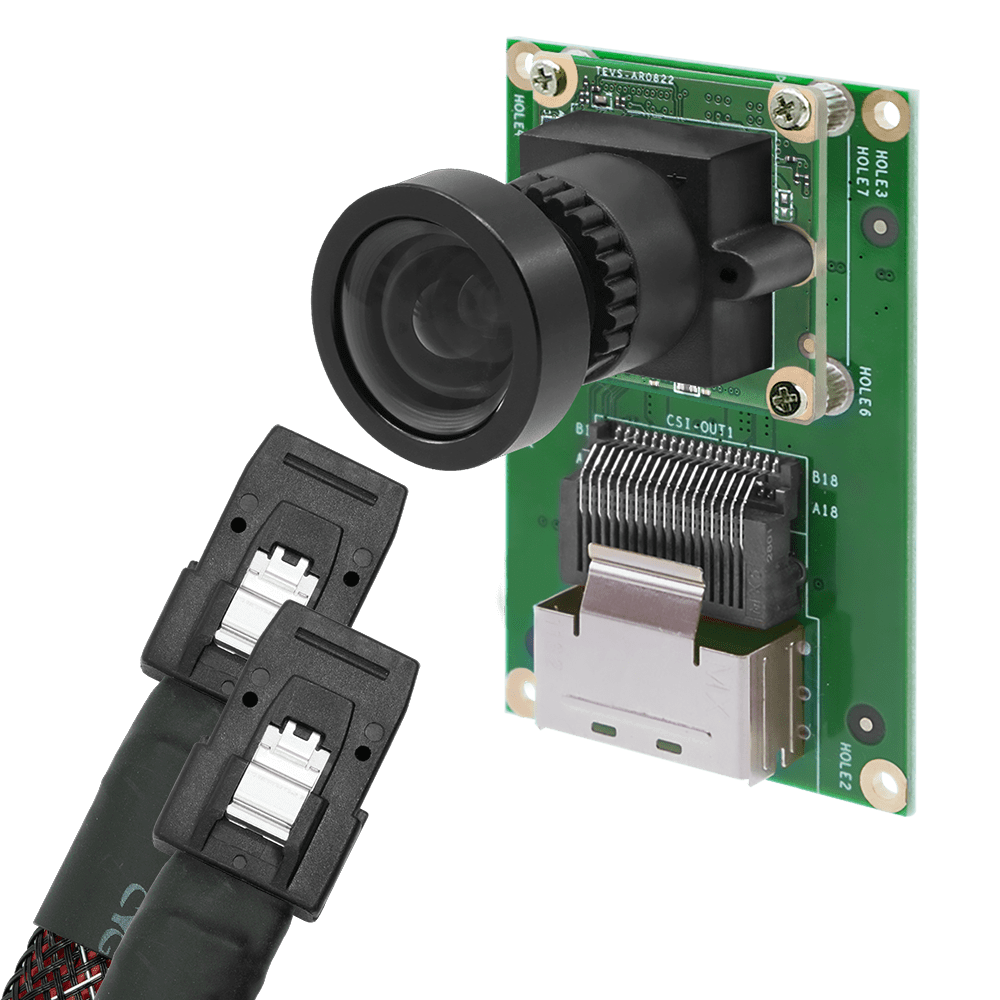

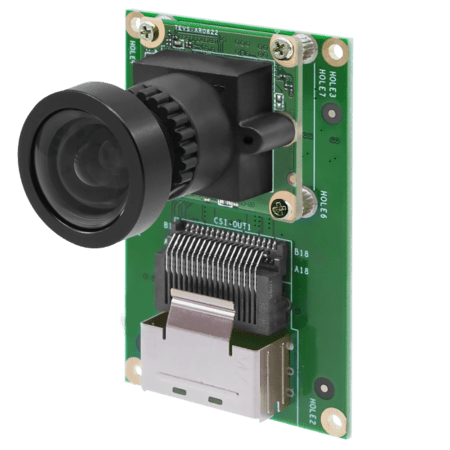

MIPI-CSI2 Sensor onsemi AR0822 8MP 4K Color Rolling Shutter with ISP + 72 Degree M12 Lens with IR-Cut Filter + MINI-SAS Cable for NXP i.MX8 EVK
30 in stock (can be backordered)
Specifications
Additional information
| CMOS Sensor | onsemi AR0822 |
|---|---|
| Active Pixels | 3848 (H) x 2168 (V) = 8MP |
| Pixel Size | 2.0 μm x 2.0 μm |
| Optical Format | 1/2” (Diagonal 8.81 mm) |
| Shutter Type | Rolling Shutter |
| Chromaticity | Color |
| Illuminated type | Back Side Illuminated (BSI) |
| Maximum Frame Rate (YUY2) | 3840 x 2160 @ 15 fps, 2560 x 1440 @ 30 fps, 1920 x 1080 @ 60 fps, 1280 x 720 @ 60 fps, 640 x 480 @ 60 fps |
| Maximum S/N Ratio | 40.5 dB |
| HDR Support | Yes |
| Input Clock Range | 48 MHz |
| Output Format | YUV2 |
| Module Data Transmission | MIPI CSI-2, up to 4 lanes |
| Communication Interface | I2C |
| Connector | Molex 757830132 36 Pin NXP EVK Kit Connector |
| Supply Voltage | Digital: 3.3V, Analog: 2.8V, I/O: 1.8V |
| Power Consumption | 3840 x 2160 @ 24 fps ≤ 1194 mW |
| Standby Power | ≤ 52 mW Standby |
| Platform Support | NXP i.MX93, NXP i.MX8M Plus, NXP i.MX8M Mini |
| Operation Systems | Linux, Yocto |
| SDK | VizionViewer™ / VizionSDK |
| Operation Temperature | -30°C to +70℃ |
| Dimensions | 24.5(W) x 24.5(H) x 22.7(D) mm |
| Weight | ≤ 20 grams |
| Certification | Compliant with CE / FCC / RoHS / REACH directives |
| Brand | TechNexion |
| Country of Origin | Taiwan |
| HTSN | 8525.80.5050 |
| ECCN | EAR99 |
| REACH / RoHS | Yes |
| Focus Type | Fixed Focus |
| Focal Length | 6 mm |
| Aperture | F2.8 |
| Lens D-FOV | 72.0° |
| Lens H-FOV | 61.0° |
| Lens V-FOV | 47.0° |
| Module D-FOV | 72.0° ± 5% |
| Module H-FOV | 64.7° ± 5% |
| Module V-FOV | 39.0° ± 5% |
| TTL | 28.6 mm |
| BFL | 8.8 mm |
| MOD | 0.1 m |
| Distortion | < 0.5% |
| IR-Filter | 650 nm |
| Lens Operating Temperature | -10°C to +50°C |
Spectral Characteristics
