TEVS-AR0822-NXP Medium FOV

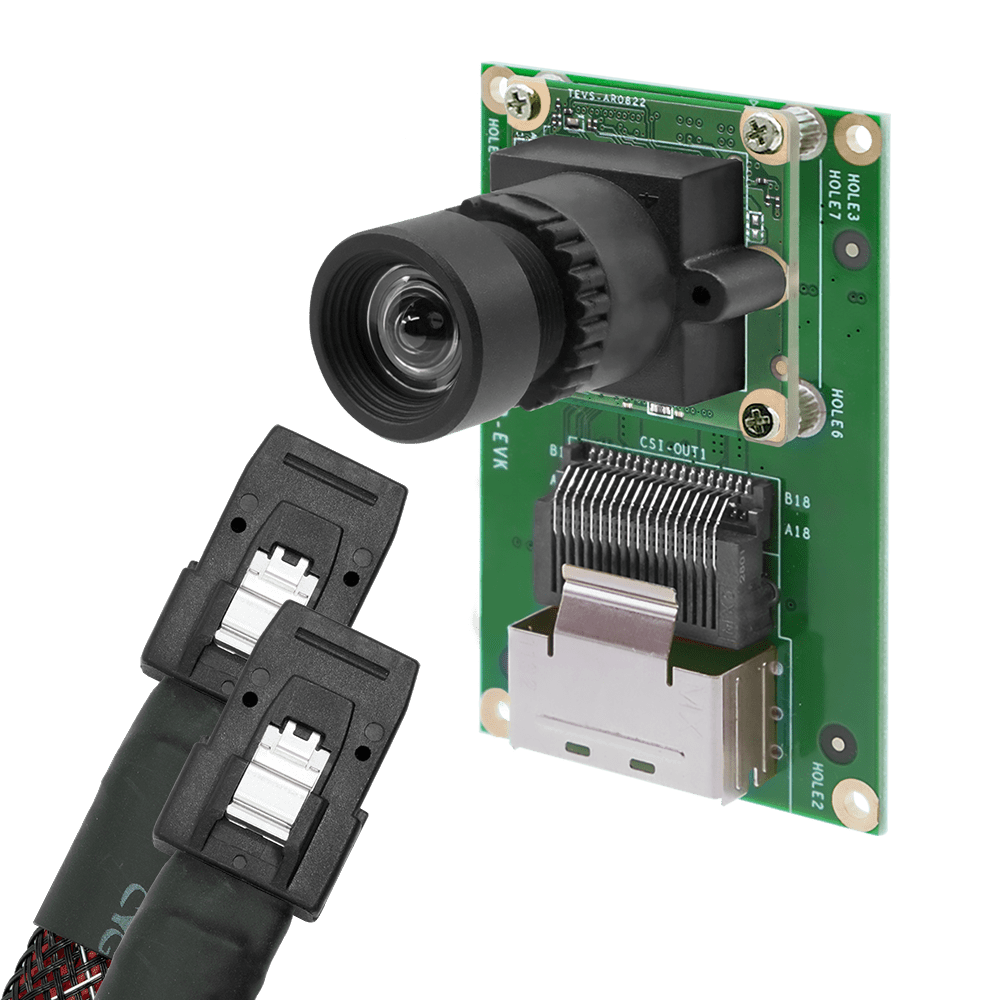

TEVS-AR0822-NXP Medium FOV Kit

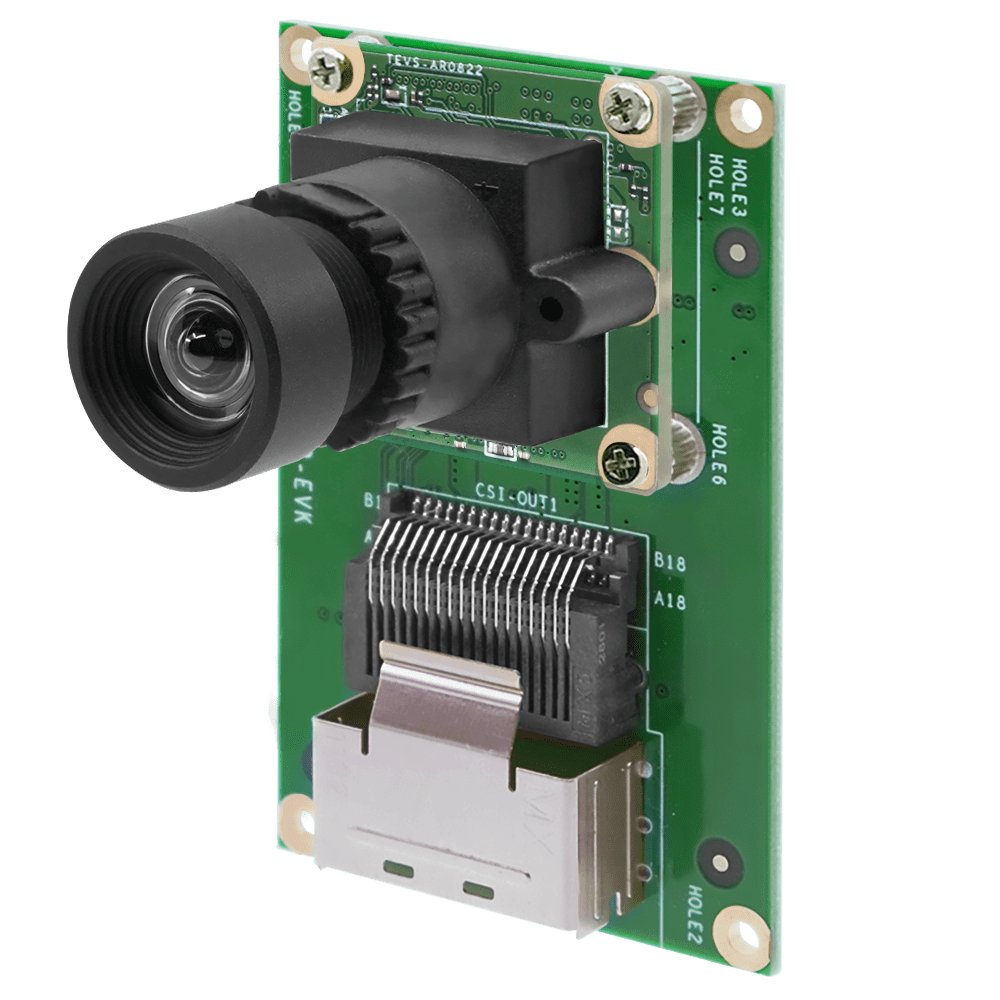

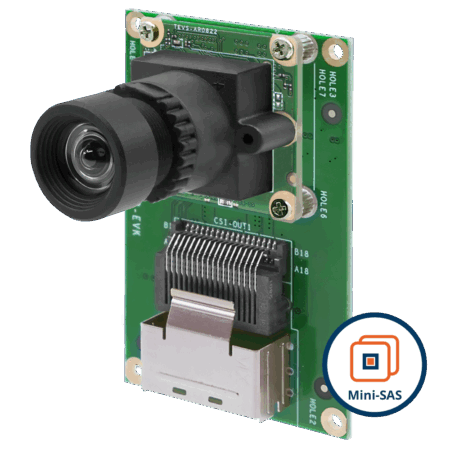

TEVS-AR0822-C-S42-IR-NXP

SKU: TEVSAR0822CS42IRNXP Category: MIPI-CSI2 Sensors

More Information

Product Brief

MIPI-CSI2 Sensor onsemi AR0822 8MP 4K Color Rolling Shutter with ISP + 42 Degree M12 Lens with IR-Cut Filter + MINI-SAS Cable for NXP i.MX8 EVK

3 in stock (can be backordered)

Quantity	Discount (%)	Price
1 - 99	—	$195.00
100 - 249	5 %	$185.25
250 - 499	10 %	$175.50
500+	15 %	$165.75

x

Specifications

Additional information

Camera Information

CMOS Sensor	onsemi AR0822
Active Pixels	3848 (H) x 2168 (V) = 8MP
Pixel Size	2.0 μm x 2.0 μm
Optical Format	1/2” (Diagonal 8.81 mm)
Shutter Type	Rolling Shutter
Chromaticity	Color
Illuminated type	Back Side Illuminated (BSI)
Maximum Frame Rate (YUY2)	1280 x 720 @ 60 fps 1920 x 1080 @ 60 fps 2560 x 1440 @ 30 fps 3840 x 2160 @ 15 fps 640 x 480 @ 60 fps
Maximum S/N Ratio	40.5 dB
HDR Support	Yes
Input Clock Range	48 MHz
Output Format	YUV2

Interface

Module Data Transmission	MIPI CSI-2, up to 4 lanes
Communication Interface	I2C
Connector	Molex 757830132 36 Pin NXP EVK Kit Connector

Power Specifications

Supply Voltage	Digital: 3.3V Analog: 2.8V I/O: 1.8V
Power Consumption	3840 x 2160 @ 24 fps ≤ 1194 mW
Standby Power	≤ 52 mW Standby

Software Support

Platform Support	NXP i.MX8M Plus NXP i.MX8M Mini NXP i.MX93
Operation Systems	Linux Yocto
SDK	VizionViewer™ / VizionSDK

Lens Information

Focus Type	Fixed Focus
Focal Length	12 mm
Aperture	F2.0
Lens D-FOV	41.0°
Lens H-FOV	38.0°
Lens V-FOV	22.0°
Module D-FOV	41.7° ± 5%
Module H-FOV	36.3° ± 5%
Module V-FOV	20.5° ± 5%
TTL	23.9 mm
BFL	3.88 mm
MOD	0.15 m
Distortion	< 0.2%
IR-Filter	650 nm
Lens Operating Temperature	-10°C to +50°C

Environmental and Mechanical

Dimensions	24.5(W) x 24.5(H) x 22.7(D) mm
Weight	≤ 20 grams
Operation Temperature	-30°C to +70℃

Certification and Compliance

Certification	Compliant with CE / FCC / RoHS / REACH directives

Commercial Information

Brand	TechNexion
Country of Origin	Taiwan
HTSN	8525.80.5050
ECCN	EAR99
REACH / RoHS	Yes

Spectral Characteristics

AR0822 Spectral Characteristics

You may be interested in…

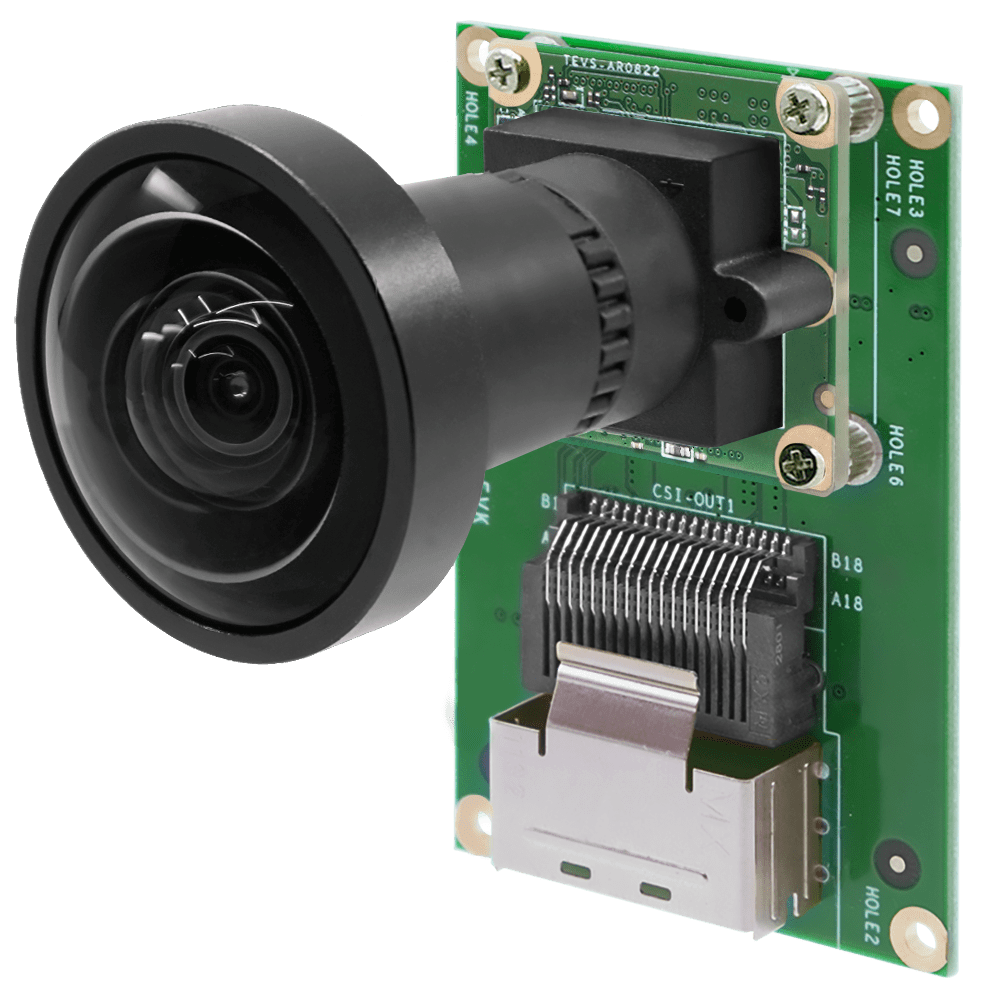

TEVS-AR0822-C-S150-IR-NXP

MIPI-CSI2 Sensor onsemi AR0822 8MP 4K Color Rolling Shutter with ISP + 150 Degree M12 Lens with IR-Cut Filter + MINI-SAS Cable for NXP i.MX8 EVK

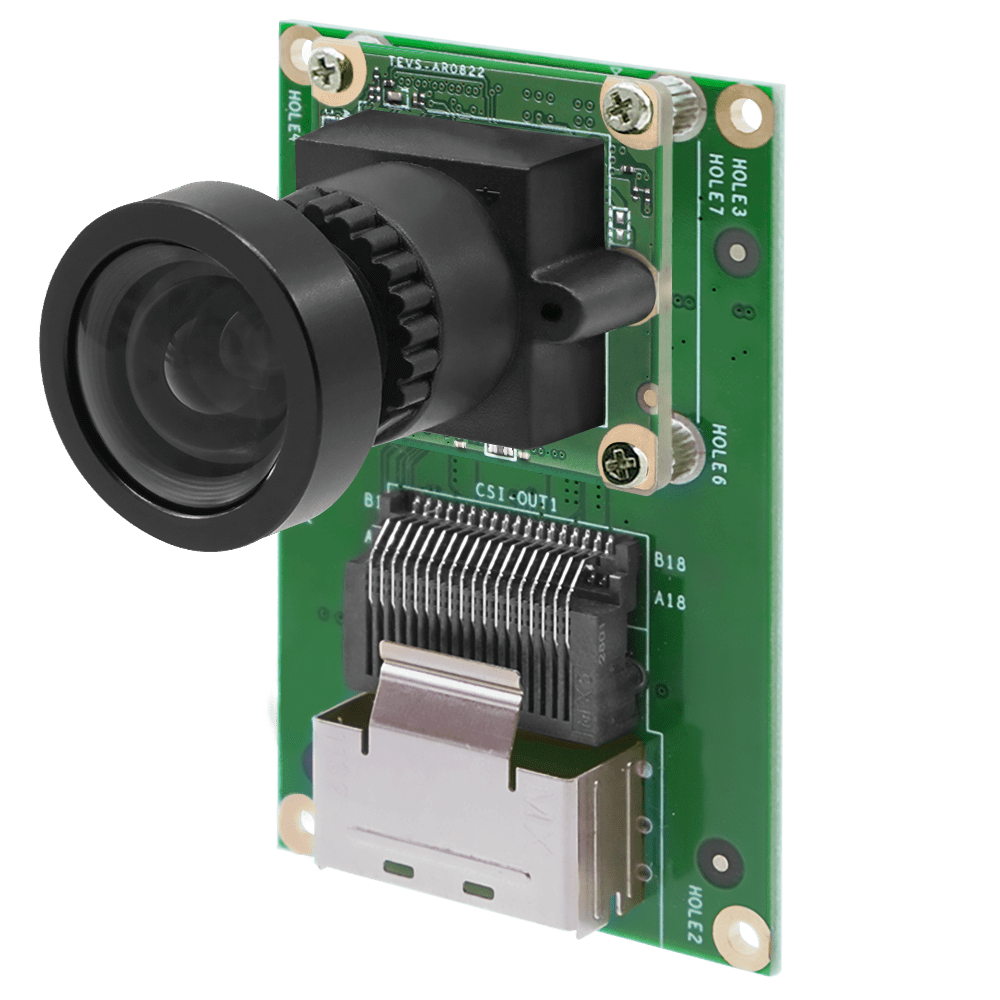

TEVS-AR0822-C-S72-IR-NXP

MIPI-CSI2 Sensor onsemi AR0822 8MP 4K Color Rolling Shutter with ISP + 72 Degree M12 Lens with IR-Cut Filter + MINI-SAS Cable for NXP i.MX8 EVK

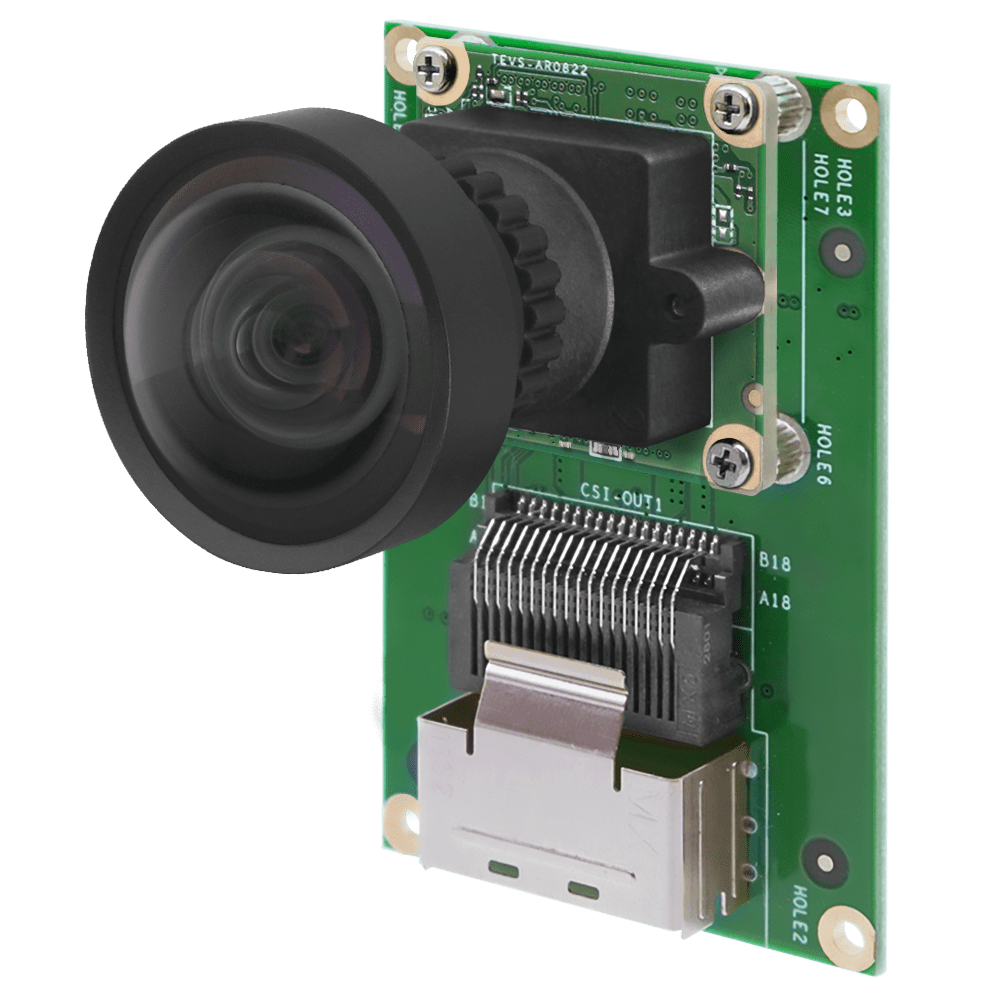

TEVS-AR0822-C-S108-IR-NXP
